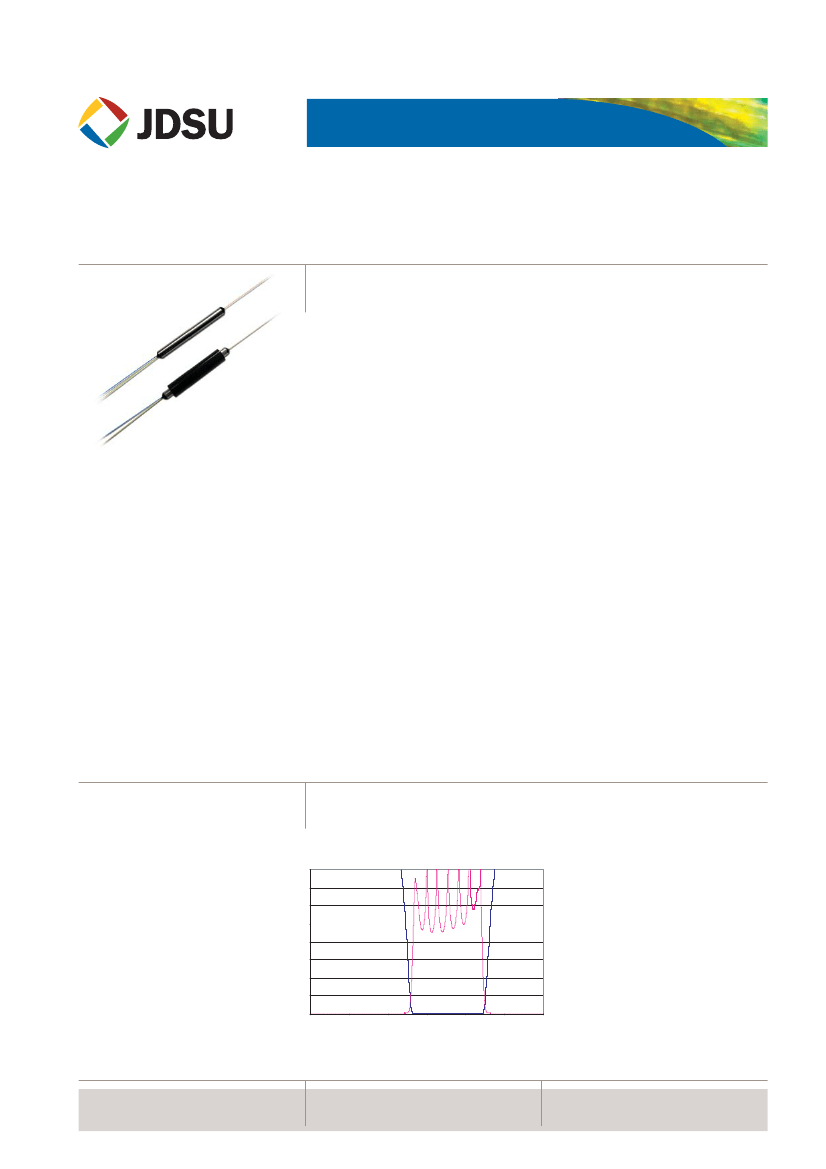

COMMUNICATIONS COMPONENTS
1536/1554 nm 3-Port Bandpass Wavelength Division Multiplexers
Key Features
• Thin film filter based
• Low insertion loss
• High isolation
• Low temperature dependent loss
• Epoxy-free optical path
Applications
• Red and blue band separators
• Erbium doped fiber amplifiers
(EDFAs)
JDSU 1536/1554 nm filter wavelength division multiplexers (WDMs) use
interference filter technology to separate and combine optical transmission signals.
Highly stable and reliable, these WDMs have high channel isolation, low insertion
loss, low temperature dependent loss, and low polarization dependent loss.
Compliance
• Telcordia GR-1221
Red Band
40
35
30
Loss (dB)
25
20
15
10
5
0
1520
1530
1540
1550
1560
1570
1580
Wavelength (nm)
NORTH AMERICA
:
800 498-JDSU (5378)
WORLDWIDE
:
+800 5378-JDSU
WEBSITE
:
www.jdsu.com
1536/1554 NM 3-PORT BANDPASS WAVELENGTH DIVISION
MULTIPLEXERS
2
Blue Band
40
35
30
Loss (dB)
25
20
15
10
5
0
1520 1525
1530
1535
1540
1545
1550
1555
1560
1565
1570
Wavelength (nm)
Specifications
Parameter
Pass port (C↔P) wavelength range
λ
P
Pass port (C↔P) insertion loss
Pass port (C↔P) flatness
Pass port (C↔P) isolation at
λ
R
Reflect port (C↔R) wavelength range
λ
R
Reflect port (C↔R) insertion loss
Reflect port (C↔R) flatness
Reflect port (C↔R) isolation at
λ
P
Directivity
Optical return loss
Polarization dependent loss
Polarization mode dispersion
Temperature dependent loss
Optical power
Tensile load
Operating temperature
Storage temperature
Package dimensions (D x L)
250 µm fiber
900 µm fiber
Fiber length
Pass 1536 / Reflect 1554
1529.30 to 1542.39 nm
Maximum
Maximum
Minimum
1547.46 to 1560.86 nm
Maximum
Maximum
Minimum
Minimum
Minimum
Maximum
Maximum
Maximum
Maximum
Maximum
Pass 1554 / Reflect 1536
1547.46 to 1560.86 nm
0.6 dB
0.3 dB
20 dB
1529.30 to 1542.39 nm
0.4 dB
0.15 dB
12 dB
55 dB
50 dB
0.05 dB
0.1 ps
0.1 dB
500 mW
5N
-5 to 75 °C
-40 to 85 °C
5.5 x 30 mm (Standard), 3.2 x 30 mm (Miniature)
5.5 x 40 mm (Standard), 3.2 x 40 mm (Miniature)
>1.0 m
1536/1554 NM 3-PORT BANDPASS WAVELENGTH DIVISION
MULTIPLEXERS
Ordering Information
For more information on this or other products and their availability, please contact your local JDSU account manager or
JDSU directly at 1-800-498-JDSU (5378) in North America and +800-5378-JDSU worldwide or via e-mail at
customer.service@jdsu.com.
Sample: FWS-360S31000
FWS-
Code
36
54
Wavelength
Pass 1536/reflect 1554
Pass 1554/reflect 1536
Code
0
1
Package
Standard
Miniature
S3
Code
1
2
Fiber Type
250 µm fiber
900 µm fiber
00
Code
0
1
2
3
4
5
6
Connector
1, 2
No connector
FC/SPC
FC/APC
SC/SPC
SC/APC
ST
LC/SPC
1. Connectors available only with 900 µm fiber option.
2. Other connectors available upon request.
NORTH AMERICA
:
800 498-JDSU (5378)
WORLDWIDE
:
+800 5378-JDSU
WEBSITE
:
www.jdsu.com
Product specifications and descriptions in this document subject to change without notice. © 2008 JDS Uniphase Corporation 21021900 003 0708 WDMFILTERREDBLUECBAND.DS.CC.AE July 2008
SMF-28 is a registered trademark of Corning Incorporated. Telcordia is a registered trademark of Telcordia Technologies Incorporated.
