DC37-ST-3-.291-BL/9.6-JS/28 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> DC37-ST-3-.291-BL/9.6-JS/28

Preview

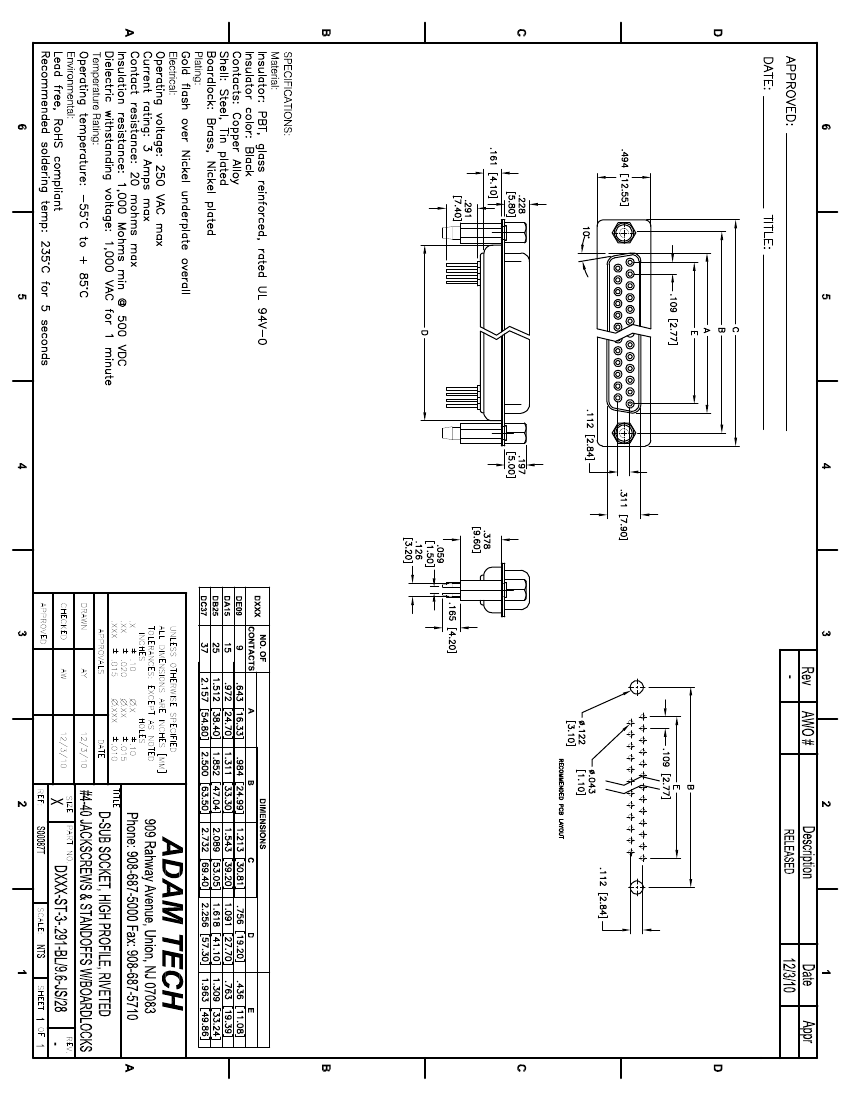

DC37-ST-3-.291-BL/9.6-JS/28: DescriptionD Type Connector, 37 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, #4-40, Plug; CategoryThe connector The connector; File Size97KB，1 Pages; ManufacturerAdam Tech

Download Datasheet Parametric Compare View All

DC37-ST-3-.291-BL/9.6-JS/28 Overview

D Type Connector, 37 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, #4-40, Plug

DC37-ST-3-.291-BL/9.6-JS/28 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
Other features	ROHS COMPLIANT
body width	0.494 inch
subject depth	0.378 inch
body length	2.732 inch
Body/casing type	PLUG
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD OVER NICKEL
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	STAGGERED
Contact resistance	20 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VAC V
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	D
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Installation option 1	#4-40
Installation option 2	RIVET & JACKSCREW
Installation method	STRAIGHT
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	2.8448 mm
Plating thickness	FLASH inch
Rated current (signal)	3 A
Guideline	UL, CSA
reliability	COMMERCIAL
Shell surface	TIN
Shell material	STEEL
Terminal length	0.165 inch
Terminal pitch	2.7686 mm
Termination type	SOLDER
Total number of contacts	37
Base Number Matches	1

Preview

Download Datasheet

View All

DC37-ST-3-.291-BL/9.6-JS/28 Related Products

	DC37-ST-3-.291-BL/9.6-JS/28	DB25-ST-3-.291-BL/9.6-JS/28	DE09-ST-3-.291-BL/9.6-JS/28
Description	D Type Connector, 37 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, #4-40, Plug	D Type Connector, 25 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, #4-40, Plug	D Type Connector, 9 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, #4-40, Plug
Reach Compliance Code	compliant	compliant	compliant
Other features	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
body width	0.494 inch	0.494 inch	0.494 inch
subject depth	0.378 inch	0.378 inch	0.378 inch
body length	2.732 inch	2.089 inch	1.213 inch
Body/casing type	PLUG	PLUG	PLUG
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI
Contact completed and terminated	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL
Contact point gender	FEMALE	FEMALE	FEMALE
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
contact mode	STAGGERED	STAGGERED	STAGGERED
Contact resistance	20 mΩ	20 mΩ	20 mΩ
Contact style	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT
Dielectric withstand voltage	1000VAC V	1000VAC V	1000VAC V
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω
Insulator color	BLACK	BLACK	BLACK
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	D	D	D
Plug contact pitch	0.109 inch	0.109 inch	0.109 inch
Match contact row spacing	0.112 inch	0.112 inch	0.112 inch
Installation option 1	#4-40	#4-40	#4-40
Installation option 2	RIVET & JACKSCREW	RIVET & JACKSCREW	RIVET & JACKSCREW
Installation method	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD
PCB row number	2	2	2
Number of rows loaded	2	2	2
Maximum operating temperature	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
PCB contact pattern	STAGGERED	STAGGERED	STAGGERED
PCB contact row spacing	2.8448 mm	2.8448 mm	2.8448 mm
Plating thickness	FLASH inch	FLASH inch	FLASH inch
Rated current (signal)	3 A	3 A	3 A
Guideline	UL, CSA	UL, CSA	UL, CSA
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL
Shell surface	TIN	TIN	TIN
Shell material	STEEL	STEEL	STEEL
Terminal length	0.165 inch	0.165 inch	0.165 inch
Terminal pitch	2.7686 mm	2.7686 mm	2.7686 mm
Termination type	SOLDER	SOLDER	SOLDER
Total number of contacts	37	25	9
Base Number Matches	1	1	1
