SBR3060R
Elektronische Bauelemente
VOLTAGE 60V
30
.0AMP Schottky Barrier Rectifiers
RoHS Compliant Product
A suffix of "-C" specifies halogen & lead-free
TO-220
FEATURES
* Low forward voltage drop
* High current capability
* High reliability
* High surge current capability
* Epitaxial construction
.108
(2.75)
.412
(10.5)
MAX.
3.8
f
+.2
HOLE THRU
.248
(6.3)
.180
(4.6)
.050
(1.27)
.595
(15.1)
MAX.
MECHANICAL DATA
* Case: Molded plastic
* Epoxy: UL 94V-0 rate flame retardant
* Lead: Lead solderable per MIL-STD-202,
method 208 guaranteed
* Polarity: As Marked
* Mounting position: Any
* Weight: 2.24 grams(Approximately)
.051 MAX.
(1.3)
.040 MAX.
(1.0)
.100
(2.54)
.550
(14.0)
.158
(4.0) MIN.
MAX.
.120
(3.05)
PIN 1
PIN 3
+
CASE
PIN 2
Dimensions in inches and (millimeters)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Rating 25 C ambient temperature unless otherwise specified.
Single phase half wave, 60Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
TYPE NUMBER
Maximum Recurrent Peak Reverse Voltage
Working Peak Reverse Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Rectified Current
(Per Leg)
(Per Device)
Peak Forward Surge Current, 8.3 ms single half sine-wave
superimposed on rated load (JEDEC method)
Maximum Instantaneous Forward Voltage (I
F
= 15 Amps,T
F
= 25 C, per leg)
Maximum Instantaneous Forward Voltage (I
F
= 15 Amps,T
F
= 125 C, per leg)
Maximum DC Reverse Current
Ta=25
o
C
at Rated DC Blocking Voltage
Typical Junction Capacitance (Note1)
Typical Thermal Resistance (Note 2)
Voltage Rate Of Chance (Rated V
R
)
Operating Temperature Range
Storage Temperature Range
NOTES:
SYMBOL
V
RRM
V
RSM
V
DC
I
F
I
FSM
V
F
I
R
C
J
Rθ
JA
dv/dt
T
J
T
STG
SBR3060R
60
60
60
15
30
180
0.68
0.62
0.5
12
1700
2.5
10000
-50
~
+150
-65
~
+175
UNITS
V
V
V
A
A
V
mA
o
Ta=100 C
o
pF
C/W
C
C
V/us
1. Measured at 1MHz and applied reverse voltage of 5.0V D.C.
2. Thermal Resistance Junction to Case.
01-Jun-2006 Rev. A
http://www.SeCoSGmbH.com
Any changing of specification will not be informed individual
Page 1 of 2
SBR3060R
Elektronische Bauelemente
VOLTAGE 60V
30
.0AMP Schottky Barrier Rectifiers

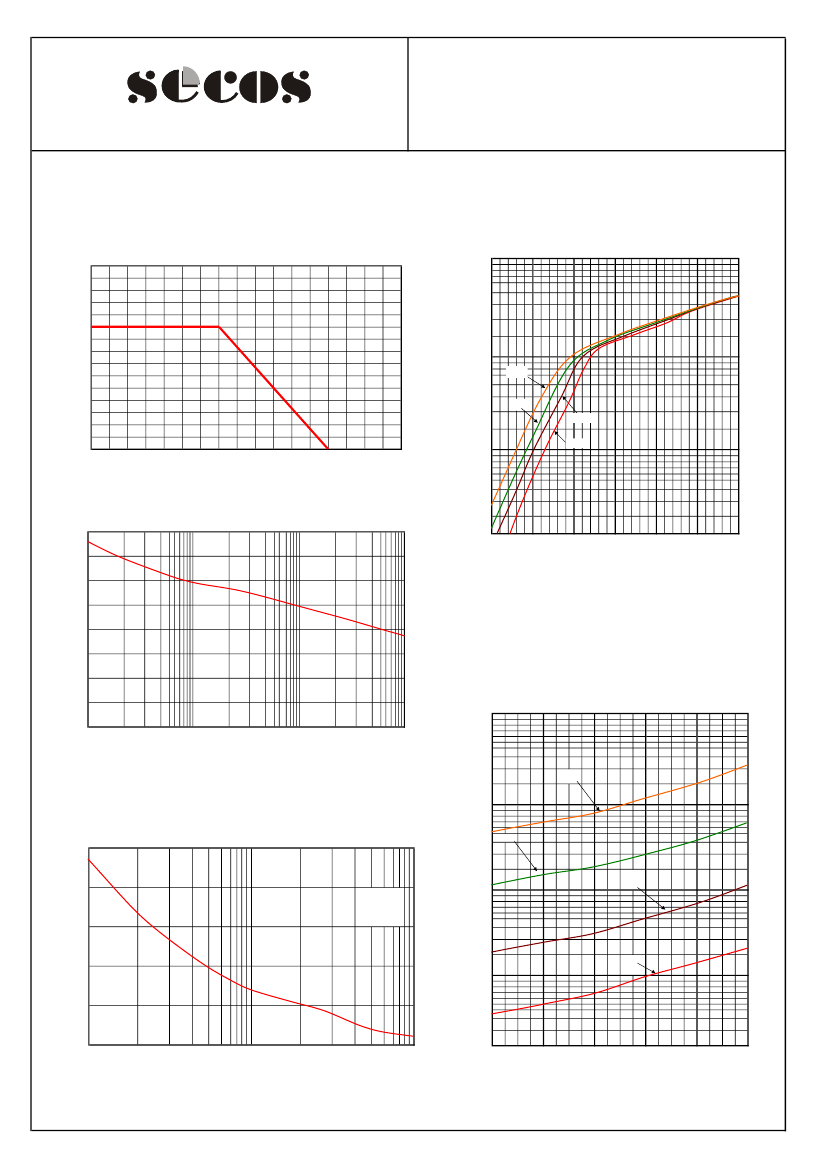

RATING AND CHARACTERISTIC CURVES
Typical Forward Current Derating Curve
50
Typical Forward Characteristic
Average Forward Current (A); per Leg
21
18
15
12
Instantaneous Forward Current (A) ,Per Leg
5
100℃
9
6
2
75℃
50℃
25℃
3
0
20
50
100
150
190
1
Tc, Case Temperature (℃)
Typical Junction Capacitance
2000
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
Junction Capacitance (pF)
Forward Voltage (V)
1500
1000
500
Typical Reverse Characteristic
100
0
0.1
1
10
100
Revise Voltage (%)
100℃
10
Reverse Curren
t(mA)
Maximum Non- Repetitive Forward
Surge Current
200
75℃
Peak Forwad surge Current (A)
160
Tj=25℃
8.3mS Single half
Sine Wave
JEDEC Method
1
50℃
120
80
0.1
40
25℃
0
0
10
100
0.01
20
30
40
50
60
70
Number of Cycles at 60Hz
Reverse Voltage(V)
http://www.SeCoSGmbH.com
Any changing of specification will not be informed individua
l
01-Jun-2006 Rev. A
Page 2 of 2
