DALC112S1-T7-LF datasheet, PDF

Datasheet> All Categories > Discrete semiconductor> diode> DALC112S1-T7-LF

DALC112S1-T7-LF: DescriptionTrans Voltage Suppressor Diode, Unidirectional, 12 Element, Silicon, ROHS COMPLIANT, SO-8; CategoryDiscrete semiconductor diode; File Size95KB，4 Pages; ManufacturerProTek Devices; Websitehttp://www.protekdevices.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

DALC112S1-T7-LF Overview

Trans Voltage Suppressor Diode, Unidirectional, 12 Element, Silicon, ROHS COMPLIANT, SO-8

DALC112S1-T7-LF Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Parts packaging code	SOD
package instruction	R-PDSO-G8
Contacts	8
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ULTRA LOW CAPACITANCE
Configuration	COMPLEX
Diode component materials	SILICON
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE
JESD-30 code	R-PDSO-G8
JESD-609 code	e3
Number of components	12
Number of terminals	8
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	270
polarity	UNIDIRECTIONAL
Maximum power dissipation	0.145 W
Certification status	Not Qualified
surface mount	YES
technology	AVALANCHE
Terminal surface	PURE TIN
Terminal form	GULL WING
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

Preview

Download Datasheet

View All

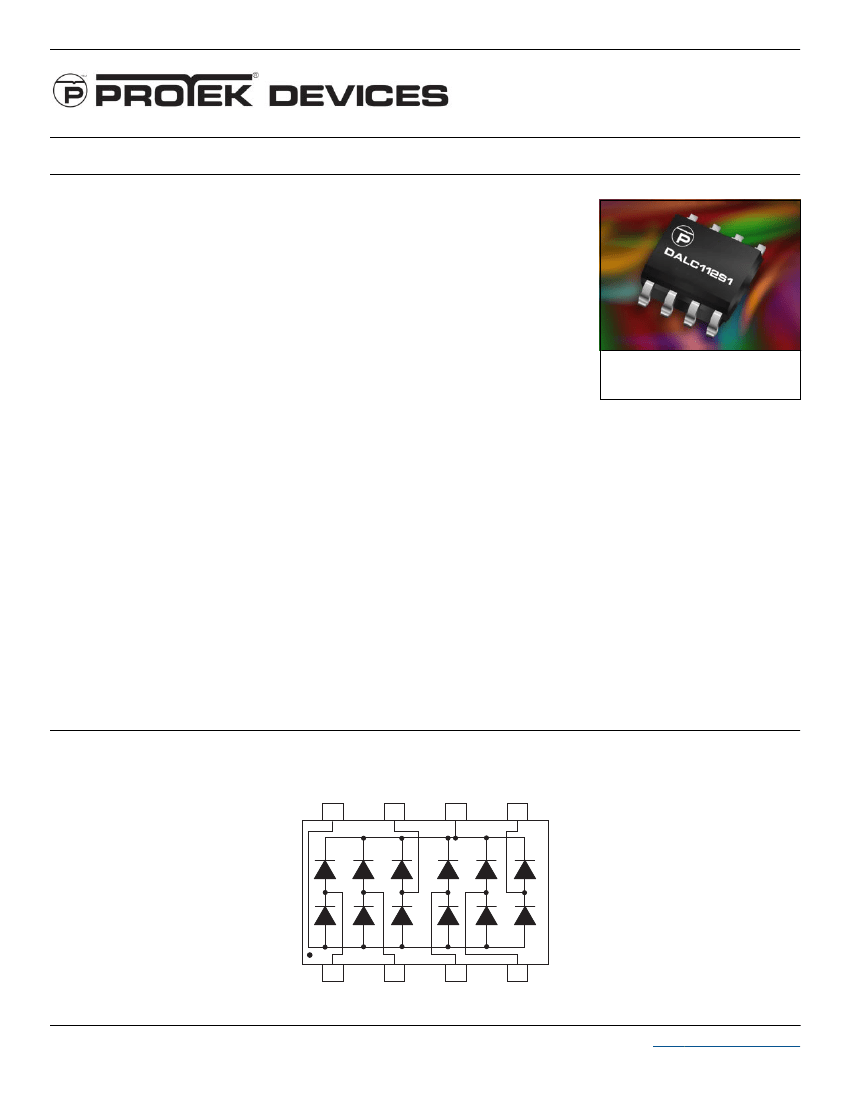

05177

DALC112S1

Only One Name Means ProT

ek’Tion™

STEERING DIODE ARRA

APPLICA

TIONS

✔

Ethernet - 10/100/1000 Base T

✔

Cellular Phones

✔

Handheld Electronics

✔

FireWire

✔

USB Interface

IEC COMPA

TIBILITY

(EN61000-4)

✔

61000-4-2 (ESD): Air - 15kV, Contact - 8kV

✔

61000-4-4 (EFT): 40A - 5/50ns

✔

61000-4-5 (Surge): 12A, 8/20µs - Level 1(Line-Gnd) & Level 2(Line-Line)

FEA

TURES

✔

ESD Protection > 40 kilovolts

✔

Low Clamping Voltage

✔

Provides Six (6) Lines of Protection

✔

LOW LEAKAGE CURRENT < 200nA

✔

ULTRA LOW CAPACITANCE: 5pF Typical

✔

RoHS Compliant on Lead-Free Versions

MECHANICAL CHARACTERISTICS

✔

Molded JEDEC SO-8

Weight 70 milligrams (Approximate)

Available in Tin-Lead or Lead-Free Pure-Tin Plating(Annealed)

Solder Reflow Temperature:

Tin-Lead - Sn/Pb, 85/15: 240-245°C

Pure-Tin - Sn, 100: 260-270°C

✔

Flammability rating UL 94V-0

✔

12mm Tape and Reel Per EIA Standard 481

✔

Marking: Marking Code, Logo, Date Code & Pin One Defined By Dot on Top of Package

SO-8

PIN CONFIGURA

TION

REF 1

I/O 6

REF 2

I/O 5

I/O 1

I/O 2

I/O 3

I/O 4

05177.R2 3/05

www.protekdevices.com
