Process Sealed Miniature Pushbuttons
Series M2
Distinctive Characteristics

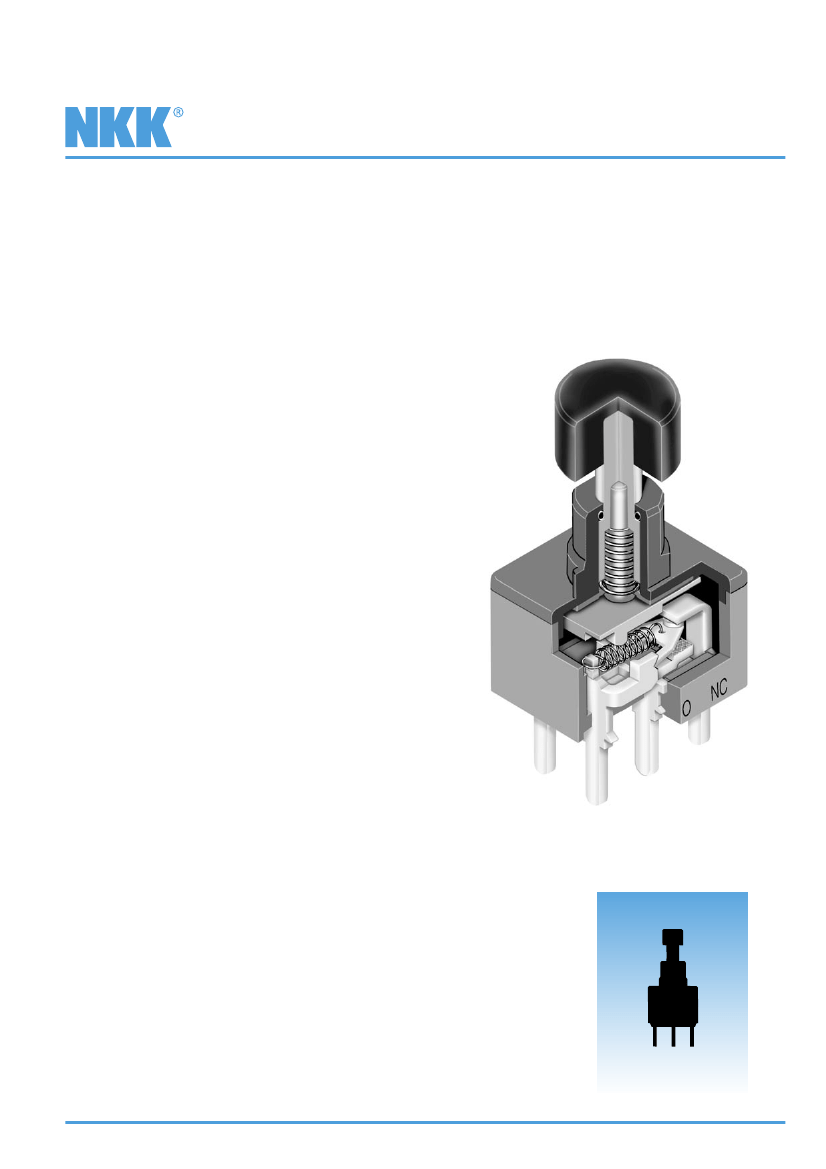

Snap-acting contact mechanism gives short travel, sensitive actuation,
light touch, smooth feel, audible feedback, and a longer electrical life.
Single unit construction of the bushing and top of the
housing gives protection from cleaning fluids or
other liquids.
O-ring surrounding actuator at top of bushing
interior prevents liquids from reaching switch
mechanism.
Ultrasonic welding of upper and lower
housing seals out contaminants and allows
automated soldering and cleaning.
Terminals are epoxy sealed to prevent entry
of flux, solvents, and other contaminants.
Bracketed models have crimped bracket legs to
ensure secure PC mounting and prevent dislodging
during automated soldering.
Logic level and power capabilities are available to suit varying
applications.
Actual Size
NKK Switches • email: sales@nkkswitches.com • Phone (480) 991-0942 • Fax (480) 998-1435 • www.nkkswitches.com
03-07
Process Sealed Miniature Pushbuttons
Series M2
General Specifications
Electrical Capacity (Resistive Load)
Power Level (code W):
Logic Level (code G):
Logic/Power Level (code A):
1A @ 125V AC or 1A @ 30V DC
0.4VA maximum @ 28V AC/DC maximum
(Applicable Range 0.1mA ~ 0.1A @ 20mV ~ 28V)
Combines W & G ratings
Note: Find additional explanation of dual rating & operating range in Supplement section.
20 milliohms maximum for silver; 30 milliohms maximum for gold
1,000 megohms minimum @ 500V DC
1,000V AC minimum between contacts for 1 minute minimum;
1,500V AC minimum between contacts & case for 1 minute minimum
200,000 operations minimum
25,000 operations minimum for silver; 100,000 operations minimum for gold
Single pole 2.94N & double pole 4.90N
Nonshorting (break-before-make)
Pretravel .023” (0.6mm); Overtravel .016” (0.4mm); Total Travel .039” (1.0mm)
Brass with nickel plating
Brass with tin plating
Glass fiber reinforced polyamide (UL94V-0)
Nitrile butadiene rubber
Glass fiber reinforced polyamide (UL94V-0)
Silver alloy with silver plating (code W); copper with gold plating (code G);
or silver alloy with gold plating (code A)
Silver alloy with silver plating (code W); copper with gold plating (code G);
or silver alloy with gold plating (code A)
Brass with silver or gold plating
–30°C through +85°C (–22°F through +185°F)
90 ~ 95% humidity for 96 hours @ 40°C (104°F)
10 ~ 55Hz with peak-to-peak amplitude of 1.5mm traversing the frequency range
& returning in 1 minute; 3 right angled directions for 2 hours
50G (490m/s
2
) acceleration (tested in 6 right angled directions, with 5 shocks in each direction)
49.0N (11.0 lbf) for plunger A & 79.4N (17.9 lbf) for plunger B
Wave Soldering Recommended: See Profile B in Supplement section.
Manual Soldering: See Profile B in Supplement section.
Automated cleaning. See Cleaning specifications in Supplement section.
UL94V-0 rated bushing/housing & base
All models recognized at 1A @ 125V AC, 1A @ 30V DC, or 0.4A @ 28V DC;
UL File No. WOYR2.E44145; add “/U” to end of part number to order UL mark on switch;
C-UL File No. WOYR8.E44145; add “/C-UL” to end of part number to order C-UL mark on switch.
All models certified at 1A @ 125V AC, 1A @ 30V DC, or
0.4A @ 28V DC; CSA File No. 023535-0-000;
add “/C” to end of part number to order CSA mark on switch.
Other Ratings
Contact Resistance:
Insulation Resistance:
Dielectric Strength:
Mechanical Life:
Electrical Life:
Nominal Operating Force:
Contact Timing:
Travel:
Materials & Finishes
Plunger:
Support Bracket:
Bushing/Housing:
Sealing Ring:
Base:
Movable Contacts:
Stationary Contacts:
Terminals:
Environmental Data
Operating Temp Range:
Humidity:
Vibration:
Shock:
Installation
Cap Installation Force:
Soldering:
Cleaning:
PCB Processing
Standards & Certifications
Flammability Standards:
UL & C-UL Recognized:
R
CSA Certified:
NKK Switches • email: sales@nkkswitches.com • Phone (480) 991-0942 • Fax (480) 998-1435 • www.nkkswitches.com
03-07
Process Sealed Miniature Pushbuttons
TYPICAL SWITCH ORDERING EXAMPLE
Series M2
F
C
M2B
15
A
A5
G
30
POLES & CIRCUITS
15
25
SPDT
DPDT
ON
ON
(ON)
(ON)
CONTACT MATERIALS
& RATINGS
W
Silver;
Rated 1A @ 125V AC
& 1A @ 30V DC
Gold;
Rated 0.4VA maximum
@ 28V AC/DC maximum
Gold over Silver; Rated
1A @ 125V AC & 0.4VA
max @ 28V AC/DC max
F
H
B
C
SNAP-ON CAPS
For Plunger A
.201” (5.1mm) Diameter
.295” (7.5mm) Diameter
For Plunger B
.315” (8.0mm) Diameter
.394” (10.0mm) Diameter
( ) = Momentary
G
PLUNGERS
A
B
.282” (7.16mm) Long
for cap codes F & H
.307” (7.8mm) Long
for cap codes B & C
A
CAP COLORS
A
Black
White
Red
Yellow
Green
Blue
Gray
PC TERMINALS
BUSHING
A5
.250” (6.35mm)
Double Flatted
03
13
30
40
Straight
Straight with
.460” (11.7mm) Bracket
.150” (3.81mm) Right Angle
.150” (3.81mm) Vertical
B
C
*
E
*
F
*
G
*
H
IMPORTANT:
Switches are supplied without UL, C-UL, & CSA
markings unless specified. Specific models &
ratings noted on General Specifications page.
*
For cap codes
B & C only
DESCRIPTION FOR TYPICAL ORDERING EXAMPLE
M2B15AA5G30-FC
.250” (6.35mm) Bushing
with Double Flat
SPDT
ON-(ON) Circuit
Right Angle PC Terminals
Red .201” (5.1mm) Diameter Cap
on .282” (7.16mm) Long Plunger
Gold Contacts with 0.4VA Rating
NKK Switches • email: sales@nkkswitches.com • Phone (480) 991-0942 • Fax (480) 998-1435 • www.nkkswitches.com
03-07
Process Sealed Miniature Pushbuttons
POLES & CIRCUITS
Plunger Position
( ) = Momentary
Normal
Pole
SP
Model
M2B15
ON
(ON)
1-3
1-2
SPDT
Down
Connected Terminals
Normal
Down
Note:
Series M2
Throw & Schematics
Terminal numbers are
not actually on the switch.
1 (COM)
3
1 (COM)
3
2
6
2
4
5
DP
M2B25
ON
(ON)
1-3 4-6
1-2 4-5
DPDT
PLUNGERS
A
.282” (7.16mm) Long
(2.84) Dia
.112
(3.0) Dia
.118
B
.307” (7.8mm) Long
(3.0) Dia
.118
(7.8)
.307
For cap codes F & H
Material:
Chrome over brass
(7.16)
.282
For cap codes B & C
Material:
Chrome over brass
BUSHING
A5
.250” (6.35mm) Double Flatted
(6.8)
.268
(5.2)
.205
(6.2)
.244
(6.35)
.250
CONTACT MATERIALS & RATINGS
W
G
Silver over Silver
Power Level
1A @ 125V AC & 1A @ 30V DC
Gold over Brass or Copper
Logic Level
0.4VA maximum @ 28V AC/DC maximum
Complete explanation of operating range in Supplement section.
A
Gold over Silver
Power Level
or Logic Level
1A @ 125V AC
or 0.4VA maximum @ 28V AC/DC maximum
Note: This dual rated option is suitable when two or more identical switches are used in logic and in power circuits
within the same application. See Supplement section for complete explanation of dual rating and operating range.
NKK Switches • email: sales@nkkswitches.com • Phone (480) 991-0942 • Fax (480) 998-1435 • www.nkkswitches.com
03-07
Process Sealed Miniature Pushbuttons

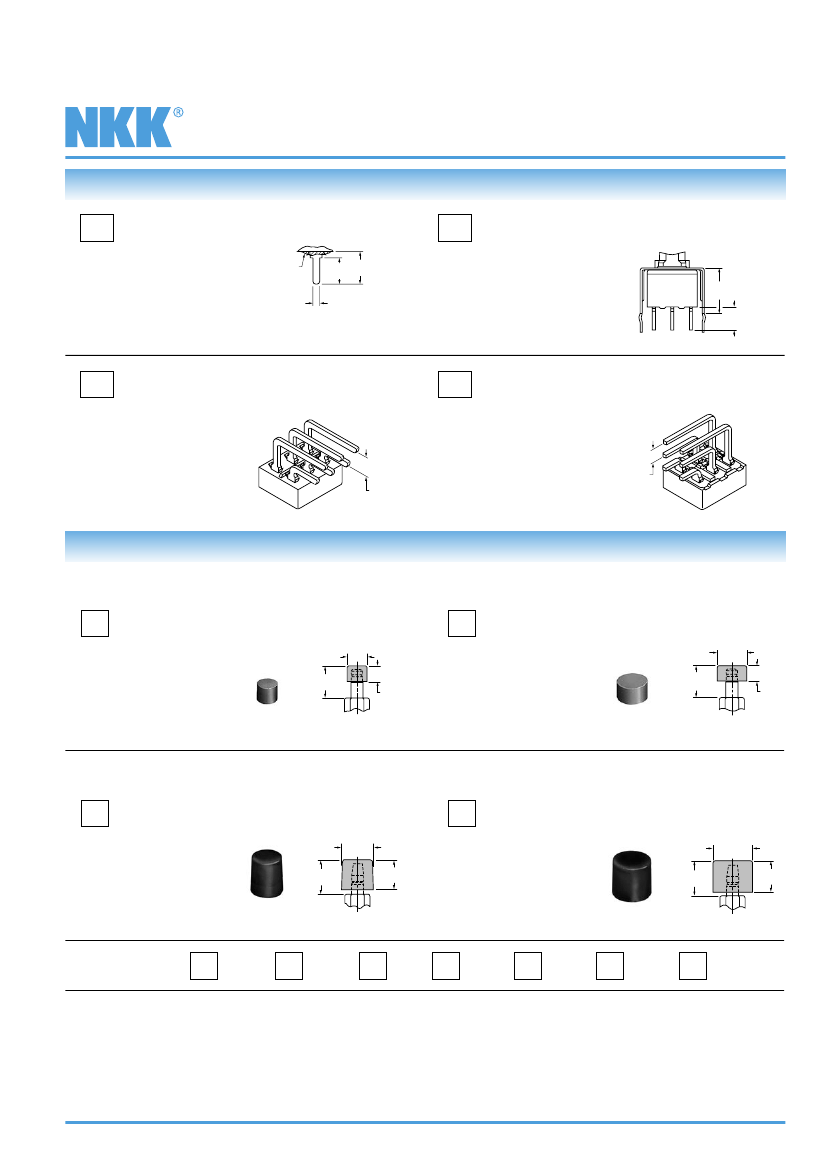

PC TERMINALS
03
Straight
Epoxy Seal
(4.8) (5.9)
.189 .232
(1.17)
.046
Thk = (0.8)
.031
Series M2
13
Straight with
.460” (11.7mm) Bracket
(11.7)
.460
(5.9)
.232
30
.150” (3.81mm) Right Angle
40
.150” (3.81mm) Vertical
(3.81)
.150
(3.81)
.150
SNAP-ON CAPS
For Plunger Type A
F
AT475
.201” (5.1mm) Diameter
(5.1) Dia
.201
H
(8.05)
.317
AT496
.295” (7.5mm) Diameter
(7.5) Dia
.295
Material: Polyamide
Colors Available:
A, B, C
(4.0)
.157
Material: Polyamide
Colors Available:
A, B, C
(8.05)
.317
(4.0)
.157
For Plunger Type B
B
AT443
.315” (8.0mm) Diameter
(8.0) Dia
.315
C
(7.6)
.299
AT442
.394” (10.0mm) Diameter
(10.0) Dia
.394
(9.0)
.354
(8.0)
.315
Material: Polycarbonate
Colors Available:
A, B, C, E, F, G, H
(8.8)
.346
Material: Polycarbonate
Colors Available:
A, B, C, E, F, G, H
Cap Colors
Codes:
A
Black
B
White
C
Red
E
Yellow
F
Green
G
Blue
H
Gray
NKK Switches • email: sales@nkkswitches.com • Phone (480) 991-0942 • Fax (480) 998-1435 • www.nkkswitches.com
03-07
