400W AC-DC ACTIVE PFC MEDICAL POWER SUPPLY
MPA400M SINGLE OUTPUT SERIES
FEATURES:
•
•
•
•
•
•
•
U - Chassis Type: 8 x 5 x 1.6”
Enclosed with built-in fan Type: 9 x 5 x 1.6”
Medical Safety Approvals
Optional N+1 Forced Active Current Sharing
Power Factor Corrected to EN61000-3-2 class D
Providing Peak Power 700W within 500uS duty duration
U-Chassis & Enclosed with built-in fan Mechanical Options
1U height size and High power density: 6.25 watts/cu inches
Current Monitoring and Remote Voltage adjustment (Margin)
PRODUCT SPECIFICATIONS:
Input Voltage:
90-264 Vac full range, 47~63 Hz.
Input Current:
6.35A at 90VAC full load.
Inrush Current:
35A Max @ 230 Vac with full load and cold start.
PFC:
Active power factor correction meet EN61000-3-2 class D.
Fan Drive:
12VDC/400mA is available to drive an external fan.
Transient Response:
Returns to within 1% in less than 2.5 mS for
a 50% load change and the peak transient does not excess 5%.
Overshoot:
Turn-on/off not exceed 5% over nominal voltage.
Efficiency:
82% minimum (Measuring at 230V and full load).
Turn On Delay
: 1 second maximum at 120 VAC.
Hold Up Time:
20 mS min. at 80% of full load.
Adjustability:
Output user adjustable ±5% minimum.
Remote Sense:
Designated “RS+” and “RS-” on the CN3.
(Not available for current sharing models)
Remote On-Off:
Designated as “RSW” on the CN3, requires a low
signal to inhibit output.
Power Supply On:
Green LED designated as “LED 1” on the PCB.
LED display:
Bi-color “LED1” emit green light on operating. Any
protection occurred or RSW applied low signal will emit orange.
Power Good:
Designated as “PG” on the CN3 will go high 100-
500 mS after regulation and goes low 1mS before loss of regulation.
Current Sharing:
Designated as “CSH” on the CN3, optional
single wired for forced current sharing function and parallel up to 4
units within 10% accuracy at full load.
Current Monitor:
Designated as “CMN” on the CN3 for current
sense for a 0.5V to 3 VDC to represent 0% to 100% output current.
Margin:
Designated as “MGN” on the CN3 providing 50% of output
voltage remote adjustment by applying 0.4 ~ 5V signal on “MGN”.
AC Fail (optional):
Designated as “ACF” on the CN3 to monitor the
input voltage, when input goes under 80 +/- 5VAC the signal will go
low (0V) and then go high (+5V) once reappears over 86 Vac.
(Input voltage protection must be disabled when AC Fail is enable.)
Input Circuit (primary):
Two protected fuse inserted, shall be
blown only by an internal power fault.
CB
Input Voltage Protection:
Power shut down under 80 ±5 Vac,
and recovered over 86 Vac.
(Disabled unless AC Fail is requested)
Over-Power Protection:
C.C. mode 110-140% and auto-recovery.
Over-Voltage Protection:
Latching down will occur when output
voltage exceed 130% and recycle AC input to reset.
Short Circuit Protection:
Trip without damage and auto-recovery.
Over Temperature Protection:
Protected in the event of
excessive operating ambient 85°C, with automatic recovery.
Switching Frequency:
30 kHz fixed frequency.
Operating Temperature:
O to 70°C ambient, de-rating at 2.5%
per degree from 50°C to 70°C.
°
°
Storage Temperature:
-20 to 85°C.
Operating Humidity:
5% to 90% RH, Non-condensing.
Storage Humidity:
5% to 95% RH, Non-condensing.
Vibration:
Frequency 5 to 50 Hz, acceleration +/-7.35 M/(SxS) on
X,Y and Z Axis.
Emissions:
FCC Part 15, CISPR 22 class B, Conducted.
Safety Regulation:
Approved to UL60950-1/ 60601-1, CSA
C22.2 No. 60950-1-03/ 601.1-M90, TUV EN60950-1/ 60601-1, CE
Mark (LVD) EN61204-3/ 60601-1-2/ 61000-3-2,3 & IEC61000-4
Series Regulations and CB.
Leakage Current:
300uA
HI-POT Test:
1500 Vac between input line and chassis (2mA DC
cut off current); 4000 Vac between primary and secondary
windings; Primary to core 1500 VAC. All for 3 sec.
Grounding Test:
Apply 40 A from ground pin to the earthed
connection point. Maximum allowable resistance is 0.1ohm.
Warranty:
2 years.
MTBF:
100000 Hrs (according to MIL-HBK-217F) at 30
?
.
Cooling:
External forced air requires achieving full ratings.
Burn in:
45 +/- 5°C for 1 hour @ 230 Vac with full load.
Enclosure:
U-Chassis type - 8(L) x 5(W) x 1.6(H) inches.
Enclosed type - 9(L) x 5(W) x 1.6(H) inches.
Weight:
U-Chassis Type – 1.3KG; Enclosed Type – 1.6KG;
MicroPower Direct
www.micropowerdirect.com
292 Page Street, Ste D Stoughton, MA 02072
•
TEL:
(781) 344-8226
•
FAX:
(781) 344-8481
•
EMAIL:
sales@micropowerdirect.com
OUTPUT VOLTAGE / CURRENT RATING CHART:
Measured at output power connector.
Max. Output current
Model
MPA400Mxy-03z
MPA400Mxy-05z
MPA400Mxy-12z
MPA400Mxy-18z
MPA400Mx y-24z
MPA400Mxy-36z
MPA400Mxy-48z
Output
Range
2 – 3.3V
5 - 6V
12 - 15V
16 - 21V
22 - 30V
31 – 41V
42 - 58V
Preset
Voltage
3.3V
5V
12V
18V
24V
36V
48V
Convection
45A
45A
20.84A
15.64A
11.37A
8.07A
5.96A
22.95CFM
60A
60A
33.34A
25A
18.19A
12.9A
9.53A
Total
Regulation
+/- 1%
+/- 1%
+/- 1%
+/- 1%
+/- 1%
+/- 1%
+/- 1%
Ripple & Noise
+/-1%
+/-1%
+/-1%
+/-1%
+/-1%
+/-1%
+/-1%
*
MPA400Mxy-00z
x = E (Enclosed Type) or U (U-Chassis Type); y = Blank (Standard) or I (Forced current sharing option, Oring Diode);
z = Blank (terminal strips), M (Molex Connectors) or I (IEC Input Connector, Enclosed unit only).
* Max power 400W continuous output with min. 22.95CFM forced air cooling or built-in fan. Convection cooled rating as above chart.
* All output ranges are covered in agency certifications and preset output voltage for each model as above listings.
* Providing peak power to 700W within 500uS for all models, longer duty duration need contact manufacture.
* 1% minimum load is required to maintain the ripple and regulation.
* Output is fully isolated.
* Cover is optional for U-Chassis enclosure.

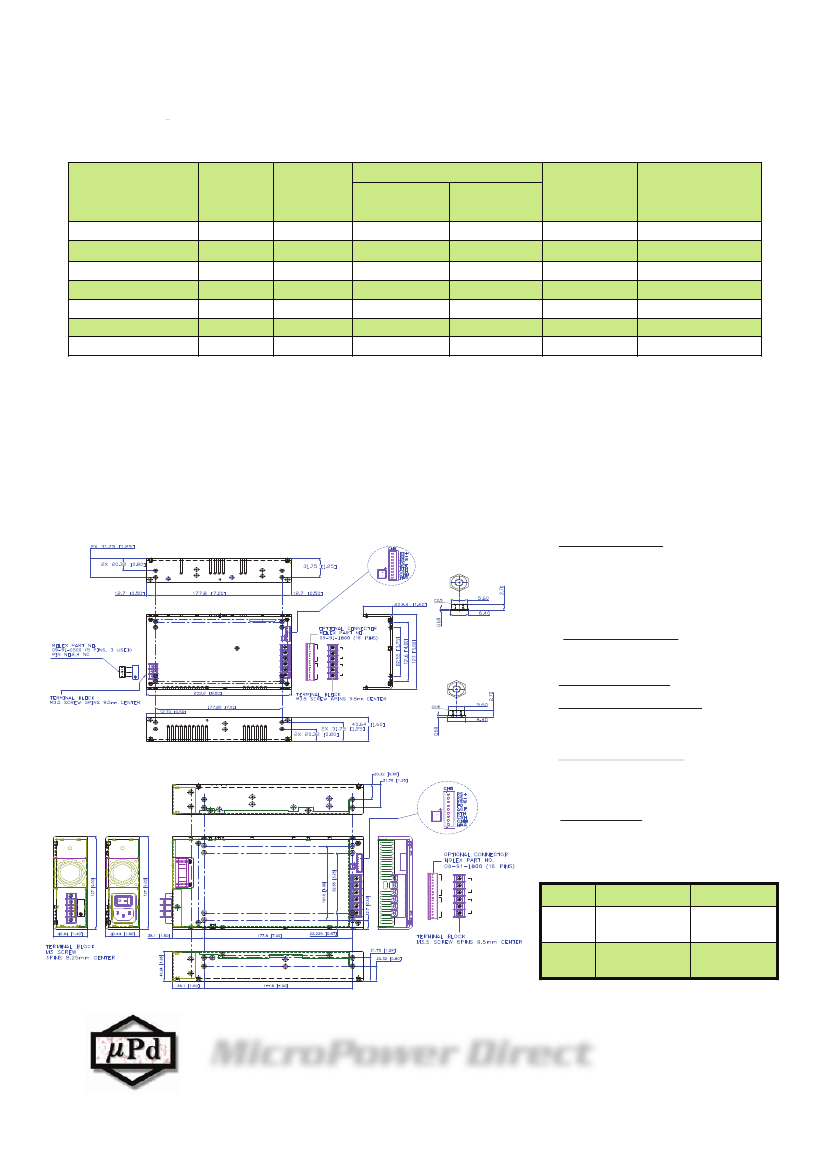

OUTLINE DRAWING:
Overall Size for U-Chassis Type: 8(L) x 5(W) x 1.6(H)inches; Weight: Maximum weight is 1.3kg
B: M O U NTIN G H O L E 8 P LACE
6 -32 U N C(Zn -p la t e d )
SCALE 4 :1
FAN
I/O Connector pin assignment:
Input Connector(CN1):
U-Chassis Type – mating Molex Part No. 09-91-
0700 equivalent(7 pin, 5 used), or Howder
Terminal block Part No. HD-121-3P.
Enclosed type – IEC320 or equivalent Snap-in
mounting type or DINKLE Terminal block Part No.
DT-35-A02W-03 (3 pin)
Output Connector (CN2):
Mating Molex 16 pins
(09-91-1600), or Howder (HD-121-6P) M3.5, 8
pins terminal block, 9.5MM Center.
Output Pin Assignment: (See Table Below)
CN2
C
B
C
B
B
C
B
C
FAN
CN3
B
VO-
CN1
VO-
B
C
B
C:M O U N TIN G H O LE 8 P LACE
M 4 X0 .7 U NC
SCAL E 4 :1
VO+
VO+
L
N
C
B
C
B
C
Logic signal connectors (CN3):
Mating JST XHP-8 or equivalent (CHYAO
SHIUNN JS-2001-08) Mating Pins: JST SXH-
002T-P0.6 for AWG 30 to 26.
Fan driver connector (FAN):
12 VDC / 400 mA
is available to drive an external fan. Mating connector
is a JST XHP-2 or Molex P/N 48-151-0210 ( 2 pins
0.98 pitch). Mating Pins: JST SXH-001T-P0.62T
or Molex 48150 .
Overall Size for Enclosed Type: 9(L) x 5(W) x 1.6(H)inches; Weight: Maximum weight is 1.6kg
C
B
C
B
Mounting Inserts:
6-32, M4 4 Places individually
with maximum penetration 0.15” on bottom side
and 0.25” on both side.
B
C
B
C
FAN
VO-
VO-
Molex
C
B
C
B
Howder
(Pins 1-3)
(Pins 4-6)
VO+
VO+
L N
B
C
B
C
VO+
VO-
(Pins 1-8)
(Pins 9-16)
MO UNTING HOLE:
B: 6 -32 UNC (Zn -p la t e d ) 8 PLACE
C: M4 X0 .7 UNC 8 PLACE
