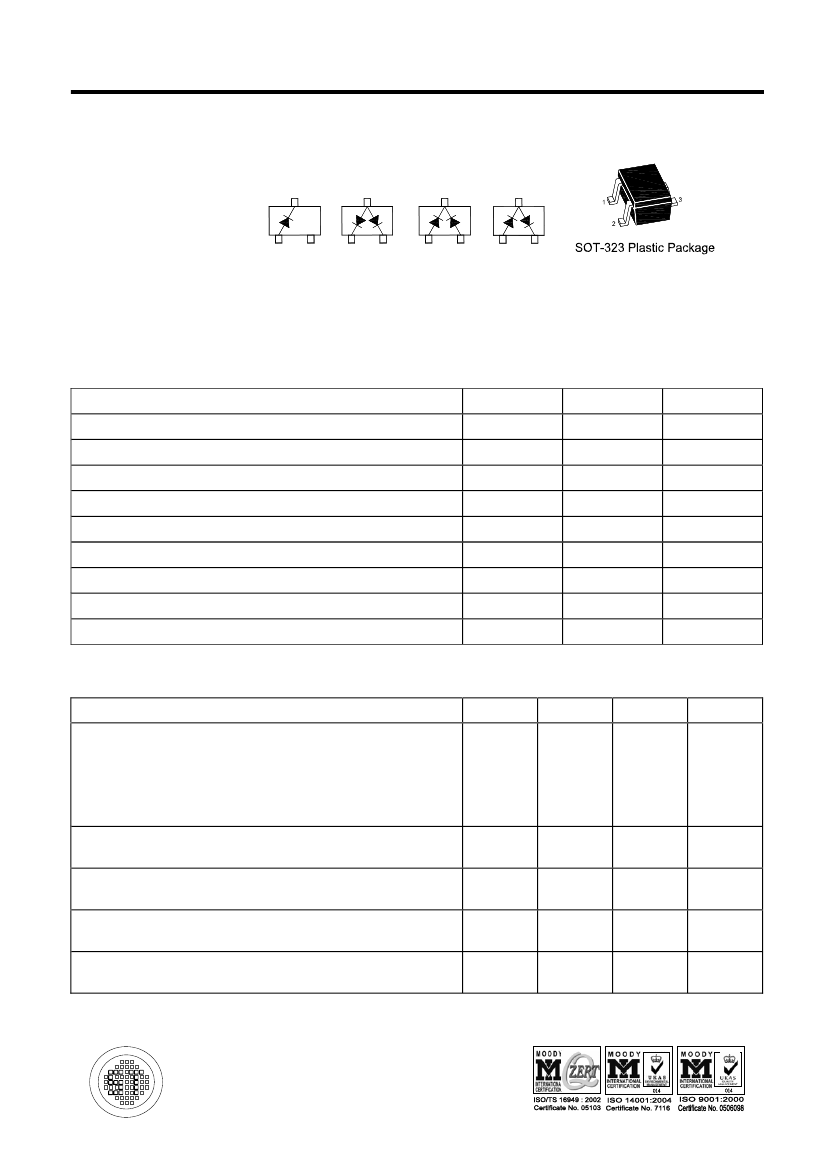

BAT54W / AW / CW / SW

SURFACE MOUNT SCHOTTKY BARRIER DIODE

Features

• Low forward voltage

BAT54W

BAT54AW

BAT54CW

BAT54SW

Applications

• Ultra high-speed switching

• Voltage clamping

• Protection circuits

BAT54W Marking Code:

BAT54AW Marking Code:

L42

BAT54CW Marking Code:

L43

BAT54SW Marking Code:

L44

Absolute Maximum Ratings (T

= 25

Parameter

Peak Repetitive Reverse Voltage

Reverse Voltage

Forward Current

Repetitive Peak Forward Current

Peak Forward Surge Current (t

= 10 ms)

Total Power Dissipation

Thermal Resistance from Junction Ambient

Junction Temperature

Storage Temperature Range

Symbol

RRM

FRM

FSM

tot

thJA

Value

200

300

600

200

625

125

- 65 to + 150

Unit

K/W

Characteristics at T

= 25

Parameter

Forward Voltage

at I

= 0.1 mA

at I

= 1 mA

at I

= 10 mA

at I

= 30 mA

at I

= 100 mA

Reverse Breakdown Voltage

at I

= 100

μA

Reverse Current

at V

= 25 V

Total Capacitance

at V

= 1 V, f = 1 MHz

Reverse Recovery Time

at I

= 10 mA through I

= 10 mA to I

= 1 mA, R

= 100

Ω

Symbol

Min.

Max.

240

320

400

500

1000

Unit

(BR)R

µA

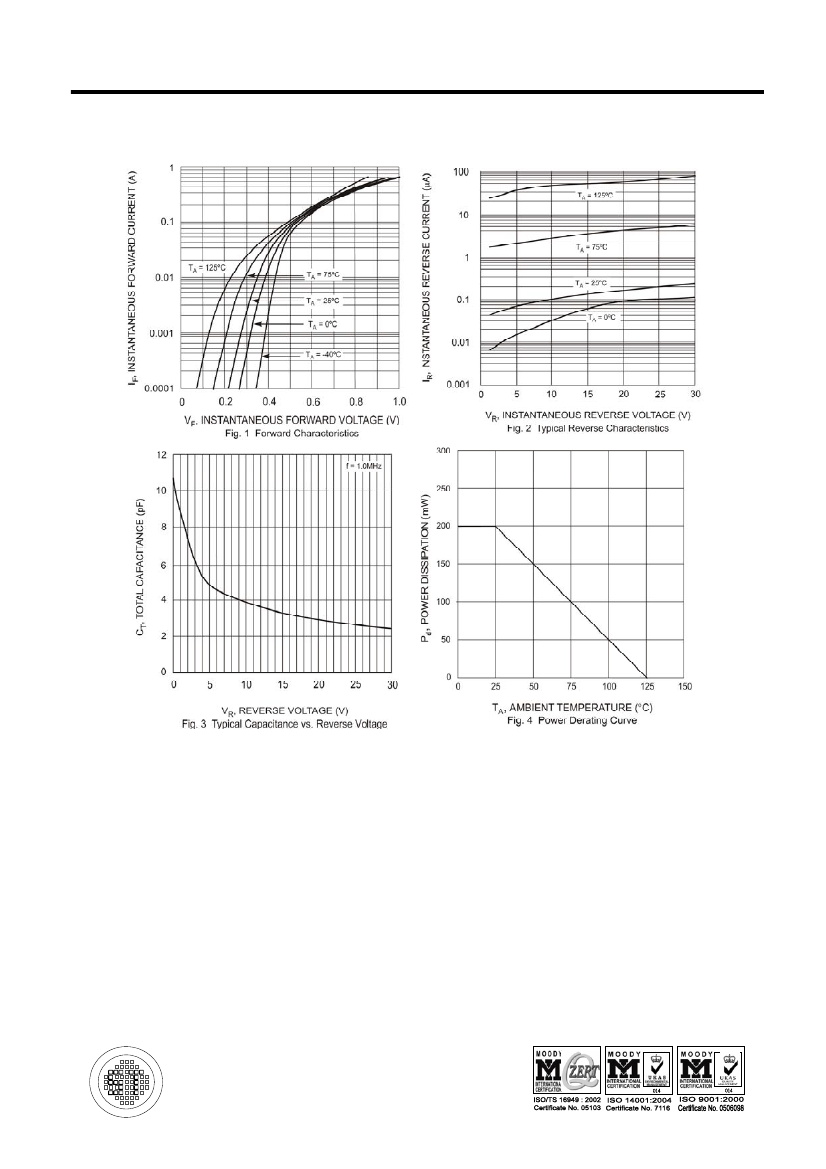

SEMTECH ELECTRONICS LTD.

(Subsidiary

of Sino-Tech International Holdings Limited, a company

listed on the Hong Kong Stock Exchange, Stock Code: 724)

Dated : 28/03/2007

BAT54AW Related Products

	BAT54AW	BAT54CW	BAT54W
Description	0.2 A, 30 V, 2 ELEMENT, SILICON, SIGNAL DIODE	0.3 A, 30 V, 2 ELEMENT, SILICON, SIGNAL DIODE	0.2 A, 30 V, SILICON, SIGNAL DIODE
Number of terminals	-	3	2
Number of components	-	2	1
Processing package description	-	Plastic, surface mount, 3 PIN	GREEN, PLASTIC PACKAGE-2
state	-	ACTIVE	ACTIVE
packaging shape	-	Rectangle	Rectangle
Package Size	-	SMALL OUTLINE	SMALL OUTLINE
surface mount	-	Yes	Yes
Terminal form	-	GULL WING	FLAT
terminal coating	-	MATTE Tin	MATTE Tin
Terminal location	-	pair	pair
Packaging Materials	-	Plastic/Epoxy	Plastic/Epoxy
Craftsmanship	-	SCHOTTKY	SCHOTTKY
structure	-	COMMON CATHODE, 2 ELEMENTS	single
Diode component materials	-	silicon	silicon
Maximum power consumption limit	-	0.2300 W	0.4000 W
Diode type	-	Signal diode	Signal diode
Maximum reverse recovery time	-	0.0050 us	0.0050 us
Maximum repetitive peak reverse voltage	-	30 V	30 V
Maximum average forward current	-	0.3000 A	0.2000 A
