FLCSMEI Overview

Fiber Optic Connector, 62.5/125um, Multi Mode, Simplex

FLCSMEI Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	4 weeks
Other features	50/125 UM ALSO AVAILABLE
Connection Type	SIMPLEX
Connector type	FIBER OPTIC CONNECTOR
Coupling type	SNAP
DIN compliance	NO
Fiber size	62.5/125um
IEC compliance	NO
Insertion loss	0.1 dB
MIL compliance	NO
Manufacturer's serial number	FLCSMEI
model	MULTI
Installation type	CABLE
Options	GENERAL PURPOSE
Base Number Matches	1

Preview

Download Datasheet

View All

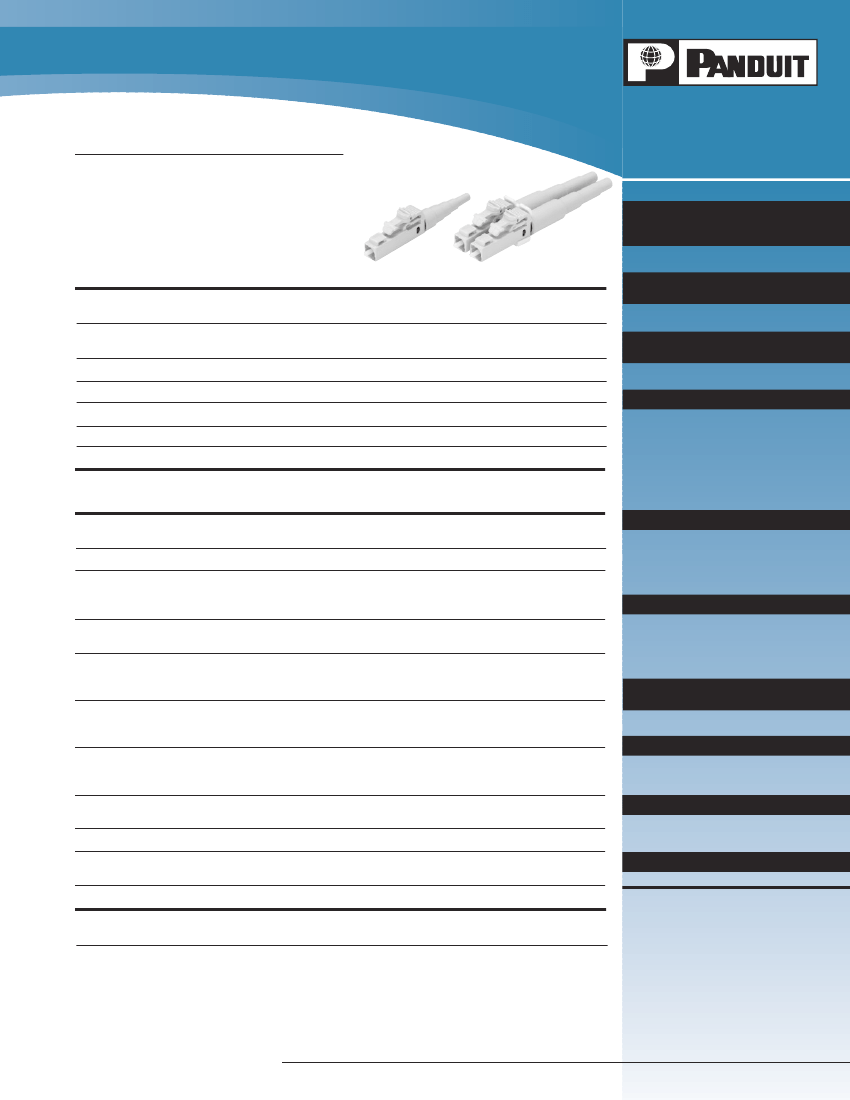

LC Fiber Optic Connectors

SPECIFICATION SHEET

specifications

LC small form factor (SFF) field polish connectors

with rear pivot latch are TIA/EIA-604 FOCIS-10

compatible. LC simplex and duplex connectors are

field terminable. The fibers shall terminate in 1.25mm

ceramic ferrules with non-optical disconnect

functionality and an average insertion loss of .1dB

per mated pair for multimode and singlemode fiber.

technical information

Standards requirements:

Fiber compatibility:

Fiber cable type:

Fiber cable size:

Ferrule type:

Insertion loss:

Return loss:

TIA/EIA-604 FOCIS-10 compatible; exceeds

TIA/EIA-568-B.3 requirements

62.5/125µm OM1, 50/125µm OM2,

10G

™

50/125µm laser

optimized OM3 and 9/125µm OS1

900µm tight-buffered cable recommended

1.6mm – 2.0mm jacketed cable

Zirconia ceramic ferrule

.1dB average (multimode and singlemode)

>20dB (multimode), >40dB (singlemode)

LC Simplex Fiber Optic Connectors

for 900µm Buffered Fiber and

1.6mm – 2.0mm Jacketed Cable

FLCSMEI

Multimode:

Singlemode:

FLCSSBU

LC Duplex Fiber Optic Connectors

for 1.6mm – 2.0mm Jacketed Cable

Multimode:

FLCDMEI

Singlemode:

FLCDSBU

LC Duplex Fiber Optic Connectors

for 900µm Buffered Fiber

Multimode:

FLCDM900EI

Singlemode:

FLCDS900BU

LC Sr./Jr. SFF Fiber Optic Adapters

Duplex MM:

FADJLCEI-L

Duplex 10G

™

FADJLCAQ-L

™

Duplex 10G

(zirc.):

FADJLCZAQ-L

Simplex 10G

™

(zirc.):

FASJLCZAQ-L

Duplex SM (zirc.):

FADJLCZBU-L

Simplex SM (zirc.):

FASJLCZBU-L

L = Bag of 50 adapters; 100 per carton.

For Sr./Sr., replace J in part number with S.

key features and benefits

Rear pivot latch design,

robust construction

Anti-snag latch

Wide “positive grip”

thumb latch

Audible “click” upon

successful mating

Field installable duplex

clip with integrated

polarity markers

One connector body

design for both simplex

and duplex applications

Protective cap locks onto

connector latch with

audible “click”

Anaerobic adhesive

field installation

Rugged body construction

Independent free-floating

ferrules

1.25mm ceramic ferrules

Longer beam reduces deflection during mating and unmating

to reduce latch fatigue, leading to longer cycle life

Low profile latch resists cable snagging

Multi-grooved, full body width thumb latch improves grip for

better control during matings/unmatings; promotes fast, easy

MACs (moves, adds, changes) in high-density applications

Provides user with a definitive signal of successful

connector mating

Allows fast, easy field polarity changes without tools; quick

identification of polarity

A single connector design is used for both simplex

and duplex patch cords and inside the wall applications to

simplify installation

Protective cap automatically locks onto connector latch,

completely covering connector end; prevents ferrule end face

damage by providing protection from contamination and impact

Simplifies and reduces installation time by 50% compared to

heat cured epoxy terminations; curing oven/time not required

Stable performance under side loads for improved reliability

Ensures physical fiber contact for consistent low return loss,

unlike unitary multi-fiber ferrule connectors

Provide the highest durability for repeated matings

INI

-C

Sr./Jr. LC Adapter Modules

Duplex MM:

CMDJLC**

Duplex 10G

™

CMDJAQLCBL

Duplex 10G

™

(zirc.):

CMDJAQLCZBL

Duplex SM (zirc.):

CMDJLCZ**

For Sr./Sr., replace J in part number with S.

PTICOM

LC Fiber Adapter Panels

6 duplex 10G

™

FAP6WAQDLCZ

6 duplex MM:

FAP6WEIDLC

6 duplex SM (zirc.):

FAP6WBUDLCZ

12 duplex MM:

FAP12WEIDLC

12 simplex SM (zirc.):

FAP12WBULCZ

PTICOM

UICK

™

Pre-Terminated

MTP* Cassettes

6 LC to MTP* (12f):

FC^-12-10

12 LC to 2 MTP* (24f):

FC^-24-10

PTI

-C

ORE

Fiber Optic Patch Cords

Duplex LC to LC:

F^E10-10M‡

Simplex LC to LC:

F^F10-10M‡

Simplex LC to pigtail:

F^B10-NM‡

LC Termination Tooling

110V termination kit:

FLPKIT

230V termination kit:

FLPKIT-W

Refurbishment kit:

FLPKIT-RFB

HD Connector Removal Tool

For LC and SC:

HDCRT

**Substitute for module color:

EI = Electric Ivory

BU = Blue

IG = International Gray

WH = White

TG = Technical Gray

BL = Black

AW = Arctic White

I = Off White

EW = European White

^Substitute for fiber type:

X (OM3 –

10G

™

50/125µm), 5 (OM2 – 50/125µm),

6 (OM1 – 62.5/125µm) or 9 (OS1 – 9/125µm).

‡Substitute for length in meters: 1, 2, 3, 5 or 10 for

patch cords, and 1, 2 or 3 for pigtails; singlemode

patch cords are also available in 12, 15, 25 or 30

meter lengths. Contact Customer Service for other

available lengths.

applications

PANDUIT

LC Fiber Optic Connectors provide a

rugged solution for high-density telecommunication

rooms, LANs, public networks and fiber-to-the-desk

applications. LC simplex and duplex connectors

are used for equipment cross-connects or

interconnects in backbone, horizontal and work

*MTP is a registered trademark of US Conec Ltd.

area applications for high-speed data

transmissions. The high-density design and

1.25mm ferrules double the port density

(compared to SC connectors) to reduce space

requirements on racks, enclosures, panels

and faceplates.

w w w. p a n d u i t . c o m

FLCSMEI Related Products

	FLCSMEI	FLCDMEI	FLCDSBU	FLCSSBU	FLCDS900BU	FLCDM900EI
Description	Fiber Optic Connector, 62.5/125um, Multi Mode, Simplex	Fiber Optic Connector, 62.5/125um, Multi Mode, Duplex	Fiber Optic Connector, 9/125um, Single Mode, Duplex	Fiber Optic Connector, 9/125um, Single Mode, Simplex	Fiber Optic Connector, 9/125um, Single Mode, Duplex	Fiber Optic Connector, 62.5/125um, Multi Mode, Duplex
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
Connection Type	SIMPLEX	DUPLEX	DUPLEX	SIMPLEX	DUPLEX	DUPLEX
Connector type	FIBER OPTIC CONNECTOR	FIBER OPTIC CONNECTOR	FIBER OPTIC CONNECTOR	FIBER OPTIC CONNECTOR	FIBER OPTIC CONNECTOR	FIBER OPTIC CONNECTOR
Coupling type	SNAP	SNAP	SNAP	SNAP	SNAP	SNAP
DIN compliance	NO	NO	NO	NO	NO	NO
Fiber size	62.5/125um	62.5/125um	9/125um	9/125um	9/125um	62.5/125um
IEC compliance	NO	NO	NO	NO	NO	NO
Insertion loss	0.1 dB	0.1 dB	0.1 dB	0.1 dB	0.1 dB	0.1 dB
MIL compliance	NO	NO	NO	NO	NO	NO
model	MULTI	MULTI	SINGLE	SINGLE	SINGLE	MULTI
Installation type	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
ECCN code	EAR99	EAR99	EAR99	-	EAR99	EAR99
Factory Lead Time	4 weeks	-	-	4 weeks	4 weeks	8 weeks
Other features	50/125 UM ALSO AVAILABLE	50/125 UM ALSO AVAILABLE	INSERTION LOSS LESS THAN 0.2 DB	INSERTION LOSS LESS THAN 0.2 DB	-	50/125 UM ALSO AVAILABLE
Manufacturer's serial number	FLCSMEI	FLCDMEI	FLCDSBU	FLCSSBU	FLCDS900BU	-
Base Number Matches	1	1	1	1	-	-
