ZBBA78W: DescriptionSingle Color LED, Blue, Water Clear, T-3/4, 1.8mm, 3.20 X 2.40 MM, 2.40 MM HEIGHT, ROHS COMPLIANT, SMD, 2 PIN; CategoryLED optoelectronic/LED photoelectric; File Size190KB，4 Pages; ManufacturerSUNLED; Websitehttp://www.sunled.com/; Environmental Compliance

Download Datasheet Parametric View All

ZBBA78W Overview

Single Color LED, Blue, Water Clear, T-3/4, 1.8mm, 3.20 X 2.40 MM, 2.40 MM HEIGHT, ROHS COMPLIANT, SMD, 2 PIN

ZBBA78W Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	3.20 X 2.40 MM, 2.40 MM HEIGHT, ROHS COMPLIANT, SMD, 2 PIN
Reach Compliance Code	compliant
ECCN code	EAR99
color	BLUE
Configuration	SINGLE
Maximum forward current	0.03 A
Lens type	WATER CLEAR
Nominal luminous intensity	377.0 mcd
Installation features	SURFACE MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	2.4 mm
method of packing	TAPE AND REEL
peak wavelength	468 nm
shape	ROUND
size	1.8 mm
surface mount	YES
T code	T-3/4
Terminal pitch	3.2 mm
perspective	20 deg
Base Number Matches	1

Preview

Download Datasheet

View All

Part Number:

www.SunLED.com

ZBBA78W

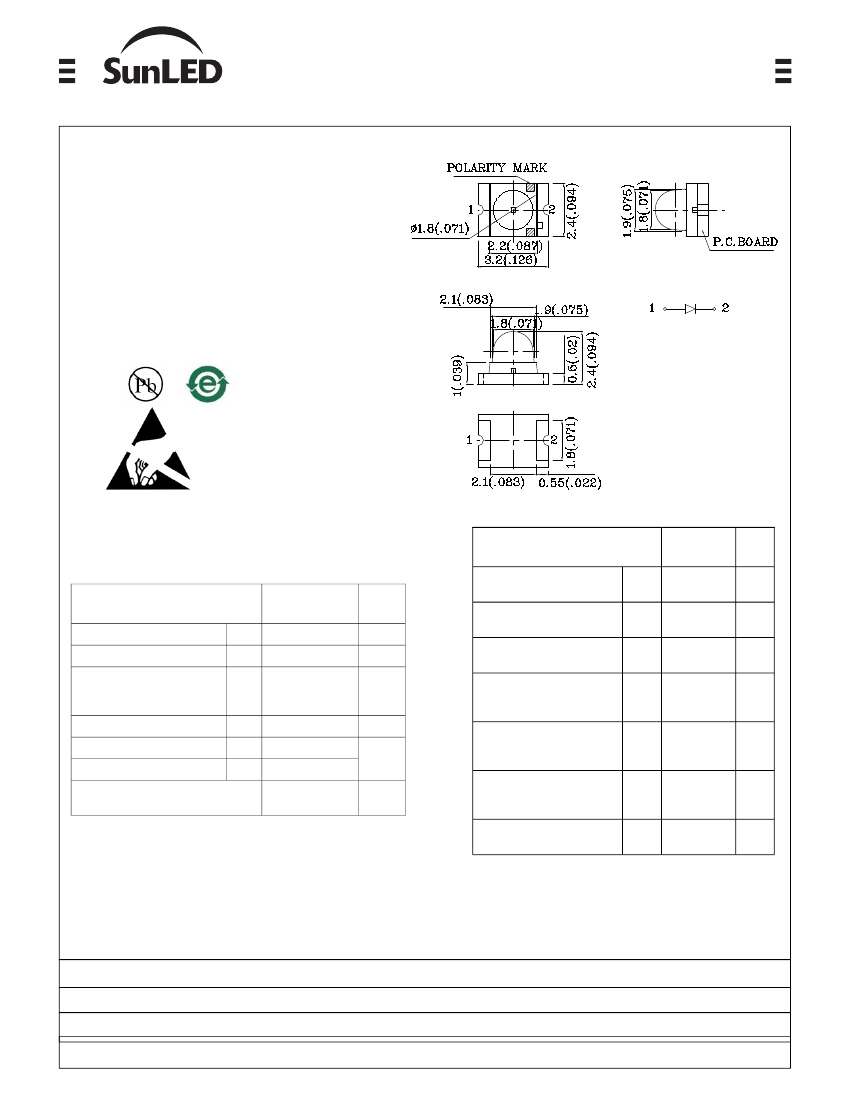

3.2x2.4mm SMD CHIP LED LAMP

Features

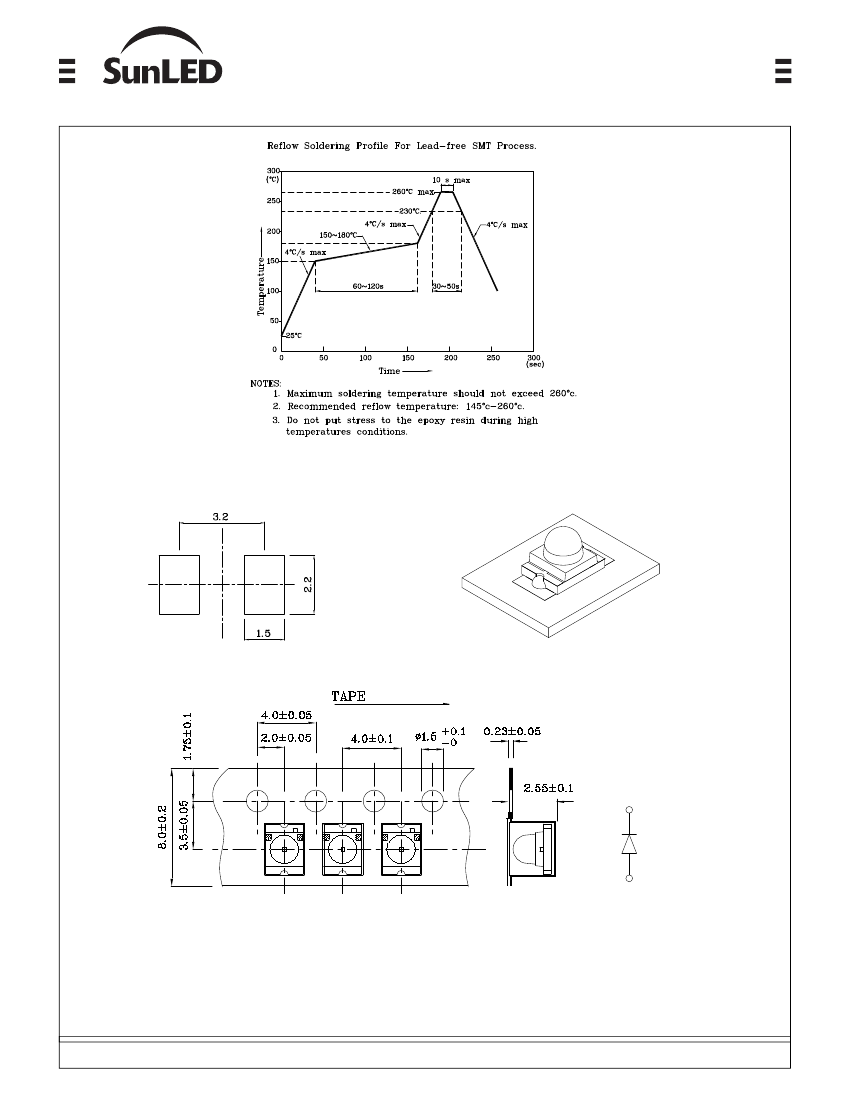

3.2x2.4mm SMT LED,2.4mm THICKNESS.

LOW POWER CONSUMPTION.

IDEAL FOR BACK LIGHT AND INDICATOR.

VARIOUS COLORS AND LENS TYPES AVAILABLE.

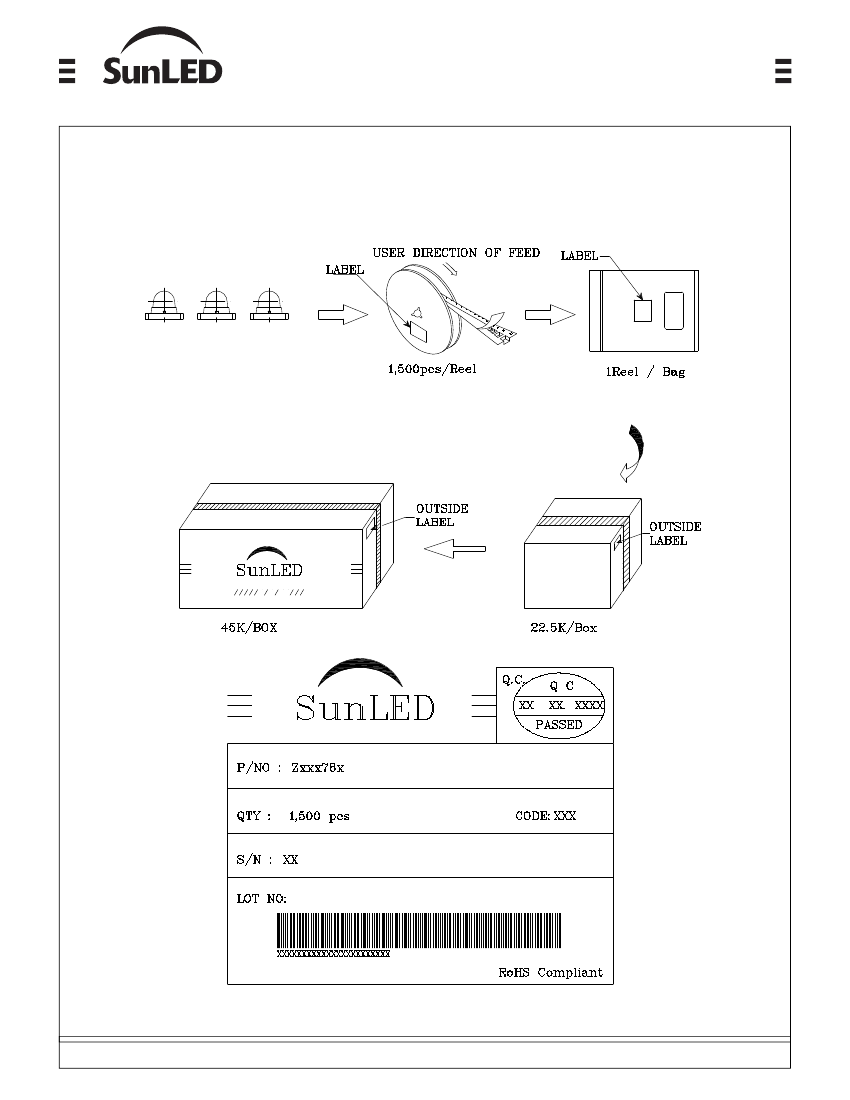

PACKAGE : 1500PCS / REEL.

MOISTURE SENSITIVITY LEVEL : LEVEL 3.

RoHS COMPLIANT.

ATTENTION

OBSERVE PRECAUTIONS

FOR HANDLING

ELECTROSTATIC

DISCHARGE

SENSITIVE

DEVICES

Notes:

1. All dimensions are in millimeters (inches).

2. Tolerance is ± 0.1(0.004") unless otherwise noted.

3.Specifications are subject to change without notice.

Absolute Maximum Ratings

=25°C)

Reverse Voltage

Forward Current

Forward Current (Peak)

1/10 Duty Cycle

0.1ms Pulse Width

Power Dissipation

Operating Temperature

Storage Temperature

Tstg

BBA

(InGaN)

100

120

-40 ~ +85

1000

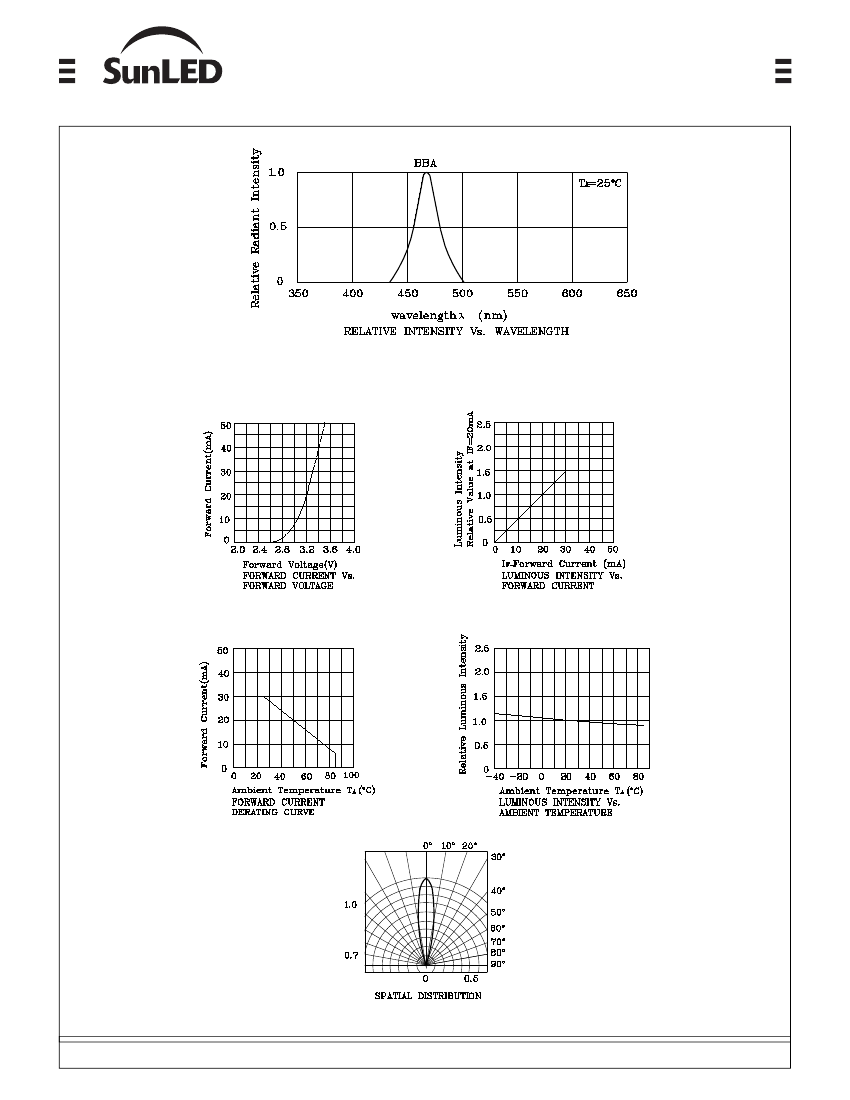

Operating Characteristics

=25°C)

Forward Voltage (Typ.)

=20mA)

Forward Voltage (Max.)

=20mA)

Reverse Current (Max.)

=5V)

Wavelength Of Peak

Emission (Typ.)

=20mA)

Wavelength Of Dominant

Emission (Typ.)

=20mA)

Spectral Line Full Width

At Half-Maximum (Typ.)

=20mA)

Capacitance (Typ.)

=0V, f=1MHz)

BBA

(InGaN)

3.2

4.0

Unit

°C

468

470

Electrostatic Discharge Threshold

(HBM)

Δλ

100

Part

Number

Emitting

Color

Emitting

Material

Lens-color

Luminous

Intensity

(IF=20mA)

mcd

min.

typ.

377

Wavelength

Viewing

Angle

1/2

ZBBA78W

Blue

InGaN

Water Clear

110

468

20°

Published Date : FEB 26, 2008

Drawing No : SDSA6324

Checked : B.L.LIU

P.1/4
