ZMD54W

Description
Single Color LED, Red, Water Clear, 1.3mm, 2 X 1.25 MM, 1.10 MM HEIGHT, SMD, 2 PIN
CategoryLED optoelectronic/LED    photoelectric
File Size70KB,4 Pages
ManufacturerSUNLED
Websitehttp://www.sunled.com/
Environmental Compliance
Download Datasheet Parametric View All

ZMD54W Overview

Single Color LED, Red, Water Clear, 1.3mm, 2 X 1.25 MM, 1.10 MM HEIGHT, SMD, 2 PIN

ZMD54W Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
package instruction2 X 1.25 MM, 1.10 MM HEIGHT, SMD, 2 PIN
Reach Compliance Codecompliant
ECCN codeEAR99
colorRED
ConfigurationSINGLE
Maximum forward current0.03 A
Lens typeWATER CLEAR
Nominal luminous intensity175.0 mcd
Installation featuresSURFACE MOUNT
Number of functions1
Number of terminals2
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
Optoelectronic device typesSINGLE COLOR LED
total height1.1 mm
method of packingTAPE AND REEL
peak wavelength640 nm
shapeRECTANGULAR
size1.3 mm
surface mountYES
Terminal pitch2.35 mm
perspective120 deg
Base Number Matches1

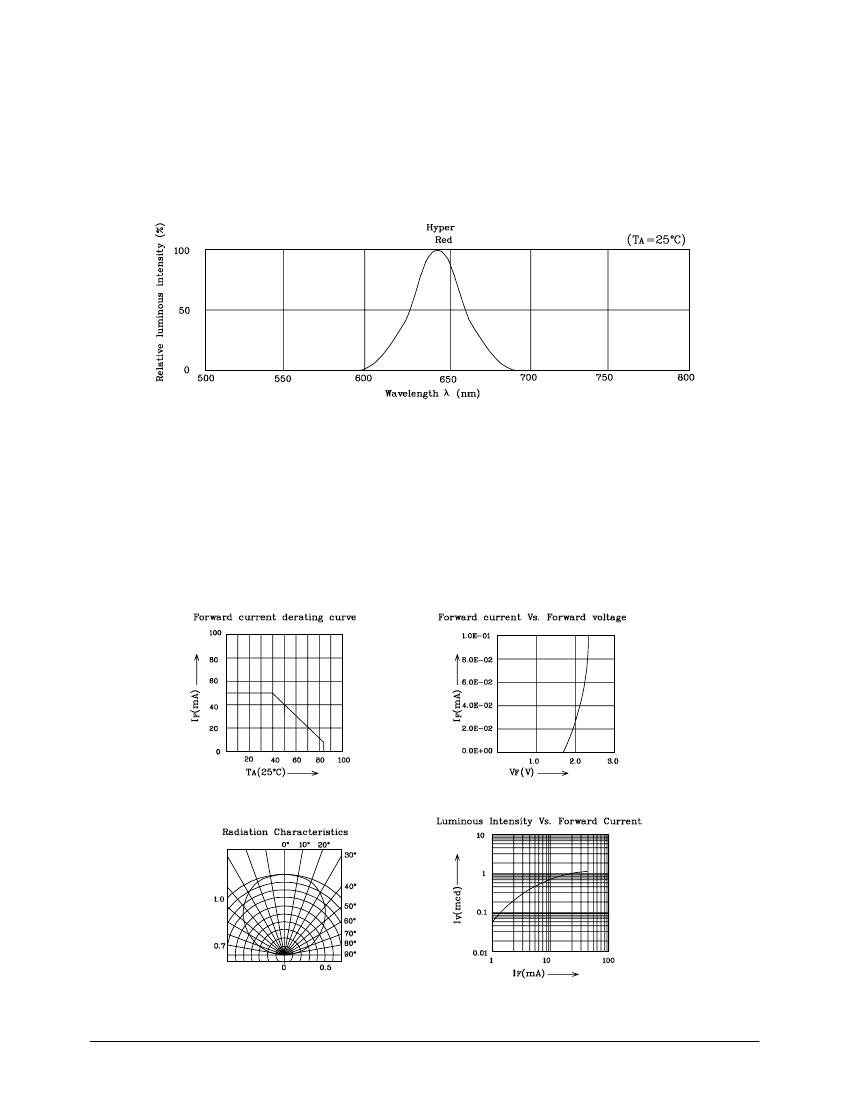

2.0x1.2mm SMD CHIP LED LAMP
ZMD54W
SUN LED
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is
±0.1(0.004")
unless otherwise noted.
Ab s o l u t e m a x i m u m r a t i n g s
C)
( T
A
=25
°
C)
Reverse voltage
Forward current
Forward current (peak)
1/10Duty cycle
0.1ms pulse width
Power dissipation
Operation temperature
Storage temperature
V
R
I
F
i
FS
P
T
T
A
Tstg
MD
MD
( In Ga Al P )
5
50
150
170
-40 ~ +85
Un i t
Op e r a t i n g Ch a r a c t e r i s t i c s
( T
A
=25
°
C)
C)
Forward voltage (typ.)
(I F=20mA)
Forward voltage (max.)
(I F=20mA)
Reverse current
(VR=5V)
Wavelength at peak
emission
(I F=20mA)
Spectral Line half-width
(I F=20mA)
Capacitance
(VF=0, f=1MHz)
MD
MD
( In Ga Al P )
Un i t
V
mA
mA
mW
°+
V
F
V
F
I
R
2.0
2.2
10
V
V
uA
λ
peak
640
nm
∆λ
C
25
35
nm
pF
P art
Nu m b e r
Em i t t i n g
Co l o r
Em i t t i n g
Ma te ria l
L e n s -c o l o r
L u min o u s
In t e n si t y
( I F = 20m A )
mc d
min .
ty p .
70
150
Wa v e l e n g t h
nm
Vi e w i n g
An g l e
ZMD54W
red
I nGaAlP
water clear
640
120°
1-1
