HI-3182, HI-3183, HI-3184, HI-3185
HI-3186, HI-3187, HI-3188
March 2001
GENERAL DESCRIPTION
The HI-3182, HI-3183, HI-3184, HI-3185, HI-3186, HI-3187 and
HI-3188 bus interface products are silicon gate CMOS devices
designed as a line driver in accordance with the ARINC 429 bus
specifications. In addition to being functional upgrades of Holt's
HI-8382 & HI-8383 products, they are also alternate sources for
the HS-3182 ( Intersil/Harris), the RM3182 (Fairchild /Raytheon)
and a variety of similar DEI/DDC line driver products.
Inputs are provided for clocking and synchronization. These
signals are AND'd with the DATA inputs to enhance system
performance and allow the HI-318X series of products to be
used in a variety of applications. Both logic and synchronization
inputs feature built-in 2,000V minimum ESD input protection as
well as TTL and CMOS compatibility.
The differential outputs of the HI-318X series of products are
independently programmable to either the high speed or low
speed ARINC 429 output rise and fall time specifications through
the use of two external capacitors. The output voltage swing is
also adjustable by the application of an external voltage to the
VREF input. Products with 0, 13 or 37.5 ohm resistors in series
with each ARINC output are available. In addition, the HI-3182,
HI-3184 and HI-3187 products also have a fuse in series with
each output.
The HI-318X series of line drivers are intended for use where
logic signals must be converted to ARINC 429 levels such as
when using an ASIC, the HI-8282 ARINC 429 Serial Transmit-
ter/Dual Receiver, the HI-6010 ARINC 429 Transmitter/Receiver
or the HI-8783 ARINC Interface Device. Holt products are
readily available for both industrial and military applications.
Please contact the Holt Sales Department for additional
information.
PIN CONFIGURATION
V
REF
1
GND (See Note * ) 2
SYNC 3
DATA (A) 4
C
A
5
A
OUT
6
-V 7
14 V
1
(Top View)
13 CLOCK
12 DATA (B)
11 C
B
10 B
OUT
9 +V
8 GND
HI-3184PS, HI-3185PS, HI-3186PS
& HI-3187PS
14 - PIN PLASTIC SMALL OUTLINE (ESOIC)**
Notes: * Pin 2 may be left floating
** Thermally Enhanced SOIC Package

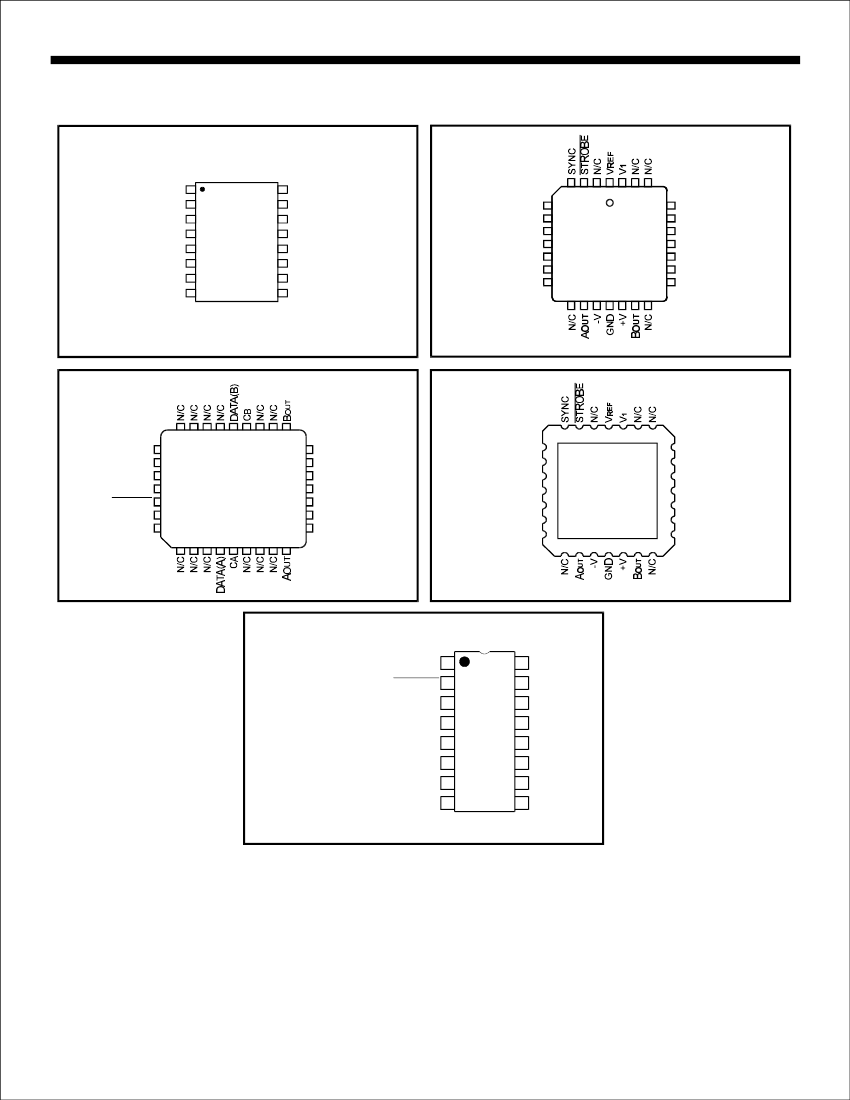

(See Page 5 for additional package pin configurations)
FUNCTION
+
FEATURES
!
Low power CMOS
!
TTL and CMOS compatible inputs
!
Programmable output voltage swing
!
Adjustable ARINC rise and fall times
!
Plastic 14 & 16-pin thermally enhanced SOIC
packages available
!
Pin-for-Pin alternative for DEI/DDC/Intersil/Fairchild
applications
!
Operates at data rates up to 100 Kbits
!
Overvoltage protection
!
Industrial and Military temperature ranges
ARINC 429 DIFFERENTIAL LINE DRIVER
TRUTH TABLE
SYNC CLOCK DATA(A) DATA(B) AOUT
X
L
H
H
H
H
L
X
H
H
H
H
X
X
L
L
H
H
X
X
L
H
L
H
0V
0V
0V
-V
REF
+V
REF
0V
BOUT COMMENTS
0V
0V
0V
+V
REF
-V
REF
0V
NULL
NULL
NULL
LOW
HIGH
NULL
(DS3182 Rev. B )
HOLT INTEGRATED CIRCUITS
1
03/01
HI-3182, HI-3183, HI-3184, HI-3185, HI-3186, HI-3187, HI-3188
FUNCTIONAL DESCRIPTION
The SYNC and CLOCK inputs establish data synchronization
utilizing two AND gates, one for each data input. Each logic
input, including the power enable (STROBE) input, are
TTL/CMOS compatible.
Figure 1 illustrates a typical ARINC 429 bus application.
Three power supplies are necessary to operate the HI-3182;
typically +15V, -15V and +5V. The chip also works with ±12V
supplies. The +5V supply can also provide a reference
voltage that determines the output voltage swing. The
differential output voltage swing will equal 2V
REF
. If a value of
V
REF
other than +5V is needed, a separate +5V power supply
is required for pin V
1
.
With the DATA (A) input at a logic high and DATA (B) input at a
logic low, A
OUT
will switch to the +V
REF
rail and B
OUT
will
switch to the -V
REF
rail (ARINC HIGH state). With both data
input signals at a logic low state, the outputs will both switch to
0V (ARINC NULL state).
The driver output impedance, R
OUT
, is nominally 75, 26 or 0
ohms depending on the option chosen. The rise and fall times
of the outputs can be calibrated through the selection of two
external capacitor values that are connected to the C
A
and C
B
input pins. Typical values for high-speed operation
(100KBPS) are C
A
= C
B
= 75pF and for low-speed operation
(12.5 to 14KBPS) C
A
= C
B
= 500pF.
The C
A
and C
B
pins swing between +5V and ground allowing
the switching of capacitor values with an external single-
supply analog switch.
The ARINC outputs can be put in a tri-state mode by applying
a logic high to the STROBE input pin. If this feature is not
being used, the pin should be tied to ground. The STROBE
function is not available in the 14 & 16-pin SOIC package
configurations where the pin is internally connected to
ground.
The ARINC outputs of the HI-3182, HI-3184 and HI-3187 are
protected by internal fuses capable of sinking between 800 -
900 mA for short periods of time (125
µ
s).
+5V
+15V
V
REF
DATA (A)
V1
SYNC
CLOCK
OUT
+V
INPUTS
DATA (B)
C
C
STROBE
GND
-V
TO ARINC BUS
B
-15V
Figure 1.
ARINC 429 BUS APPLICATION
REF
+V
C
A
Shorted on
HI-3186, HI-3187, HI-3188
DATA (A)
LEVEL SHIFTER
AND SLOPE
CONTROL (A)
CLOCK
24.5Ω
OUTPUT
DRIVER (A)
C
L
SYNC
LEVEL SHIFTER
AND SLOPE
CONTROL (B)
24.5Ω
OUTPUT
DRIVER (B)
R
L
13Ω
F
A
13Ω
F
B
DATA (B)
V
1
STROBE
CURRENT
REGULATOR
Shorted on
HI-3183, HI-3186
HI-3187, HI-3188
Shorted on
HI-3183, HI-3185
HI-3186, HI-3188
GND
-V
C
B
B
OUT
Figure 2.
FUNCTIONAL BLOCK DIAGRAM
HOLT INTEGRATED CIRCUITS
2
HI-3182, HI-3183, HI-3184, HI-3185, HI-3186, HI-3187, HI-3188
SYMBOL
V
REF
STROBE
SYNC
DATA (A)
C
A
A
OUT
-V
GND
+V
B
OUT
C
B
DATA (B)
CLOCK
V
1
FUNCTION
POWER
INPUT
INPUT
INPUT
INPUT
OUTPUT
POWER
POWER
POWER
OUTPUT
INPUT
INPUT
INPUT
POWER
DESCRIPTION
Reference voltage used to determine the output voltage swing
A logic high tri-states the ARINC outputs. Not available in the 14-pin SOIC package (tied to GND internally).
Synchronizes data inputs
Data input terminal A
Connection for DATA (A) slew-rate capacitor
ARINC output terminal A
-12V to -15V
0.0V
+12V to +15V
ARINC output terminal B
Connection for DATA (B) slew-rate capacitor
Data input terminal B
Synchronizes data inputs
+5V ±5%
All Voltages referenced to GND, TA = Operating Temperature Range (unless otherwise specified)
PARAMETER
Differential Voltage
Supply Voltage
SYMBOL
V
DIF
+V
-V
V
1
V
REF
V
IN
CONDITIONS
Voltage between +V and -V terminals
OPERATING RANGE
MAXIMUM
40
UNIT
V
V
V
V
V
V
V
V
+10.8 to +16.5
-10.8 to -16.5
+5 ±10%
For ARINC 429
For Applications other than ARINC
+5 ±5%
0 to 6
+7
6
6
> GND -0.3
< V1 +0.3
Voltage Reference
Input Voltage Range
Output Short-Circuit Duration
Output Overvoltage Protection
Operating Temperature Range
Storage Temperature Range
Lead Temperature
Junction Temperature
See Note: 1
See Note: 2
T
A
T
STG
Hi-temp & Military
Industrial
Ceramic & Plastic
Soldering, 10 seconds
T
J
-55 to +125
-40 to +85
-65 to +150
+275
+175
°C
°C
°C
°C
°C
Note 1. Heatsinking may be required for Output Short Circuit at +125°C and for 100KBPS at +125°C.
Note 2. The fuses used for Output Overvoltage Protection may be blown by the presence of a voltage at either output that is greater
than ±12.0V with respect to GND. (HI-3182, 3184 & 3187 only)
NOTE: Stresses above those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. These are stress ratings
only. Functional operation of the device at these or any other conditions above those indicated in the operational sections of the specifications
is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.
HOLT INTEGRATED CIRCUITS
3
HI-3182, HI-3183, HI-3184, HI-3185, HI-3186, HI-3187, HI-3188

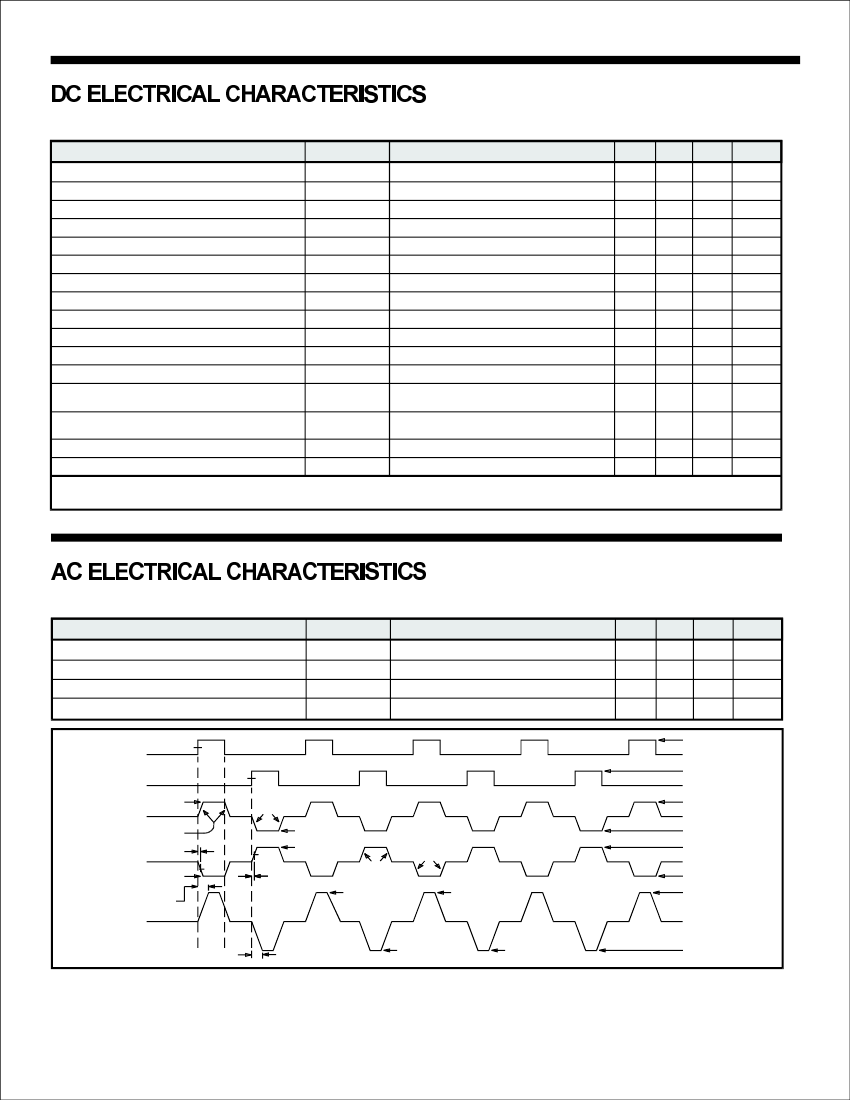

+V = +15V, -V = -15V, V
1
= V
REF
= +5.0V, T
A
= Operating Temperature Range (unless otherwise specified).
PARAMETER
Supply Current +V (Operating)
Supply Current -V (Operating)
Supply Current
V
1
(Operating)
Supply Current
V
REF
(Operating)
Supply Current +V (During Short Circuit Test)
Supply Current -V (During Short Circuit Test)
Output Short Circuit Current (Output High)
Output Short Circuit Current (Output Low)
Input Current (Input High)
Input Current (Input Low)
Input Voltage High
Input Voltage Low
Output Voltage High (Output to Ground)
Output Voltage Low (Output to Ground)
Output Voltage Null
Input Capacitance
SYMBOL
I
CCOP
(+V)
I
CCOP
(-V)
I
CCOP
(
V
1
)
I
CCOP
(
V
REF
)
I
SC
(+V)
I
SC
(-V)
I
OHSC
I
OLSC
I
IH
I
IL
V
IH
V
IL
V
OH
V
OL
V
NULL
C
IN
No Load
No Load
No Load
CONDITION
(0 - 100KBPS)
(0 - 100KBPS)
(0 - 100KBPS)
MIN
-16
TYP
MAX UNITS
+16
500
mA
mA
µA
mA
150
mA
mA
-80
mA
mA
1.0
µA
µA
V
0.5
V
V
V
mV
pF
+V
REF
+.
25
-V
REF
+.
25
+250
No Load,
V
REF = 5V (0 - 100KBPS)
Short to Ground
Short to Ground
Short to Ground
Short to Ground
(See Note: 1)
(See Note: 1)
-1.0
-150
+80
-1.0
2.0
V
MIN
=0 (See Note: 2)
V
MIN
=0 (See Note: 2)
No Load
No Load
No Load
See Note 1
(0 -100KBPS)
(0 -100KBPS)
(0-100KBPS)
+V
REF
-.
25
-V
REF
-.
25
-250
15
Note 1. Not tested, but characterized at initial device design and after major process and/or design change which affects this parameter.
Note 2. Interchangeability of force and sense is acceptable.
+V = +15V, -V = -15V, V
1
= V
REF
= +5.0V, T
A
= Operating Temperature Range (unless otherwise specified).
PARAMETER
Rise Time (
A
OUT
,
B
OUT
)
Fall Time (
A
OUT
,
B
OUT
)
Propagtion Delay Input to Output
Propagtion Delay Input to Output
SYMBOL
t
R
t
F
t
PLH
t
PHL
CONDITION
C
A
=
C
B
= 75pF
C
A
=
C
B
= 75pF
C
A
=
C
B
= 75pF
C
A
=
C
B
= 75pF
See Figure 3.
See Figure 3.
See Figure 3.
See Figure 3.
MIN
1.0
1.0
TYP
MAX UNITS
2.0
2.0
3.0
3.0
2.0V
0.5V
µs
µs
µs
µs
DATA (A) 0V
DATA (B) 0V
V
REF
50%
50%
ADJUST
BY
C
A
2.0V
0.5V
+4.75V to +5.25V
A
OUT
0V
ADJUST
BY
C
A
-V
REF
50%
50%
-4.75V to -5.25V
ADJUST
BY
C
B
ADJUST
BY
C
B
t
PHL
+V
REF
+4.75V to +5.25V
-4.75V to -5.25V
HIGH
NULL
B
OUT
0V
-V
REF
t
PLH
t
R
DIFFERENTIAL
OUTPUT 0V
2V
REF
+9.5V to +10.5V
(
A
OUT -
B
OUT
)
NOTE: OUTPUTS UNLOADED
t
F
-2V
REF
LOW
-9.5V to -10.5V
Figure 3.
SWITCHING WAVEFORMS
HOLT INTEGRATED CIRCUITS
4
HI-3182, HI-3183, HI-3184, HI-3185, HI-3186, HI-3187, HI-3188
ADDITIONAL PIN CONFIGURATIONS
(See page 1 for 14-Pin Small Outline SOIC)
HI-3182PS, HI-3183PS, HI-3188PS
V
REF
- 1
GND (See Note * ) - 2
SYNC - 3
DATA(A) - 4
C
A
- 5
A
OUT
- 6
-V - 7
GND - 8
16 - V
1
4 3 2 1 28 27 26
16 - PIN
PLASTIC
SMALL
OUTLINE
(ESOIC)**
15 - N/C
14 - CLOCK
13 - DATA(B)
12 - C
B
11 - B
OUT
10 - N/C
9 - +V
N/C
DATA (A)
N/C
N/C
C
A
N/C
N/C
5
6
7
8
9
10
11
HI-3182PJ
24
HI-3183PJ
23
28 - PIN
PLASTIC
PLCC
12 13 14 15 16 17 18
22
21
20
19
25
CLOCK
N/C
DATA (B)
C
B
N/C
N/C
N/C
Notes: * Pin 2 may be left floating
** Thermally Enhanced SOIC package
29 28 27 26 25 24 23 22 21
4
20
3
2
1 28 27 26
CLOCK
V
1
N/C
V
REF
STROBE
SYNC
N/C
30
31
32
1
2
3
4
5 6
HI-3182CR
HI-3183CR
32 - PIN
CERQUAD
7 8 9 10 11 12 13
19
18
17
16
15
14
N/C
N/C
+V
GND
N/C
-V
N/C
N/C
5
DATA (A)
6
N/C
7
N/C
8
C
A
9
N/C
10
N/C
11
HI-3182CL
HI-3183CL
28 - PIN
CERAMIC
LCC
CLOCK
24
N/C
25
DATA (B)
22
C
B
21
N/C
23
N/C
19
N/C
20
12 13 14 15 16 17 18
VREF
1
STROBE
2
16
V1
15
N/C
14
CLOCK
13
DATA(B)
12
CB
11
BOUT
10
N/C
9
+V
HI-3182CD
HI-3183CD
16 - PIN
CERAMIC
DIP
SYNC
3
DATA(A)
4
CA
5
AOUT
6
-V
7
GND
8
HOLT INTEGRATED CIRCUITS
5
京公网安备 11010802033920号
EEWORLD
