BHD-B-100-SM-A-GD30-BL-PPL datasheet, PDF

Datasheet> All Categories > The connector> The connector> BHD-B-100-SM-A-GD30-BL-PPL

BHD-B-100-SM-A-GD30-BL-PPL: DescriptionBoard Connector, 100 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Receptacle; CategoryThe connector The connector; File Size113KB，1 Pages; ManufacturerCentral Semiconductor; Environmental Compliance

Download Datasheet Parametric View All

BHD-B-100-SM-A-GD30-BL-PPL Overview

Board Connector, 100 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Receptacle

BHD-B-100-SM-A-GD30-BL-PPL Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
Board mount options	SPLIT BOARD LOCK
body width	0.222 inch
subject depth	0.24 inch
body length	2.626 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	300VAC V
Durability	1000 Cycles
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	POLYESTER
Plug contact pitch	0.05 inch
Match contact row spacing	0.05 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	4.3942 mm
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	1.27 mm
Termination type	SURFACE MOUNT
Total number of contacts	100
Base Number Matches	1

Preview

Download Datasheet

View All

SPECIFICATIONS

Current Rating:

Contact Material:

Contact Resistance:

Insulator Material:

Insulator Resistance:

Withstanding:

Operating Temp:

1 Amp

Phosphor Bronze

20mΩ Max.

Polyester, UL94V-0 Black

1000MΩ Min.

300V AC/DC

-40ºC to +105ºC

Series

BHD-B

Box Header

0.50” x 0.50”

Positions

10-120

Mounting

ST=Straight

RA=Right Angle

SM=Surface Mount

Profile

A=6.1mm

B=7.3mm

RoHS compliant

Rev.

Description

A DWG, PNT

Date

Approved

01/28/10 Greg

Drawing

Name

Approved Howard

Checked Lizzy

Drawn Tina

0.0 ± 0.35

Plating

TN=Tin

SGXX=Selective

Gold

GDXX=Gold

XX=Flash if Blank

15, 30u”

Options

Blank=None

CP=Centering Post

BL=Board Lock

PPL=Pick & Place Pad

Date

08/10/99

08/10/99 Part No.:

Central Components Manufacturing

440 Lincoln Blvd., Middlesex, New Jersey 08846

Phone 732 469-5720 888 288-5152 Fax 732 469-1919

BHD-B-XX-SM-A-XX-BL-PPL

0.00 ± 0.20 Angles ± 3’

UNIT: mm

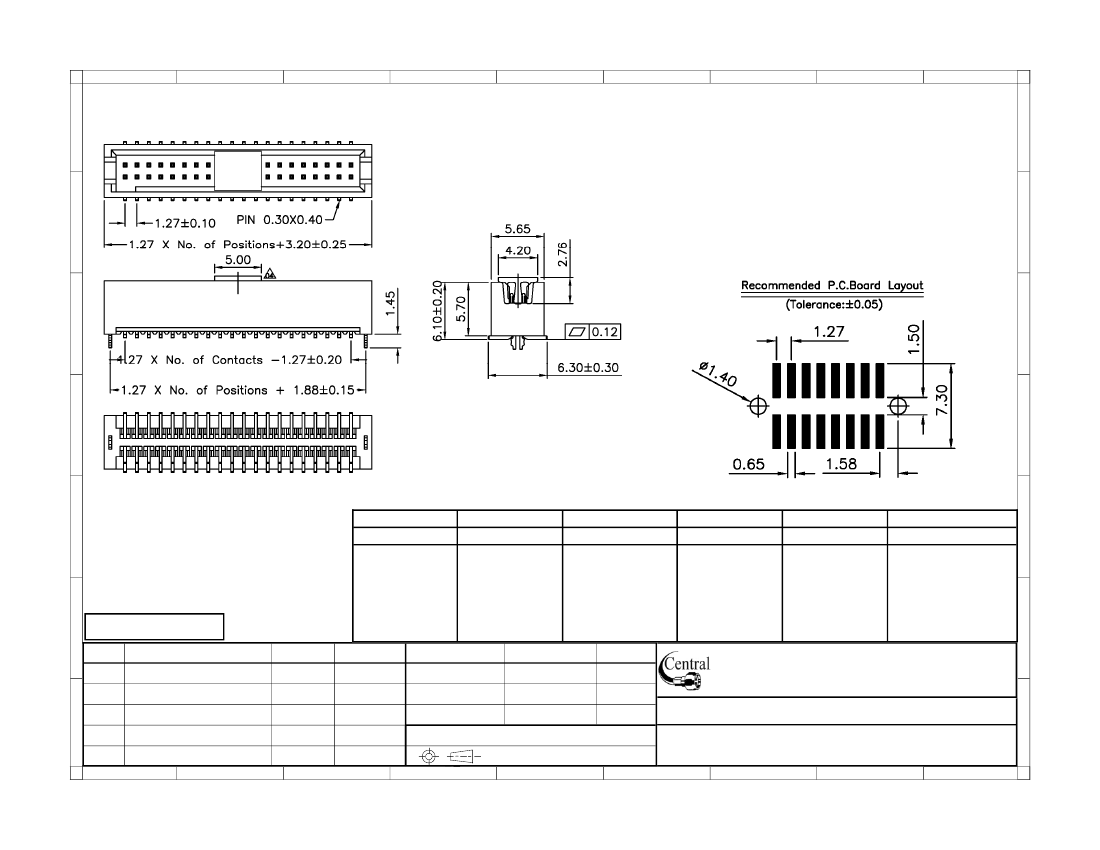

Description: .05” x .05” (1.27mm x 1.27mm) Box Header, Surface

Mount
