MKS8087-6-00-707 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> MKS8087-6-00-707

Preview

MKS8087-6-00-707: DescriptionBoard Connector, 7 Contact(s), 1 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking Mech, Natural Insulator, Receptacle; CategoryThe connector The connector; File Size44KB，1 Pages; ManufacturerStocko Contact GmbH & Co Kg; Websitehttps://www.stocko-contact.com; Environmental Compliance

Download Datasheet Parametric View All

MKS8087-6-00-707 Overview

Board Connector, 7 Contact(s), 1 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking Mech, Natural Insulator, Receptacle

MKS8087-6-00-707 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	PC BOARD THICKNESS 1.5MM
body width	0.189 inch
subject depth	0.327 inch
body length	0.63 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	NATURAL
insulator material	POLYAMIDE
MIL compliance	NO
Manufacturer's serial number	MKS8080
Plug contact pitch	0.079 inch
Mixed contacts	NO
Installation option 1	LOCKING MECH
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	1
Maximum operating temperature	115 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.4892 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	2.5 A
Guideline	VDE
reliability	COMMERCIAL
Terminal length	0.138 inch
Terminal pitch	4 mm
Termination type	SOLDER
Total number of contacts	7
Base Number Matches	1

Preview

Download Datasheet

View All

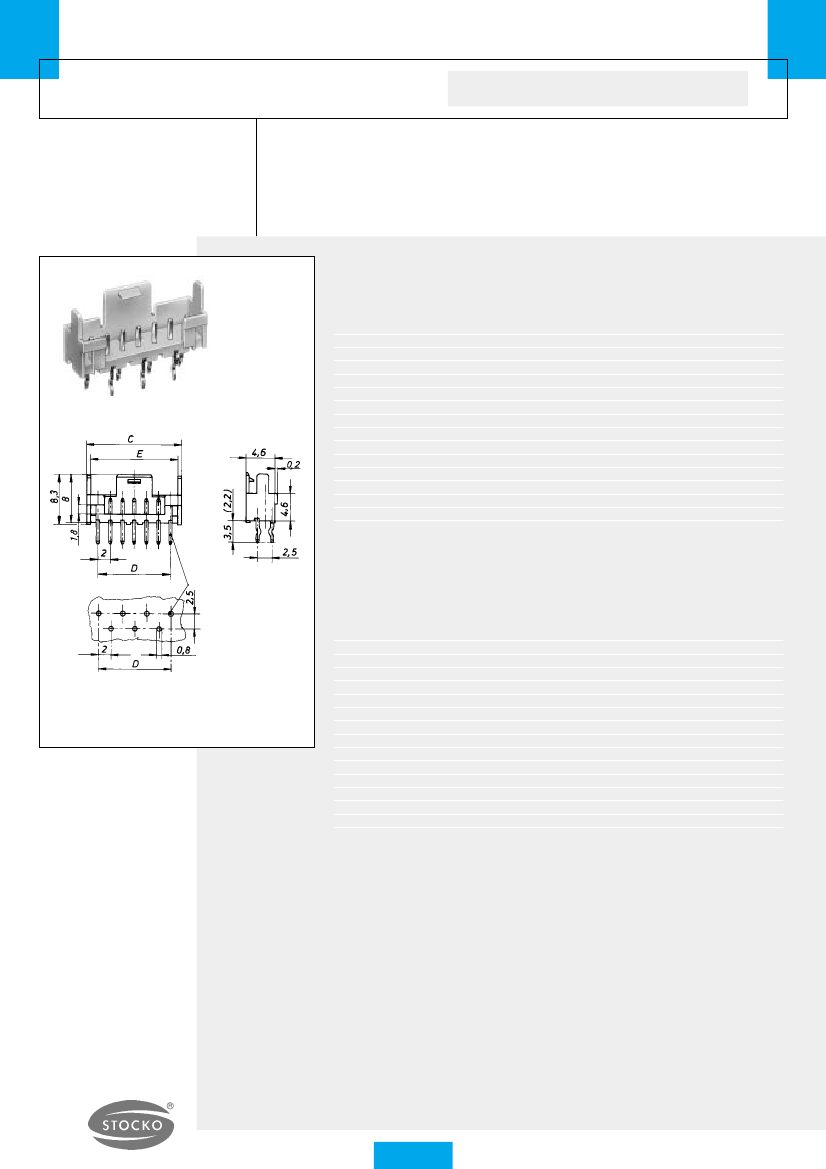

Serien / Series

Rastlasche

S tiftwannen, stehend, mit Rastlasche

MKS 8020, 8080

ver

ertical

Pin connectors with snap-in locking device for ver tical connections

Serie MKS 8020 für Leiterplattendicke 1,0 mm, Lötstifte versetzt

Series MKS 8020 for PC board thickness 1.0 mm, solder pins staggered

Polzahl

Positions

2

3

4

5

6

7

8

9

10

11

12

13

14

15

Artikel-Nummer

Part number

MKS

8022 - 6 - 00 - 202

8023 - 6 - 00 - 303

8024 - 6 - 00 - 404

8025 - 6 - 00 - 505

8026 - 6 - 00 - 606

8027 - 6 - 00 - 707

8028 - 6 - 00 - 808

8029 - 6 - 00 - 909

8030 - 6 - 00 - 1010

8031 - 6 - 00 - 1111

8032 - 6 - 00 - 1212

8033 - 6 - 00 - 1313

8034 - 6 - 00 - 1414

8035 - 6 - 00 - 1515

Abmessungen C

Dimensions C

6

8

10

12

14

16

18

20

22

24

26

28

30

32

Abmessungen D

Dimensions D

2

4

6

8

10

12

14

16

18

20

22

24

26

28

Abmessungen E

Dimensions E

4,7

6,7

8,7

10,7

12,7

14,7

16,7

18,7

20,7

22,7

24,7

26,7

28,7

30,7

1. Contact

Serie MKS 8080 für Leiterplattendicke 1,5 mm, Lötstifte versetzt

Series MKS 8080 for PC board thickness 1.5 mm, solder pins staggered

Polzahl

Positions

2

3

4

5

6

7

8

9

10

11

12

13

14

15

Artikel-Nummer

Part number

MKS

8082 - 6 - 00 - 202

8083 - 6 - 00 - 303

8084 - 6 - 00 - 404

8085 - 6 - 00 - 505

8086 - 6 - 00 - 606

8087 - 6 - 00 - 707

8088 - 6 - 00 - 808

8089 - 6 - 00 - 909

8090 - 6 - 00 - 1010

8091 - 6 - 00 - 1111

8092 - 6 - 00 - 1212

8093 - 6 - 00 - 1313

8094 - 6 - 00 - 1414

8095 - 6 - 00 - 1515

Abmessungen C

Dimensions C

6

8

10

12

14

16

18

20

22

24

26

28

30

32

Abmessungen D

Dimensions D

2

4

6

8

10

12

14

16

18

20

22

24

26

28

Abmessungen E

Dimensions E

4,7

6,7

8,7

10,7

12,7

14,7

16,7

18,7

20,7

22,7

24,7

26,7

28,7

30,7

Bauteilseite

Component side

Zweipolige Ausführung mit einer Führungslasche

Two-way version has one guide entry only

8
