SAB15E3 datasheet, PDF - EEWORLD Datasheet

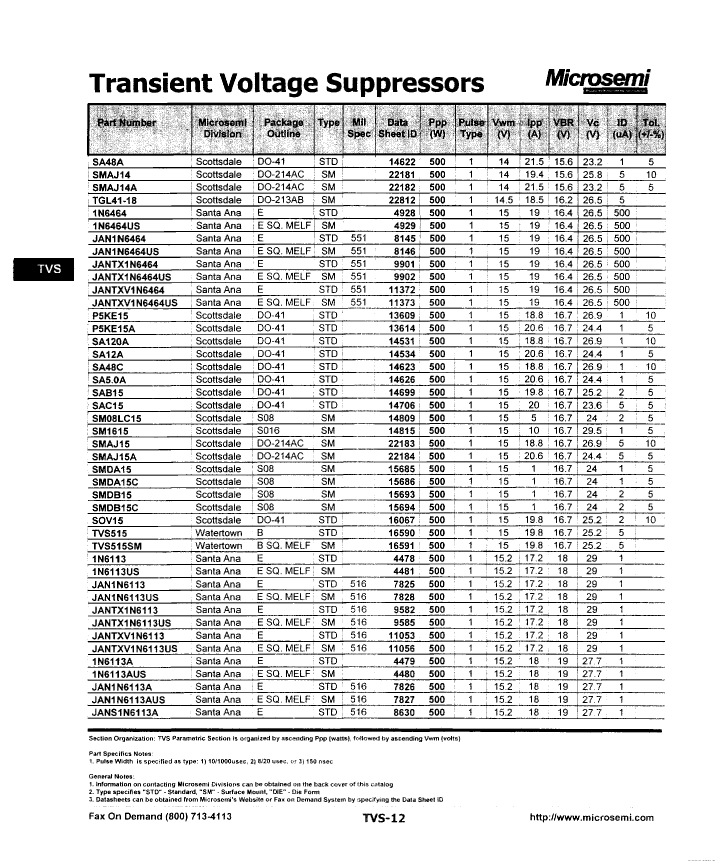

SAB15E3: DescriptionTrans Voltage Suppressor Diode, 500W, 15V V(RWM), Unidirectional, 1 Element, Silicon, DO-41,; CategoryDiscrete semiconductor diode; File Size113KB，1 Pages; ManufacturerMicrosemi; Websitehttps://www.microsemi.com

Download Datasheet Parametric Compare View All

SAB15E3 Overview

Trans Voltage Suppressor Diode, 500W, 15V V(RWM), Unidirectional, 1 Element, Silicon, DO-41,

Parameter Name	Attribute value
package instruction	O-XALF-W2
Reach Compliance Code	compliant
ECCN code	EAR99
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE
JEDEC-95 code	DO-41
JESD-30 code	O-XALF-W2
Maximum non-repetitive peak reverse power dissipation	500 W
Number of components	1
Number of terminals	2
Package body material	UNSPECIFIED
Package shape	ROUND
Package form	LONG FORM
polarity	UNIDIRECTIONAL
Maximum repetitive peak reverse voltage	15 V
surface mount	NO
technology	AVALANCHE
Terminal form	WIRE
Terminal location	AXIAL
Base Number Matches	1

	SAB15E3	SAB15	SM08LC15	SM08LC15E3
Description	Trans Voltage Suppressor Diode, 500W, 15V V(RWM), Unidirectional, 1 Element, Silicon, DO-41,	Trans Voltage Suppressor Diode, 500W, 15V V(RWM), Unidirectional, 1 Element, Silicon, DO-41,	Trans Voltage Suppressor Diode, 500W, 15V V(RWM), Unidirectional, Silicon, SO-8	Trans Voltage Suppressor Diode, 500W, 15V V(RWM), Unidirectional, Silicon, SO-8
package instruction	O-XALF-W2	O-XALF-W2	R-PDSO-G8	R-PDSO-G8
Reach Compliance Code	compliant	compliant	unknown	compli
ECCN code	EAR99	EAR99	EAR99	EAR99
Diode component materials	SILICON	SILICON	SILICON	SILICON
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE	TRANS VOLTAGE SUPPRESSOR DIODE	TRANS VOLTAGE SUPPRESSOR DIODE	TRANS VOLTAGE SUPPRESSOR DIODE
JESD-30 code	O-XALF-W2	O-XALF-W2	R-PDSO-G8	R-PDSO-G8
Maximum non-repetitive peak reverse power dissipation	500 W	500 W	500 W	500 W
Number of terminals	2	2	8	8
Package body material	UNSPECIFIED	UNSPECIFIED	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	ROUND	ROUND	RECTANGULAR	RECTANGULAR
Package form	LONG FORM	LONG FORM	SMALL OUTLINE	SMALL OUTLINE
polarity	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL
Maximum repetitive peak reverse voltage	15 V	15 V	15 V	15 V
surface mount	NO	NO	YES	YES
technology	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE
Terminal form	WIRE	WIRE	GULL WING	GULL WING
Terminal location	AXIAL	AXIAL	DUAL	DUAL
Maker	-	Microsemi	Microsemi	Microsemi
