ES22A

Description
Rectifier Diode, 1 Phase, 1 Element, 2A, 100V V(RRM), Silicon, DO-214AC, SMA, 2 PIN
CategoryDiscrete semiconductor    diode
File Size200KB，2 Pages
ManufacturerSECOS
Websitehttp://www.secosgmbh.com/
Download Datasheet Parametric Compare View All

ES22A Overview

Rectifier Diode, 1 Phase, 1 Element, 2A, 100V V(RRM), Silicon, DO-214AC, SMA, 2 PIN

ES22A Parametric

Parameter NameAttribute value
package instructionR-PDSO-C2
Reach Compliance Codecompliant
ECCN codeEAR99
applicationEFFICIENCY
ConfigurationSINGLE
Diode component materialsSILICON
Diode typeRECTIFIER DIODE
Maximum forward voltage (VF)0.9 V
JEDEC-95 codeDO-214AC
JESD-30 codeR-PDSO-C2
Maximum non-repetitive peak forward current60 A
Number of components1
Phase1
Number of terminals2
Maximum operating temperature150 °C
Minimum operating temperature-55 °C
Maximum output current2 A
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Maximum repetitive peak reverse voltage100 V
Maximum reverse current5 µA
Maximum reverse recovery time0.02 µs
surface mountYES
Terminal formC BEND
Terminal locationDUAL
Base Number Matches1

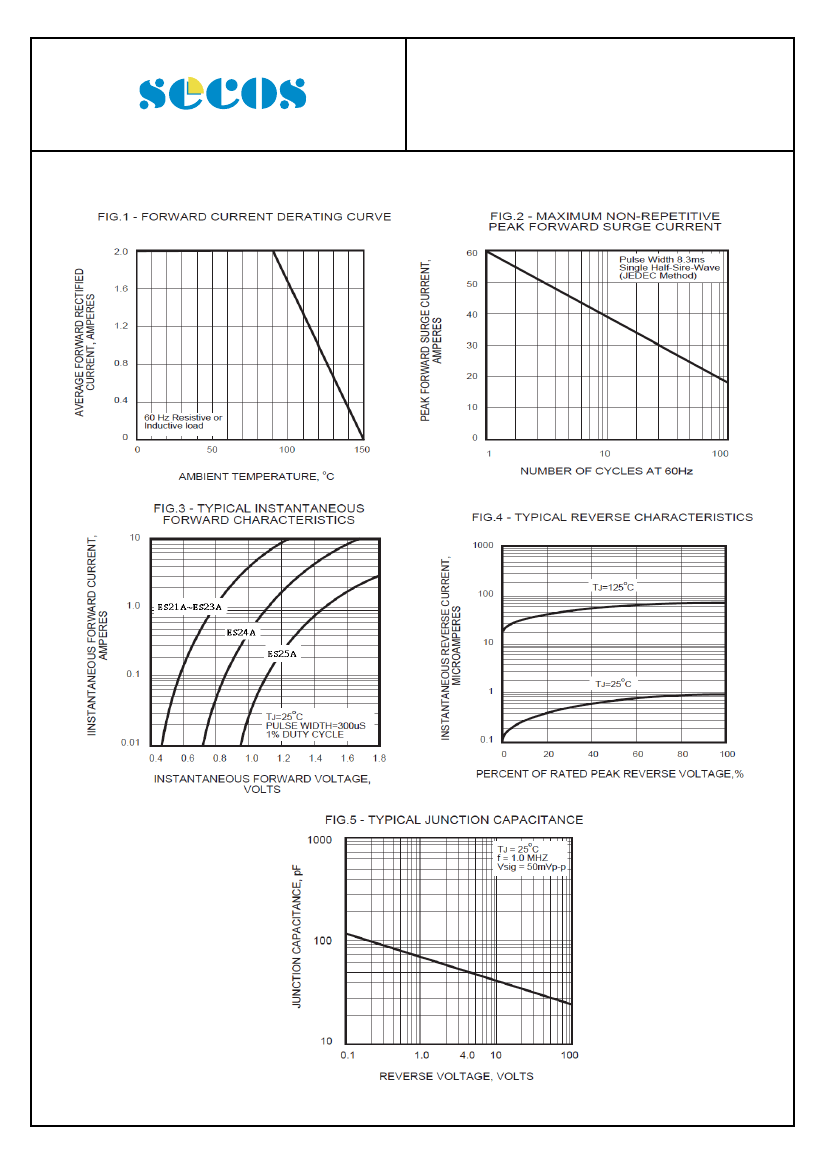

Preview

Download Datasheet
ES21A~ES25A
Elektronische Bauelemente
Voltage 50 V ~ 600 V
2.0 Amp High Efficiency Recovery Rectifiers
RoHS Compliant Product
A suffix of “-C” specifies halogen & lead-free
FEATURES
SMA
Fast switching for high efficiency
Low forward voltage drop
High current capability
Low reverse leakage current
High surge current capability
Glass passivated chip
A
B
C
MECHANICAL DATA
Case: Molded plastic SMA/DO-214AC
Epoxy: UL 94V-0 rate flame retardant
Terminals: Solderable per MIL-STD-750 method 2026
Polarity: Color band denotes cathode
Mounting position: Any
Weight: 0.064 gram
REF.
H
D
G
E
F
Millimeter
Min.
Max.
-
0.203
4.80
5.28
0.76
1.52
0.15
0.305
PACKAGE INFORMATION
Package
SMA
MPQ
5K
Leader Size
13’ inch
A
B
C
D
Millimeter
Min.
Max.
1.24
1.65
3.99
4.60
2.50
2.90
1.98
2.44
REF.
E
F
G
H
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
(Rating 25°C ambient temperature unless otherwise specified. Single phase half wave, 60Hz, resistive or inductive load.
For capacitive load, de-rate current by 20%.)
Parameter
Maximum Repetitive Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Rectified
T
A
=90°C
Peak Forward Surge Current, 8.3ms single
half sine-wave superimposed on rated load
Maximum Instantaneous Forward Voltage @
2.0A
Maximum DC Reverse Current T
A
=25°C
at Rated DC Blocking Voltage
T
A
=100°C
Maximum Reverse Recovery Time
1
Typical Thermal Resistance
3
Typical Junction Capacitance
2
Operating & Storage Temperature
Symbol
ES21A
V
RRM
V
RMS
V
DC
I
F
I
FSM
V
F
I
R
T
RR
R
θJA
C
J
T
J
,T
STG
20
0.9
50
35
50
ES22A
100
70
100
Part Number
ES23A
200
140
200
2
60
1.25
5
100
25
55
50
-55~150
35
1.7
ES24A
400
280
400
ES25A
600
420
600
Unit
V
V
V
A
A
V
μA
nS
°C / W
pF
°C
Notes:
1. Reverse Recovery Time test condition：I
F
=0.5A, I
R
=1.0A, I
RR
=0.25A
2. Measured at 1MHz and applied reverse voltage of 4.0V D.C.
3. Thermal Resistance junction to ambient.
http://www.SeCoSGmbH.com/
Any changes of specification will not be informed individually.
27-May-2011 Rev. B
Page 1 of 2

ES22A Related Products

ES22A ES22A-C ES21A ES21A-C ES24A-C ES24A ES23A-C ES23A
Description Rectifier Diode, 1 Phase, 1 Element, 2A, 100V V(RRM), Silicon, DO-214AC, SMA, 2 PIN Rectifier Diode, 1 Phase, 1 Element, 2A, 100V V(RRM), Silicon, DO-214AC, SMA, 2 PIN Rectifier Diode, 1 Phase, 1 Element, 2A, 50V V(RRM), Silicon, DO-214AC, SMA, 2 PIN Rectifier Diode, 1 Phase, 1 Element, 2A, 50V V(RRM), Silicon, DO-214AC, SMA, 2 PIN Rectifier Diode, 1 Phase, 1 Element, 2A, 400V V(RRM), Silicon, DO-214AC, SMA, 2 PIN Rectifier Diode, 1 Phase, 1 Element, 2A, 400V V(RRM), Silicon, DO-214AC, SMA, 2 PIN Rectifier Diode, 1 Phase, 1 Element, 2A, 200V V(RRM), Silicon, DO-214AC, SMA, 2 PIN Rectifier Diode, 1 Phase, 1 Element, 2A, 200V V(RRM), Silicon, DO-214AC, SMA, 2 PIN
package instruction R-PDSO-C2 R-PDSO-C2 R-PDSO-C2 R-PDSO-C2 R-PDSO-C2 R-PDSO-C2 R-PDSO-C2 R-PDSO-C2
Reach Compliance Code compliant compliant compliant compliant compliant compliant compliant compliant
ECCN code EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99
application EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY
Configuration SINGLE SINGLE SINGLE SINGLE SINGLE SINGLE SINGLE SINGLE
Diode component materials SILICON SILICON SILICON SILICON SILICON SILICON SILICON SILICON
Diode type RECTIFIER DIODE RECTIFIER DIODE RECTIFIER DIODE RECTIFIER DIODE RECTIFIER DIODE RECTIFIER DIODE RECTIFIER DIODE RECTIFIER DIODE
Maximum forward voltage (VF) 0.9 V 0.9 V 0.9 V 0.9 V 1.25 V 1.25 V 0.9 V 0.9 V
JEDEC-95 code DO-214AC DO-214AC DO-214AC DO-214AC DO-214AC DO-214AC DO-214AC DO-214AC
JESD-30 code R-PDSO-C2 R-PDSO-C2 R-PDSO-C2 R-PDSO-C2 R-PDSO-C2 R-PDSO-C2 R-PDSO-C2 R-PDSO-C2
Maximum non-repetitive peak forward current 60 A 60 A 60 A 60 A 60 A 60 A 60 A 60 A
Number of components 1 1 1 1 1 1 1 1
Phase 1 1 1 1 1 1 1 1
Number of terminals 2 2 2 2 2 2 2 2
Maximum operating temperature 150 °C 150 °C 150 °C 150 °C 150 °C 150 °C 150 °C 150 °C
Minimum operating temperature -55 °C -55 °C -55 °C -55 °C -55 °C -55 °C -55 °C -55 °C
Maximum output current 2 A 2 A 2 A 2 A 2 A 2 A 2 A 2 A
Package body material PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY
Package shape RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
Package form SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE
Maximum repetitive peak reverse voltage 100 V 100 V 50 V 50 V 400 V 400 V 200 V 200 V
Maximum reverse current 5 µA 5 µA 5 µA 5 µA 5 µA 5 µA 5 µA 5 µA
Maximum reverse recovery time 0.02 µs 0.02 µs 0.02 µs 0.02 µs 0.025 µs 0.025 µs 0.02 µs 0.02 µs
surface mount YES YES YES YES YES YES YES YES
Terminal form C BEND C BEND C BEND C BEND C BEND C BEND C BEND C BEND
Terminal location DUAL DUAL DUAL DUAL DUAL DUAL DUAL DUAL
Maker - - SECOS SECOS SECOS SECOS SECOS SECOS
