BP62330

Description
140 MHz Bandpass SAW Filter
File Size33KB,1 Pages
ManufacturerVanlong Technology Co., Ltd.
Websitehttp://www.vanlong.com/
Download Datasheet View All

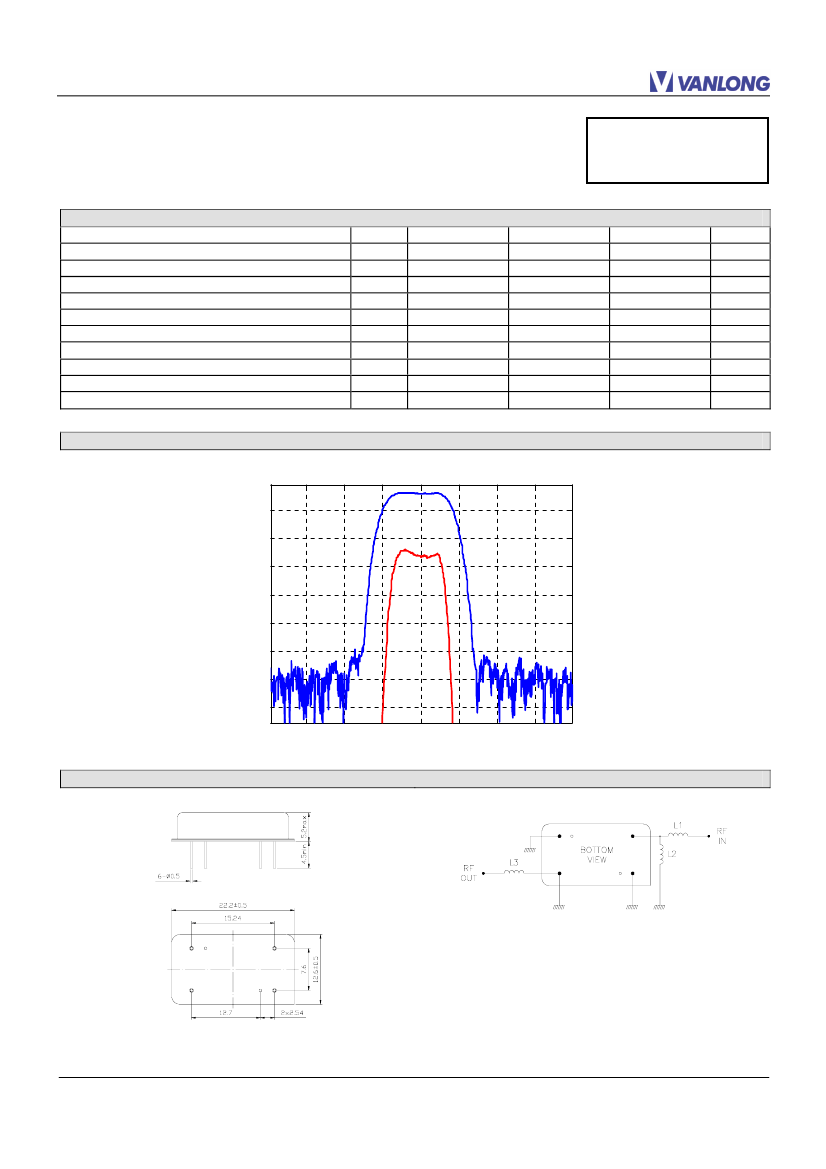

BP62330 Overview

140 MHz Bandpass SAW Filter

140 MHz Bandpass SAW Filter
140 MHz Bandpass SAW Filter
1.6 MHz Bandwidth
Electrical Characteristics
Parameter
Center Frequency at 25°C
Insertion Loss at fc
1 dB Bandwidth
3 dB Bandwidth
40dB Bandwidth
Passband Variation
Absolute Delay
Ultimate Rejection
Substrate Material
Ambient Temperature
Sym
fc
IL
BW
1
BW
3
BW
40
-
-
-
-
Ta
Minimum
139.95
-
-
1.60
-
-
-
45
-
-
Typical
140
24.06
1.34
1.61
2.68
0.3
2.23
50
Quartz
25
BP62330
Maximum
140.05
25.0
-
-
2.70
1.0
-
-
-
-
Unit
MHz
dB
MHz
MHz
MHz
dB
µsec
dB
-
°C
Typical Performance
-30
-40
-50
-60
-70
-80
-90
-100
137
138
139
140
141
142
143
Package Outline
Matching Configuration
L1 : 68 nH,
L3 : 68 nH
L2 : 220 nH
Nominal Source/Load Impedance : 50
