S497-0020-10 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> S497-0020-10

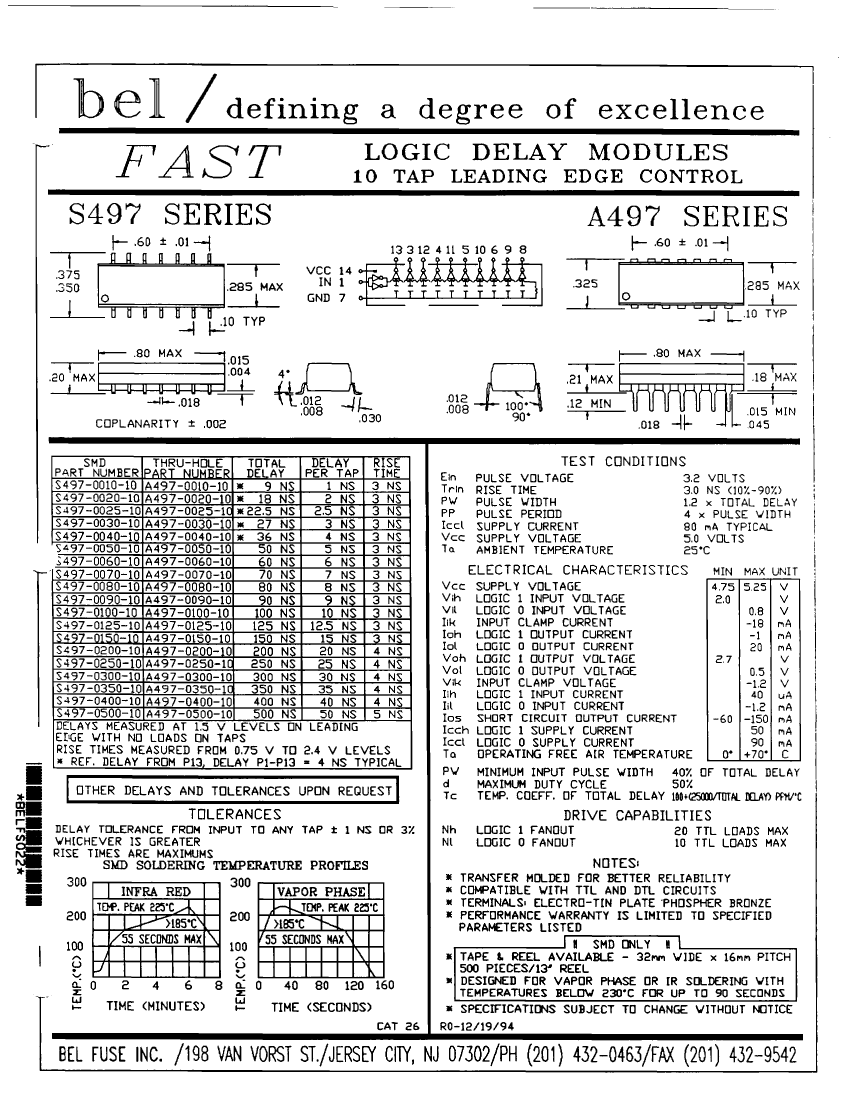

S497-0020-10: DescriptionActive Delay Line, 1-Func, 10-Tap, True Output, TTL, PDSO14, SMD-14; Categorylogic logic; File Size76KB，1 Pages; ManufacturerBel Fuse

Download Datasheet Parametric Compare View All

S497-0020-10 Overview

Active Delay Line, 1-Func, 10-Tap, True Output, TTL, PDSO14, SMD-14

S497-0020-10 Parametric

Parameter Name	Attribute value
Parts packaging code	SOIC
package instruction	SOP,
Contacts	14
Reach Compliance Code	unknown
Other features	MAX RISE TIME CAPTURED; INPUT TO 1ST TAP DELAY=4NS
series	F
Input frequency maximum value (fmax)	69.4444 MHz
JESD-30 code	R-PDSO-G14
Logic integrated circuit type	ACTIVE DELAY LINE
Number of functions	1
Number of taps/steps	10
Number of terminals	14
Maximum operating temperature	70 °C
Minimum operating temperature
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Maximum supply current (ICC)	90 mA
programmable delay line	NO
Certification status	Not Qualified
Maximum seat height	5.08 mm
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal pitch	2.54 mm
Terminal location	DUAL
Total delay nominal (td)	18 ns
Base Number Matches	1

Preview

Download Datasheet

View All

S497-0020-10 Related Products

	S497-0020-10	A497-0010-10	A497-0020-10	S497-0010-10	A497-0300-10	S497-0500-10	A497-0400-10	A497-0350-10	A497-0500-10
Description	Active Delay Line, 1-Func, 10-Tap, True Output, TTL, PDSO14, SMD-14	Active Delay Line, 1-Func, 10-Tap, True Output, TTL, PDIP14	Active Delay Line, 1-Func, 10-Tap, True Output, TTL, PDIP14	Active Delay Line, 1-Func, 10-Tap, True Output, TTL, PDSO14, SMD-14	Active Delay Line, 1-Func, 10-Tap, True Output, TTL, PDIP14	Active Delay Line, 1-Func, 10-Tap, True Output, TTL, PDSO14, SMD-14	Active Delay Line, 1-Func, 10-Tap, True Output, TTL, PDIP14	Active Delay Line, 1-Func, 10-Tap, True Output, TTL, PDIP14	Active Delay Line, 1-Func, 10-Tap, True Output, TTL, PDIP14
package instruction	SOP,	DIP,	DIP,	SOP,	DIP,	SOP,	DIP,	DIP,	DIP,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	MAX RISE TIME CAPTURED; INPUT TO 1ST TAP DELAY=4NS	MAX RISE TIME CAPTURED; INPUT TO 1ST TAP DELAY=4NS	MAX RISE TIME CAPTURED; INPUT TO 1ST TAP DELAY=4NS	MAX RISE TIME CAPTURED; INPUT TO 1ST TAP DELAY=4NS	MAX RISE TIME CAPTURED	MAX RISE TIME CAPTURED	MAX RISE TIME CAPTURED	MAX RISE TIME CAPTURED	MAX RISE TIME CAPTURED
series	F	F	F	F	F	F	F	F	F
Input frequency maximum value (fmax)	69.4444 MHz	138.889 MHz	69.4444 MHz	138.889 MHz	4.16667 MHz	2.5 MHz	3.125 MHz	3.57143 MHz	2.5 MHz
JESD-30 code	R-PDSO-G14	R-PDIP-T14	R-PDIP-T14	R-PDSO-G14	R-PDIP-T14	R-PDSO-G14	R-PDIP-T14	R-PDIP-T14	R-PDIP-T14
Logic integrated circuit type	ACTIVE DELAY LINE	ACTIVE DELAY LINE	ACTIVE DELAY LINE	ACTIVE DELAY LINE	ACTIVE DELAY LINE	ACTIVE DELAY LINE	ACTIVE DELAY LINE	ACTIVE DELAY LINE	ACTIVE DELAY LINE
Number of functions	1	1	1	1	1	1	1	1	1
Number of taps/steps	10	10	10	10	10	10	10	10	10
Number of terminals	14	14	14	14	14	14	14	14	14
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Output polarity	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	DIP	DIP	SOP	DIP	SOP	DIP	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE	IN-LINE	SMALL OUTLINE	IN-LINE	SMALL OUTLINE	IN-LINE	IN-LINE	IN-LINE
Maximum supply current (ICC)	90 mA	90 mA	90 mA	90 mA	90 mA	90 mA	90 mA	90 mA	90 mA
programmable delay line	NO	NO	NO	NO	NO	NO	NO	NO	NO
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	5.08 mm	5.334 mm	5.334 mm	5.08 mm	5.334 mm	5.08 mm	5.334 mm	5.334 mm	5.334 mm
Maximum supply voltage (Vsup)	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V
Minimum supply voltage (Vsup)	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	NO	NO	YES	NO	YES	NO	NO	NO
technology	TTL	TTL	TTL	TTL	TTL	TTL	TTL	TTL	TTL
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	GULL WING	THROUGH-HOLE	THROUGH-HOLE	GULL WING	THROUGH-HOLE	GULL WING	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Total delay nominal (td)	18 ns	9 ns	18 ns	9 ns	300 ns	500 ns	400 ns	350 ns	500 ns
Base Number Matches	1	1	1	1	1	1	1	1	-
width	-	7.62 mm	7.62 mm	-	7.62 mm	-	7.62 mm	7.62 mm	7.62 mm
