MQME series filters (with MQFL converters) are designed to meet:
• MIL-HDBK-704-8 (A through F)
• RTCA/DO-160E Section 16
• MIL-STD-1275B
• DEF-STAN 61-5 (part 6)/5
• MIL-STD-461 (C, D, E)
• RTCA/DO-160E Section 22
In-Line Manufacturing Pr ocess
•
•
•
•
•
•
AS9100 and ISO 9001:2000 certified facility
Full component traceability
Temperature cycling
Constant acceleration
24, 96, 160 hour burn-in
Three level temperature screening
Phone 1-888-567-9596
www.synqor.com
Product # MQME-28-P
Doc.# 005-2ME028P Rev. A
5/1/08
Page 1
MQME-28-P
Current:
20 A
Technical Spe
c
ifi
c
a
ti
on

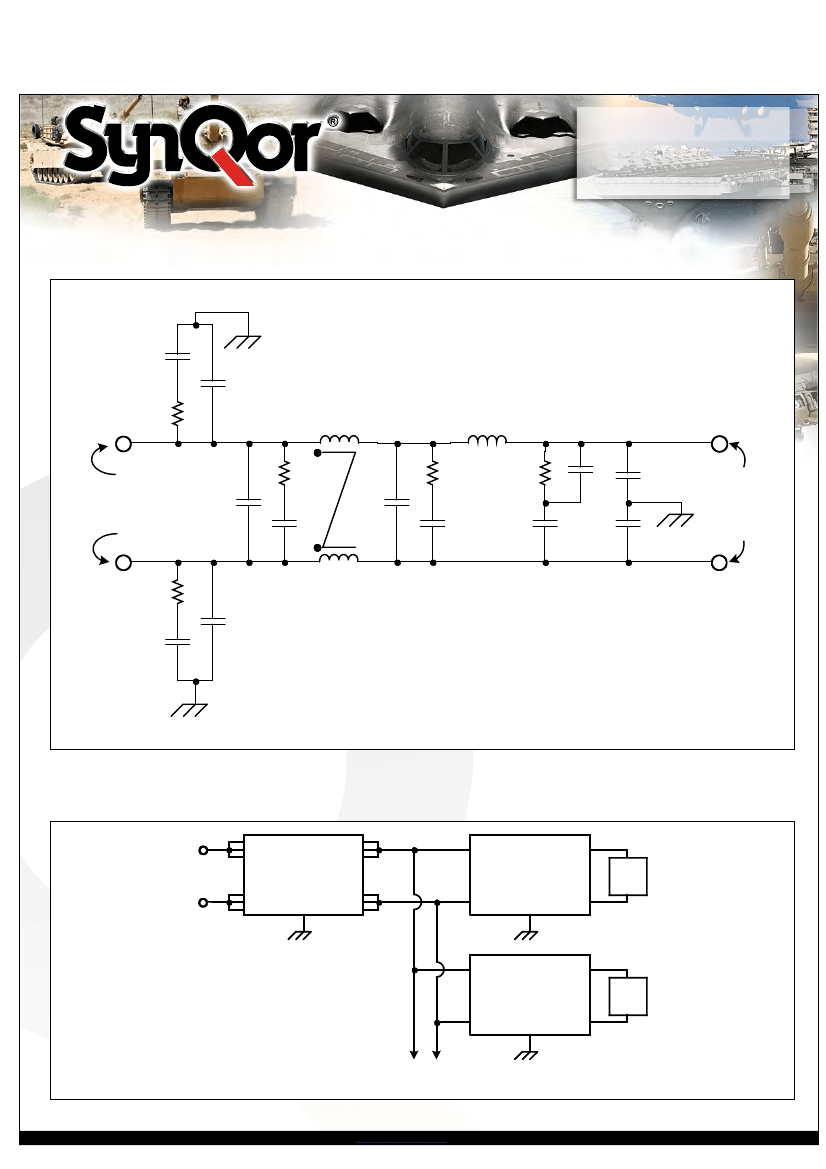

BLOCK DIAGRAM
POSITIVE
INPUT
POSITIVE
OUTPUT
PINS 1, 2, 3
R
DAMPING
PINS 10, 11, 12
PINS 4, 5, 6
C
BULK
PINS 7, 8, 9
INPUT
RETURN
OUTPUT
RETURN
TYPICAL CONNECTION DIAGRAM
+VIN
+VOUT
+VIN
+VOUT
MQME EMI
FILTER
-VIN
-VOUT
MQFL DC-DC
CONVERTER
IN RTN
OUT RTN
LOAD
+VIN
+VOUT
MQFL DC-DC
CONVERTER
IN RTN
OUT RTN
LOAD
TO OTHER
LOADS
Product # MQME-28-P
Phone 1-888-567-9596
www.synqor.com
Doc.# 005-2ME028P Rev. A
5/1/08
Page 2
MQME-28-P
Current:
20 A
Technical Spe
c
ifi
c
a
ti
on
MQME-28-P ELECTRICAL CHARACTERISTICS
Parameter
ABSOLUTE MAXIMUM RATINGS
Input Voltage
Continuous
Transient (£ 1 s)
Isolation Voltage (input/output to case)
Continuous
Transient (£ 1 s)
Output Current
Operating Case Temperature
Storage Case Temperature
Lead Temperature (20 s)
ELECTRICAL CHARACTERISTICS
Input Voltage
Continuous
Transient (£ 1 s., Rs* = 0
W)
Transient (£ 100 ms, Rs* = 0
W)
Output Voltage (continuous)
Output Current (continuous)
DC Resistance Rdc
Tcase = 25ºC
Tcase = 125ºC
Power Dissipation (20A output current)
Tcase = 25ºC
Tcase = 125ºC
Total Differential-Mode Capacitance
Total Common-Mode Capacitance
Bulk Capacitor
Damping Resistor
Noise Attenuation
INPUT VOLTAGE SPIKE SUPPRESSION
Output Voltage Deviation due to a Spike
2
Input Voltage Spike (Centered on Vin)
+600 V, 10 µs, Rs = 50
W
ISOLATION CHARACTERISTICS
Isolation Voltage (any pin to case)
-5
10
Min.
Nom.
Max.
Units Notes & Conditions
Group A
Vin=28V DC
±
5%, Iout = 20A unless otherwise specified
Subgroup
3
See Note 1
-100
-200
-500
-1000
-55
-65
100
200
500
1000
30
125
135
300
V
V
V
V
A
°C
°C
°C
-40
-50
-100
40
50
100
20
25
35
10
14
71
0.28
58
0.2
V
V
V
V
A
mW
mW
W
W
µF
µF
µF
W
See Note 1 for negative limits
“
See Note 1
1, 2, 3
V out = V in - (I in x R dc )
1, 2, 3
1, 2, 3
1
3
1, 2, 3
1, 2, 3
Measured across input or output pins
Measured between any pin to case
See Figure 1
DV
RTCA/DO-160E
Continuous
Transient (£ 100 µs)
Isolation Resistance (any pin to case)
-500
-800
100
500
800
V
V
MW
1
1
* Rs = Source Impedance
Product # MQME-28-P
Phone 1-888-567-9596
www.synqor.com
Doc.# 005-2ME028P Rev. A
5/1/08
Page 3
MQME-28-P
Current:
20 A
Technical Spe
c
ifi
c
a
ti
on
MQME-28-P ELECTRICAL CHARACTERISTICS
Parameter
RELIABILITY CHARACTERISTICS
Calculated MTBF (MIL-STD-217F2)
GB @ T
case
=70ºC
AIF @ T
case
=70ºC
Demonstrated MTBF
WEIGHT CHARACTERISTICS
Device Weight
Min.
Nom.
Max.
Units Notes & Conditions
Group A
Vin=28V DC
±
5%, Iout = 20A unless otherwise specified
Subgroup
3
20.9
2.1
TBD
79
10
6
Hrs.
10
6
Hrs.
10
6
Hrs.
g
Electrical Characteristics Notes
1. While the filter will survive these input voltage limits, the filter’s output voltage will be outside the limits for an MQFL converter input voltage range.
2. Verified by qualification testing and analysis.
3. Only the ES and HB grade products are tested at three temperatures. The B and C grade products are tested at one temperature. Please refer to the ESS
table on Page 11 for details.
* Rs = Source Impedance
Product # MQME-28-P
Phone 1-888-567-9596
www.synqor.com
Doc.# 005-2ME028P Rev. A
5/1/08
Page 4
MQME-28-P
Current:
20 A
Technical Spe
c
ifi
c
a
ti
on
20
0
-20
10
Output Impedance Magnitude (ohms)
1
Attenuation (dB)
-40
-60
-80
-100
-120
-140
Common Mode
-160
-180
0.01
0.1
1
10
100
1000
10000
100000
Differential Mode
0.1
0.01
0.001
0.01
0.1
1
10
100
1000
Frequency (kHz)
Frequency (kHz)

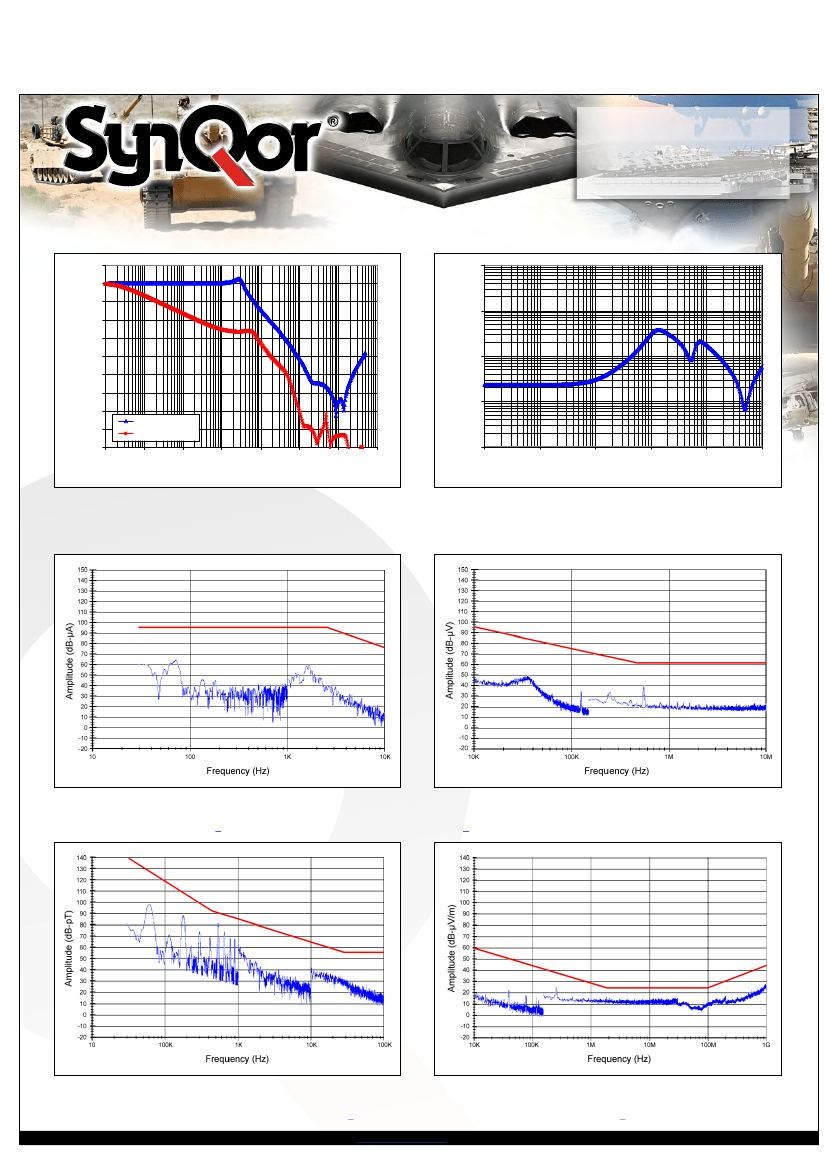

Figure 1:
Typical Common Mode and Differential Mode Attenuation
provided by the filter as a function of frequency. Both input lines are
connected to chassis ground through 50
W
resistors. The filter case is
also connected to chassis ground.
Figure 2:
Typical Output Impedance (magnitude) of the filter looking
back into its output pins with the input pins connected to a source with
zero source impedance.
Figure 3:
MIL-STD-461E Method CE101 Low Frequency Conducted
Emissions. Limit line (in red) is the ‘Submarine Applications DC
Curve’. Setup described on Page 7.
Figure 4:
MIL-STD-461E Method CE102 High Frequency Conducted
Emissions. Limit line (in red) is the ‘Basic Curve’. Setup described on
Page 7.
Figure 5:
MIL-STD-461E Method RE101 Low Frequency Radiated Emissions.
Limit line (in red) is the ‘Standard Curve’from MIL-STD-461C Method RE01,
which is more strict than all RE101 limits. Setup described on Page 7.
