SM6503

Description
5 MHz - 500 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, TO-8, 4 PIN
CategoryWireless rf/communication    Radio frequency and microwave
File Size201KB,4 Pages
ManufacturerSpectrum Microwave
Download Datasheet Parametric View All

SM6503 Overview

5 MHz - 500 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, TO-8, 4 PIN

SM6503 Parametric

Parameter NameAttribute value
Reach Compliance Codeunknown
Other featuresI/P POWER-MAX (PEAK)=27DBM
structureCOMPONENT
Gain15.5 dB
Maximum input power (CW)13 dBm
Maximum operating frequency500 MHz
Minimum operating frequency5 MHz
Maximum operating temperature85 °C
Minimum operating temperature-55 °C
RF/Microwave Device TypesWIDE BAND LOW POWER
Maximum voltage standing wave ratio2
Base Number Matches1
Cross Reference Guide
TM6503 / SM6503*
* Part number for additional environmental screening.
Performance Data
Frequency
Gain
Noise Figure
P
1dB
3
rd
Order Intercept
2
nd
Order Intercept
VSWR
Reverse Isolation
Power Supply
Operating Temperature
5.0 - 500.0 MHz
16.5 dB Typical
15.5 dB Min
3.5 dB Typical
4.5 dB Max
1.5 dBm Typical
0.0 dBm Min
14.0 dBm Typical
16.0 dBm Typical
1.8/2.0 Input Typ/Max
1.5/2.0 Output Typ/Max
-20.0 dB Typical
-18.0 dB Min
15.0 Volts
10.0 mA
-55.0 - 85.0 °C

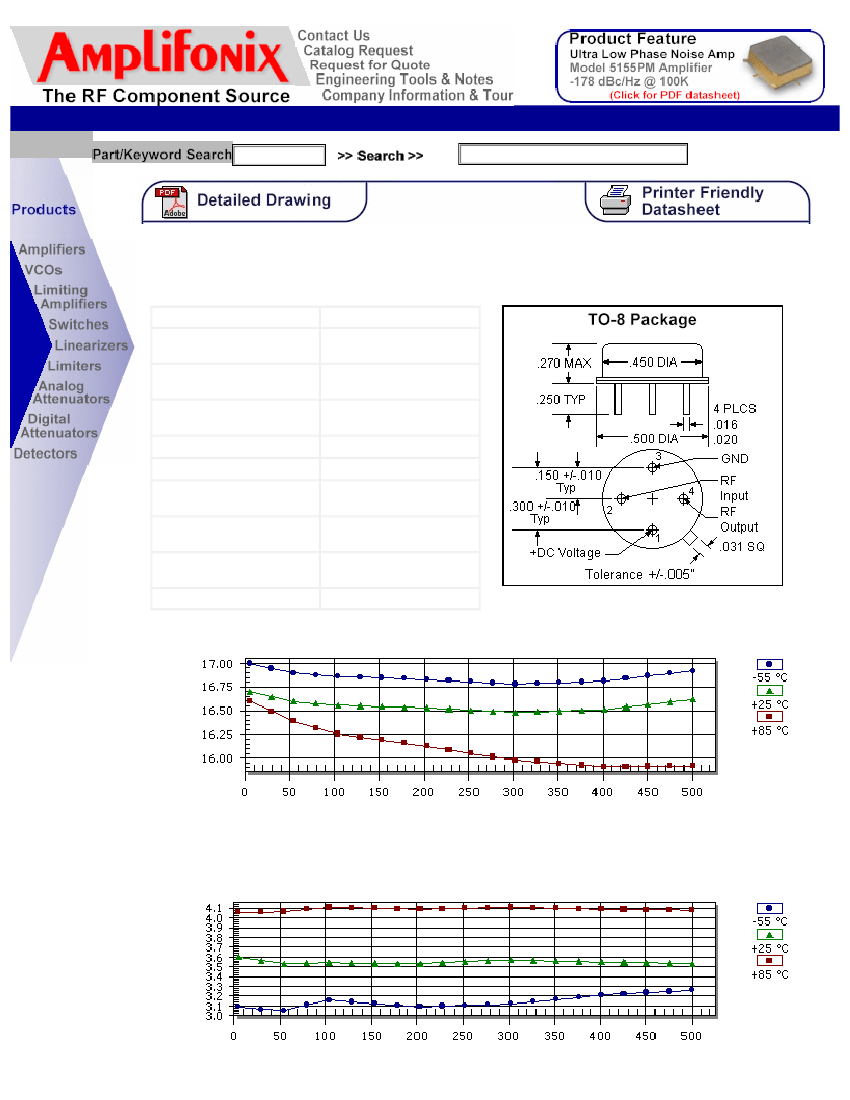

Package Drawing
Gain
dB
Frequency (MHz)
Noise Figure
dB
