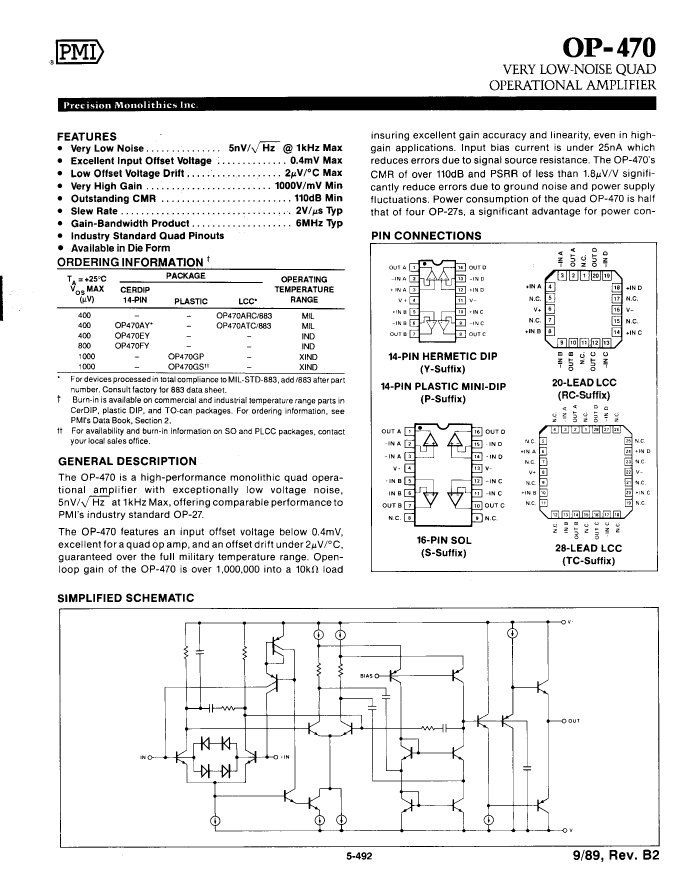

Basic information of OP470FY amplifier:
OP470FY is an OPERATIONAL AMPLIFIER. Commonly used packaging methods are HERMETIC SEALED, DIP-14
OP470FY amplifier core information:
The minimum operating temperature of OP470FY is -25 °C and the maximum operating temperature is 85 °C. Maximum bias current at 25°C: 0.05 µA Maximum average bias current is 0.07 µA
How to simply check the efficiency of an amplifier? Looking at its slew rate, the nominal slew rate of OP470FY is 2 V/us. The maximum slew rate of the OP470FY given by the manufacturer is 11 mA, while the minimum slew rate is 1.4 V/us. Its minimum voltage gain is 300000. When the op amp is used in closed loop, at a certain closed-loop gain (usually 1 or 2, 10, etc.), the frequency when the OP470FY gain becomes 0.707 times the low-frequency gain is 6000 kHz.
The nominal supply voltage of OP470FY is 15 V, and its corresponding nominal negative supply voltage is -15 V. The input offset voltage of OP470FY is 1000 µV (input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the operational amplifier 0V (or close to 0V).)
Related dimensions of OP470FY:
OP470FY has 14 terminals. Its terminal position type is: DUAL. Terminal pitch is 2.54 mm.
OP470FY amplifier additional information:
OP470FY adopts the VOLTAGE-FEEDBACK architecture. It does not belong to the low offset class of amplifiers. The frequency compensation status of OP470FY is: YES. Its temperature grade is: OTHER. OP470FY is not Rohs certified.
The corresponding JESD-30 code is: R-GDIP-T14. The corresponding JESD-609 code is: e0. The packaging code of OP470FY is: DIP. OP470FY packaging materials are mostly CERAMIC, GLASS-SEALED. The package shape is RECTANGULAR.
The OP470FY package pin format is: IN-LINE. Its terminal form is: THROUGH-HOLE.
Basic information of OP470FY amplifier:
OP470FY is an OPERATIONAL AMPLIFIER. Commonly used packaging methods are HERMETIC SEALED, DIP-14
OP470FY amplifier core information:
The minimum operating temperature of OP470FY is -25 °C and the maximum operating temperature is 85 °C. Maximum bias current at 25°C: 0.05 µA Maximum average bias current is 0.07 µA
How to simply check the efficiency of an amplifier? Looking at its slew rate, the nominal slew rate of OP470FY is 2 V/us. The maximum slew rate of the OP470FY given by the manufacturer is 11 mA, while the minimum slew rate is 1.4 V/us. Its minimum voltage gain is 300000. When the op amp is used in closed loop, at a certain closed-loop gain (usually 1 or 2, 10, etc.), the frequency when the OP470FY gain becomes 0.707 times the low-frequency gain is 6000 kHz.
The nominal supply voltage of OP470FY is 15 V, and its corresponding nominal negative supply voltage is -15 V. The input offset voltage of OP470FY is 1000 µV (input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the operational amplifier 0V (or close to 0V).)
Related dimensions of OP470FY:
OP470FY has 14 terminals. Its terminal position type is: DUAL. Terminal pitch is 2.54 mm.
OP470FY amplifier additional information:
OP470FY adopts the VOLTAGE-FEEDBACK architecture. It does not belong to the low offset class of amplifiers. The frequency compensation status of OP470FY is: YES. Its temperature grade is: OTHER. OP470FY is not Rohs certified.
The corresponding JESD-30 code is: R-GDIP-T14. The corresponding JESD-609 code is: e0. The packaging code of OP470FY is: DIP. OP470FY packaging materials are mostly CERAMIC, GLASS-SEALED. The package shape is RECTANGULAR.
The OP470FY package pin format is: IN-LINE. Its terminal form is: THROUGH-HOLE.

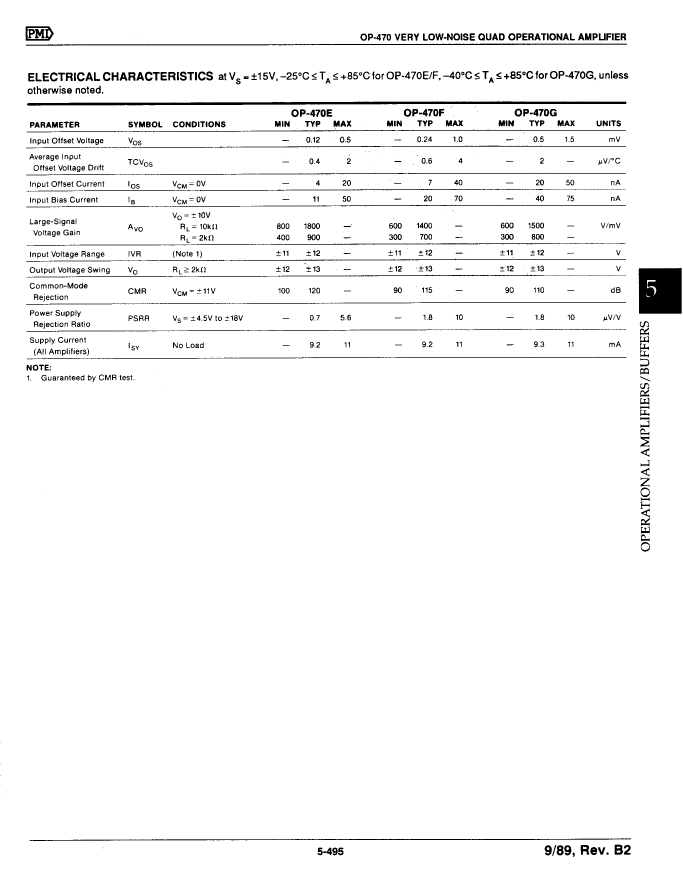

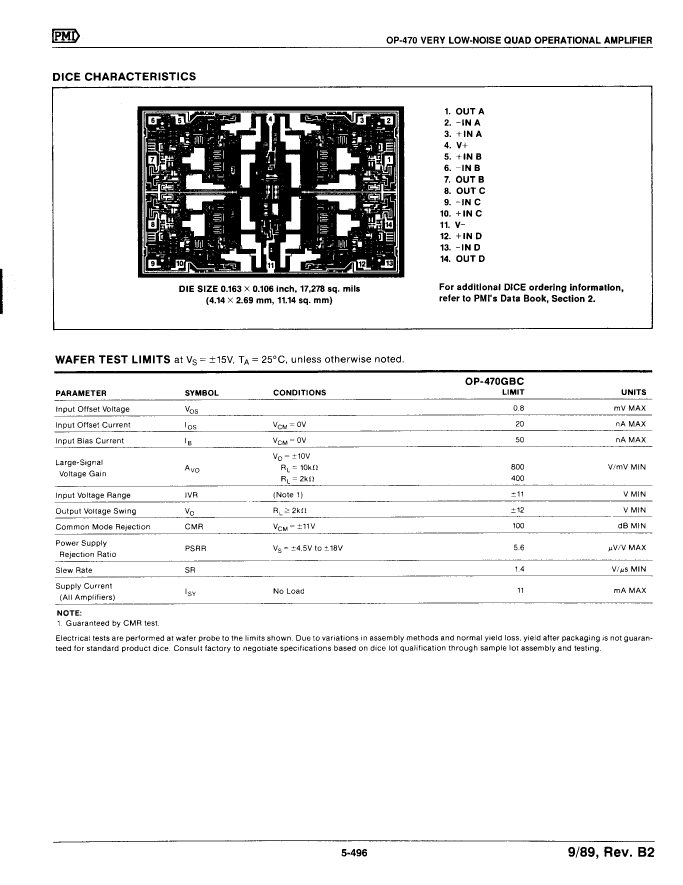

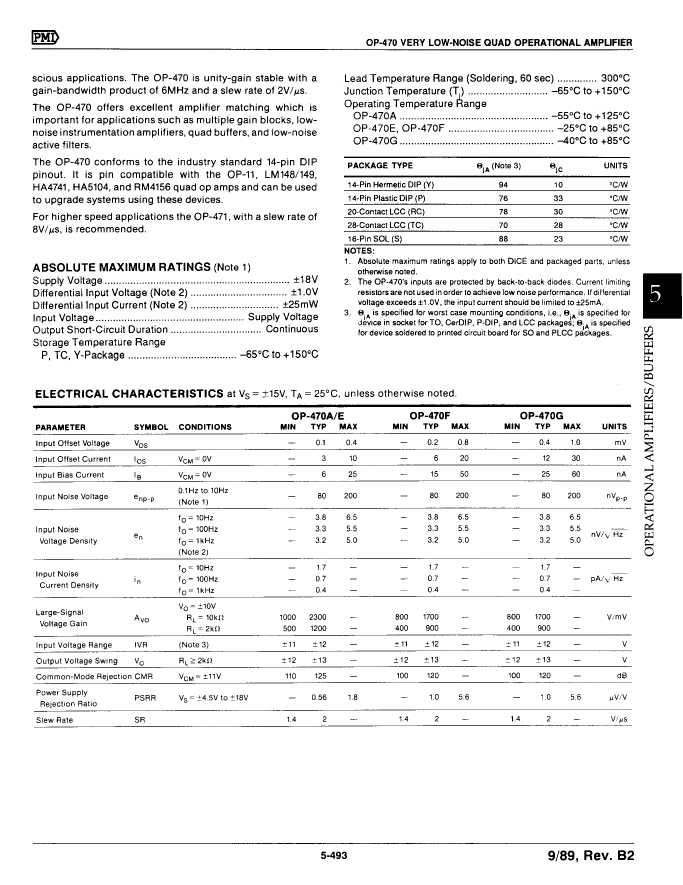

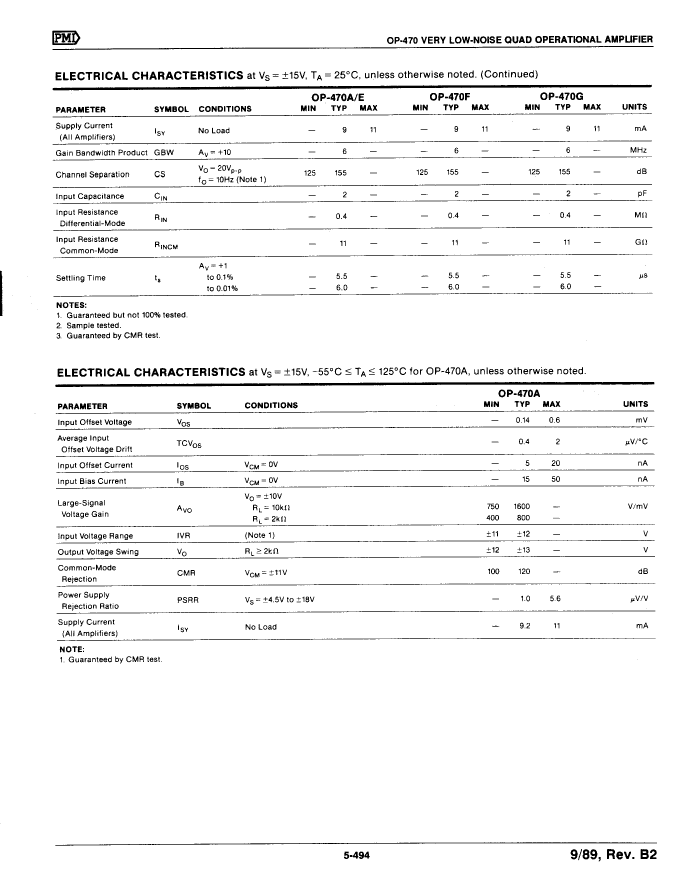

| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| package instruction | HERMETIC SEALED, DIP-14 |
| Reach Compliance Code | unknown |
| Amplifier type | OPERATIONAL AMPLIFIER |
| Architecture | VOLTAGE-FEEDBACK |
| Maximum average bias current (IIB) | 0.07 µA |
| Maximum bias current (IIB) at 25C | 0.05 µA |
| Nominal Common Mode Rejection Ratio | 115 dB |
| frequency compensation | YES |
| Maximum input offset voltage | 1000 µV |
| JESD-30 code | R-GDIP-T14 |
| JESD-609 code | e0 |
| low-dissonance | NO |
| Negative supply voltage upper limit | -18 V |
| Nominal Negative Supply Voltage (Vsup) | -15 V |
| Number of functions | 4 |
| Number of terminals | 14 |
| Maximum operating temperature | 85 °C |
| Minimum operating temperature | -25 °C |
| Package body material | CERAMIC, GLASS-SEALED |
| encapsulated code | DIP |
| Encapsulate equivalent code | DIP14,.3 |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| power supply | +-15 V |
| Certification status | Not Qualified |
| minimum slew rate | 1.4 V/us |
| Nominal slew rate | 2 V/us |
| Maximum slew rate | 11 mA |
| Supply voltage upper limit | 18 V |
| Nominal supply voltage (Vsup) | 15 V |
| surface mount | NO |
| technology | BIPOLAR |
| Temperature level | OTHER |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| Nominal Uniform Gain Bandwidth | 6000 kHz |
| Minimum voltage gain | 300000 |
| Base Number Matches | 1 |
| Part Number | Manufacturer | Description |
|---|---|---|
| OP471EY | Rochester Electronics | QUAD OP-AMP, 800uV OFFSET-MAX, 6.5MHz BAND WIDTH, CDIP14, CERAMIC, DIP-14 |
| OP470EY | Rochester Electronics | QUAD OP-AMP, 500uV OFFSET-MAX, 6MHz BAND WIDTH, CDIP14, HERMETIC SEALED, CERDIP-14 |
| OP471AY | Rochester Electronics | QUAD OP-AMP, 800uV OFFSET-MAX, 6.5MHz BAND WIDTH, CDIP14, HERMETIC SEALED, CERDIP-14 |
| 5962-8856502CA | Precision Monolithics Inc | Operational Amplifier, 4 Func, 800uV Offset-Max, BIPolar, CDIP14, |
| 5962-8856502CB | Precision Monolithics Inc | Operational Amplifier, 4 Func, 1200uV Offset-Max, BIPolar, CDIP14, CERAMIC, DIP-14 |
