T-1 3/4 (5mm) SOLID STAT LAMP
L-3593KD
HIGH EFFICIENCY RED
Features
z
LOW
z
POPULAR
z
GENERAL
z
RELIABLE
z
LONG
z
RoHS
Description
The High Efficiency Red source color devices are
made with Gallium Arsenide Phosphide on Gallium
Phosphide Orange Light Emitting Diode.
T-1 3/4 DIAMETER PACKAGE.
PURPOSE LEADS.
AND RUGGED.
POWER CONSUMPTION.
LIFE-SOLID STATE RELIABILITY.
COMPLIANT.
Package Dimensions
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is
±0.25(0.01")
unless otherwise noted.
3. Lead spacing is measured where the lead emerge from the package.
4. Specifications are subject to change without notice.
SPEC NO: DSAA7408
APPROVED: J. Lu
REV NO: V.3
CHECKED: Allen Liu
DATE: MAR/25/2005
DRAWN: S.H.CHEN
PAGE: 1 OF 3
Selection Guide
Part No.
Dice
Lens Type
Iv (mcd)
@ 10mA
Min.
L-3593KD
HIGH EFFICIENCY RED (GaAsP/GaP)
RED DIFFUSED
18
Typ.
40
Viewing
Angle
2θ1/2
20
°
Note:
1.
θ1/2
is the angle from optical centerline where the luminous intensity is 1/2 the optical centerline value.
Electrical / Optical Characteristics at T
A
=25°C
Symbol
λpeak
λD
∆λ1/2
C
V
F
I
R
Parameter
Peak Wavelength
Dominant Wavelength
Spectral Line Half-width
Capacitance
Forward Voltage
Reverse Current
Device
High Efficiency Red
High Efficiency Red
High Efficiency Red
High Efficiency Red
High Efficiency Red
High Efficiency Red
Typ.
640
625
45
15
2.0
2.5
10
Max.
Units
nm
nm
nm
pF
V
uA
Test Conditions
I
F
=20mA
I
F
=20mA
I
F
=20mA
V
F
=0V;f=1MHz
I
F
=20mA
V
R
= 5V
Absolute Maximum Ratings at T
A
=25°C
Parameter
Power dissipation
DC Forward Current
Peak Forward Current [1]
Reverse Voltage
Operating / storage Temperature
Lead Solder Temperature [2]
Lead Solder Temperature [3]
Notes:
1. 1/10 Duty Cycle, 0.1ms Pulse Width.
2. 2mm below package base.
3. 5mm below package base.
High Efficiency Red
105
30
170
5
-40°C To +85°C
260°C For 3 Seconds
260°C For 5 Seconds
Units
mW
mA
mA
V
SPEC NO: DSAA7408
APPROVED: J. Lu
REV NO: V.3
CHECKED: Allen Liu
DATE: MAR/25/2005
DRAWN: S.H.CHEN
PAGE: 2 OF 3

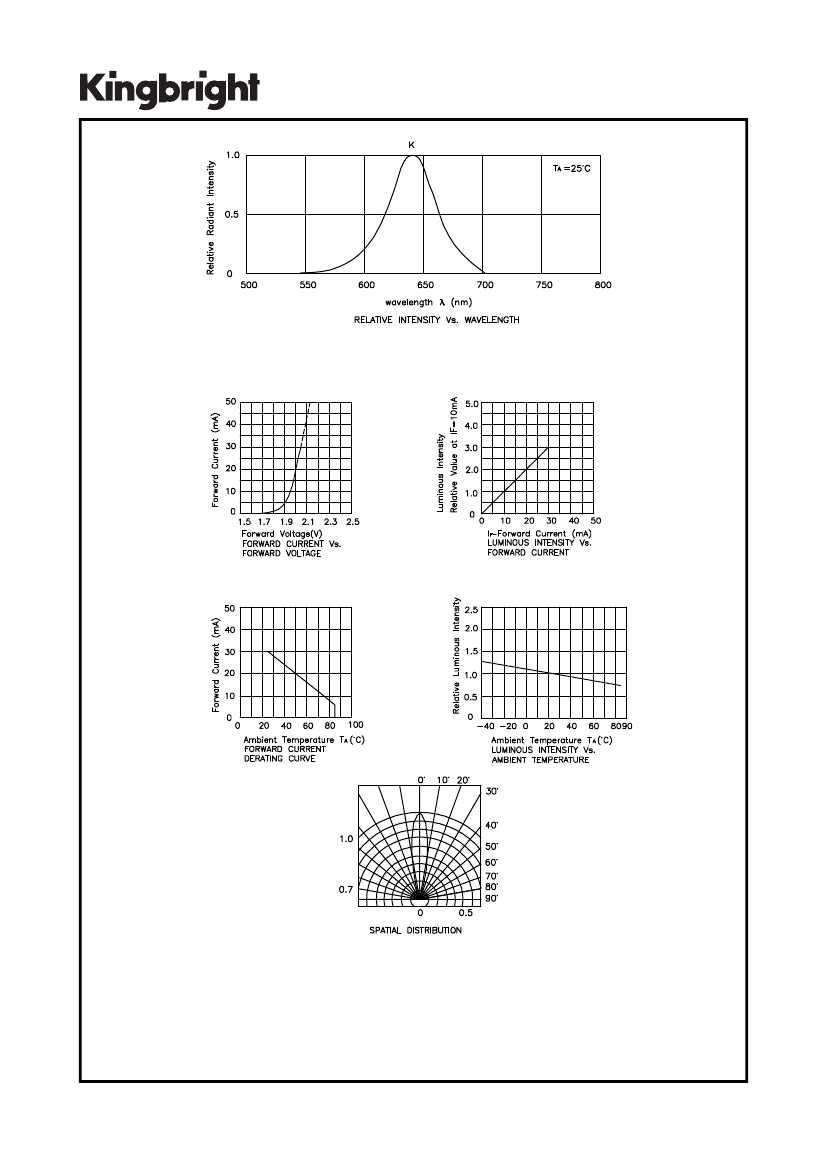

High Efficiency Red
L-3593KD
Remarks:
If special sorting is required (e.g. binning based on forward voltage, luminous intensity, or wavelength),
the typical accuracy of the sorting process is as follows:
1. Wavelength: +/-1nm
2. Luminous Intensity: +/-15%
3. Forward Voltage: +/-0.1V
Note: Accuracy may depend on the sorting parameters.
SPEC NO: DSAA7408
APPROVED: J. Lu
REV NO: V.3
CHECKED: Allen Liu
DATE: MAR/25/2005
DRAWN: S.H.CHEN
PAGE: 3 OF 3
