ZDCA62P-A191 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> ZDCA62P-A191

Preview

ZDCA62P-A191: DescriptionD Subminiature Connector, 62 Contact(s), Male, Solder Terminal, Plug, ROHS COMPLIANT; CategoryThe connector The connector; File Size50KB，1 Pages; ManufacturerITT; Websitehttp://www.ittcannon.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

ZDCA62P-A191 Overview

D Subminiature Connector, 62 Contact(s), Male, Solder Terminal, Plug, ROHS COMPLIANT

ZDCA62P-A191 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Body/casing type	PLUG
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	GLASS FILLED POLYETHYLENE
MIL compliance	NO
Mixed contacts	NO
Installation type	PANEL
Options	GENERAL PURPOSE
Shell material	STEEL
Housing size	4/C
Termination type	SOLDER
Total number of contacts	62
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

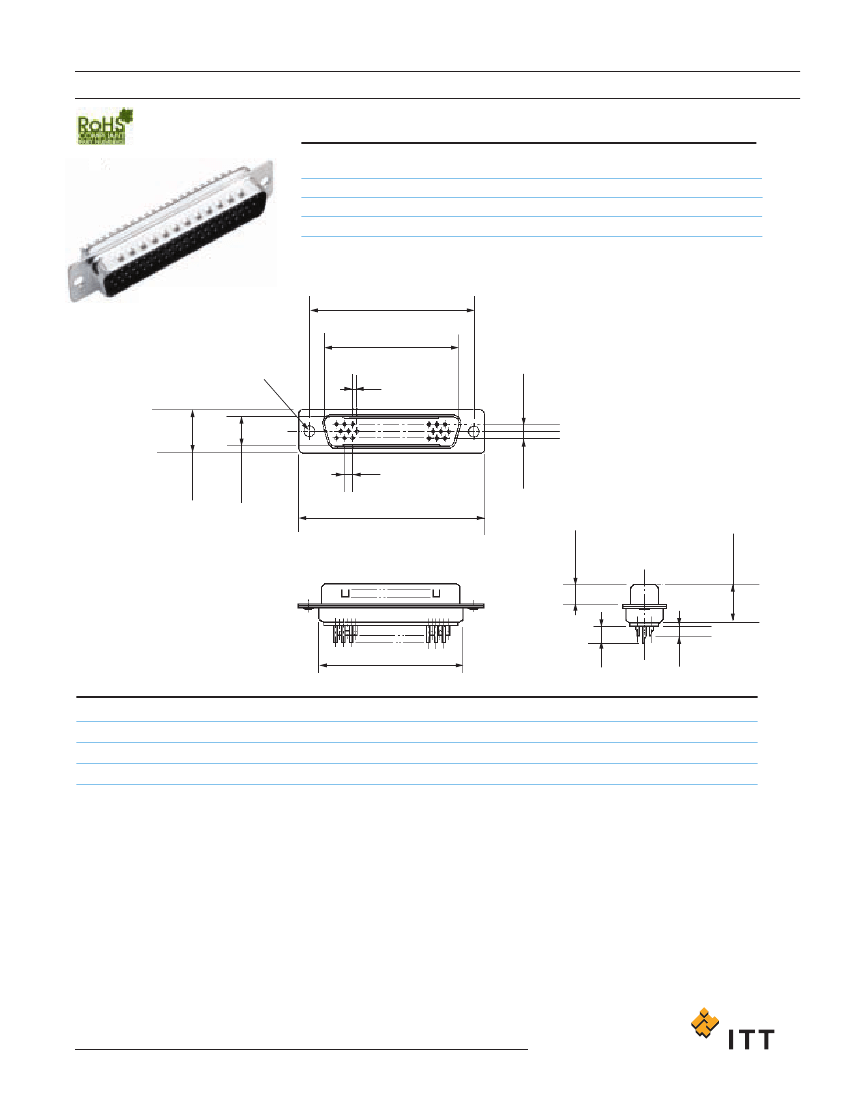

Cannon ZD Connectors

Plug 15 – 26 – 44 - 62 contacts

Designation

Shell size /

Arrangement

E / 15

A / 26

B / 44

C / 62

Through hole

ZDEA15P

ZDAA26P

ZDBA44P

ZDCA62P

ZD* A High density, solder cup

Captive nut

thread 4-40

ZDEAE15P

ZDAAE26P

ZDBAE44P

ZDCAE62P

Screwlock

thread 4-40

ZDEAE15P-AB

ZDAAE26P-AB

ZDBAE44P-AB

ZDCAE62P-AB

Note:

Class 2 - Add suffix A191 Example: ZDEA15P-A191

A

B

+0,15

Ø3,05 -0,05

E

12,55 ± 0,38

8,3 6 ± 0,25

F

C

5,84 ± 0,25

1,98 ±0,05

D

Shell

E

A

B

C

•

A ± 0,13

24,99

33,32

47,04

63,50

B ± 0,25

16,92

25,25

38,96

55,25

C ± 0,38

30,89

39,10

53,09

69,40

D ± 0,25

19,28

27,51

41,30

57,71

4,80

E ± 0,05

1,145

1,205

2,80

F ± 0,05

2,29

2,41

Mounting options, page 38

Panel cutout, page 39

Accessories, page 33

Dimensions shown in mm

Specifications and dimensions subject to change

www.ittcannon.com

7

11,00± 0,25

ZDCA62P-A191 Related Products

	ZDCA62P-A191	ZDBAE44P-AB-A191
Description	D Subminiature Connector, 62 Contact(s), Male, Solder Terminal, Plug, ROHS COMPLIANT	D Subminiature Connector, 44 Contact(s), Male, Solder Terminal, Plug, ROHS COMPLIANT
Is it lead-free?	Lead free	Lead free
Is it Rohs certified?	conform to	conform to
package instruction	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compliant	compliant
Body/casing type	PLUG	PLUG
Connector type	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	MALE	MALE
Contact material	NOT SPECIFIED	NOT SPECIFIED
DIN compliance	NO	NO
empty shell	NO	NO
Filter function	NO	NO
IEC compliance	NO	NO
insulator material	GLASS FILLED POLYETHYLENE	GLASS FILLED POLYETHYLENE
MIL compliance	NO	NO
Mixed contacts	NO	NO
Installation type	PANEL	PANEL
Options	GENERAL PURPOSE	GENERAL PURPOSE
Shell material	STEEL	STEEL
Housing size	4/C	3/B
Termination type	SOLDER	SOLDER
Total number of contacts	62	44
UL Flammability Code	94V-0	94V-0
Base Number Matches	1	1
