CDEP85NP8R0MC-125 datasheet, PDF

Datasheet> All Categories > Passive components> inductor> CDEP85NP8R0MC-125

CDEP85NP8R0MC-125: Description1 ELEMENT, 8uH, GENERAL PURPOSE INDUCTOR, SMD, HALOGEN FREE AND ROHS COMPLIANT; CategoryPassive components inductor; File Size174KB，5 Pages; ManufacturerSUMIDA; Websitehttp://www.sumida.com/; Environmental Compliance

Download Datasheet Parametric View All

CDEP85NP8R0MC-125 Overview

1 ELEMENT, 8uH, GENERAL PURPOSE INDUCTOR, SMD, HALOGEN FREE AND ROHS COMPLIANT

CDEP85NP8R0MC-125 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
DC Resistance	0.0117 Ω
Nominal inductance(L)	8 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	CDEP85
Number of functions	1
Number of terminals	3
Maximum rated current	7.5 A
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal shape	WRAPAROUND
Test frequency	0.1 MHz
Tolerance	20%
Base Number Matches	1

Preview

Download Datasheet

View All

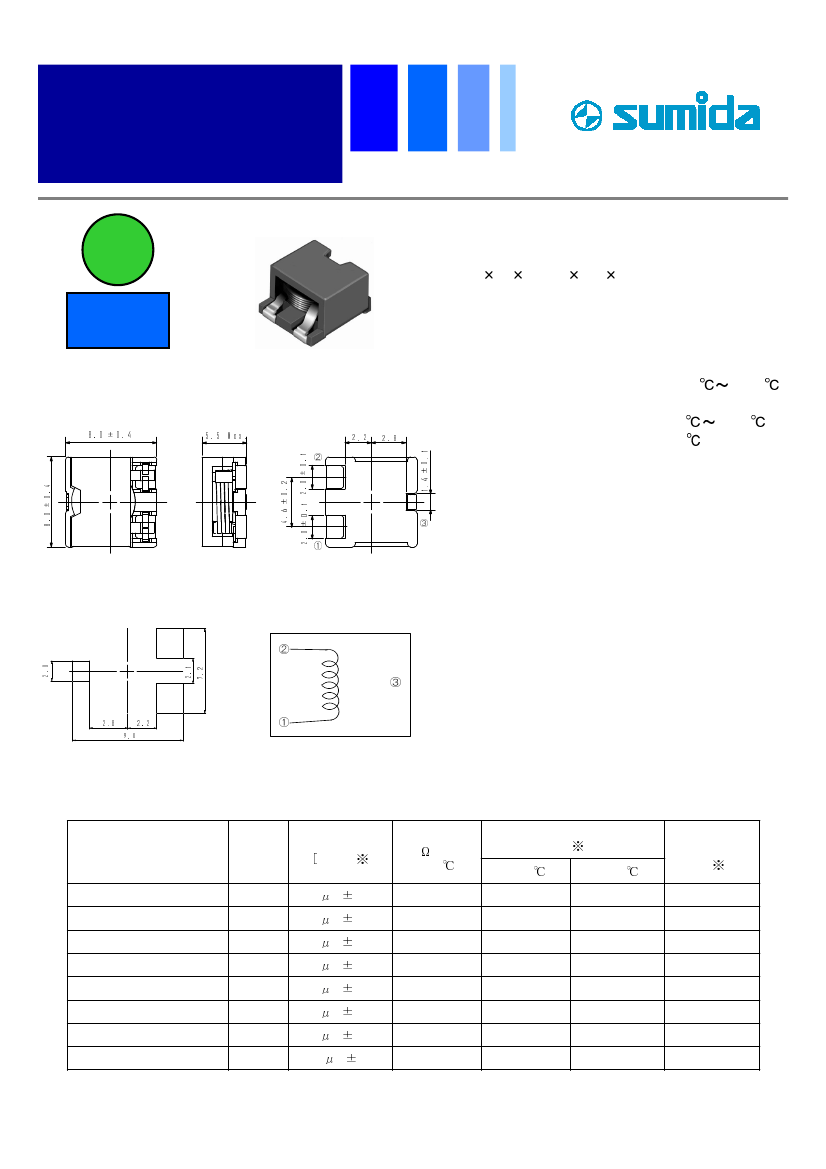

SMD Power Inductor

CDEP85

Description

• Ferrite core construction.

• Magnetically shielded.

• L W H: 8.4 8.4 5.5 mm Max.

• Product weight:1.2 g(Ref.)

• Moisture Sensitivity Level: 1

• RoHS compliance.

Environmental Data

• Operating temperature range: -40

+125

(including coil’s self temperature rise)

• Storage temperature range: -40

+125

• Solder reflow temperature: 260

peak.

RoHS

Halogen

Free

Dimension - [mm]

8.2

2.2

.xaM 5.5

4.0± 0.8

Packaging

• Carrier tape and reel packaging.

• 13.0”diameter reel

• 1000pcs per reel

Land pattern and Schematics - [mm]

Applications

• Ideally used in portable computer CPU power

supply.

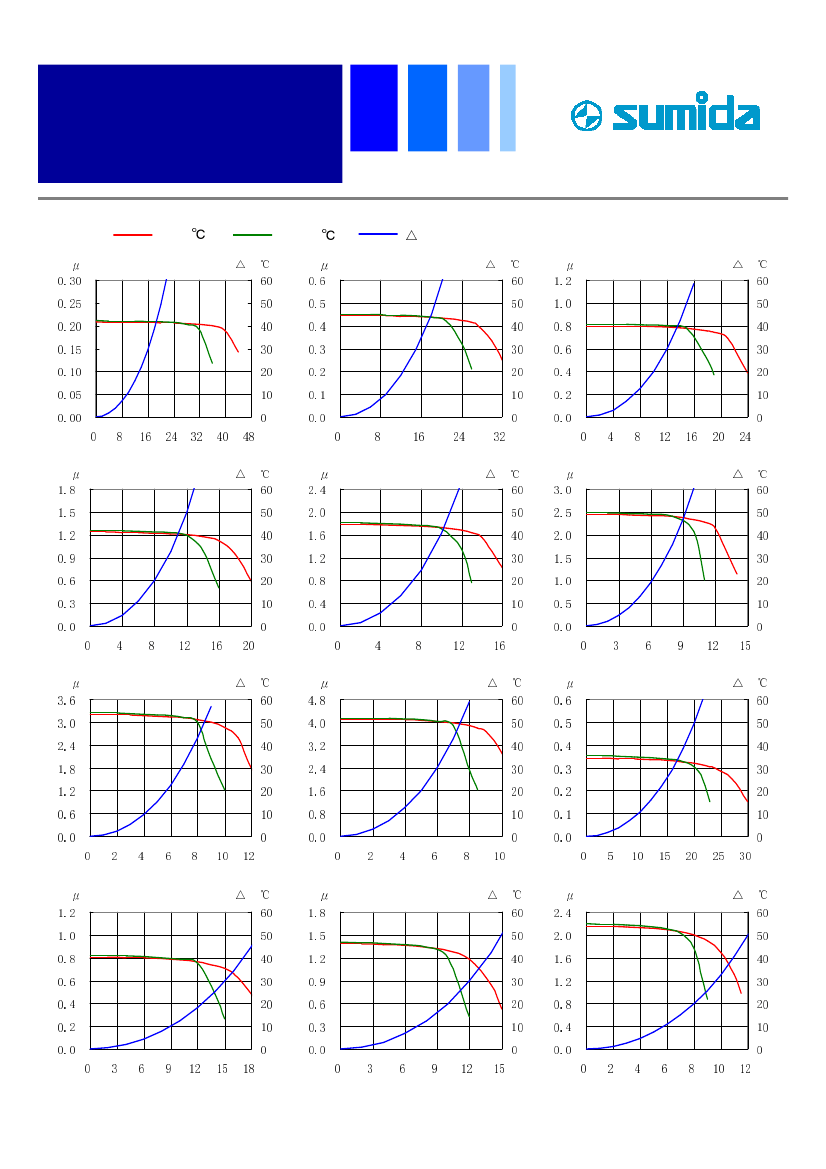

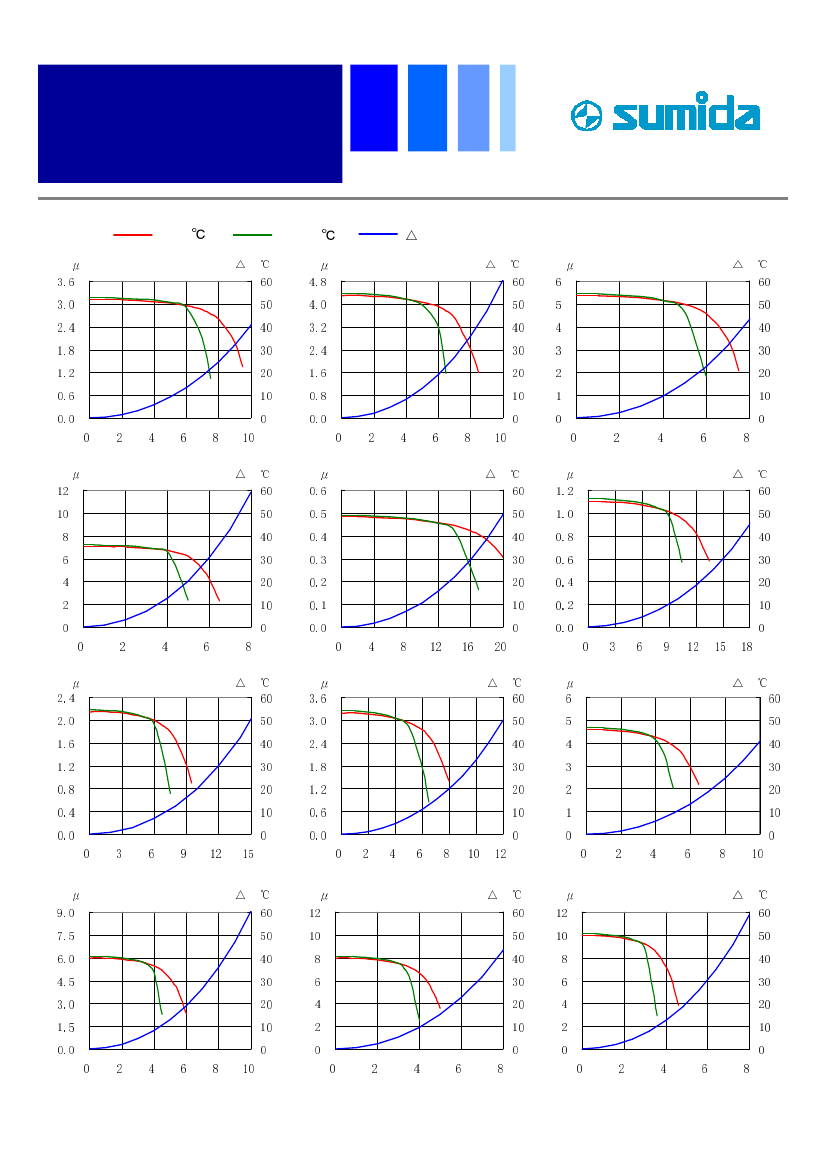

Electrical Characteristics

Electrical characteristics - Low D.C.R. Type

CDEP85NP-1R1MC-125

CDEP85NP-2RØMC-125

CDEP85NP-3R1MC-125

CDEP85NP-4R5MC-125

CDEP85NP-6R1MC-125

CDEP85NP-8RØMC-125

CDEP85NP-1ØØMC-125

1R1ML

2R0ML

3R1ML

4R5ML

6R1ML

8R0ML

100ML

1.1

2.0

3.1

4.5

6.1

8.0

10.0

±μ

CDEP85NP-R5ØMC-125

R50ML

0.5

H 20%

2.5(2.1)

3.4(2.8)

4.8(4.0)

7.0(5.9)

8.1(6.8)

9.8(8.2)

11.7(9.8)

15.1(12.6)

12.0(15.0)

7.8(9.8)

5.3(6.6)

4.4(5.5)

3.6(4.5)

3.4(4.2)

2.9(3.6)

2.6(3.2)

10.4(13.0)

6.8(8.5)

4.7(5.9)

3.7(4.6)

3.2(4.0)

2.9(3.6)

2.6(3.2)

2.2(2.8)

Page 1 of 5

Revised: 10-Dec-13

℃

(at 20

)

(at105

)

18.0

17.0

13.5

10.8

9.7

8.3

7.5

6.5

※

℃

※

［

Part No.

Stamp

※

Inductance

W ithin] 1

D.C.R.

(m )[Max.]

(at20 )

Saturation current

(A) 2

Temperature

Rise Current

(A) 3

℃

℃ ½℃

× ×

③

②

①

1 ±

2 0

. .

0 2

①

②

7 2

. .

2 1

0 .9

2. 2

8.2
