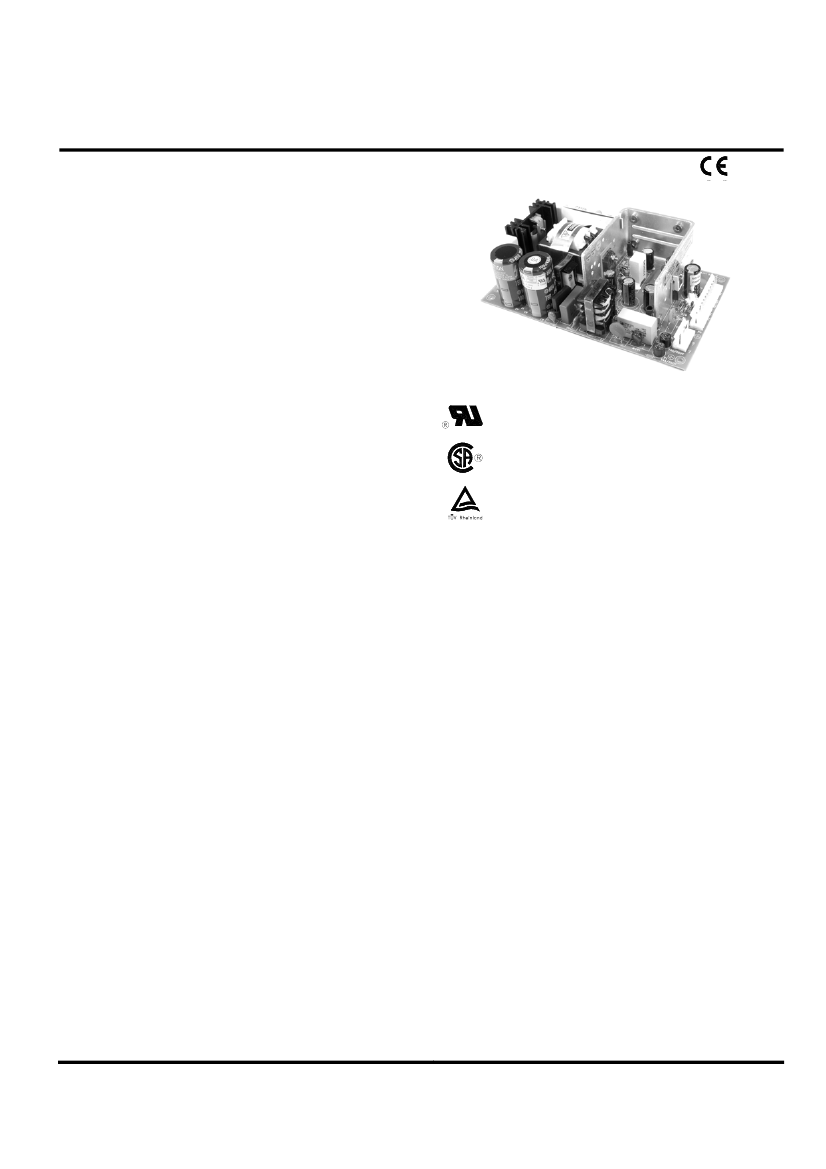

TM110-S12: Description110 WATT MEDICAL POWER SUPPLIES; File Size254KB，2 Pages; ManufacturerTRUMPower; Websitehttp://www.trumpower.com/

Download Datasheet View All

TM110-S12 Overview

110 WATT MEDICAL POWER SUPPLIES

Preview

Download Datasheet

View All

TRUMPower

D E SCR IPTION

110 WATT MEDICAL POWER SUPPLIES

TM110 SERIES

RoHS

( LV D )

The TM110 series of compact, open PCB

constructed, AC-DC switching power supplies are

specially designed for medical applications. They

are capable of delivering 72 to 110 watts of

continuous power at 25 CFM forced air cooling or

80 watts at convection cooling. They operate at 85

to 264VAC input voltage without the need of

changing jumper. All models meet the safety

requirements of UL, CSA and IEC for medical

applications.

F EATU R E S

‧

Low safety ground leakage current

‧

M e e t E N 5 5 0 11 a n d F C C C l a s s B

Small size, light weight

100% burn-in

W i d e i n p u t r a n g e 8 5 t o 2 6 4 VA C

Input surge current protection

O v e r v o l ta g e p r o t e c t i o n s

Overcurrent protections

C o m p l i a n t w i t h R o H S r e q u i r e m e n ts

S af e t y Sta nd ar d A pp ro va l s：

UL 2601-1

CSA C22.2 No. 601.1

TÜV EN60601-1

INPUT SPECIFICATIONS

8 5 t o 2 6 4 VA C

47 to 63 Hz

3 . 2 0 A ( r m s ) f o r 11 5 VA C

1 . 8 0 A ( r m s ) f o r 2 3 0 VA C

E a r t h l e a k a g e c u r r e n t

：

9 0 µ A m a x . @ 11 5 VA C , 6 0 H z

1 5 0 µ A m a x . @ 2 3 0 VA C , 5 0 H z

I n p u t v o l ta g e

：

Input frequency

：

Input current

：

ENVIRONMENTAL SPECIFICATIONS

Operating temperature:

Storage temperature:

Relative humidity：

Derating:

Cooling：

0ºC to +70ºC

-40ºC to +85ºC

5% to 95% non-condensing

Derate from 100% at +50ºC

linearly to 50% at +70ºC

110 watts continuous output

power at 25 CFM forced air

cooling or 80 watts at convection

cooling

OUTPUT SPECIFICATIONS

Output voltage/current:

Total output power:

See rating chart

110 watts maximum at 25 CFM

forced air cooling or 80 watts

maximum at convection cooling

1% peak to peak maximum

Provided on output #1 only;

set at 112-132% of its nominal

output voltage

All outputs protected to short

circuit conditions

All outputs ±0.04%/ºC max.

Maximum excursion of 4% or better

on all models, recovering to 1% of

final value within 500µs after a 25%

step load change

TTL logic high for normal operation

and TTL logic low upon loss of input

power. This signal appears at least

1ms prior to +5V output dropping 5%

below its nominal value. This

signal also provides a minimum

delay of 100ms after +5V is within

regulation

GENERAL SPECIFICATIONS

Switching frequency:

Efficiency:

20KHz to 250KHz, varies with load and line

70% minimum on single output models

with Vo

≥12V,

65% minimum on the others

12 msec minimum at 110VAC

Hold-up time:

±0.5% maximum at full load

Line regulation:

15 amps @115VAC or 30 amps

Inrush current:

@ 230VAC at 25ºC cold start

4000VAC from input to output

Withstand voltage:

1500VAC from input to ground

500VAC from output to ground

400,000 hours minimum at full load

MTBF:

at 25ºC ambient, calculated per

MIL-HDBK-217F, excluding DC fan.

EMC Performance (EN60601-1-2: 2001)

EN55011:

Class B conducted, Class B radiated

FCC:

Class B conducted, Class B radiated

VCCI:

Class B conducted, Class B radiated

EN61000-3-2:

Harmonic distortion, Class A

EN61000-3-3:

Line flicker

EN61000-4-2:

ESD, ±8KV air and ±6KV contact

EN61000-4-3:

Radiated immunity, 3V/m for 80~2500MHz

Fast transient/burst, ±2KV

EN61000-4-4:

Surge, ±1KV diff, ±2KV com.

EN61000-4-5:

EN61000-4-6:

Conducted immunity, 3Vrms

EN61000-4-8:

Magnetic field immunity, 3A/m

EN61000-4-11:

Voltage dips, 30% reduction for 500ms,

60% reduction for 100ms and >95%

reduction for 10ms

Ripple and noise:

Overvoltage protection:

Overcurrent protection:

Temperature coefficient:

Transient response:

PFD signal:

Tumbler Technologies + TRUMPower

3350 Scott Blvd., Bldg. 13, Santa Clara, California 95054, USA

Phone: 408-988-6616

●

Fax: 408-988-6622

●

email: sales@trumpower.com

●

Website: www.TRUMPower.com
