55 WATT MEDICAL POWER ADAPTERS

Preview

Download Datasheet

View All

TRUMPower

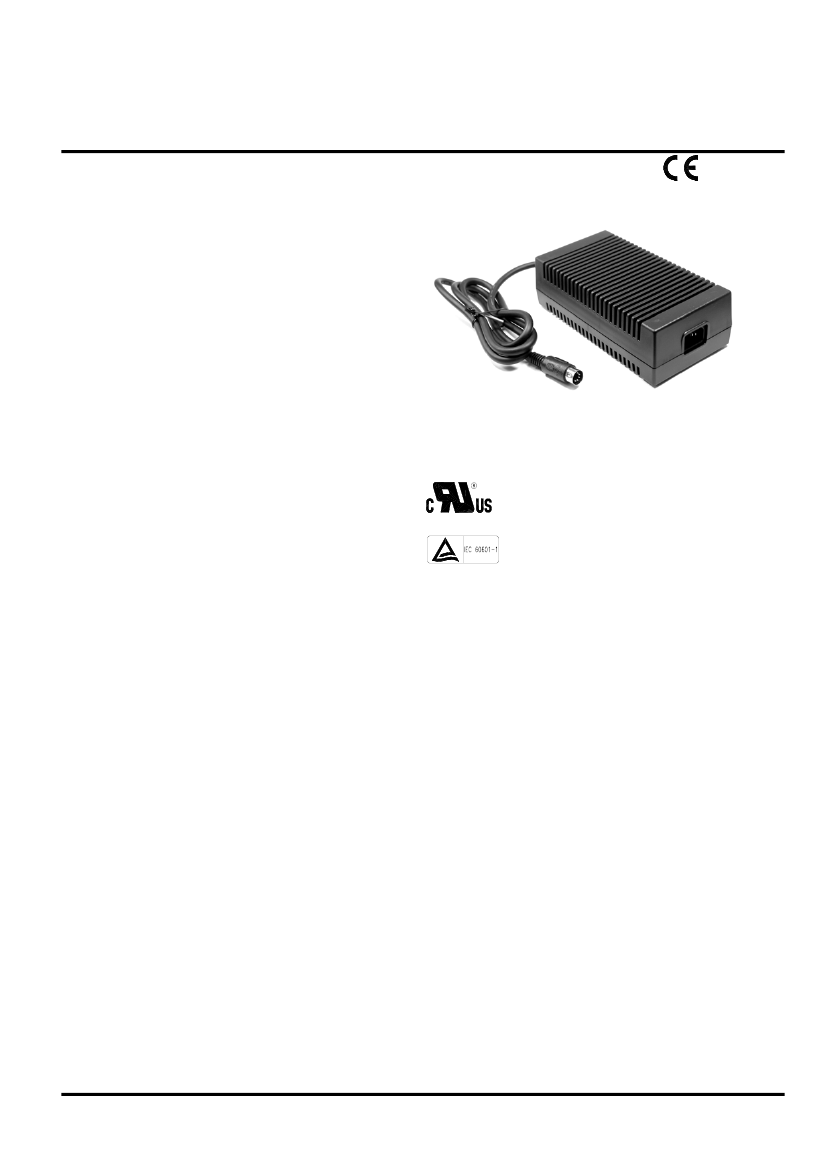

D E S C R IP T IO N

The TMP55 series consists of 15 standard

desktop AC/DC switching power adapters with

40 to 55 watts of continuous output power. The

units are enclosed in a 94V-1 rated plastic case

with an IEC 320 inlet to mate with

interchangeable cord for world-wide use. An

on/off switch can be added at customer’s

request. All models meet CISPR 11 and FCC

class B emission limits, and are designed for

medical applications.

55 WATT MEDICAL POWER ADAPTERS

TMP55 SERIES

(MDD)

F E AT U R E S

‧

1 5 s ta n d a r d d e s k t o p m o d e l s

S i n g l e , d u a l o r t r i p l e o u t p u ts

Optional output connectors

Optional on/off switch

100% burn-in

W i d e i n p u t r a n g e 8 5 t o 2 6 4 VAC

Input surge current protection

O v e r v o l ta g e p r o t e c t i o n

Overcurrent protection

S a f e t y Sta n d a r d A p p r o va l s

：

UL 2601-1

CSA C22.2 No. 601.1

I N P U T S P E C I F I C AT I O N S

I n p u t v o l ta g e

：

8 5 t o 2 6 4 VA C

Input frequency

：

47 to 63 Hz

Input current

：

1 . 5 0 A ( r m s ) f o r 11 5 VA C

0 . 9 0 A ( r m s ) f o r 2 3 0 VA C

L e a k a g e c u r r e n t

：

9 0 µ A m a x . @ 11 5 VA C , 6 0 H z

1 5 0 µ A m a x . @ 2 3 0 VA C , 5 0 H z

TÜV EN60601-1

GENERAL SPECIFICATIONS

OUTPUT SPECIFICATIONS

Output voltage/current：

Total output power：

Ripple and noise：

Overvoltage protection：

See rating chart

55 watts maximum

1% peak to peak maximum

Provided on output #1 only;

set at 112-132% of its

nominal output voltage

Switching frequency：

40KHz ±5KHz

Efficiency：

70% minimum on single

output models with Vo

≥10V,

65% minimum on the others

10 msec minimum at 110VAC

±0.5% maximum at full load

Hold-up time：

Line regulation：

Inrush current：

All outputs protected to short

circuit conditions

Temperature coefficient：

All outputs ±0.04%/ºC

maximum

Transient response：

Maximum excursion of 4% or

better on all models,

recovering to 1% of final

value within 500µs after a

25% step load change

Overcurrent protection：

15 amps @ 115VAC, or 30 amps

@230VAC, at 25ºC cold start

Withstand voltage：

4000VAC from input to output

1500VAC from input to ground

500VAC from output to ground

MTBF：

450,000 hours minimum at full load at

25ºC ambient, calculated per

MIL-HDBK-217F

EMC performance (EN60601-1-2: 2001)

E N 5 5 0 11 :

Class B conducted, Class B radiated

FCC:

VCCI:

Class B conducted, Class B radiated

EN61000-3-2:

Harmonic distortion, Class A

EN61000-3-3:

Line flicker

EN61000-4-2:

ESD, ±8KV air and ±6KV contact

EN61000-4-3:

Radiated immunity, 3V/m for 80~2500MHz

Fast transient/burst, ±2KV

Surge, ±1KV diff, ±2KV com.

Conducted immunity, 3Vrms

Magnetic field immunity, 3A/m

Voltage dips, 30% reduction for 500ms,

60% reduction for 100ms and >95%

reduction for 10ms

EN61000-4-4:

EN61000-4-5:

EN61000-4-6:

EN61000-4-8:

E N 6 1 0 0 0 - 4 - 11 :

E N V I R O N M E N TA L S P E C I F I C AT I O N S

O p e r a t i n g t e m p e r a t u r e：

0 º C t o + 7 0 º C

Storage temperature

：

-40ºC to +85ºC

5% to 95%

Relative humidity

：

non-condensing

Derating：

Derate from 100% at +50ºC

linearly to 50% at +70ºC

Tumbler Technologies + TRUMPower

3350 Scott Blvd., Bldg. 13, Santa Clara, California 95054, USA

Phone: 408-988-6616

●

Fax: 408-988-6622

●

email: sales@trumpower.com

●

Website: www.TRUMPower.com
