NDI & DM SERIES
SPST STANDARD DIP SWITCHES
GENERAL SPECIFICATIONS
ELECTRICALS
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE.
FEATURES
High reliability.
Self-cleaning contacts.
Multi- positions.
Process compatible with tape seal.
Dual in-line .100" x .300" term. spacing.
Electrical life
Contact rating, non-switching
Contact rating, switching
Contact resistance at current 100 mA
Insulation resistance at
500
VDC
Dielectric strength
Capacitance
MECHANICALS, THERMALS
Mechanical life
Operating force
Vibration
Shock
Operating temperature range
2000 cycles min. per switch @ 24 VDC, 25 mA
100 mA at 50 VDC
25 mA at 24 VDC
50 milliohms max. initial - 100 milliohms max. after life test
100
Megohms
minimum
500 VAC for 1 minute
5 pf. max. between adjacent terminals
2000 cycles min. per switch
1000 grams max.
10-55 Hz.per MIL-STD-202F METHOD 201A
50 G (peak value) for 11 msec. per MIL-STD-202F, METHOD 213B
-20°C to 85°C
SOLDERING & CLEANING RECOMMENDATIONS*
Hand soldering
350°C max. for 2 seconds max.(30 watt iron max.)
Wave soldering
260°C max. for 5 seconds max.
Cleaning (with tape seal)
Spray wash from top side only.
*
Note: keep switches in “OFF” position during soldering and cleaning for best results
MATERIALS
Base & Cover
Actuators
Contacts
Terminals
Term. Sealing
Tape seal
P
NDI: UL94V-O, glass fiber filled PBT, black
DM: UL94V-O, glass fiber filled PPS, black
UL94V-O, Nylon, white
Gold over nickel plated copper alloy
Gold plated brass.
Molded-in
Kapton
PACKAGING
DIP switches are shipped in standard IC tubes with all actuators in the "OFF" position.
Tape & reel packaging per EIA available for DMR models (see next page).
SWITCH
CROSS
SECTIONS
Double
contact system
SCHEMATIC (TYPICAL)
DI & DM
See tabulations on following pages for
number of positions available (10 shown)
APEM
, 63 NECK ROAD, HAVERHILL, MA USA 01835-0788 TOLL FREE: (877) 246-7890 FAX: (781) 245-4531 E-mail: info@apem.com

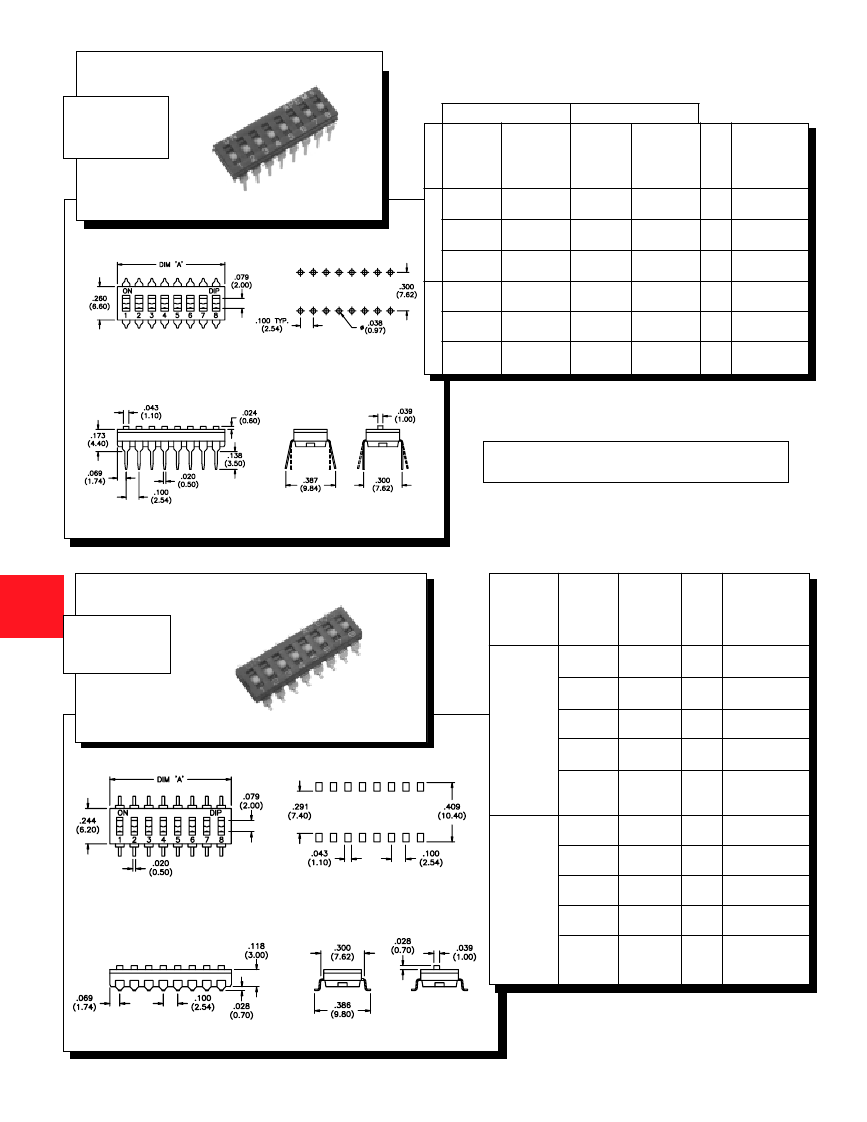

P2
Actuator
NDI Series
Machine
Insertable
Squared terminals
MODEL
NO.
with no
tape seal
NDI01H
NDI02H
NDI04H
NDI06H
NDI08H
NDI10H
NDIR01H
NDIR02H
NDIR04H
NDIR06H
NDIR08H
NDIR10H
MODEL
NO.
with
tape seal
n/a
n/a
n/a
n/a
n/a
n/a
n/a
NDIR02HT
NDIR04HT
NDIR06HT
NDIR08HT
NDIR10HT
Spread terminals
MODEL
NO.
with no
tape seal
NDI01S
NDI02S
NDI04S
NDI06S
NDI08S
NDI10S
NDIR01S
NDIR02S
NDIR04S
NDIR06S
NDIR08S
NDIR10S
MODEL
NO.
with
tape seal
n/a
n/a
n/a
n/a
n/a
n/a
n/a
NDIR02ST
NDIR04ST
NDIR06ST
NDIR08ST
NDIR10ST
No.
'A' Dim.
of
+.008/-.000"
Pos. (+0.2/-0.0mm)
1
.137 (3,48)
2
.237 (6,02)
4
.437 (11.10)
6
.637 (16,18)
8
.837 (21,26)
10 1.037 (26,34)
1
.137 (3,48)
2
.237 (6,02)
4
.437 (11,10)
6
.637 (16,18)
8
.837 (21,26)
10 1.037 (26,34)
Raised
Auto-insertable using equipment from Amistar, Dynapert,
Panasert, Northeastern Tool, Universal and others.
n/a = not available.
P
DM Series
Surface
Mount
Actuator
Style
Raised
Actuator
MODEL
NO.
with no
tape seal
DM01
DM02
DM03
DM04
DM05
DM06
DM07
DM08
DM09
DM10
DM12
DMR01
DMR02
DMR03
DMR04
DMR05
DMR06
DMR07
DMR08
DMR09
DMR10
DMR12
MODEL
NO.
with
tape seal
n/a
n/a
n/a
n/a
n/a
n/a
n/a
n/a
n/a
n/a
n/a
n/a
DMR02T
DMR03T
DMR04T
DMR05T
DMR06T
DMR07T
DMR08T
DMR09T
DMR10T
DMR12T
'A' Dimension
No. of +.008/-.000"
Pos. (+0.2/-0.0mm)
1
2
3
4
5
6
7
8
9
10
12
1
2
3
4
5
6
7
8
9
10
12
.137
.237
.337
.437
.537
.637
.737
.837
.937
1.037
1.237
.137
.237
.337
.437
.537
.637
.737
.837
.937
1.037
1.237
(3,48)
(6,02)
(8,56)
(11,10)
(13,64)
(16,18)
(18,72)
(21,26)
(23,80)
(26,34)
(31.42)
(3,48)
(6,02)
(8,56)
(11,10)
(13,64)
(16,18)
(18,72)
(21,26)
(23,80)
(26,34)
(31.42)
Recessed
Actuator
For tape & reel packaging on DMR models only, add 'TR'
to model number - example: DMR08TTR. Note- tape &
reel packaging is available only with tape seal models.
900 switches per reel.
APEM
, 63 NECK ROAD, HAVERHILL, MA USA 01835-0788 TOLL FREE: (877) 246-7890 FAX: (781) 245-4531 E-mail: info@apem.com
P3
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE.
