PMIS3 POSIMAG®
Magnetic Scale Position Sensor
Very compact sensor for industrial applications

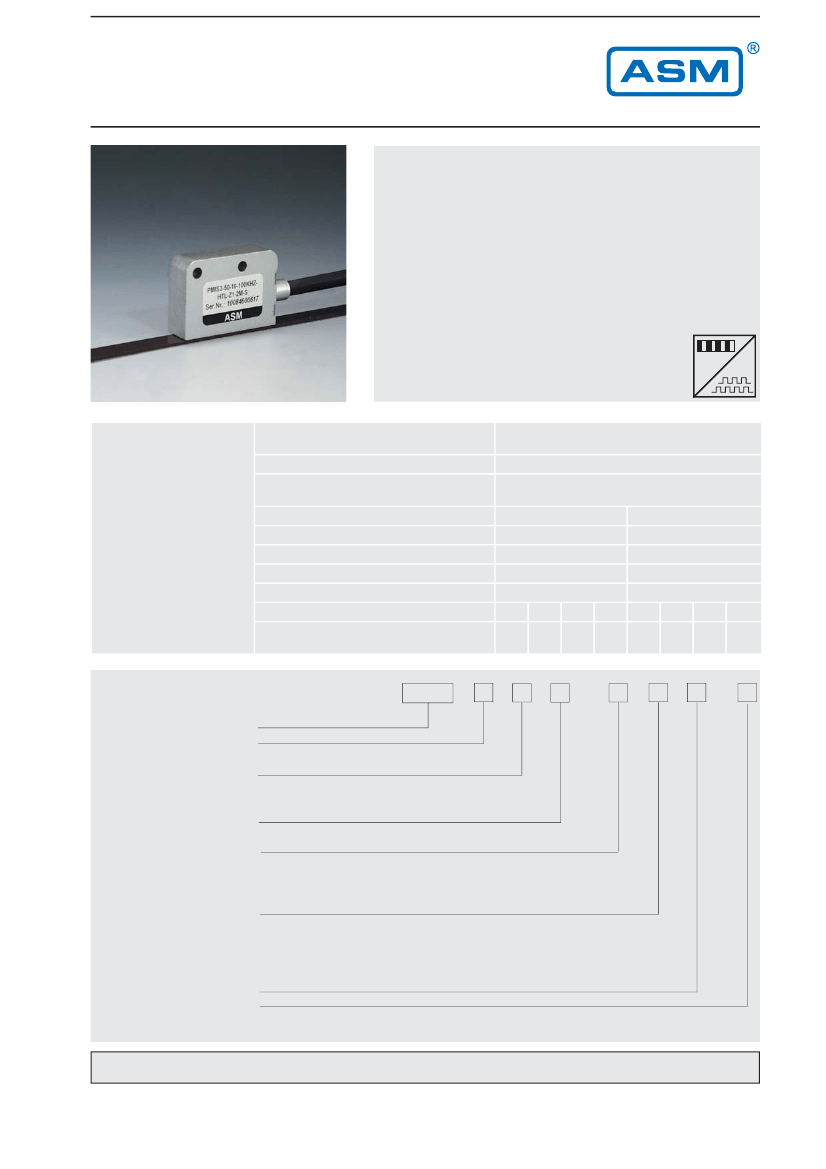

Sensor head PMIS3
•
•
•
•
•
•
•
•
Non-contact, no wear
High velocity
Robust shielded metal enclosure
Protection class IP67
Incremental encoder output A/B/Z
Signal processing as usual with encoders
Reference pulse and end position signal
Indicator for velocity/position errors
A POSIMAG measuring system consists of the
sensor head PMIS3 and the magnetic scale PMIB3
with the same magnetic period.
Output
Specifications
Excitation voltage
Excitation current
Magnetic period of the sensor
Guided spacing between sensor and mag. scale (x
z
)
Side tracking tolerance of the sensor
Linearity (sensor with mag. scale PMIB3)
Repeatability
Resolution with ext. times 4 counting mode [µm]
Max. velocity with fp=50 kHz [m/s]
(20 kHz: x 0.4; 10 kHz: x 0.2)
Incremental encoder output A/B with differential
push-pull output, TTL/RS422 or HTL compatible
10 ... 30 VDC or 5 VDC ±5 %
50 mA to 300 mA, depending on pulse frequency,
cable length and load
2 mm
0.1 ... 0.8 mm
±1 mm
15 µm ± 40 µm/m
± 1 digit
5
0.8
10
1.6
20
3.2
50
8
10
1.6
5 mm
0.1 ... 2 mm
±1 mm
30 µm ± 40 µm/m
± 1 digit
25
4
50
8
125
20
Order code PMIS3
PMIS3
—
—
—
KHZ—
—
—
M
—
Model name
Magnetic period
20 = 2 mm / 50 = 5 mm
Resolution (in µm) with times 4 counting mode
Mag. period 2 mm: 5 / 10 / 20 / 50
Mag. period 5 mm: 10 / 25 / 50 / 125
Max. pulse frequency (in kHz, standard 50 kHz)
50 / 20 / 10
Output
HTL
= HTL output with excitation 24 VDC, output 24 V
TTL
= TTL output with excitation 5 VDC, output TTL/RS422
TTL24V
= TTL output with excitation 24 VDC, output TTL/10 mA
Reference pulse/ end position signal/ status signal
Z0
= A/B w/o reference pulse / Z1 = A/B with reference pulse Z
Z2
= A/B with end position signal / *Z3 = A/B with reference pulse
and status signal
(Option Z3 only for non-diferential output, single ended)
Cable length (in m, standard 2 m)
Connection
S
= Cable output, open end
P
= Connector D-sub, 9 pin, at the cable end
Order example: PMIS3 - 50 - 25 - 50KHZ - HTL - Z1 - 2M - S
6
CAT-PM--E-04
Tel.: 08123/986-0 Fax: 08123/986-500 www.asm-sensor.com
ASM GmbH
PMIS3 POSIMAG®
Magnetic Scale Position Sensor
Max. pulse frequency fp
50 kHz, 20 kHz, 10 kHz (standard 50 kHz)
A, A, B, B, reference pulse Z, Z, end position
signal E, E, status signal ERR
Zinc die casting
Cable 8 wire, Ø 5 mm, open cable end,
9 pin D-sub connector as option
30 ±5 g
IP67
Specifications
(continued)
Outputs
Material of enclosure
Electrical connection
Weight (w/o cable and connector)
Protection class (EN 60529)
Environmental
EMC
Temperature
DIN EN 61326
-20 ...+85°C
A POSIMAG measuring system consists of the sensor head PMIS3 and the magnetic scale PMIB3
with the same magnetic period.
The subsequent counting device must be able to process the specified maximum pulse frequency
of the sensor.
Saturation voltage
Output signals
Short circuit current
Rise time
Load/cable length
UH, UL = 0,2 V
UH, UL = 0,4 V
C
last
< 10 nF
ISL, ISH < 800 mA
ISL, ISH < 90 mA
t
r
, t
f
< 200 ns
Load/pulse frequency fp
HTL single ended
UB = 24 V
I
out
= ±10 mA
I
out
= ±30 mA
(UH, UL = 0 V)
(UH, UL = 1,5 V)
(UH = UB - U
out
)
with cable length 1 m, 10 % … 90 %
Pulse frequency
in
dependence on
the cable length
TTL/RS422 differential
UB = 5 V *
50 mA
100 Ω
10 nF
—
100 kHz
200 kHz
300 kHz
TTL/24 V
UB = 24 V
10 mA
500 Ω
1 nF
—
—
50 kHz
100 kHz
Max. output current
R
last
min.
C
last
max.
200 m
100 m
50 m
10 m
50 mA
500 Ω
10 nF
15 kHz
25 kHz
50 kHz
100 kHz
* = note the voltage loss of the connector; excitation voltage 5 V ± 5% of the sensor must be guaran
teed
Outline drawing
Status signal
(LED)
Active measurement range
Reference mark
Position tolerance of the active
measurement range: dx = ±1 mm
Dimensions informative only. For guaranteed dimensions consult factory.
ASM GmbH
Tel.: 08123/986-0 Fax: 08123/986-500 www.asm-sensor.com
CAT-PM-E-04
7
PMIS3 POSIMAG®
Magnetic Scale Position Sensor
Output signals
Option Z1
(Reference pulse)
Option Z2
(End position
signal)
±1 mm, sw. position independent from A,B
End position mark
Signal name
Signal
wiring /
connection
Open cable end
Cable colour
Z0
Z1
Z2
Z3*
Option
Excitation +
Excitation GND (0V)
Conn. D-sub,
9 pin
pin no.
white
brown
B
A
B
A
−
−
B
A
B
A
Z
Z
B
A
B
A
E
E
B
A
ERR
−
Z
−
green
yellow
grey
pink
blue
red
black
1
5
2
3
7
6
4
8
9
Shield
Z
E
ERR
*
= reference pulse
= end position signal
= status signal, periodical approx. 16 Hz, for side tracking and velocity errors
= status signal ERR available only with HTL (single ended) output
Cable output dimensions
Connector D-sub (Pin)
View to connector pins
8
CAT-PM--E-04
Tel.: 08123/986-0 Fax: 08123/986-500 www.asm-sensor.com
ASM GmbH
PMIB3 POSIMAG®
Magnetic Scale
Magnetic scale PMIB3 for Position Sensor PMIS3
•
Easy splicing
•
Resistant to moisture and many fluids
•
Extensive ruggedness against dust etc.

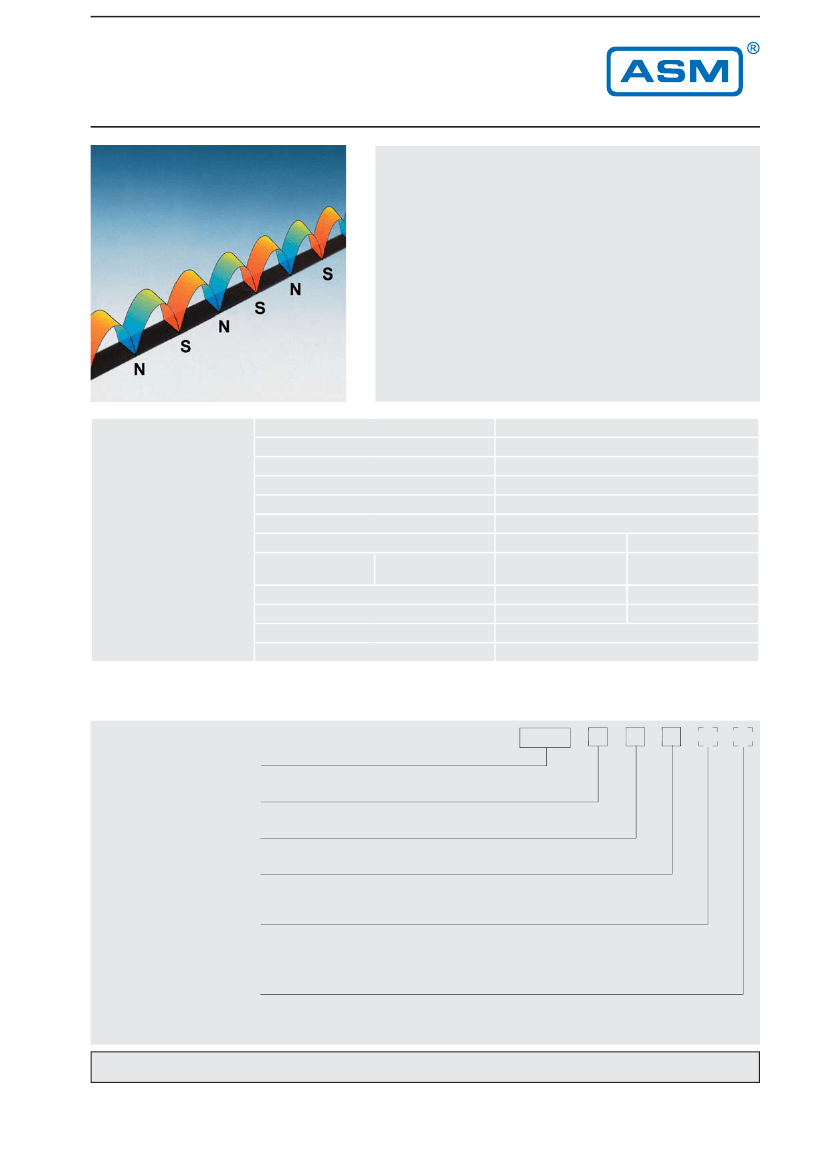

The magnetic material is magnetised in defined and even dis-
tances and works as a solid measure. Reference marks can
be user defined in 4 mm resp. 10 mm steps. The magne-
tic scale retains its firmness by means of a spring steel base
(standard steel strip CK 85).
Solid measure
Plastic bonded flexible permanent magnet
Spring steel CK 85
Stainless steel (non magnetic)
e.g. 100 ... 2500 mm (up to 50 m on request)
10 mm +0.1 mm / -0.2 mm
1.7 mm ±0.1 mm
2 mm
up to 30 m
up to 50 m
±40 µm/m
±80 µm/m
max. every 4 mm
must be divisible by 4
11 x 10
-6
/ K
-10 ...+70°C
5 mm
±40 µm/m
±80 µm/m
max. every 10 mm
must be divisible by 10
Specifications
Base material
Masking tape
Measurement ranges
Width
Thickness (with masking tape)
Magnetic period
Linearity at 25°C
Reference mark (reference pulse)
Measurement range
Linear thermal expansion coefficient
Operating temperature
An unmagnetic masking tape made of stainless steel is available (accessories). The magnetic scale is
flexible and can be glued to the surface of a cylinder with a minimum radius of 100 mm and used for
angular measurements.
Order code PMIB3
Model name
Magnetic period
20 = 2 mm / 50 = 5 mm
Mounting of the magnetic scale
N = adhesive taping
PMIB3
—
—
—
—
—
Measurement range (total length = range + X mm, refer to the table on p g 12)
g (
g
g
page )
e.g. 100, 500, 1000 ... 2500 mm (up to 50 m on request)
Measurement ranges must be divisible by 4 (resp. by 10)
Reference marks/end position marks (optional)
R1 = reference mark on the left / R2 = on the right
E1 = end position mark on the left / E2 = on the right
Additional reference marks every 4 mm (period 2 mm) resp. 10 mm (period 5 mm) from the left
Options
FP = magnetic scale in flat profile
HP = magnetic scale in high profile
AB = Masking tape (only with FP or HP)
Order example: PMIB3 - 50 - N - 1500 - R1
ASM GmbH
Tel.: 08123/986-0 Fax: 08123/986-500 www.asm-sensor.com
CAT-PM-E-04
9
PMIB3-ST POSIMAG®
Magnetic Scale
Magnetic scale PMIB3-ST for Position Sensor PMIS3
•
Easy splicing
•
Resistant to moisture and many fluids
•
Extensive ruggedness against dust, chipping etc.
•
Magnetic scale with stainless steel base
The magnetic material is magnetised in defined and even dis-
tances and works as a solid measure. Reference marks can
be user defined in 4 mm resp. 10 mm steps. The magne-
tic scale retains its firmness by means of a spring steel base
(stainless steel strip CrNi 17 7).
Solid measure
Plastic bounded flexible permanent magnet
Stainless steel CrNi 17 7 / PE
Stainless steel (non magnetic)
e.g. 100 ... 2500 mm (up to 50 m on request)
10 mm +0.1 mm / -0.2 mm
1.7 mm ±0.1 mm
2 mm
up to 30 m
up to 50 m
±40 µm/m
±80 µm/m
max. every 4 mm
must be divisible by 4
11 x 10
-6
/ K
-10 ...+70°C
5 mm
±40 µm/m
±80 µm/m
max. every 10 mm
must be divisible by 10
Specifications
Base material
Masking tape
Measurement ranges
Width
Thickness (with masking tape)
Magnetic period
Linearity at 25°C
Reference mark (zero pulse)
Measurement range
Linear thermal expansion coefficient
Operation temperature
An unmagnetic masking tape made of stainless steel is available (accessories). The magnetic scale is
flexible and can be glued to the surface of a cylinder with a minimum radius of 100 mm and used for
angular measurements.
PMIB3-ST
—
Model name
Magnetic period
20 = 2 mm / 50 = 5 mm
Mounting of the magnetic scale
N
= adhesive taping
Measurement range (total length = range + X mm, refer to the table on page 12)
e.g. 100, 500, 1000 ... 2500 mm (up to 50 m on request)
Measurement ranges must be divisible by 4 (resp. by 10)
Reference marks/end position marks (optional)
R1 = reference mark on the left / R2 = on the right
E1 = end position mark on the left / E2 = on the right
Additional reference marks every 4 mm (period 2 mm) resp. 10 mm (period 5 mm) from the left
Options
FP = magnetic scale in flat profile
HP = magnetic scale in high profile
AB = masking tape (only with FP or HP)
—
—
—
—
Order code PMIB3-ST
Order example: PMIB3-ST - 50 - N - 1500 - R1
10
CAT-PM--E-04
Tel.: 08123/986-0 Fax: 08123/986-500 www.asm-sensor.com
ASM GmbH
