Z8030AD6 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> Z8030AD6

Z8030AD6: Description2 CHANNEL(S), 1Mbps, SERIAL COMM CONTROLLER, CDIP40, CERAMIC, DIP-40; CategoryThe embedded processor and controller Microcontrollers and processors; File Size2MB，27 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/

Download Datasheet Parametric Compare View All

Z8030AD6 Overview

2 CHANNEL(S), 1Mbps, SERIAL COMM CONTROLLER, CDIP40, CERAMIC, DIP-40

Z8030AD6 Parametric

Parameter Name	Attribute value
Maker	STMicroelectronics
Parts packaging code	DIP
package instruction	WDIP,
Contacts	40
Reach Compliance Code	unknown
Address bus width	8
boundary scan	NO
Bus compatibility	Z8000
maximum clock frequency	6 MHz
letter of agreement	ASYNC, BIT; SYNC, BYTE; SYNC, HDLC; SYNC, SDLC; X.25; BISYNC; EXT SYNC
Data encoding/decoding methods	NRZ; NRZI-SPACE; BIPH-MARK(FM1); BIPH-SPACE(FM0); BIPH-LEVEL(MANCHESTER)
Maximum data transfer rate	0.125 MBps
External data bus width	8
JESD-30 code	R-CDIP-T40
low power mode	NO
Number of DMA channels
Number of I/O lines
Number of serial I/Os	2
Number of terminals	40
On-chip data RAM width
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	WDIP
Package shape	RECTANGULAR
Package form	IN-LINE, WINDOW
Certification status	Not Qualified
RAM (number of words)	0
Maximum slew rate	250 mA
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	NO
technology	MOS
Temperature level	INDUSTRIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	15.24 mm
uPs/uCs/peripheral integrated circuit type	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL
Base Number Matches	1

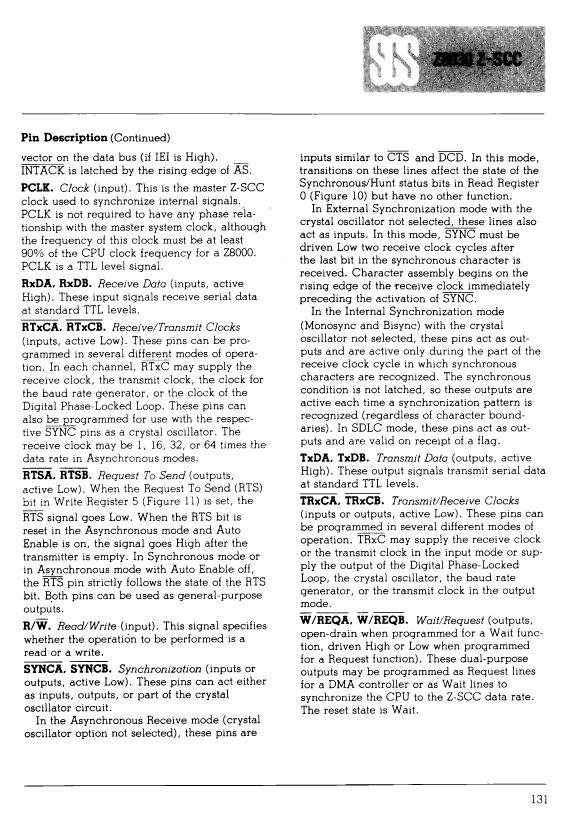

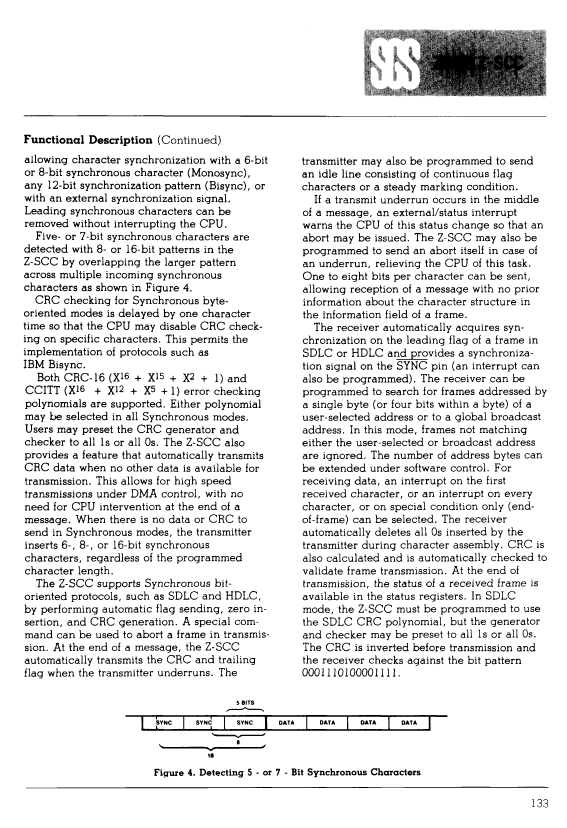

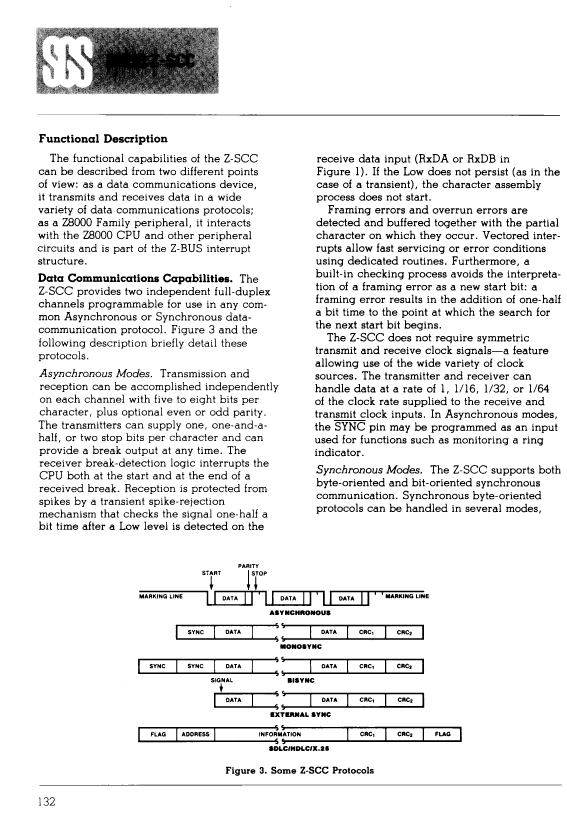

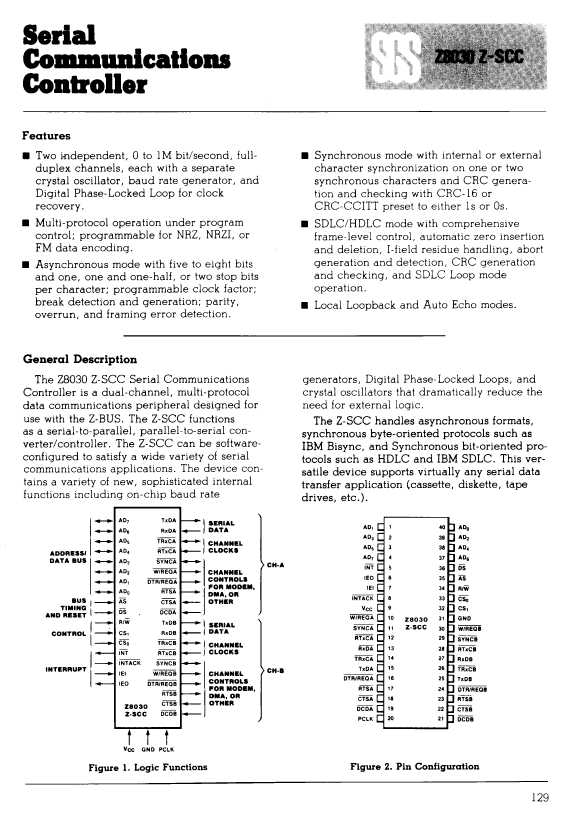

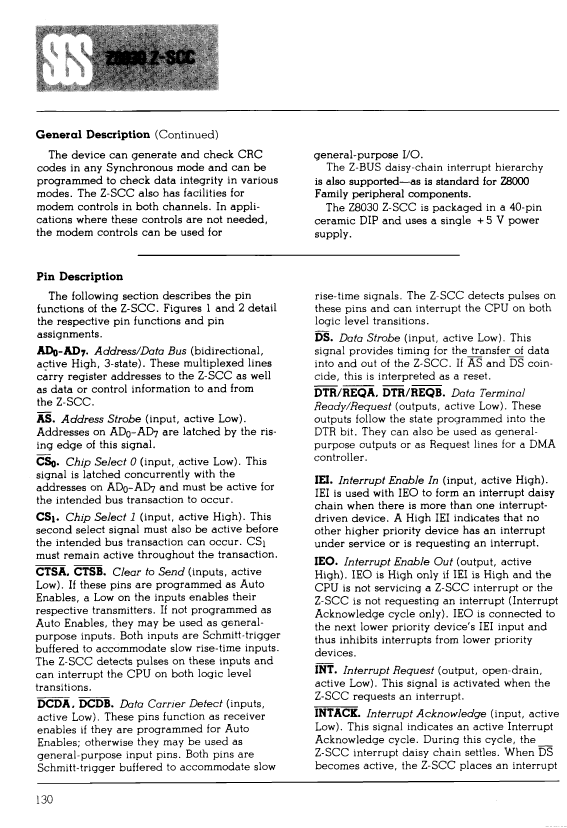

Preview

Download Datasheet

View All

Z8030AD6 Related Products

	Z8030AD6	Z8030AD1	Z8030AB1	Z8030AB6	Z8030B1	Z8030D6	Z8030B6	Z8030D1
Description	2 CHANNEL(S), 1Mbps, SERIAL COMM CONTROLLER, CDIP40, CERAMIC, DIP-40	2 CHANNEL(S), 1Mbps, SERIAL COMM CONTROLLER, CDIP40, CERAMIC, DIP-40	2 CHANNEL(S), 1Mbps, SERIAL COMM CONTROLLER, PDIP40, PLASTIC, DIP-40	2 CHANNEL(S), 1Mbps, SERIAL COMM CONTROLLER, PDIP40, PLASTIC, DIP-40	2 CHANNEL(S), 1Mbps, SERIAL COMM CONTROLLER, PDIP40, PLASTIC, DIP-40	2 CHANNEL(S), 1Mbps, SERIAL COMM CONTROLLER, CDIP40, CERAMIC, DIP-40	2 CHANNEL(S), 1Mbps, SERIAL COMM CONTROLLER, PDIP40, PLASTIC, DIP-40	2 CHANNEL(S), 1Mbps, SERIAL COMM CONTROLLER, CDIP40, CERAMIC, DIP-40
Maker	STMicroelectronics	STMicroelectronics	STMicroelectronics	STMicroelectronics	STMicroelectronics	STMicroelectronics	STMicroelectronics	STMicroelectronics
Parts packaging code	DIP	DIP	DIP	DIP	DIP	DIP	DIP	DIP
package instruction	WDIP,	WDIP,	DIP,	DIP,	DIP,	WDIP,	DIP,	WDIP,
Contacts	40	40	40	40	40	40	40	40
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Address bus width	8	8	8	8	8	8	8	8
boundary scan	NO	NO	NO	NO	NO	NO	NO	NO
Bus compatibility	Z8000	Z8000	Z8000	Z8000	Z8000	Z8000	Z8000	Z8000
maximum clock frequency	6 MHz	6 MHz	6 MHz	6 MHz	4 MHz	4 MHz	4 MHz	4 MHz
letter of agreement	ASYNC, BIT; SYNC, BYTE; SYNC, HDLC; SYNC, SDLC; X.25; BISYNC; EXT SYNC	ASYNC, BIT; SYNC, BYTE; SYNC, HDLC; SYNC, SDLC; X.25; BISYNC; EXT SYNC	ASYNC, BIT; SYNC, BYTE; SYNC, HDLC; SYNC, SDLC; X.25; BISYNC; EXT SYNC	ASYNC, BIT; SYNC, BYTE; SYNC, HDLC; SYNC, SDLC; X.25; BISYNC; EXT SYNC	ASYNC, BIT; SYNC, BYTE; SYNC, HDLC; SYNC, SDLC; X.25; BISYNC; EXT SYNC	ASYNC, BIT; SYNC, BYTE; SYNC, HDLC; SYNC, SDLC; X.25; BISYNC; EXT SYNC	ASYNC, BIT; SYNC, BYTE; SYNC, HDLC; SYNC, SDLC; X.25; BISYNC; EXT SYNC	ASYNC, BIT; SYNC, BYTE; SYNC, HDLC; SYNC, SDLC; X.25; BISYNC; EXT SYNC
Data encoding/decoding methods	NRZ; NRZI-SPACE; BIPH-MARK(FM1); BIPH-SPACE(FM0); BIPH-LEVEL(MANCHESTER)	NRZ; NRZI-SPACE; BIPH-MARK(FM1); BIPH-SPACE(FM0); BIPH-LEVEL(MANCHESTER)	NRZ; NRZI-SPACE; BIPH-MARK(FM1); BIPH-SPACE(FM0); BIPH-LEVEL(MANCHESTER)	NRZ; NRZI-SPACE; BIPH-MARK(FM1); BIPH-SPACE(FM0); BIPH-LEVEL(MANCHESTER)	NRZ; NRZI-SPACE; BIPH-MARK(FM1); BIPH-SPACE(FM0); BIPH-LEVEL(MANCHESTER)	NRZ; NRZI-SPACE; BIPH-MARK(FM1); BIPH-SPACE(FM0); BIPH-LEVEL(MANCHESTER)	NRZ; NRZI-SPACE; BIPH-MARK(FM1); BIPH-SPACE(FM0); BIPH-LEVEL(MANCHESTER)	NRZ; NRZI-SPACE; BIPH-MARK(FM1); BIPH-SPACE(FM0); BIPH-LEVEL(MANCHESTER)
Maximum data transfer rate	0.125 MBps	0.125 MBps	0.125 MBps	0.125 MBps	0.125 MBps	0.125 MBps	0.125 MBps	0.125 MBps
External data bus width	8	8	8	8	8	8	8	8
JESD-30 code	R-CDIP-T40	R-CDIP-T40	R-PDIP-T40	R-PDIP-T40	R-PDIP-T40	R-CDIP-T40	R-PDIP-T40	R-CDIP-T40
low power mode	NO	NO	NO	NO	NO	NO	NO	NO
Number of serial I/Os	2	2	2	2	2	2	2	2
Number of terminals	40	40	40	40	40	40	40	40
Maximum operating temperature	85 °C	70 °C	70 °C	85 °C	70 °C	85 °C	85 °C	70 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED
encapsulated code	WDIP	WDIP	DIP	DIP	DIP	WDIP	DIP	WDIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE, WINDOW	IN-LINE, WINDOW	IN-LINE	IN-LINE	IN-LINE	IN-LINE, WINDOW	IN-LINE	IN-LINE, WINDOW
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum slew rate	250 mA	250 mA	250 mA	250 mA	250 mA	250 mA	250 mA	250 mA
Maximum supply voltage	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V
Minimum supply voltage	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
technology	MOS	MOS	MOS	MOS	MOS	MOS	MOS	MOS
Temperature level	INDUSTRIAL	COMMERCIAL	COMMERCIAL	INDUSTRIAL	COMMERCIAL	INDUSTRIAL	INDUSTRIAL	COMMERCIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
width	15.24 mm	15.24 mm	15.24 mm	15.24 mm	15.24 mm	15.24 mm	15.24 mm	15.24 mm
uPs/uCs/peripheral integrated circuit type	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL
