ZY6V2GP......ZY200GP
2.0 W Glass Passivated Zener Diodes
Voltage
6.2 to 200 V
Power Dissipation
2.0 W
R
DO-15
FEATURES
Glass passivated chip junction
Hyperectifier structure for high reliability
Cavity-free glass-passivated junction
Low leakage current
High surge current and zener capability
Low differential resistance
Tolerance series ± 5%
Low forward voltage drop
Solder dip 260ºC, 10s
AEC-Q101 qualified
Component in accordance to RoHS 2011/65/EU
and WEEE 2002/96/EC
MECHANICAL DATA
Case
:
DO-15
Epoxy meets UL 94V-0 flammability rating.
Polatity
:
For uni-directional types the color band
denotes cathode end, no marking on bi-directional types
Terminals
:
Matte tin plated leads, solderable per
MIL-STD-750 Method 2026, J-STD-002 and JESD22-B102.
Consumer grade, meets JESD 201 class 1A whisker test.
TYPICAL APPLICATIONS
Used for basic regulation functions in most electronic
applications, Zener diodes offer a cheaper alternative to IC
solutions.
Maximum Ratings and Electrical Characteristics at 25 ºC
SYMBOL
TYPE NUMBER
Power dissipation at Tamb = 25 °C
Non repetitive peak zener dissipation (t = 10ms)
Operating Temperature Range
Storage Temperature Range
Value
2.0
Unit
W
W
°C
°C
°C/W
P
tot
P
ZSM
60
-65 to + 175
-65 to + 175
40
T
j
T
stg
R
thj-a
Max. thermal resistance at 10 mm. lead length
www.fagorelectronica.com
Document Name: zygp
Version: May-16
Page Number: 1/6
ZY6V2GP......ZY200GP
2.0 W Glass Passivated Zener Diodes
Ratings and Characteristics
(Ta 25 ºC unless otherwise noted)
POWER DISSIPATION
2.4
10 mm. - 10 mm.
P
TOT
, max., power dissipation (W)
2
1.6
1.2
0.8
0.4
0
0
25
50
75 100 125 150 175
Tamb. ambient temperature °C
THERMAL RESISTANCE
R
thj-a
, thermal resistance junction ambient (°C/W)
90
80
60
max.
typ.
40
20
I
I
0
0
10
20
30
35
I, lead lenght (mm.)
www.fagorelectronica.com
Document Name: zygp
Version: May-16
Page Number: 4/6
ZY6V2GP......ZY200GP
2.0 W Glass Passivated Zener Diodes
Ratings and Characteristics
(Ta 25 ºC unless otherwise noted)

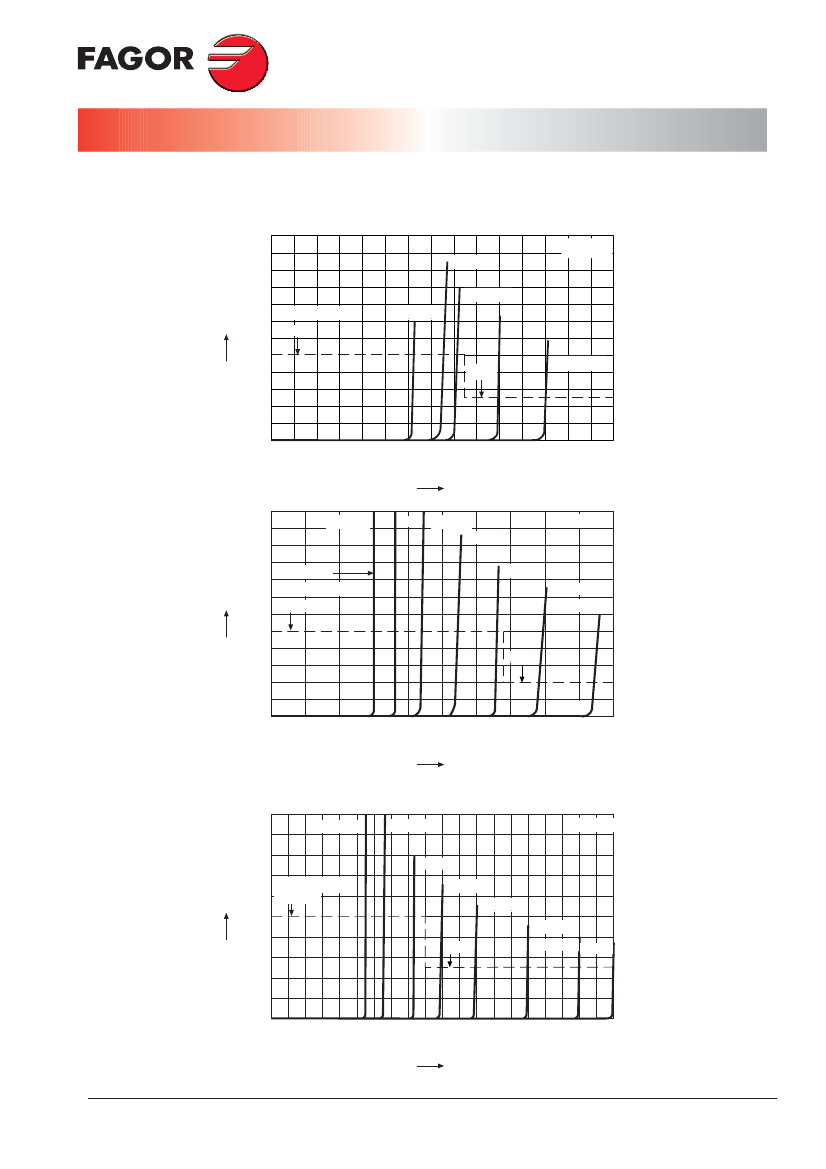

BREAKDOWN CHARACTERISTICS
mA
240
T
j
= 25 °C
ZY7.5 GP
ZY8.2 GP
Test Current I
Z
100 mA
ZY12 GP
ZY6.2 GP
200
I
Z
160
120
80
40
0
0
50 mA
1
2
3
4
5
6
7
8
9 10 11 12 13 14 15 V
V
Z
mA
60
50
40
30
20
10
0
I
Z
= 50 mA
Test Current I
Z
25 mA
ZY15 GP
ZY18 GP ZY22 GP
ZY27 GP
ZY33 GP
ZY39 GP
ZY47 GP
T
j
= 25 °C
I
Z
10 mA
0
5
10
15
20
25
30
35
40
45
50 V
V
Z
mA
20
ZY56GP
ZY68GP
T
j
= 25 °C
ZY82GP
Test Current I
Z
I
Z
10 mA
ZY100GP
ZY120GP
ZY150GP
5 mA
ZY180GP ZY200GP
10
0
0
50
100
150
200 V
V
Z
www.fagorelectronica.com
Document Name: zygp
Version: May-16
Page Number: 5/6
