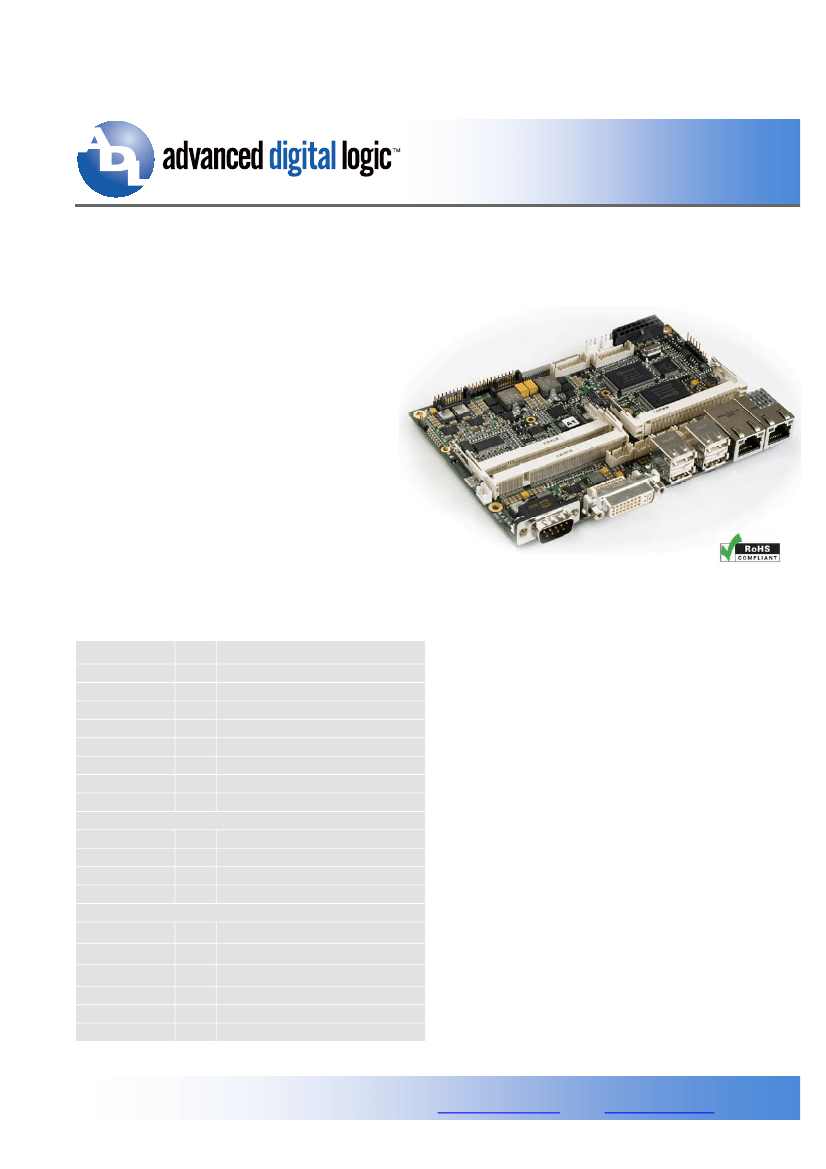

3.5-inch
ADL945HD
Intel Celeron M / Core Duo / Core 2 Duo: 1.07GHz - 2.16GHz
Features
•
•
•
•
•
•
•
•
•
•
•
•
•
Intel Celeron M / Core Duo / Core 2 Duo
1.07GHz to 2.16GHz
945GME / ICH7R Chipset
Up to 4GB DDR2 - 667MHz SDRAM
Hardware Monitoring
Power Management
8x USB 2.0
Onboard Digital Video Interface (DVI)
Gigabit Ethernet LAN Controller
Mini-PCI socket
3.5-inch form factor
2x SATA 300
ATX Power Control
Ordering Guide
Item Code
ADL945HD-423CM
ADL945HD-440CM
ADL945HD-U2500
ADL945HD-L2400
ADL945HD-T2500
ADL945HD-T7400
ADL945HD-L7400
Standard DDR2 RAM
DDR2-DRAM512
DDR2-DRAM1024
DDR2-DRAM2048
996925 512MB 667MHz 200-pin SODIMM
996025 1024MB 667MHz 200-pin SODIMM
996125 2048MB 667MHz 200-pin SODIMM
Description
Description
Part #
294110 SingleCore 1.07GHz, 1M cache
294111 SingleCore 1.86GHz, 1M cache
294112 DualCore 1.2GHz, 2M cache
294113 DualCore 1.66GHz, 2M cache
294114 DualCore 2GHz, 2M cache
294115 DualCore 2.16GHz, 4M cache
294116 DualCore 1.5GHz, 4M cache
The ADL945HD is based on the Intel
®
Core
™
2 Duo / Core
™
Duo /
Core
™
Solo Processors, with clock speeds up to 2.16GHz, and
the Intel
®
945GME / ICH7R chipset. The Intel
®
Generation 3.5
graphics engine is integrated into the chipset, along with the In-
tel
®
Graphics Media Accelerator 950 (Intel
®
GMA 950), and can
drive either a CRT/DVI and/or LVDS LCD.
The memory is added by way of a SODIMM200 socket and can
accept up to four Gigabytes of DDR2 DRAM. The ADL945HD
power management incorporates ACPI/APM functions. The
standard ADL945HD also incorporates EIDE, SATA, 4x Onboard
External USB 2.0, 4x Internal USB 2.0, 4x RS232 COM ports,
PS/2 Keyboard and Mouse, AC97 Sound, separate 10/100Mbit
and Gigabit Ethernet LAN, and more.
ADL offers highly effective active and passive cooling solutions
based on proven thermal data and mounting techniques; result-
ing in the least possible mechanical board stress. Please con-
tact your Sales Engineer for detailed information on cooling solu-
tions to fit your needs.
Extended Temperature DDR2 RAM
DDR2-DRAM512-EX
996927
915/945DDR2 512MB 667MHz 200pin -40°C-+85°C
DDR2-DRAM1024-EX 996027
915/945DDR2 1GB 667MHz 200pin -40°C-+85°C
DDR2-DRAM2048-EX 996127
915/945DDR2 2GB 667MHz 200pin -40°C- +85°C
Data subject to change without notice
Advanced Digital Logic, Inc.; 4411 Morena Blvd., Suite 101; San Diego, CA 92117-4345
Ph. 858 490-0597 F. 858 490-0599; e-mail:
sales@adl-usa.com;
web:
www.adl-usa.com
3.5-inch
Technical Specifications
FEATURE
Processor/CPU:
L2-Cache:
Front Side Bus:
CPU-Clock:
Memory 200pin DDR2 SODIMM:
Video Controller:
Video Memory:
Video Interfaces:
Video Channel 1:
Video Channel 2:
Real Time Clock:
LAN-Controller:
AC97-Controller:
SMBus-Controller:
USB2-Controller:
Resistive Touchscreen
Flash BIOS:
BIOS:
Power Management Control:
EIDE-Controller:
FUNCTION
Intel
®
Core
™
2 Duo / Core
™
Duo /
Celeron M
2MB / 4MB
533/667 MHz
1.07GHz - 2.16GHz
512MB - 4096MB
945GME integrated Gen 3.5 engine
8MB UMA / 224MB DVMT
VGA-Analog, CRT, LVDS
2048 x 1536
1600 x 1200
Yes
INTEL – ICH7R – ext. PHY 82562GZ
INTEL – ICH7R – AC97 V2.3
INTEL – ICH7R – SMBus
8 Ports V2.0
Dedicated connector
512KB
Award
ACPI / APM
PIO 1-4, UDMA 100*/66*/33
REMARKS
CPU dependent
CPU dependent
OPTIONS
U2500 - 533FSB / L2400, L7400, T7400 -
667FSB
Intel
®
Graphics Media Accelerator 950
(Intel
®
GMA 950)
External Battery Required for RTC
Intel 573E for 10/100/1000
ALC655 Codec 5.1 Sound
Does not occupy existing COM or
USB ports.
Primary Master/Slave
*requires 80 conductor cable
SATA Controller
HW-Monitor:
Audio Output:
Audio Input:
Keyboard / Mouse
COM1 - COM4
Ports 1 and 2
Winbond W83627HG
Stereo Output and SPDif
Stereo-Line, Mic and SPDif
PS/2-USB
RS232
1.5Gb/3.0Gb supported
5.1 Support
1x onboard, 3x internal connector
I2C Bus
SMBus
GPIO
PCI-Bus:
Power Supply:
Power consumption:
Operating Temperature:
(typ. ambient)
Dimensions:
Weight: (gr)
Winbond 83627HG
ICH7R
Winbond 83627HG
Mini-PCI interface
100W ATX Interface +5, +12
(recommended)
2.5 Amps - 11 Amps max @ +5V
-25°C to +60°C
147mm x 20mm x 102mm
TBD
x16 lines suported
CPU dependent
-40°C to +85°C available upon request
Provided CPU die is kept below 100°C at all
times with sufficient thermal path to dissipate
3.5-inch form Factor
Data subject to change without notice
Advanced Digital Logic, Inc.; 4411 Morena Blvd., Suite 101; San Diego, CA 92117-4345
Ph. 858 490-0597 F. 858 490-0599; e-mail:
sales@adl-usa.com;
web:
www.adl-usa.com
