CM09-CR25S Overview

One-Touch Locking Style Small Sized Circular Connectors

Preview

Download Datasheet

View All

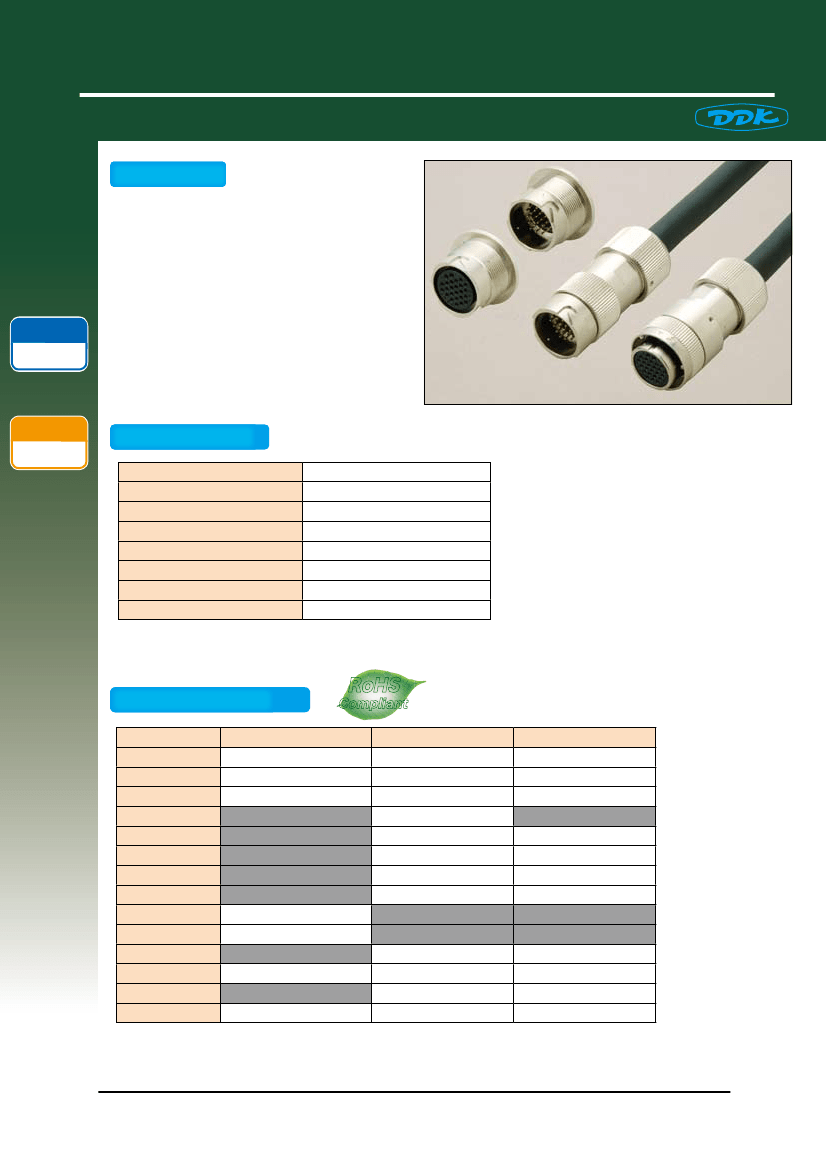

One-Touch Locking Style

Small Sized Circular Connectors

CM09 Series

◆ FEATURES

・Strong construction, using metal shells.

・One-touch mating and sure locking by

“Push-On & Turn-Off”mechanism.

・Sequence structure with Protective circuitry.

(First make-last break contacts)

Wa t e r p r o o f

IP 67

・ Size 20 power contacs for position 1 and 2,

making first connections.

・High reliability by crimping termination.

Lock Type

Push-On

◆ SPECIFICATIONS

Rated Current

Rated Voltage

Dielectric Withstanding Voltage 　

Insulation Resistance

Waterproof

Operating Temperature Range

No.of Contacts

Applicable Wire Size

1A ／ Contact

200V AC (r.m.s.)

1500V AC(r.m.s.) ／ 1 minute

1,000M Ω Min. at 500V DC

IP67 when mated

-25° C to +70° C

25（#20-2 Pin , #22-23 Pin）

20AWG to 22AWG

◆ MATERIALS/FINISHES

Item

Insulator

Contact

Shell

Coupling Ring

Backshell

Bushing

Cable Clamp

Clamp Nut

Hex. Nut

Gasket

O Ring

Ground Plate

Screw

Spring Pin

Stainless Steel

Receptacle

Plastic(UL94V-0)/Black

Compliant

Plug

Plastic(UL94V-0)/Black

Copper Alloy/Gold Plating

Zinc Alloy/Nickel Plating

Synthetic Rubber/Black

Plastic(UL94V-0)/Black

Zinc Alloy/Nickel Plating

Synthetic Rubber/Black

Plastic(UL94V-0)/Black

Zinc Alloy/Nickel Plating

Cable Receptacle

Plastic(UL94V-0)/Black

Copper Alloy/Gold Plating

Zinc Alloy/Nickel Plating

RoHS

Copper Alloy/Gold Plating

Zinc Alloy/Nickel Plating

Synthetic Rubber/Black

Copper Alloy/Gold Plating

Stainless Steel

Synthetic Rubber/Black

Copper Alloy/Gold Plating

Stainless Steel

Specifications are subject to change without notice for purpose of product modification

http://www.ddknet.co.jp

200711
