LT1132CN datasheet, PDF - EEWORLD Datasheet

LT1132CN: DescriptionIC LINE TRANSCEIVER, PDIP24, 0.300 INCH, PLASTIC, DIP-24, Line Driver or Receiver; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size497KB，12 Pages; ManufacturerLinear ( ADI ); Websitehttp://www.analog.com/cn/index.html

Download Datasheet Parametric View All

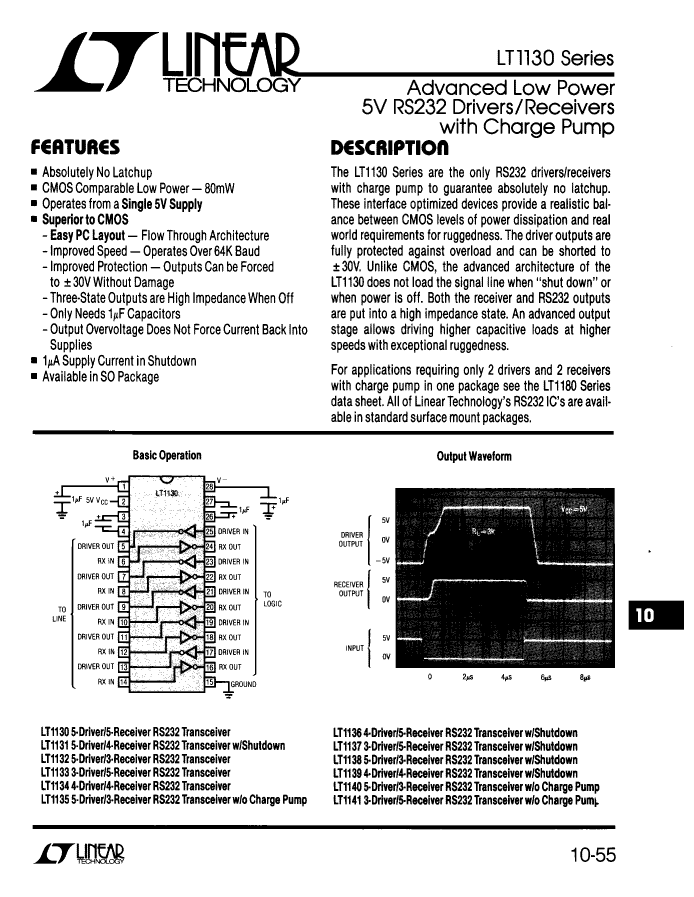

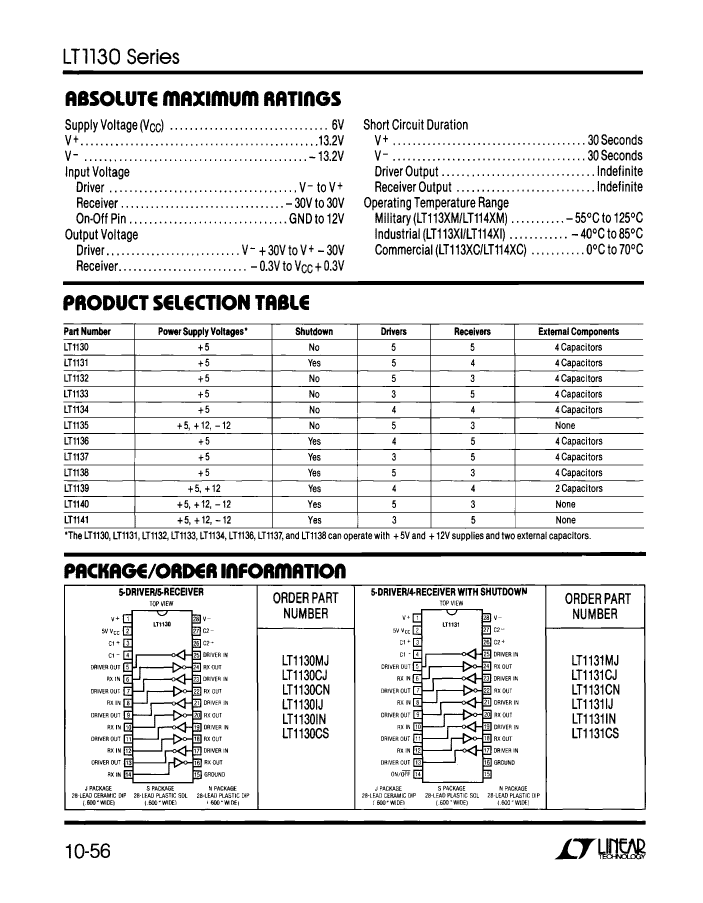

LT1132CN Overview

IC LINE TRANSCEIVER, PDIP24, 0.300 INCH, PLASTIC, DIP-24, Line Driver or Receiver

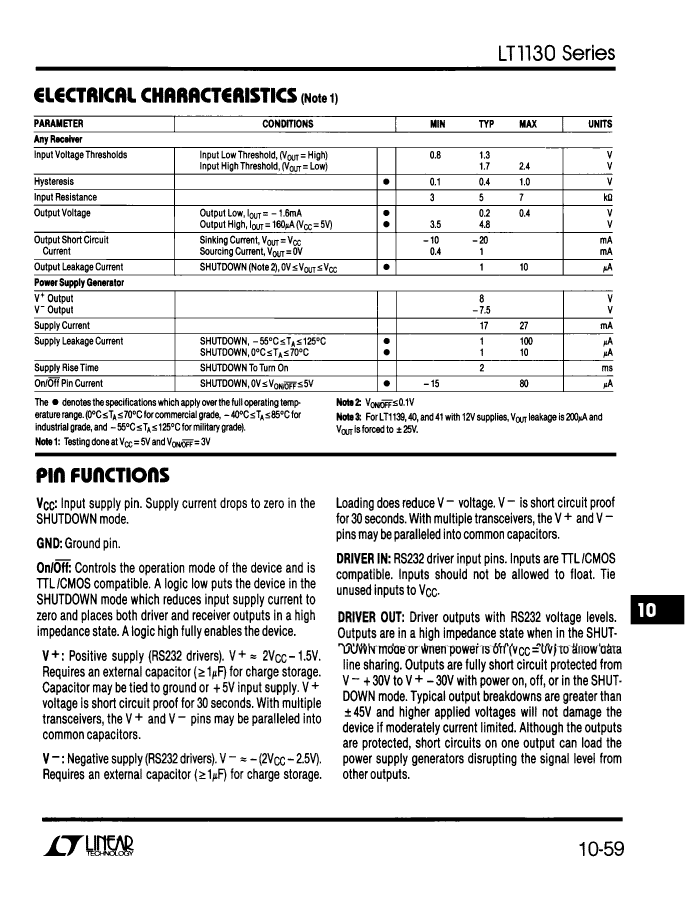

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Linear ( ADI )

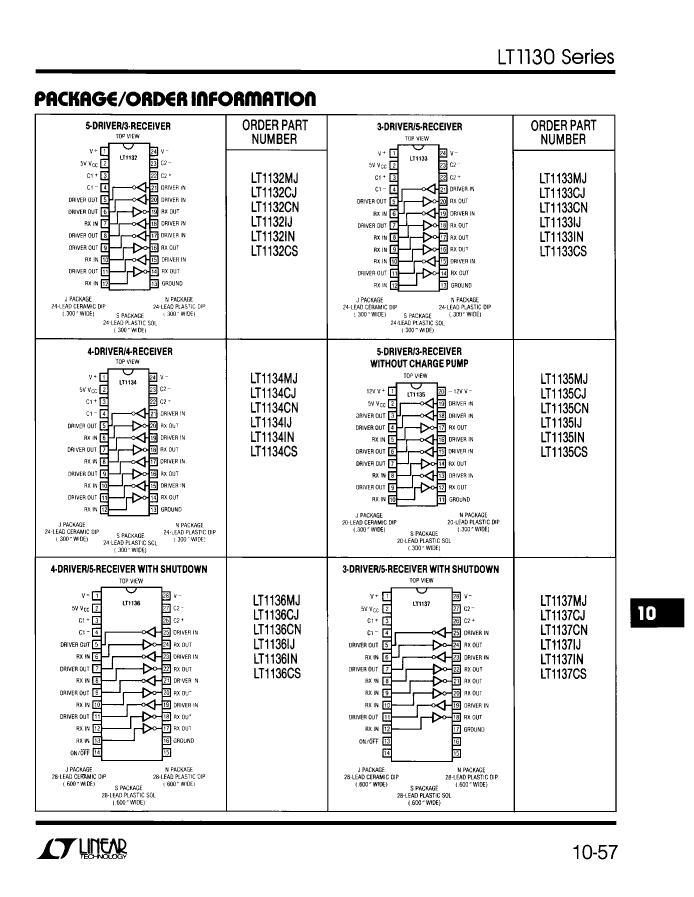

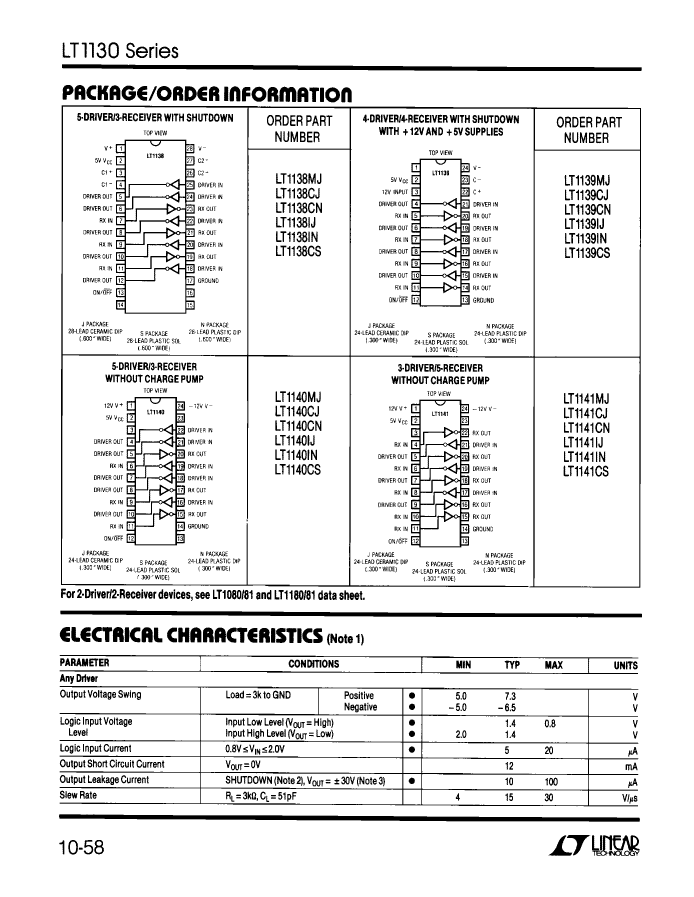

Parts packaging code	DIP
package instruction	DIP, DIP24,.3
Contacts	24
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	EXTERNAL CHARGE PUMP
Differential output	NO
Number of drives	5
High level input current maximum value	0.00002 A
Input properties	SCHMITT TRIGGER
Interface integrated circuit type	LINE TRANSCEIVER
Interface standards	EIA-232
JESD-30 code	R-PDIP-T24
JESD-609 code	e0
length	31.62 mm
Number of functions	1
Number of terminals	24
Maximum operating temperature	70 °C
Minimum operating temperature
Minimum output swing	10 V
Output characteristics	TOTEM-POLE
Maximum output low current	0.0016 A
Output polarity	INVERTED
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP24,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Certification status	Not Qualified
Maximum receive delay
Number of receiver bits	3
Maximum seat height	3.937 mm
Maximum slew rate	27 mA
Nominal supply voltage	5 V
surface mount	NO
technology	BIPOLAR
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm
Base Number Matches	1
