AMPC20-120K-RC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> AMPC20-120K-RC

AMPC20-120K-RC: Description1 ELEMENT, 12 uH, GENERAL PURPOSE INDUCTOR; CategoryPassive components inductor; File Size456KB，1 Pages; ManufacturerALLIED [Allied Electronics]; Environmental Compliance

Download Datasheet Parametric View All

AMPC20-120K-RC Overview

1 ELEMENT, 12 uH, GENERAL PURPOSE INDUCTOR

AMPC20-120K-RC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ALLIED [Allied Electronics]
Reach Compliance Code	compli
ECCN code	EAR99
DC Resistance	0.037 Ω
Nominal inductance(L)	12 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Number of functions	1
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Maximum rated current	1.28 A
Shape/Size Description	TUBULAR PACKAGE
shield	NO
surface mount	NO
Terminal location	AXIAL
Terminal shape	WIRE
Test frequency	0.001 MHz
Tolerance	10%

Preview

Download Datasheet

View All

RoHS

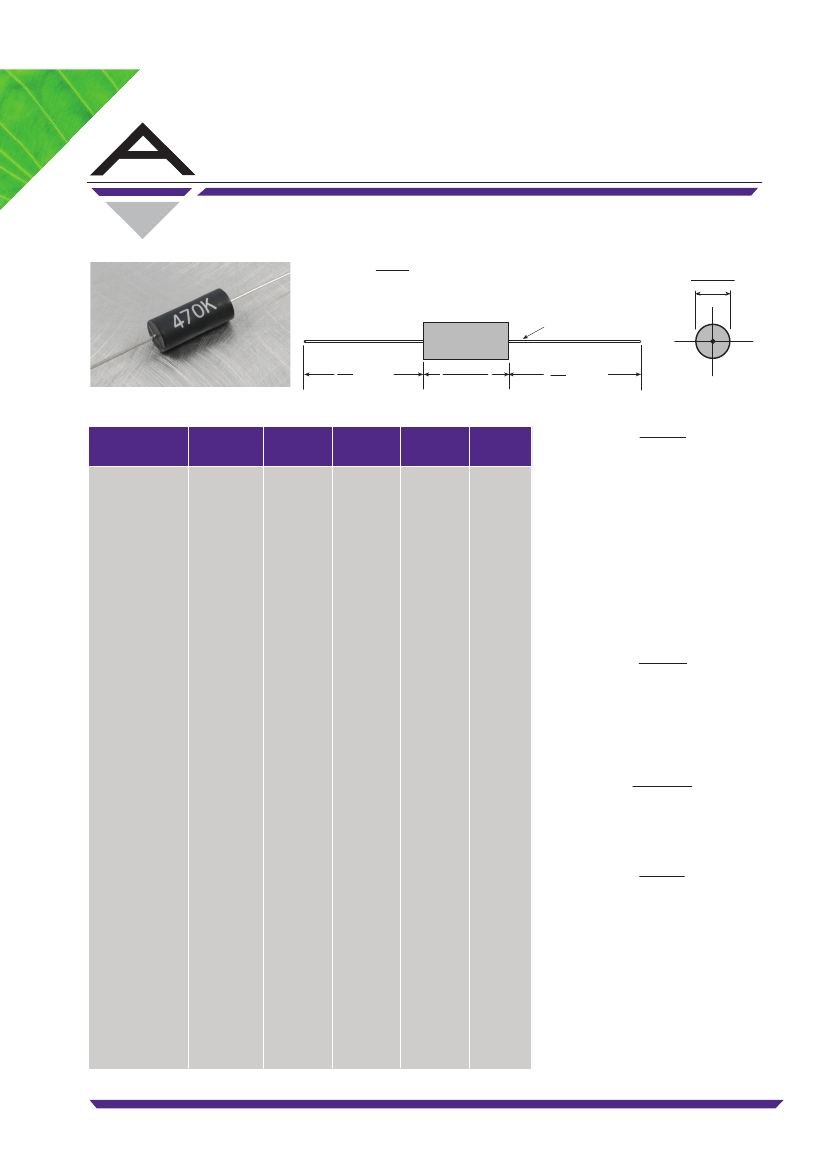

Axial Molded Power Chokes

AMPC20

0.272±0.01

(6.91±0.25)

Dimensions:

Inches

(mm)

20 AWG

1.5

NOMINAL

(38)

0.645±0.02

(16.38±0.51)

1.5

NOMINAL

(38)

Allied

Part

Number

Inductance

(µh)

Tolerance

(%)

DCR

Max.

(Ω)

Saturation

Current

(A)

Rated

Current

(A)

Features

• Axial pre-tinned leads.

• Protected with UL94V2 rated molding.

• Non standard values and tolerances

available.

• High saturation core material used for

high inductance and low DCR.

• Available on tape and reel.

AMPC20-3R9K-RC

AMPC20-4R7K-RC

AMPC20-5R6K-RC

AMPC20-6R8K-RC

AMPC20-8R2K-RC

AMPC20-100K-RC

AMPC20-120K-RC

AMPC20-150K-RC

AMPC20-180K-RC

AMPC20-220K-RC

AMPC20-270K-RC

AMPC20-330K-RC

AMPC20-390K-RC

AMPC20-470K-RC

AMPC20-560K-RC

AMPC20-680K-RC

AMPC20-820K-RC

AMPC20-101K-RC

AMPC20-121K-RC

AMPC20-151K-RC

AMPC20-181K-RC

AMPC20-221K-RC

AMPC20-271K-RC

AMPC20-331K-RC

AMPC20-391K-RC

AMPC20-471K-RC

AMPC20-561K-RC

AMPC20-681K-RC

AMPC20-821K-RC

AMPC20-102K-RC

AMPC20-122K-RC

AMPC20-152K-RC

AMPC20-182K-RC

AMPC20-222K-RC

AMPC20-272K-RC

AMPC20-332K-RC

AMPC20-392K-RC

AMPC20-472K-RC

AMPC20-562K-RC

AMPC20-682K-RC

AMPC20-822K-RC

AMPC20-103K-RC

AMPC20-123K-RC

AMPC20-153K-RC

AMPC20-183K-RC

3.9

4.7

5.6

6.8

8.2

100

120

150

180

220

270

330

390

470

560

680

820

1000

1200

1500

1800

2200

2700

3300

3900

4700

5600

6800

8200

10000

12000

15000

18000

0.019

0.022

0.024

0.026

0.028

0.033

0.037

0.040

0.044

0.050

0.058

0.075

0.094

0.109

0.140

0.145

0.152

0.208

0.283

0.340

0.362

0.430

0.557

0.665

0.772

1.15

1.27

1.61

1.96

2.3

2.65

3.45

4.03

4.48

5.90

6.56

8.63

10.5

13.9

16.3

20.8

26.4

29.9

42.5

48.3

7.3

6.3

5.6

5.3

4.5

4.1

3.6

3.3

3.0

2.7

2.5

2.2

2.0

1.8

1.7

1.5

1.4

1.2

1.1

1.0

0.95

0.86

0.77

0.70

0.64

0.59

0.54

0.49

0.44

0.40

0.35

0.33

0.29

0.27

0.24

0.22

0.20

0.18

0.166

0.151

0.138

0.125

0.114

0.098

0.091

1.28

1.008

0.804

0.632

0.508

0.400

0.315

0.250

0.200

0.158

0.125

0.100

0.082

0.065

0.050

0.039

Electrical

Testing:

Inductance measured at 1KHz/

0.25v.

Temp. Range:

-40ºC to + 105ºC.

Mechanical

Flammability:

UL94V2 rated molding.

Physical

Marking (On Part):

Standard EIA Code.

Marking (On Reel):

Manufactures Name,

Part Number, Customers Part Number,

Invoice Number, Lot or Date Code.

Packaging:

250 pieces per bag.

1000 pieces per reel.

All specifications subject to change without notice.

714-665-1140

ALLIED COMPONENTS INTERNATIONAL

Revised 03-25-08

www.alliedcomponents.com
