TECHNICAL DATA SHEET
SMB
STRAIGHT JACK
59K160-103A4

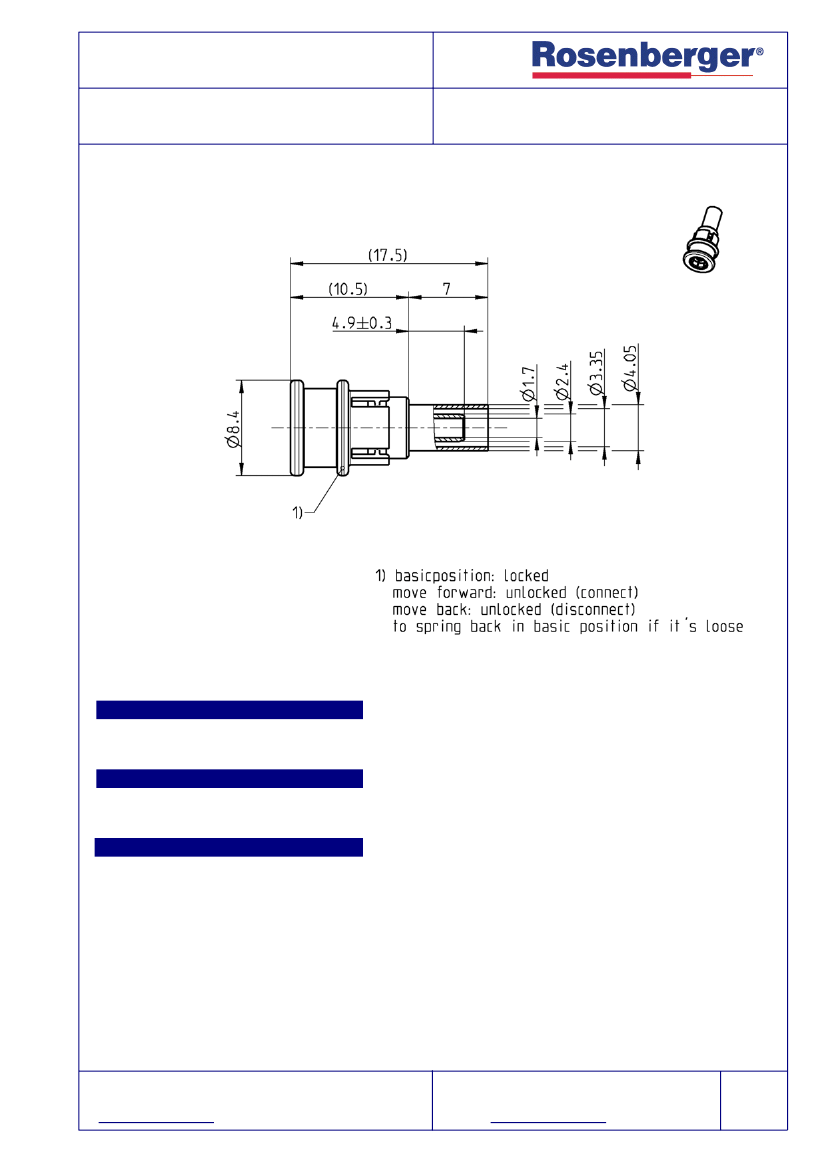

All dimensions are in mm; tolerances according to ISO 2768 m-H
Interface
According to
IEC 60169-10, CECC 22130, US MIL-C-39012
Documents
Assembly instruction
59 G2
Material and plating
Connector parts
Center contact
Outer contact
Body
Dielectric
Blocking sleeve
Crimping ferrule
Material
Beryllium copper
Brass
Brass
PTFE
POM
Copper
Plating
Gold, min. 1.27 µm, over chemical nickel
Chemical nickel, 3-5 µm
Nickel, 2.5-5 µm
Nickel, 2.5-5 µm
RF_35/11.05/3.1
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel.: +49 8684 18-0
Fax: +49 8684 18-499
email: info@rosenberger.de
Page
1/2
TECHNICAL DATA SHEET
SMB
Electrical data
Impedance
Frequency
Return loss
Insertion loss
Insulation resistance
Center contact resistance
Outer contact resistance
Test voltage
Working voltage
Contact current
RF-leakage
- Limitations are possible due to the used cable type -
STRAIGHT JACK
59K160-103A4
50
Ω
DC to 4 GHz
≥
28 dB, DC to 1 GHz
≥
22 dB, 1 to 4 GHz
≤
0.1 x
f(GHz)
dB
≥
1x10
3
MΩ
≤
5 mΩ
≤
2.5 mΩ
750 V rms, 50 Hz, at sea level
≤
250 V rms, 50 Hz, at sea level
1.5 A DC typ.
≥
55 dB up to 1 GHz
Mechanical data
Mating cycles
Center contact captivation: axial
Engagement force
Disengagement force
≥
≥
≤
8
500
10 N
63 N
N min. to 63 N max.
Environmental data
Temperature range
Thermal shock
Vibration
Corrosion
Moisture resistance
2002/95/EC (RoHS)
-55°C to +155°C
MIL-STD-202, Meth.
MIL-STD-202, Meth.
MIL-STD-202, Meth.
MIL-STD-202, Meth.
compliant
107, Cond. B
204, Cond. B
101, Cond. B
106
Tooling
Crimping tool
Crimp insert
11W150-000
11W150-402
Suitable cables
RG 316 /U-d, K02252d
Packing
Standard
Weight
100 pcs in bag
1.6 g/pce
While the information has been carefully compiled to the best of our knowledge, nothing is intended as representation or warranty on
our part and no statement herein shall be construed as recommendation to infringe existing patents. In the effort to improve our
products, we reserve the right to make changes judged to be necessary.
RF_35/11.05/3.1
Draft
Rong Fang
Date
20/04/05
Approved
J.Krautenbacher
Date
11/10/06
Rev.
c00
Engineering change number
06-0478
Name
S_Kra.
Date
11/10/06
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel.: +49 8684 18-0
Fax: +49 8684 18-499
email: info@rosenberger.de
Page
2/2
