MLB10-320-RC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> MLB10-320-RC

MLB10-320-RC: Description1 FUNCTIONS, 0.3 A, FERRITE CHIP; CategoryPassive components; File Size61KB，1 Pages; ManufacturerALLIED [Allied Electronics]

Download Datasheet Parametric View All

MLB10-320-RC Overview

1 FUNCTIONS, 0.3 A, FERRITE CHIP

MLB10-320-RC Parametric

Parameter Name	Attribute value
Maximum operating temperature	125 Cel
Minimum operating temperature	-55 Cel
Number of functions	1
Processing package description	ROHS COMPLIANT PACKAGE-2
state	ACTIVE
Installation type	surface mount
terminal coating	nickel
Dimensions	L2.0XB1.25XH0.9 (mm)/L0.079XB0.049XH0.035 (inch)
Manufacturer Series	MLB10
filter type	ferrite chip
Rated current	0.3000 A
Maximum DC resistance	0.3000 ohm
impedance	300 ohm

Preview

Download Datasheet

View All

RoHS

MLB10

0.079±0.008

(2.0±0.20)

0.049±0.008

(1.25±0.20)

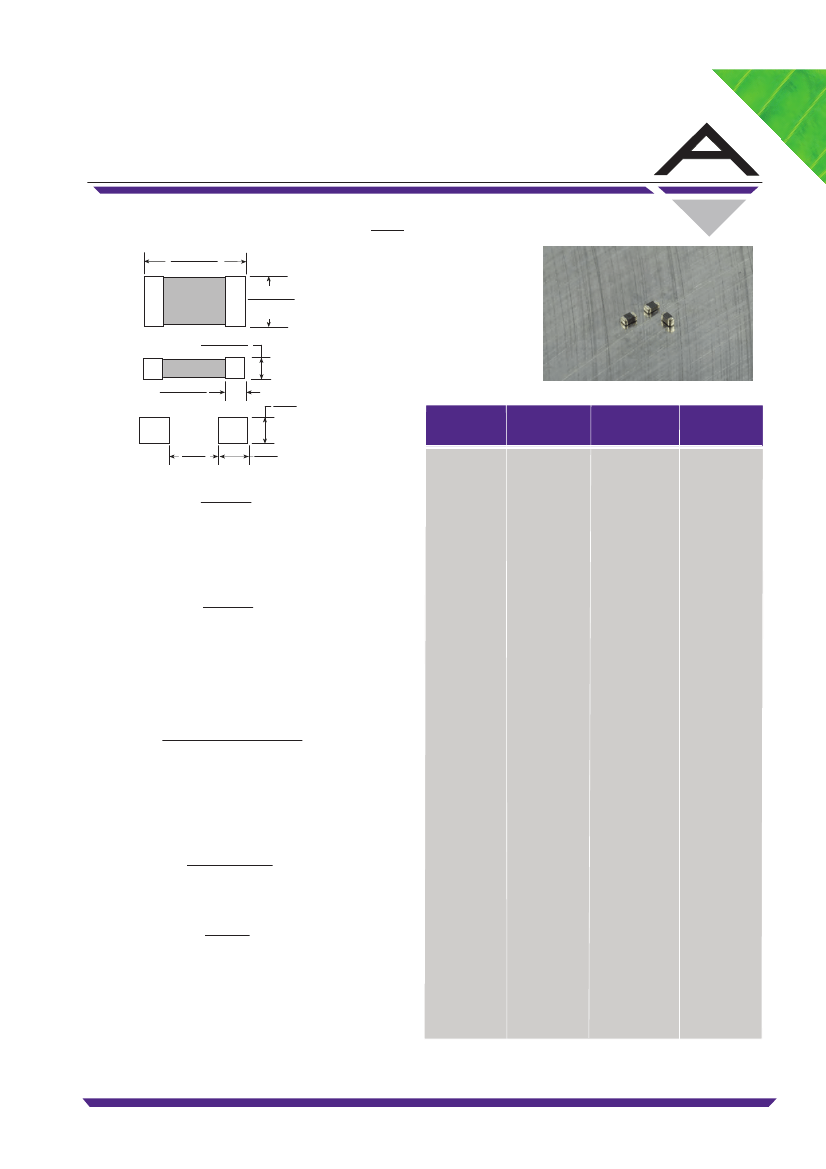

Multilayer Ferrite Beads

Dimensions:

Inches

(mm)

0.035±0.008

(0.9±0.20)

0.020±0.012

(0.5±0.30)

0.039

(1.0)

Allied

Part

Number

MLB10-050-RC

MLB10-070-RC

MLB10-090-RC

MLB10-100-RC

MLB10-110-RC

MLB10-120-RC

MLB10-150-RC

MLB10-170-RC

MLB10-190-RC

MLB10-220-RC

MLB10-260-RC

MLB10-280-RC

MLB10-300-RC

MLB10-310-RC

MLB10-320-RC

MLB10-330-RC

MLB10-390-RC

MLB10-400-RC

MLB10-420-RC

MLB10-470-RC

MLB10-500-RC

MLB10-520-RC

MLB10-560-RC

MLB10-600-RC

MLB10-700-RC

MLB10-750-RC

MLB10-800-RC

MLB10-900-RC

MLB10-950-RC

MLB10-101-RC

MLB10-121-RC

MLB10-151-RC

MLB10-181-RC

MLB10-201-RC

MLB10-221-RC

MLB10-241-RC

MLB10-301-RC

MLB10-331-RC

MLB10-401-RC

MLB10-421-RC

MLB10-431-RC

MLB10-451-RC

MLB10-471-RC

MLB10-501-RC

MLB10-601-RC

MLB10-681-RC

MLB10-751-RC

MLB10-102-RC

MLB10-122-RC

MLB10-152-RC

MLB10-202-RC

MLB10-222-RC

MLB10-252-RC

MLB10-272-RC

Impedance (Ω)

@ 100 MHz

+/- 25%

100

120

150

180

200

220

240

300

330

400

420

430

450

470

500

600

680

750

1000

1200

1500

2000

2200

2500

2700

Resistance

(Ω) Max.

0.10

0.15

0.25

0.30

0.40

0.50

0.60

0.70

***Rated

Current

(mA)

600

500

300

200

0.047

(1.2)

0.045

(1.14)

Features

•

Surface mount EMI suppression components

Nickel barrier termination for excellent resistance to solder heat

Multi layer technology

Flow and reflow soldering

Electrical

Impedance Range:

5Ω to 2700Ω

Tolerance:

25% over entire range

Operating Range:

-55ºC ~ +125ºC

Storage Temp:

Under 25ºC at 40~60% Humidity

Rated Current:

Based on temp rise not to exceed 30ºC

Resistance to Solder Heat

Pre-Heat 150ºC, 1 minute

Solder Composition: Sn/Ag3.0/Cu0.5

Solder Temp: 260±5ºC for 10sec ±1 sec.

Minimum of 75% of Electrode covered with new solder.

Impedance within 30% of initial value.

Test Equipment

(Z):

HP4291A RF Impedance/Material Analyzer

(RDC):

Chen Hwa 502BC

Physical

Packaging:

4000 per 7 inch reel.

Marking:

None

***Temperature rise shall not be more than 30

C at rated current.

All specifications subject to change without notice.

714-665-1140

ALLIED COMPONENTS INTERNATIONAL

REVISED 6/18/09

www.alliedcomponents.com
