HCPT1309 Series
Power Inductors
Description
RoHS
2002/95/EC
• 105°C maximum total temperature operation
• 13.2mm x 13.2mm x 9.0mm through hole
package
• Core material: Powder Iron
• Inductance range from 0.20μH to 3.3μH
• Current range from 90.0 Amps to 11.4 Amps
• Frequency range up to 1MHz
Applications
• Next generation processors
• High current DC-DC converters
• VRM, multi-phase buck regulator
• Desktop computers
• Video game power
Environmental Data
• Storage temperature range: -40°C to +105°C
• Operating temperature range: -40°C to +105°C
(range is application specific)
• Solder reflow temperature: +260°C max. for 10 seconds
maximum
Part Number
OCL (1)
nominal
+/-
20% (μH)
0.20
0.49
0.96
1.59
2.27
3.31
Irms (2)
Amperes
43.1
34.0
19.4
13.7
12.5
11.4
HIGH CURRENT (HCPT1309)
Packaging
• Supplied in bulk packaging, 100 parts per tray
HCPT1309-R20-R
HCPT1309-R47-R
HCPT1309-1R0-R
HCPT1309-1R5-R
HCPT1309-2R2-R
HCPT1309-3R3-R
Isat Amperes (3)
Peak 20%
rolloff @20°C
72.2
43.3
30.9
24.1
19.7
16.7
Isat Amperes (4)
Peak 30%
rolloff @20°C
90.0
55.0
40.0
30.6
25.0
21.0
DCR (mΩ)
nom @20°C
0.426
0.624
1.90
3.82
4.10
4.80
K-factor
(5)
154.1
92.4
66.0
51.4
42.0
35.6
(1) OCL: Open Circuit Inductance test parameters: 100kHz, 0.1Vrms, 0.0Adc.
(2) Irms: DC current for an approximate
ΔT
of 40°C without core loss. Derating is
necessary for AC currents. PCB layout, trace thickness and width, air-flow, and
proximity of other heat generating components will affect the temperature rise. It
is recommended that the temperature of the part not exceed 105°C under worst
case operating conditions verified in the end application.
(3) Isat Amperes peak for approximately 20% rolloff (@20°C)
(4) Isat Amperes peak for approximately 30% rolloff (@20°C)

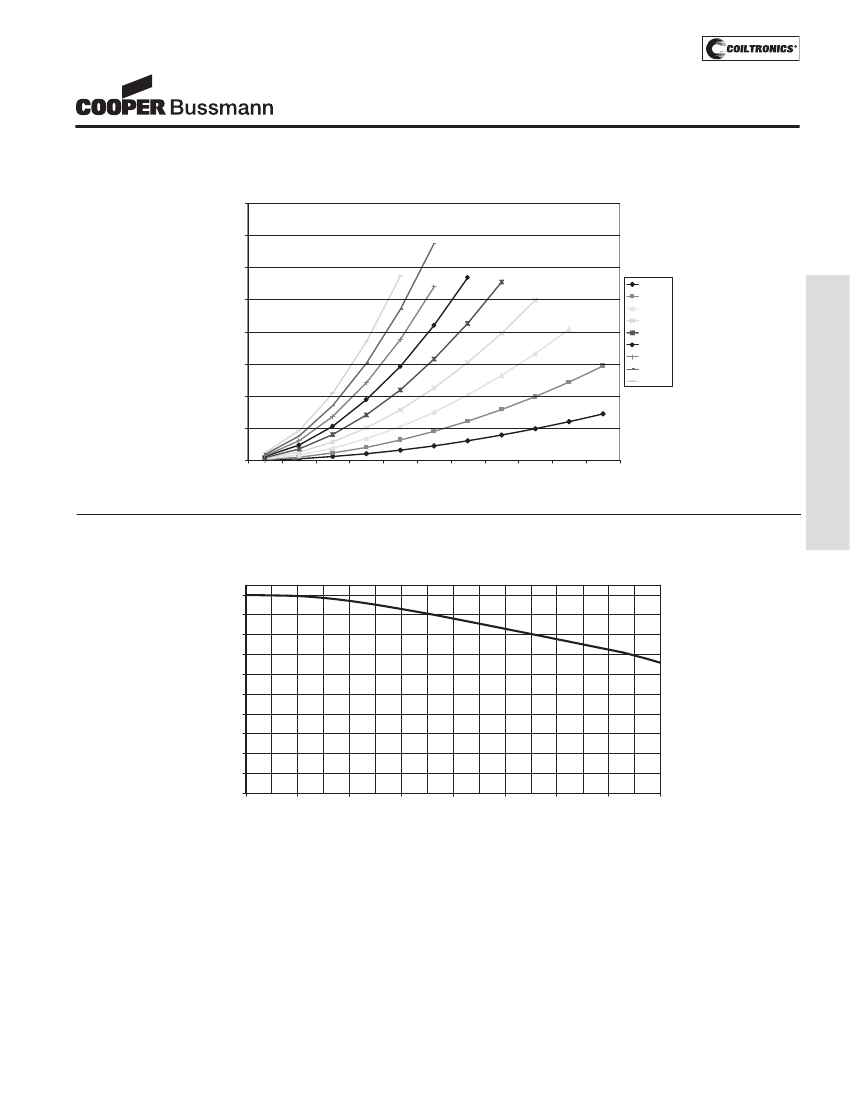

(5) K-factor: Used to determine B p-p for core loss (see graph).
B p-p = K*L*ΔI, B p-p: (Gauss), K: (K factor from table), L: (Inductance in uH),
ΔI
(Peak to peak ripple current in Amps).

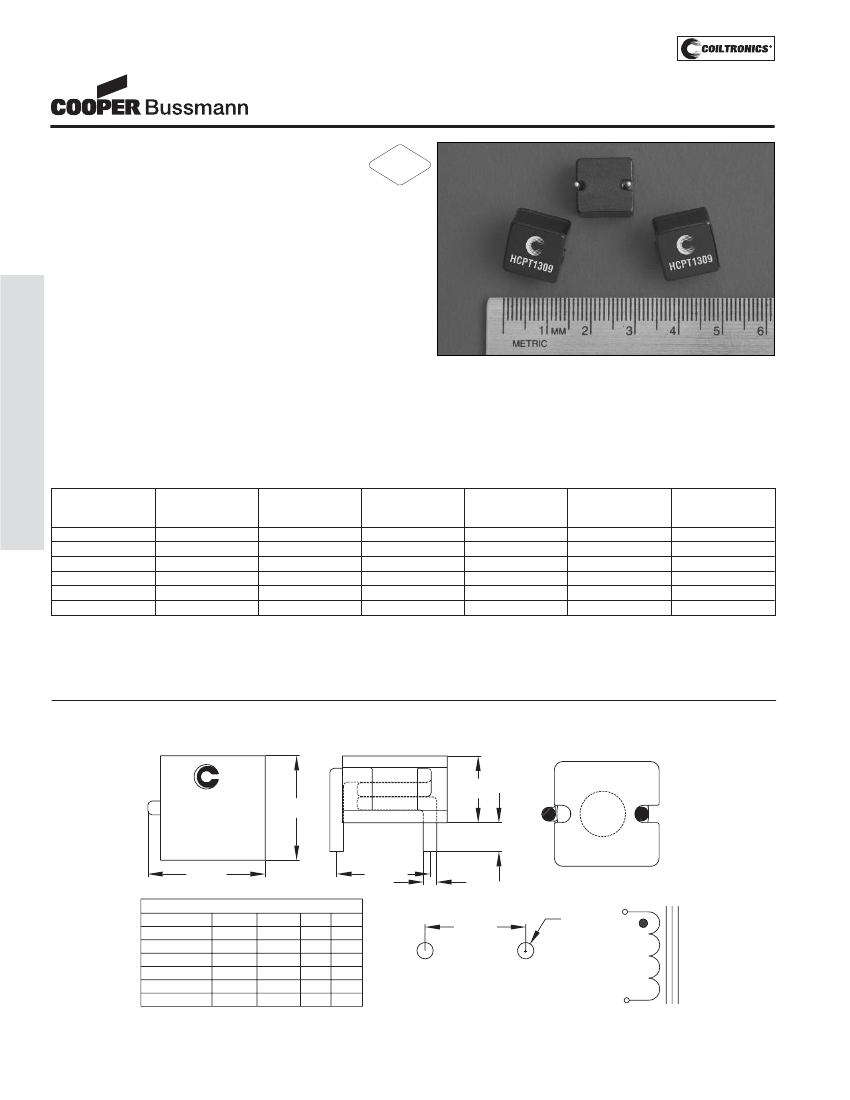

Mechanical Diagrams
TOP VIEW
FRONT VIEW
BOTTOM VIEW
9.0
max
HCPT1309-xxx
wwllyy R
13.2 sq
MAX
3.5 +/- 0.5
2
1
"A " MAX
"B" +/- 1.0
"C" typ
SCHEMATIC
Dimension Table
Part No
HCPT1309-R20
HCPT1309-R47
HCPT1309-1R0
HCPT1309-1R5
HCPT1309-2R2
HCPT1309-3R3
RECOMMENDED PCB PAD LAYOUT
"D"
2.13
2.13
1.6
1.40
1.40
1.40
"B" +/- 1.0
ØD
"A "
14.0
14.0
13.7
13.5
13.5
13.5
"B"
12.2
12.2
12.0
11.8
11.8
11.8
"C"
1.63
1.63
1.29
1.15
1.15
1.15
1
2
Dimensions are in millimeters.
wwllyy = Date Code. R = Revision Level.
