T-1 (3mm) SUPER BRIGHT LED LAMPS
L934SRC/x SUPER BRIGHT RED
L934SRD/x SUPER BRIGHT RED
L934SGx SUPER BRIGHT GREEN
Features
!
ULTRA
!
BOTH
Description
The Super Bright Red source color devices are made with
Gallium Aluminum Arsenide Red Light Emitting Diode.
MATERIAL EFFICIENCY.
The Super Bright Green source color devices are made
with Gallium Phosphide Green Light Emitting Diode.
BRIGHTNESS.
DIFFUSED AND WATER CLEAR LENS ARE
AVAILABLE.
!
OUTSTANDING
!
RELIABLE
!
IC
AND RUGGED.
COMPATIBLE/LOW CURRENT CAPABILITY.
Package Dimensions
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is
±0.25(0.01")
unless otherwise noted.
3. Lead spacing is measured where the lead emerge package.
4. Specifications are subject to change without notice.
SPEC NO: CDA0754
APPROVED: J.LU
REV NO: V.1
CHECKED:
DATE: NOV/12/2001
DRAWN: S.H.CHEN
PAGE: 1 OF 4
Selection Guide
Par t No .
L934SGC
L934SGD
L934SRC/D
L934SRC/E
L934SRC/F
L934SRC/G
L934SRC/H
L934SRC/J
L934SRD/D
L934SRD/E
L934SRDF
L934SRD/G
L934SRD/H
L934SRD/J
Note:
1.
θ1/2
is the angle from optical centerline where the luminous intensity is 1/2 the optical centerline value.
Dic e
L en s Ty p e
WATER CLEAR
GREEN DIFFUSED
Iv (m c d )
@ 20 m A
Min .
Ty p .
15 0
40
60 0
90 0
1100
13 0 0
17 0 0
230 0
150
25 0
35 0
50 0
90 0
12 0 0
80
20
500
700
10 0 0
1200
140 0
18 0 0
100
200
300
40 0
600
10 0 0
V i ew i n g
An g l e
2θ1/2
50 °
60 °
SUPER BRIGHT GREEN(GaP)
SUPER BRIGHT RED (GaAlAs)
WATER CLEAR
50°
SUPER BRIGHT RED (GaAlAs)
RED DIFFUSED
60°
Electrical / Optical Characteristics at T
)
=25°C
°
Sy m b o l
λ
peak
λ
D
∆λ
1/2
C
V
F
I
R
Par am et er
Peak Wavelength
Dominate Wavelength
D ev i c e
Super Bright Red
Super Bright Green
Super Bright Red
Super Bright Green
Ty p .
660
565
640
568
20
30
45
15
1.85
2.2
2.5
2.5
10
Max .
Un it s
nm
nm
nm
pF
V
uA
Tes t Co n d it io n s
IF=20mA
IF=20mA
IF=20mA
VF=0V;f=1MHz
IF=20mA
V R = 5V
Super Bright R d
Spectral Line Halfwidth Super Bright Geeen
r
Capacitance
Forward Voltage
Reverse Current
Super Bright Red
Super Bright Green
Super Bright Red
Super Bright Green
All
SPEC NO: CDA0754
APPROVED: J.LU
REV NO: V.1
CHECKED:
DATE: NOV/12/2001
DRAWN: S.H.CHEN
PAGE: 2 OF 4
Absolute Maximum Ratings at T
)
=25°C
°
Par am et er
Power dissipation
DC Forward Current
Peak Forward Current [1]
Reverse Voltage
Operating/Storage Temperature
Lead Solder Temperature [2]
Notes:
1. 1/10 Duty Cycle, 0.1ms Pulse Width.
2. 4mm below package base.
S u p er B r i g h t R ed
10 0
30
15 5
5
Su p er B r ig h t Gr een
105
25
140
5
-40
°
C To +85
°C
260
°
C For 5 Seconds
Un it s
mW
mA
mA
V
Super Bright Red L934SRC/x,L934SRD/x
SPEC NO: CDA0754
APPROVED: J.LU
REV NO: V.1
CHECKED:
DATE: NOV/12/2001
DRAWN: S.H.CHEN
PAGE: 3 OF 4

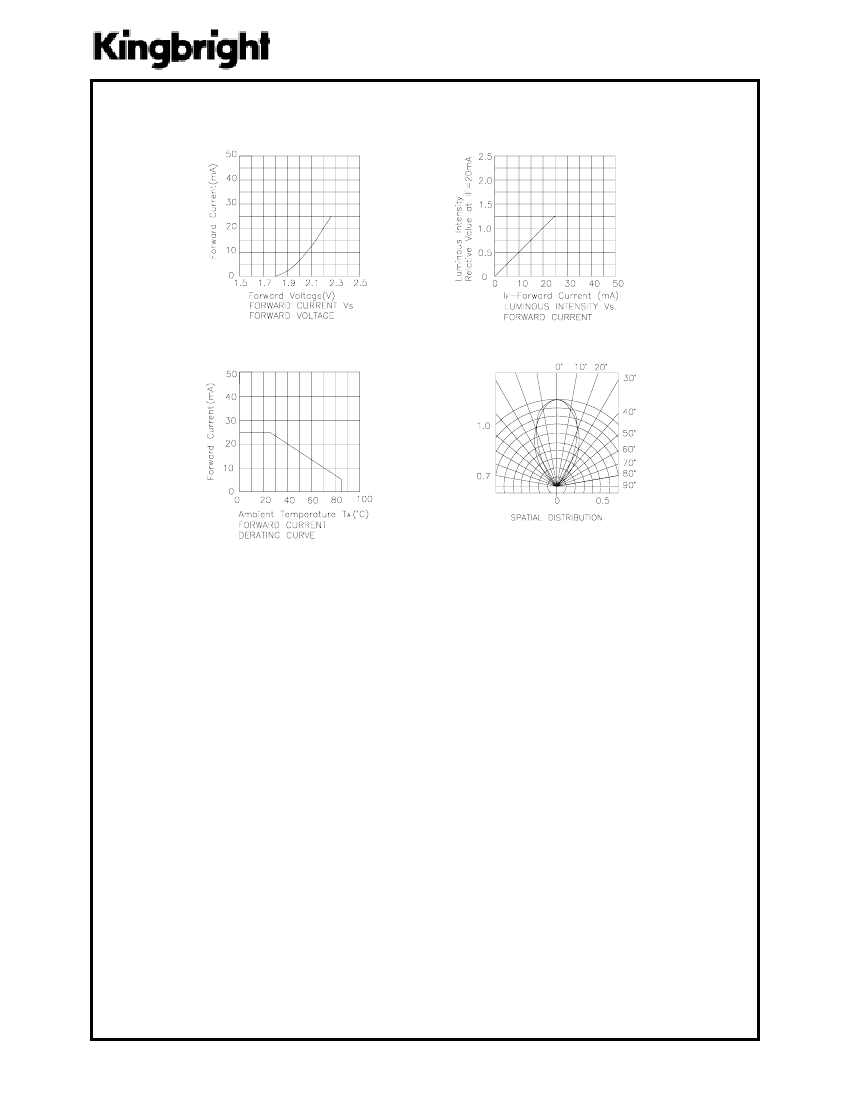

Super Bright Green L934SGC,L934SGD
SPEC NO: CDA0754
APPROVED: J.LU
REV NO: V.1
CHECKED:
DATE: NOV/12/2001
DRAWN: S.H.CHEN
PAGE: 4 OF 4
