PCS74-820M-RC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> PCS74-820M-RC

PCS74-820M-RC: Description1 ELEMENT, 82 uH, GENERAL PURPOSE INDUCTOR, SMD; CategoryPassive components inductor; File Size81KB，1 Pages; ManufacturerALLIED [Allied Electronics]; Environmental Compliance

Download Datasheet Parametric View All

PCS74-820M-RC Overview

1 ELEMENT, 82 uH, GENERAL PURPOSE INDUCTOR, SMD

PCS74-820M-RC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ALLIED [Allied Electronics]
package instruction	2929
Reach Compliance Code	compli
ECCN code	EAR99
uppercase and lowercase codes	2929
DC Resistance	0.43 Ω
Nominal inductance(L)	82 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Maximum rated current	0.61 A
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.001 MHz
Tolerance	20%

Preview

Download Datasheet

View All

RoHS

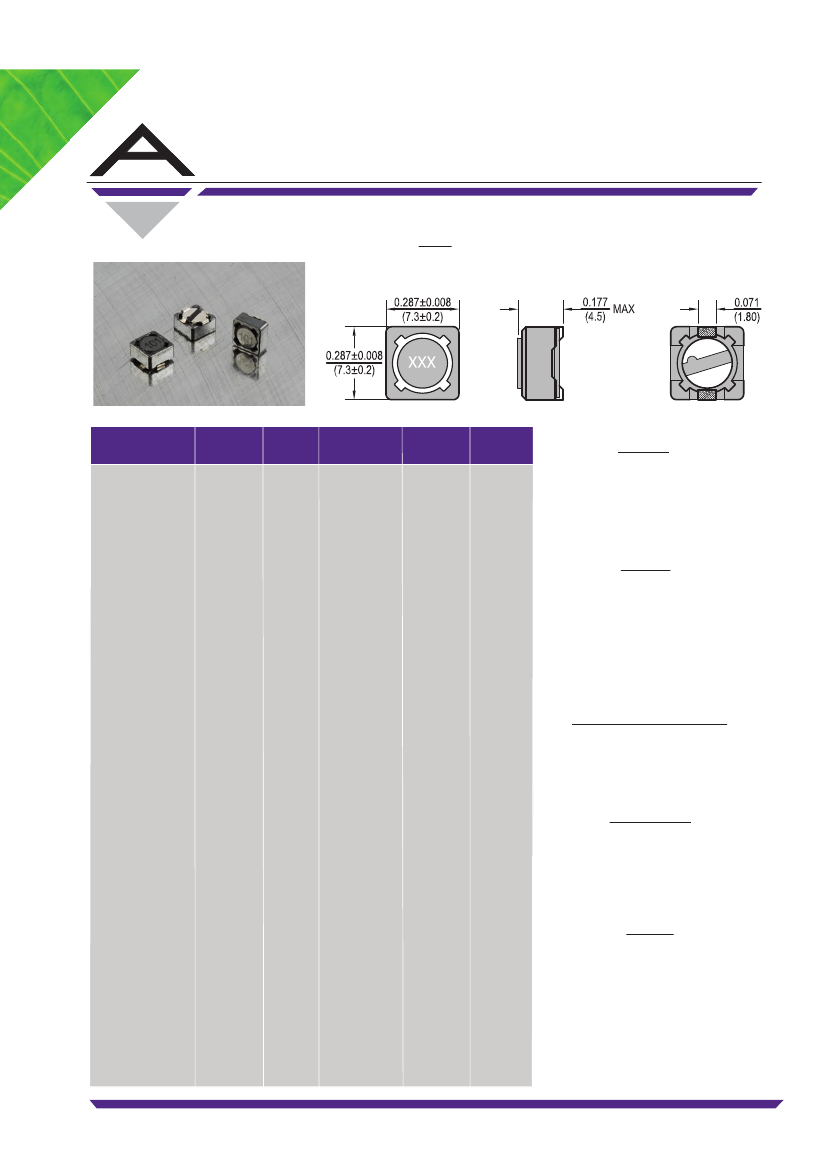

Power Chip Shielded Inductors

Dimensions:

Inches

(mm)

PCS74

Allied

Part

Number

Inductance

(µh)

Tolerance

(%)

Test

Freq.

KHz, 1V

DCR

(Ω)

Rated

Current

(A)

Features

• Shielded SMD Power Inductor

• Low DC resistance

• Designed for pick and place assembly

• Ideal for DC-DC converter

applications

Electrical

Inductance Range:

1.8µh ~ 1000µh

Tolerance:

20% over entire range,

tighter tolerances available

Test Frequency:

As specified with 1v OSC

Operating Temp:

-40ºC~85ºC

IDC:

Current at which inductance drop

= 35% typ.

Resistance to Soldering Heat

Pre-Heat 150ºC, 1min.

Solder Composition:

Sn/Ag3.0/Cu0.5

Solder Temp:

260ºC +/- 5ºC for

10 sec. +/- 1 sec.

Test Equipment

(L):

HP4192A LF Impedance Analyzer

(RDC):

Chen Hwa 502

(IDC):

Chen Hwa 1061 + Chen Hwa 301A

or HP4284 + HP42841A

PCS74-1R8M-RC

PCS74-2R2M-RC

PCS74-2R7M-RC

PCS74-3R3M-RC

PCS74-4R7M-RC

PCS74-6R8M-RC

PCS74-100M-RC

PCS74-120M-RC

PCS74-150M-RC

PCS74-180M-RC

PCS74-220M-RC

PCS74-270M-RC

PCS74-330M-RC

PCS74-390M-RC

PCS74-470M-RC

PCS74-560M-RC

PCS74-680M-RC

PCS74-820M-RC

PCS74-101M-RC

PCS74-121M-RC

PCS74-151M-RC

PCS74-181M-RC

PCS74-221M-RC

PCS74-271M-RC

PCS74-331M-RC

PCS74-391M-RC

PCS74-471M-RC

PCS74-561M-RC

PCS74-681M-RC

PCS74-821M-RC

1.8

2.2

2.7

3.3

4.7

6.8

100

120

150

180

220

270

330

390

470

560

680

820

0.025

0.030

0.035

0.045

0.049

0.058

0.081

0.091

0.110

0.150

0.170

0.230

0.260

0.350

0.383

0.430

0.610

0.660

0.880

0.980

1.170

1.640

1.860

2.850

3.010

3.620

4.630

5.20

6.00

4.00

3.50

3.00

2.50

1.84

1.71

1.47

1.31

1.23

1.12

0.96

0.91

0.88

0.75

0.69

0.61

0.60

0.52

0.46

0.42

0.36

0.34

0.32

0.29

0.26

0.23

0.22

0.20

0.18

Physical

Packaging:

1000 pieces per 13 inch reel.

Marking:

EIA Inductance Code

PCS74-102M-RC

1000

All specifications subject to change without notice.

714-665-1140

ALLIED COMPONENTS INTERNATIONAL

REVISED 12/11/08

www.alliedcomponents.com
