5-1634506-3 datasheet, PDF - EEWORLD Datasheet

5-1634506-3: DescriptionBOARD TERMINATED, FEMALE, BNC CONNECTOR, SOLDER, SOCKET; CategoryThe connector The connector; File Size82KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

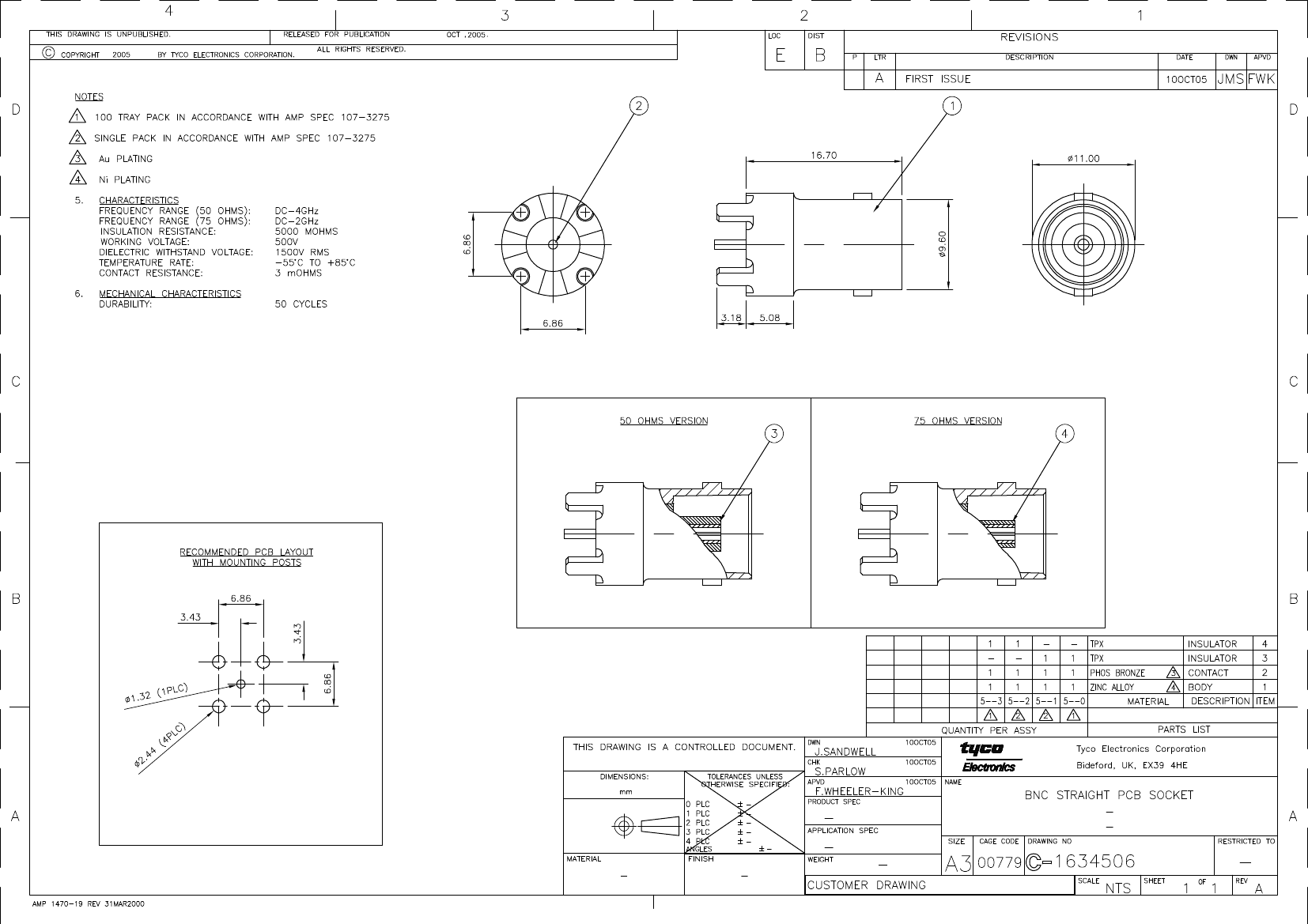

5-1634506-3 Overview

BOARD TERMINATED, FEMALE, BNC CONNECTOR, SOLDER, SOCKET

Parameter Name	Attribute value
Reach Compliance Code	unknow
Body/casing type	SOCKET
Characteristic impedance	75 Ω
Connector type	RF BNC CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Coupling type	BAYONET
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYMETHYLPENTENE
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	1634506
Installation method	STRAIGHT
Installation type	BOARD
Maximum operating frequency	2 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
Termination type	SOLDER
Base Number Matches	1

	5-1634506-3	5-1634506-0
Description	BOARD TERMINATED, FEMALE, BNC CONNECTOR, SOLDER, SOCKET	BOARD TERMINATED, FEMALE, BNC CONNECTOR, SOLDER, SOCKET
Reach Compliance Code	unknow	unknow
Body/casing type	SOCKET	SOCKET
Characteristic impedance	75 Ω	50 Ω
Connector type	RF BNC CONNECTOR	RF BNC CONNECTOR
Contact to complete cooperation	GOLD	GOLD
Contact completed and terminated	GOLD	GOLD
Contact point gender	FEMALE	FEMALE
Coupling type	BAYONET	BAYONET
DIN compliance	NO	NO
Filter function	NO	NO
IEC compliance	NO	NO
insulator material	POLYMETHYLPENTENE	POLYMETHYLPENTENE
JESD-609 code	e4	e4
MIL compliance	NO	NO
Manufacturer's serial number	1634506	1634506
Installation method	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD
Maximum operating frequency	2 GHz	4 GHz
Options	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	NO	NO
Termination type	SOLDER	SOLDER
Base Number Matches	1	1
