TECHNICAL DATA
2K 2.5V CMOS Serial EEPROMs
DESCRIPTION
KK24LC02B
is a 2K-bit Electrically Erasable PROM. The device is organized as a single
block of 256 x 8 bit memory with a two wire serial interface.
Low voltage design permits operation down to 2.5volts with standby and active currents
of only 5µA and 1mA respectively.
The
KK24LC02B
also has a page-write capability for up to 8 bytes of data.
The
KK24LC02B
is available in the standard 8-pin DIP.
KK24LC02B
FEATURES
• Single supply with operation down to 2.5V
• Low power CMOS technology
- 1 mA active current typical
- 10
µA
standby current typical at 5.5V
- 5
µA
standby current typical at 3.0V
• Organized as a single block of 256 bytes (256x8)
• Two wire serial interface bus, I
2
C compatible
• Schmitt trigger, filtered inputs for noise suppression
• Output slope control to eliminate ground bounce
• 100 kHz (2.5V) and 400 kHz (5V) compatibility
• Self-timed write cycle (including auto-erase)
• Page-write buffer for up to 8 bytes
• 2 ms typical write cycle time for page-write
• Hardware write protect for entire memory
• Can be operated as a serial ROM
• Factory programming (QTP) available
• ESD protection > 3,000V
• 1,000,000 ERASE/WRITE cycles guaranteed*
• Data retention > 200 years
SDA
SCL
WP
VCC
AO, A1, A2
Serial Address/Data I/O
Serial Clock
Write Protect Input
+2.5V to 5.5V Power Supply
No Internal Connection
Name
Vss
PACKAGE
T
A
= -40 ... +85
°C
PINNING
Function
Ground
Pin Connection
A0
A1
A2
Vss
1
2
3
4
8
7
6
5
Vcc
WP
SCL
SDA
1
KK24LC02B

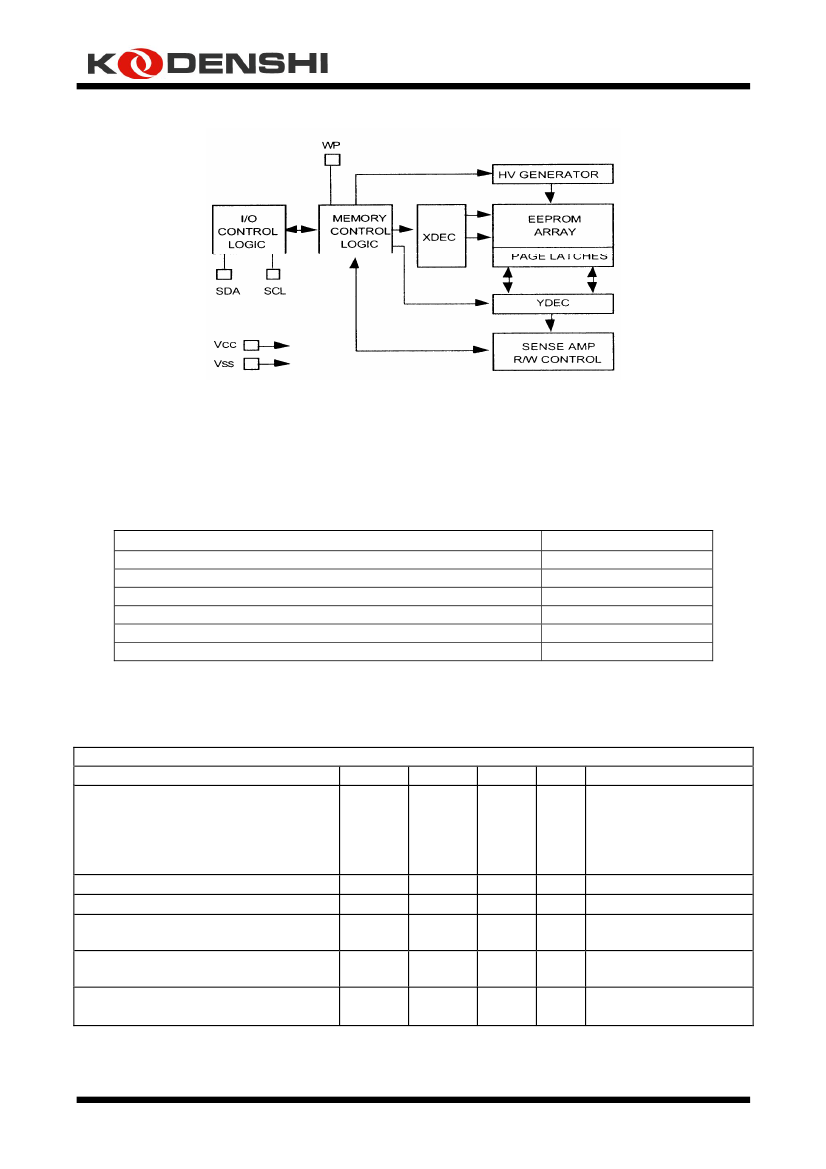

Figure 1. Representative Block Diagram
ELECTRICAL CHARACTERISTICS
Maximum Ratings*
Parameter
V
CC
All inputs and outputs w.r.t.Vss
Storage temperature
Ambient temp. with power applied
Soldering temperature of leads (10 seconds)
ESD protection on all pins
Value
7.0 V
-0.6V to Vcc + 1.0V
-65
o
C to +150
o
C
-40
o
C to +85
o
C
+300
o
C
> 4 kV
DC CHARACTERISTICS
Vcc = +2.5V to +5.5V: Tamb = -40
o
C to +85
o
C
Parameter
Symbol
Min
WP, SCL and SDA pins:
0.7V
CC
High level input voltage
V
lH
-
V
IL
Low level input voltage
V
HYS
0.05V
CC
Hysteresis of Schmitt trigger inputs
-
V
OL
Low level output voltage
Input leakage current
I
LI
-10
Output leakage current
I
LO
-10
Pin capacitance (all inputs/outputs)
C
IN
-
C
OUT
Operating current
I
CC
WRITE
-
I
CC
READ
-
Standby current
I
CCS
-
-
Max
-
0.3V
CC
-
0.40
10
10
10
3
1
30
100
Units
V
V
V
V
µA
µA
pF
mA
mA
µA
µA
Mode
Note 1
I
OL
=
3.0mA, V
CC
= 2.5V
V
lN
=0.1V to V
CC
V
OUT
=0.1V to V
CC
V
CC
= 5.0V (Note 1)
Tamb =25
o
C,Fclk =1MHz
V
CC
= 5.5V SCL =400 kHz
SDA=SCL=V
CC
=3.0V,
SDA=SCL=V
CC
=5.5V
2
KK24LC02B

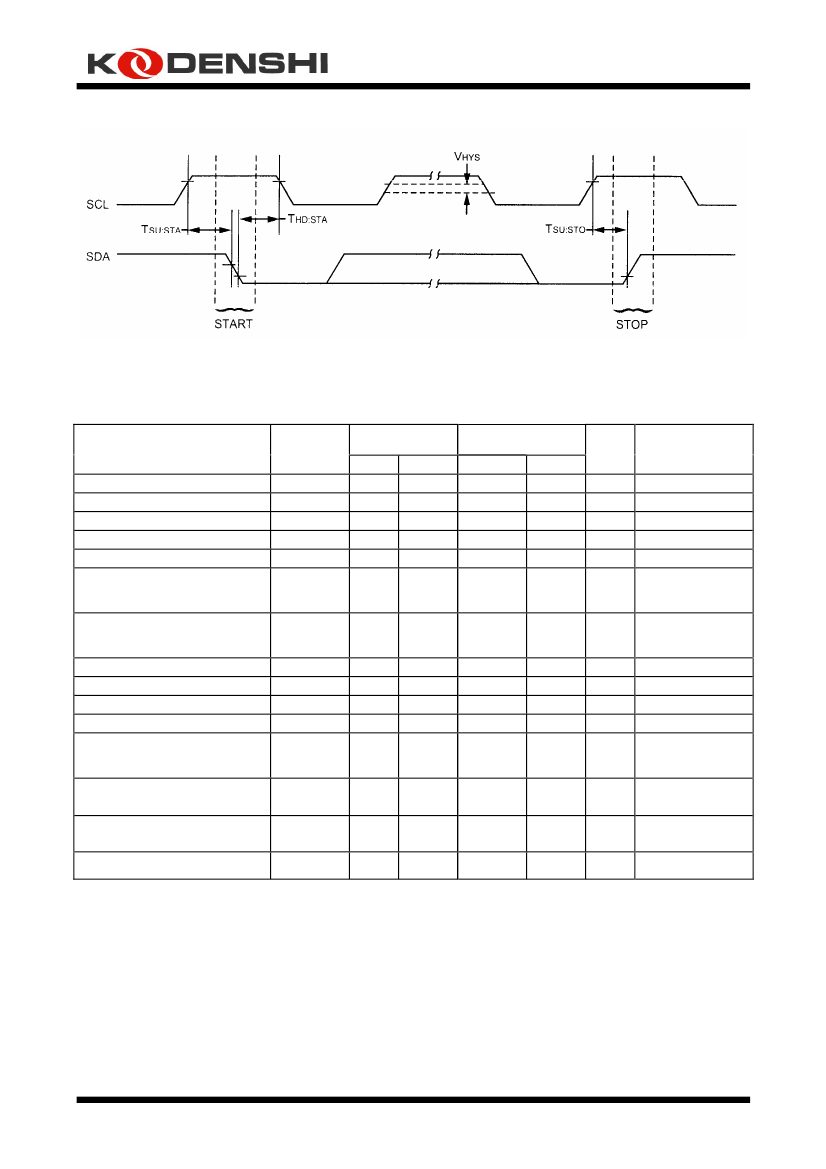

Figure 2. Bus timing Start/Stop
AC CHARACTERISTICS
Parameter
Clock frequency
Clock high time
Clock low time
SDA and SCL rise time
SDA and SCL fall time
START condition hold time
START condition setup time
Data input hold time
Data input setup time
STOP condition setup time
Output valid from clock
Bus free time
Output fall time from V
IH
min
to V
IL
max
Input filter spike suppres-sion
(SDA & SCL pins)
Write cycle time
Symbol
F
CLK
T
HIGH
T
LOW
T
R
T
F
T
HD:STA
T
SU:STA
T
HD:DAT
T
SU:DAT
T
SU:STO
T
AA
T
BUF
T
OF
T
SP
T
WR
STANDARD
MODE
Vcc = 4.5 - 5.5V
FAST MODE
Min
-
4000
4700
-
-
4000
4700
0
250
4000
-
4700
-
-
-
Max
100
-
-
1000
300
-
-
-
-
-
3500
-
250
50
10
Min
-
600
1300
-
-
600
600
0
100
600
-
1300
20+0.1C
B
-
-
Max
400
-
-
300
300
-
-
-
-
-
900
-
250
50
10
Units Remarks
kHz
ns
ns
ns Note 2
ns Note 2
ns
ns
ns
ns
ns
ns
ns
ns
ns
ms
After this period the
first clock pulse is
generated
Only relevant for
repeated START
condition
Note 1
Time the bus must be
free before a new
transmission can start
Note2,
C
B
≤100pF
Note 3
Byte or Page mode
Note 1: As a transmitter, the device must provide an internal minimum delay time to bridge the undefined
region (minimum 300 ns) of the falling edge of SCL to avoid unintended generation of START or
STOP conditions.
Note 2: Not 100% tested. C
B
=
total capacitance of one bus line in pF.
Note 3: The combined T
SP
and V
HYS
specifications are due to new Schmitt trigger inputs which provide
improved noise and spike suppression. This eliminates the need for a Ti specification for standard
operation.
3
KK24LC02B

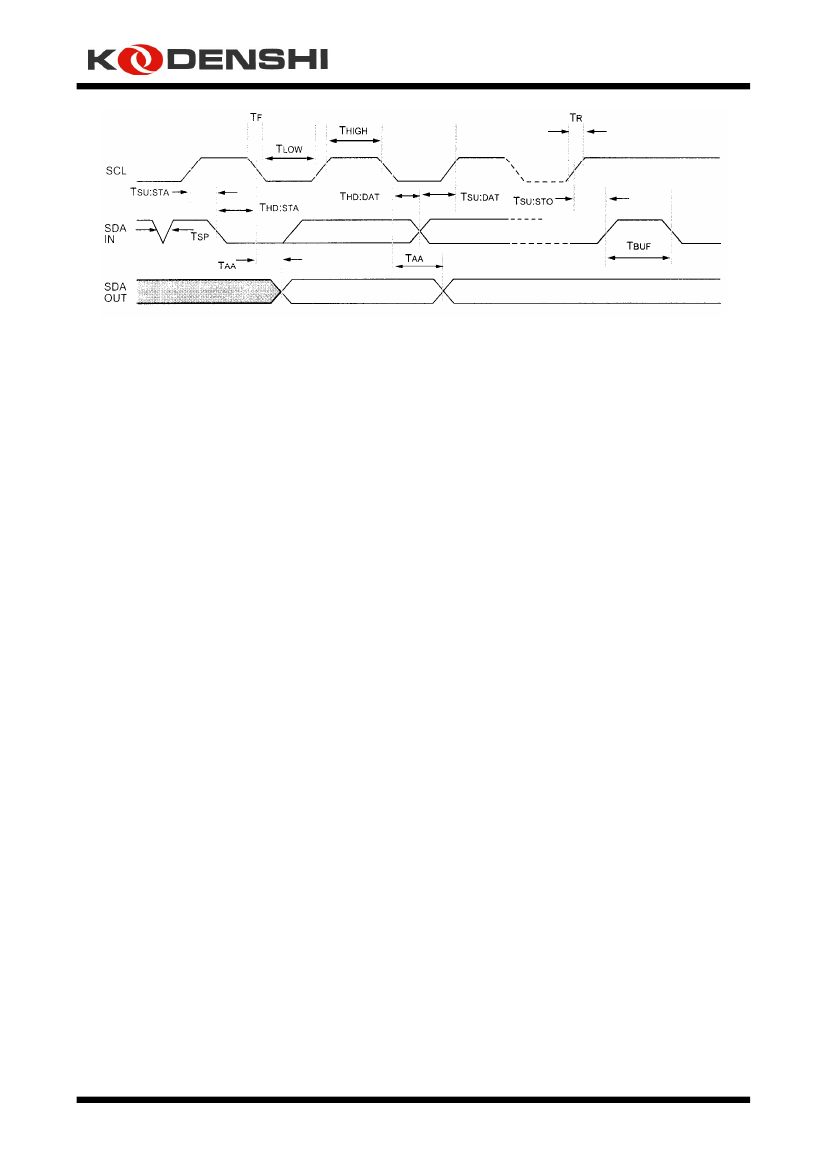

Figure 3. Bus timing Data
FUNCTIONAL DESCRIPTION
The
KK24LC02B
supports a bidirectional two wire bus and data transmission protocol. A device
that sends data onto the bus is defined as transmitter, and a device receiving data as receiver. The
bus has to be controlled by a master device which generates the serial clock (SCL), controls the bus
access, and generates the START and STOP conditions, while the
KK24LC02B
works as slave.
Both, master and slave can operate as transmitter or receiver but the master device determines
which mode is activated.
BUS CHARACTERISTICS
The following bus protocol has been defined:
• Data transfer may be initiated only when the bus is not busy.
• During data transfer, the data line must remain stable whenever the clock line is HIGH. Changes in
the data line while the clock line is HIGH will be interpreted as a START or STOP condition.
Accordingly, the following bus conditions have been defined (see Figure 4).
Bus not Busy (A)
Both data and clock lines remain HIGH.
Start Data Transfer (B)
A HIGH to LOW transition of the SDA line while the clock (SCL) is HIGH determines a START
condition. All commands must be preceded by a START condition.
Stop Data Transfer (C)
A LOW to HIGH transition of the SDA line while the clock (SCL) is HIGH determines a STOP
condition. All operations must be ended with a STOP condition.
Data Valid (D)
The state of the data line represents valid data when, after a START condition, the data line is stable
for the duration of the HIGH period of the clock signal.
The data on the line must be changed during the LOW period of the clock signal. There is one clock
pulse per bit of data.
Each data transfer is initiated with a START condition and terminated with a STOP condition. The
number of the data bytes transferred between the START and STOP conditions is determined by the
master device and is theoretically unlimited, although only the last sixteen will be stored when
doing a write operation. When an overwrite does occur it will replace data in a first in first out
fashion.
Acknowledge
Each receiving device, when addressed, is obliged to generate an acknowledge after the reception of
each byte. The master device must generate an extra clock pulse which is associated with this
acknowledge bit.
4
KK24LC02B
Note:
The
KK24LC02B
does not generate any acknowledge bits if an internal programming cycle is in
progress
The device that acknowledges, has to pull down the SDA line during the acknowledge clock pulse
in such a way that the SDA line is stable LOW during the HIGH period of the acknowledge related
clock pulse. Of course, setup and hold times must be taken into account. A master must signal an
end of data to the slave by not generating an acknowledge bit on the last byte that has been clocked
out of the slave. In this case, the slave must leave the data line HIGH to enable the master to
generate the STOP condition.

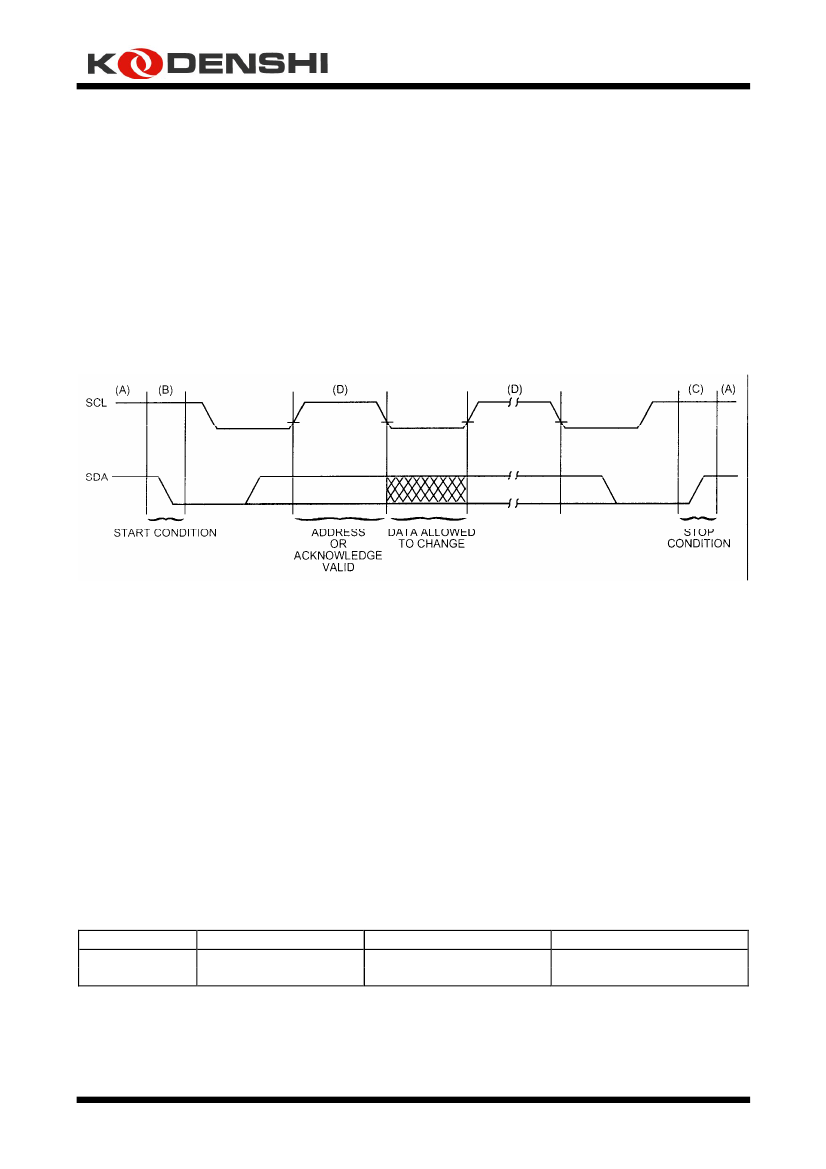

Figure 4. Data Transfer Sequence on the serial bus
BUS CHARACTERISTICS
Slave Address
The
KK24LC02B
are software-compatible with devices such as 24C01A, 24C02A, 24LC01,
and 24LC02B. A single 24LC02B can be used in place of two 24LC01's,
for example, without any modifications to software.
The "chip select" portion of the control byte becomes a don't care.
After generating a START condition, the bus master transmits the slave address consisting
of a 4-bit device code (1010) for the
KK24LC02B,
followed by three don't care bits.
The eighth bit of slave address determines if the master device wants to read or write to
the
KK24LC02B
(see Figure 5).
The
KK24LC0
monitors the bus for its corresponding slave address all the time.
It generates an acknowledge bit if the slave address was true and it is not in a programming
mode.
Operation
Read
Write
Control Code
1010
1010
Chip Select
XXX
XXX
R/W
1
0
5
