Series 153 - 1206 - Bipolar bicolor
Features
size 1206: 3,2(L) x 1,6(W) x 1,2(H) mm
circuit substrate: glass laminated epoxy
devices are ROHS conform
lead free solderable, soldering pads: gold plated
taped in 8 mm blister tape, cathode of defined color is placed
to transporting perforation
- all devices sorted into luminous intensity classes
- taping: face-up (T) or face-down (TD) possible
-
-
-
-
-
Absolute Maximum Ratings
P
D, max
[mW]
65
I
F,P
[mA] tp
≤
100
µs τ=1:
10
100
V
R
[V]
5
I
R, max
[µA]
100
Thermal resistance
R
thJA
[K / W]
450
T
Op
[°C]
-40...85
T
St
°[C]
-55...85
80
60
40
20
Maximal
forward
current (DC)
characteristic
P
D
[mW]
0
-40
-20
0
20
40
60
80
100
T
op
[°
C]
Electro-Optical Characteristics
Type
Combination Marking at cathode
OLS-153 SD/SYG
red / green
green
OLS-153 SR/Y
red / yellow
yellow
OLS-153 SR/G
red / green
green
OLS-153 Y/G
yellow / green
green
red / green
green
OLS-153 UR/SYG
Other combinations are possible also
Emitting
color
G - green
SYG - green
Y - yellow
SD - red
SR - red
UR - red
Measurement
I
F
[mA]
20
20
20
20
20
20
V
F
[V]
typ
max
2,2
2,6
2,25 2,6
2,1
2,6
2,1
2,6
1,9
2,6
1,9
2,6
λ
d
/
λ
p
*
[nm]
572
572
590
625
655 *
650 *
I
V
[mcd]
min
typ
4.0
12
10
20
4.0
12
4.0
12
8.0
20
15
35
© 2007
OSA Opto Light GmbH Tel. +49-(0)30-65 76 26 83 Fax +49-(0)30-65 76 26 81 contact@osa-opto.com
edition 05/07
90
1,0
120
60
150
0,5
30
view angle
0,0
180
0
10
IF (mA)
SD
G
UR
SR
SYG
Y
1
U
F
– I
F
characteristic
1,6
1,7
1,8
1,9
2,0
2,1
2,2
2,3
2,4
2,5
2,6
2,7
UF (V)
6
5
Iv rel (at 10 mA )
4
Y
SYG
SR
UR
G
SD
3
I
F
– I
v, rel
characteristic
2
1
0
10
20
30
40
50
IF (mA)
© 2007
OSA Opto Light GmbH Tel. +49-(0)30-65 76 26 83 Fax +49-(0)30-65 76 26 81 contact@osa-opto.com
edition 05/07

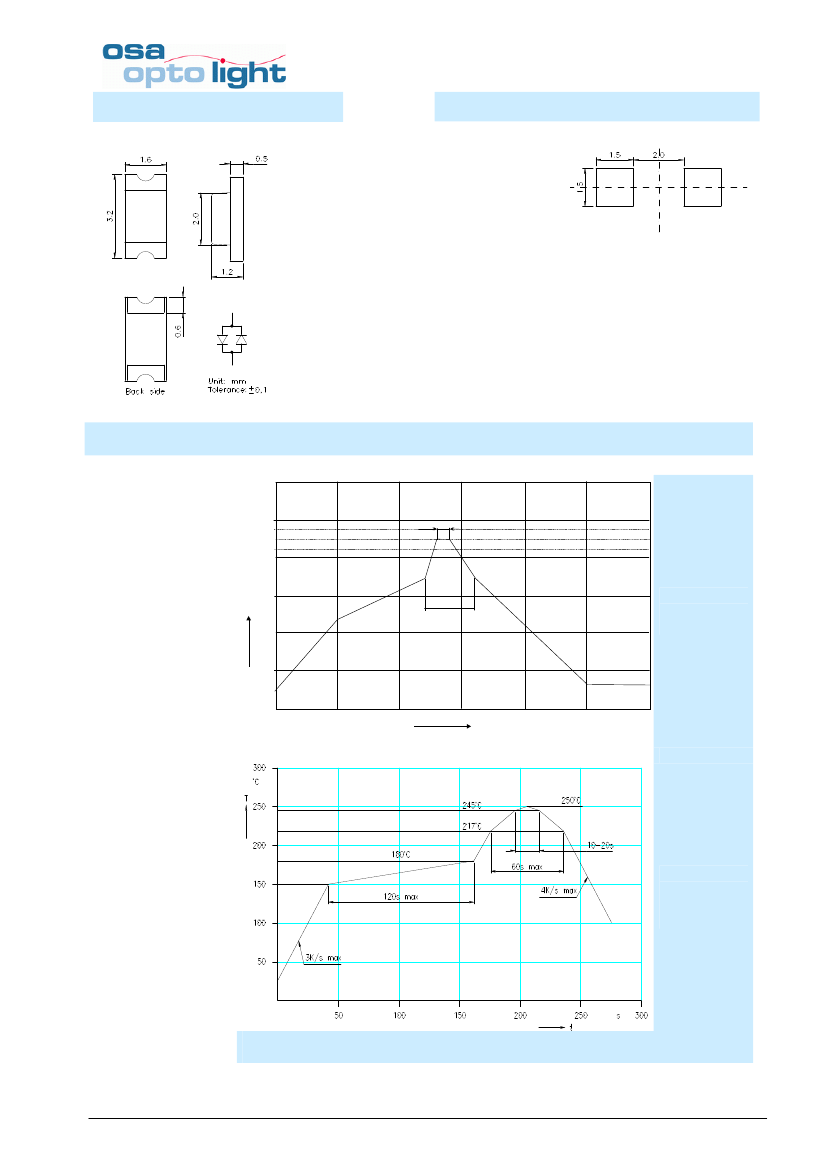

Outline Drawing
Recommended Soldering Patterns
Soldering Conditions
300
250
10-20 s
T
emperature (°
C)
230°
C
200
150
Max. 40 s
100
IR reflow
soldering
profile
50
0
50
100
150
200
250
300
T
ime (sec)
IR reflow
soldering
profile for lead
free soldering
Manual soldering:
max power of iron 25W/ 3s/ 300°
C
© 2007
OSA Opto Light GmbH Tel. +49-(0)30-65 76 26 83 Fax +49-(0)30-65 76 26 81 contact@osa-opto.com
edition 05/07
Ordering Code For Parts
Series
Color
Encapsulation
Packaging
OLS-153
-
???????
-
?
-
?
T - taped up
TD - taped down
XD - uncolored diffused (standard)
CD - colored diffused possible for red, green, blue
C - colored clear possible for red, green, blue
X - uncolored clear
Type definition, e.g. OLS-153 SD/SYG-XD-T
LED Luminous Intensity Groups And Subgroups [ mcd ]
(general information – not this device specific)
C:
D:
E:
F:
G:
H:
J:
K:
L:
M:
N:
P:
Q:
R:
S:
T:
U:
V:
W:
X:
Y:
Z:
0.28
0.45
0.71
1.12
1.80
2.80
4.50
7.10
11.20
18
28
45
71
112
180
280
450
710
1120
1800
2800
4500
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
0.45
0.71
1.12
1.80
2.80
4.50
7.10
11.20
18.00
28
45
71
112
180
280
450
710
1120
1800
2800
4500
7100
C1:
C2:
D1:
D2:
E1:
E2:
F1:
F2:
G1:
G2:
H1:
H2:
J1:
J2:
K1:
K2:
L1:
L2:
M1:
M2:
N1:
N2:
P1:
P2:
0.28
0.36
0.45
0.56
0.71
0.90
1.12
1.40
1.80
2.24
2.80
3.55
4.50
5.60
7.10
9.00
11.20
14.00
18.00
22.40
28.00
35.50
45.00
56.00
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
0.36
0.45
0.56
0.71
0.90
1.12
1.40
1.80
2.24
2.80
3.55
4.50
5.60
7.10
9.00
11.20
14.00
18.00
22.40
28.00
35.50
45.00
56.00
71.00
Q1:
Q2:
R1:
R2:
S1:
S2:
T1:
T2:
U1:
U2:
V1:
V2:
W1:
W2:
X1:
X2:
Y1:
Y2:
Z1:
Z2:
71
90
112
140
180
224
280
355
450
560
710
900
1120
1420
1800
2250
2800
3550
4500
5750
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
90
112
140
180
224
280
355
450
560
710
900
1120
1420
1800
2250
2800
3550
4500
5750
7100
Measured according to CIE 127. All SMD-LEDs are 100% measured and selected on full automated
equipment with an accuracy of ± 11 %.
Special service: Brightness selection in sub selections possible.
Color selection in 3 sub selections possible (each subgroup per reel).
© 2007
OSA Opto Light GmbH Tel. +49-(0)30-65 76 26 83 Fax +49-(0)30-65 76 26 81 contact@osa-opto.com
edition 05/07
Tape And Reel Packing
D
180 mm
330 mm
Parts/reel
3000
12000
Packing
:
The reel is sealed in special plastic bag with integrate ESD protection
( MIL - STD 81705 ) including a silica dry-pack
Label
Order No.
Type
Intensity group
Charge No.
Quantity
XXXXXXXXX
OLS-153 ?????-??-T
ZZ
Color class
: CC
Customer order No.
Color class - optional
11 Week – 22 year – A internal identification
1122-AAAAAA
9999
Attention please:
The information describes the type of component and shall not considered as assured characteristics. Terms of
delivery and rights to change reserved.
Due to technical requirements components may contain dangerous substances.
The data sheet may changed without prior information; the valid issue will be on our webpage in internet.
