OSA Opto Light GmbH
Köpenicker Str. 325 / Haus 201
12555 Berlin - Germany
Tel. +49 (0)30 65 76 26 83
Fax: +49 (0)30 65 76 26 81
E-Mail: contact@osa-opto.com

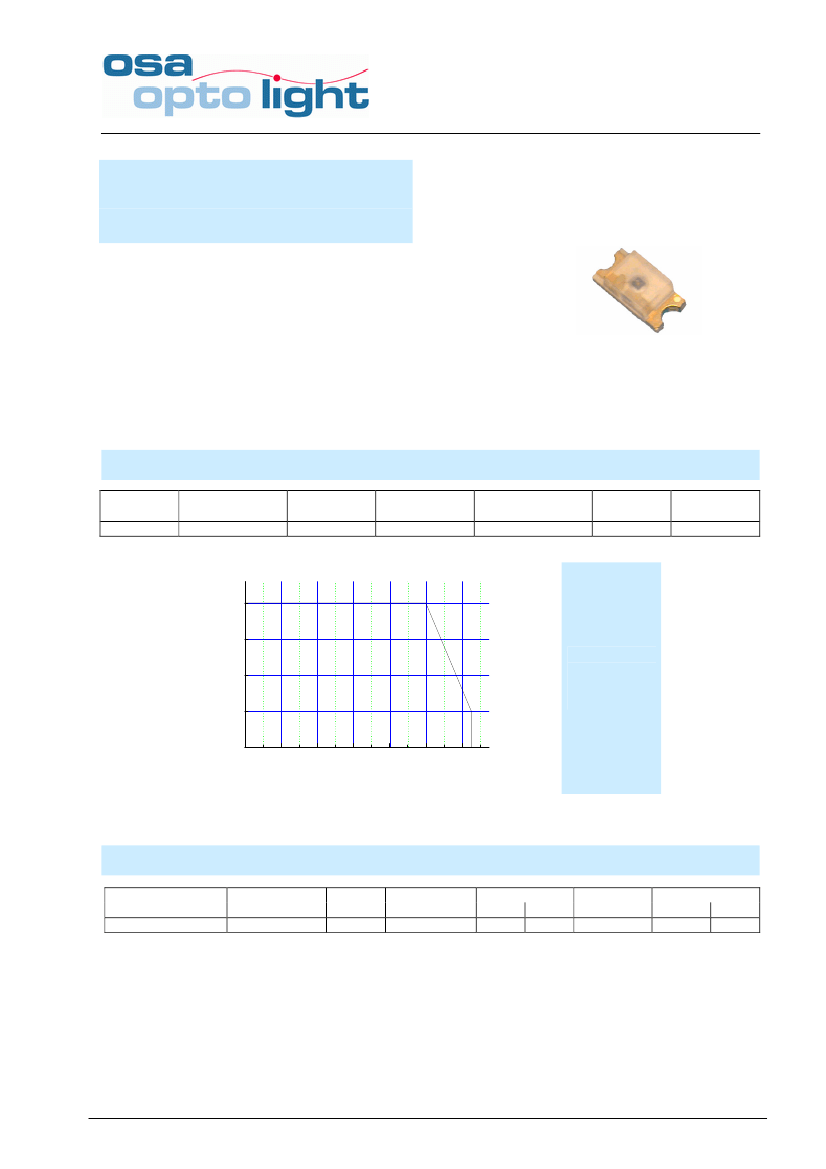

Series 156 - 1206 low current
green 572 nm
Features
size 1206: 3,2(L) x 1,6(W) x 1,2(H) mm
low current
circuit substrate: glass laminated epoxy
devices are ROHS conform
lead free solderable, soldering pads: gold plated
taped in 8 mm blister tape, cathode to transporting
perforation
- all devices sorted into luminous intensity classes
- taping: face-up (T) or face-down (TD) possible
-
-
-
-
-
-
Absolute Maximum Ratings
I
F, max
[mA]
20
I
F,P
[mA] tp
≤
100
µs τ=1:
10
50
V
R
[V]
4
I
R, max
[µA]
100
Thermal resistance
R
thJA
[K / W]
450
T
Op
[°C]
-40...85
T
St
°[C]
-55...85
20
15
10
5
Maximal
forward
current (DC)
characteristic
IF [mA]
0
-40
-20
0
20
40
60
80
T
op
[°
C]
Electro-Optical Characteristics
Type
OLS-156 HYG
Emitting
color
hyper green
Marking
at
cathode
Measurement
I
F
[mA]
2
V
F
[V]
typ
max
2,0
2,6
λ
d
/
λ
p
*
[nm]
572
I
V
[mcd]
min
typ
2.0
5.0
© 2005
OSA Opto Light GmbH Tel. +49-(0)30-65 76 26 83 Fax +49-(0)30-65 76 26 81 contact@osa-opto.com
edition 10/05
90
1,0
120
60
150
0,5
30

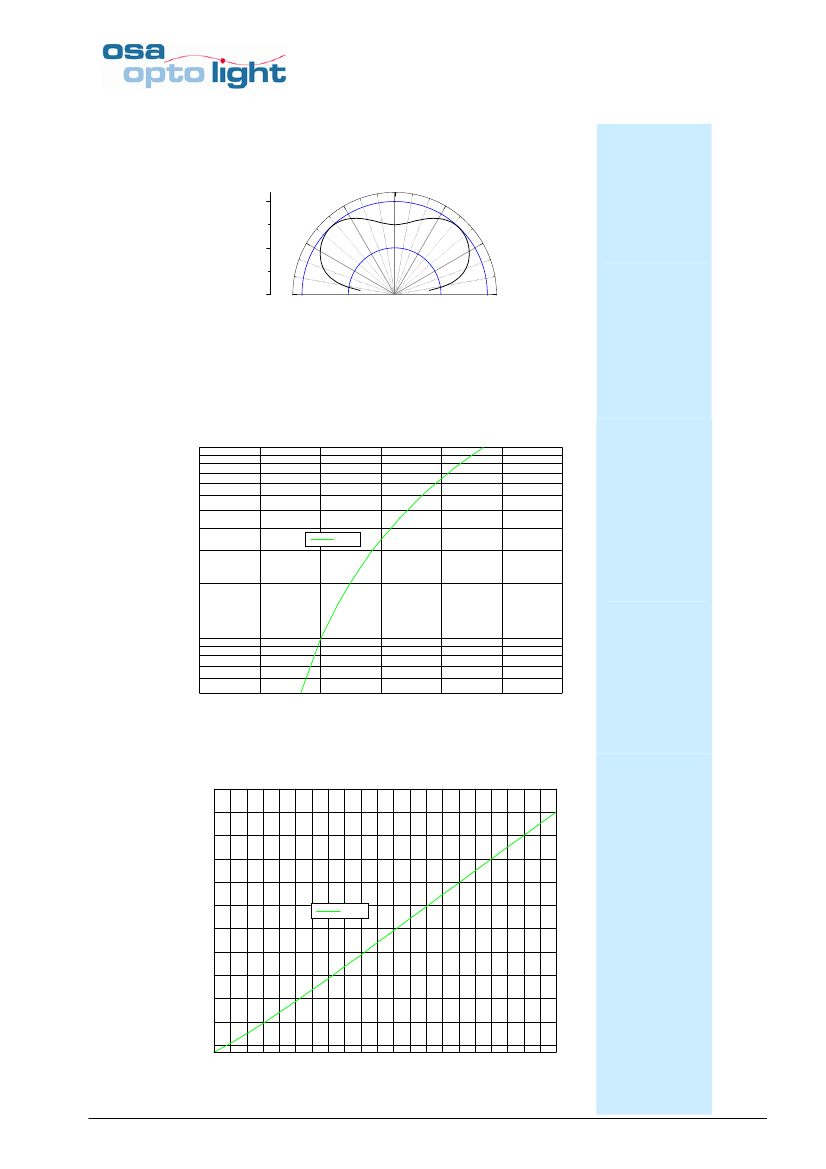

view angle
0,0
180
0
10
HYG
IF (mA)
U
F
– I
F
characteristic
1
1,8
1,9
2,0
UF (V)
1,2
1,0
Iv rel (at 10 mA )
0,8
HYG
0,6
I
F
– I
v, rel
characteristic
0,4
0,2
1
2
3
4
5
6
7
8
9
10
11
IF (mA)
© 2005
OSA Opto Light GmbH Tel. +49-(0)30-65 76 26 83 Fax +49-(0)30-65 76 26 81 contact@osa-opto.com
edition 10/05

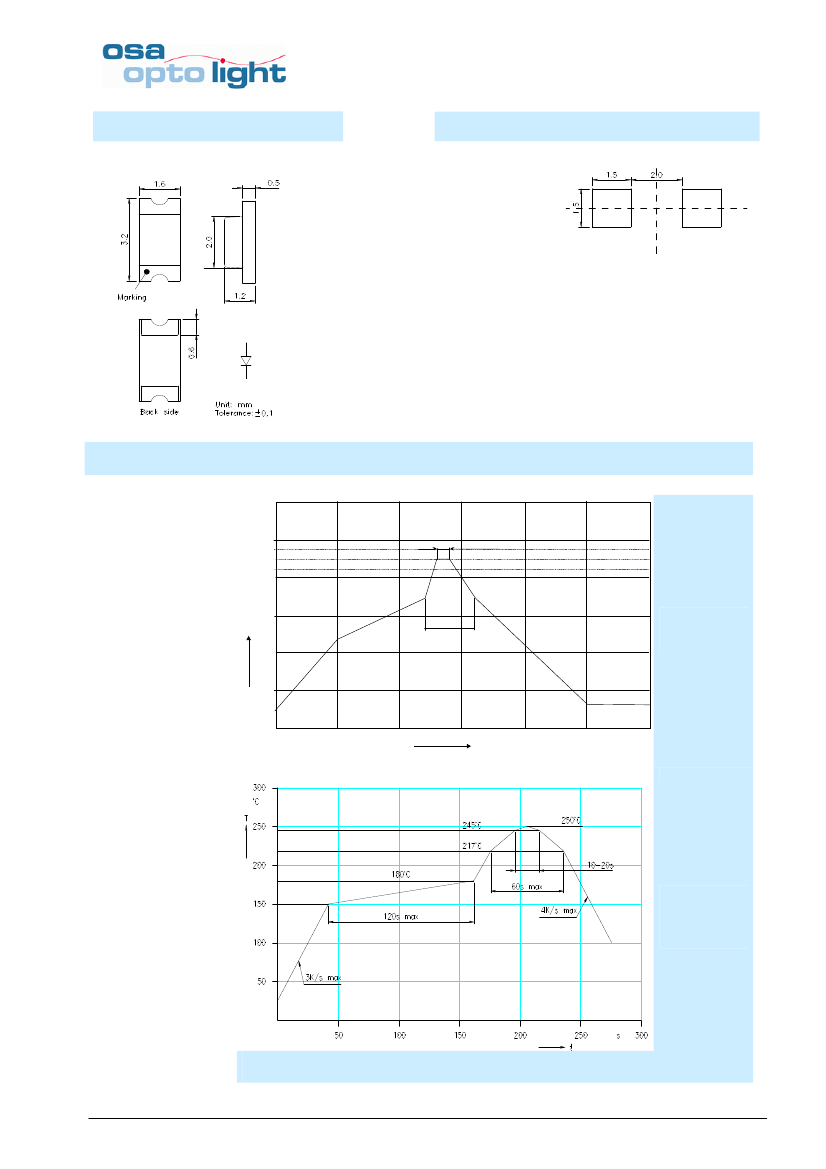

Outline Drawing
Recommended Soldering Patterns
Soldering Conditions
300
250
10-20 s
T
emperature (°
C)
230°
C
200
150
Max. 40 s
100
IR reflow
soldering
profile
50
0
50
100
150
200
250
300
T
ime (sec)
IR reflow
soldering
profile for lead
free soldering
Manual soldering:
max power of iron 25W/ 3s/ 300°
C
© 2005
OSA Opto Light GmbH Tel. +49-(0)30-65 76 26 83 Fax +49-(0)30-65 76 26 81 contact@osa-opto.com
edition 10/05
Ordering Code For Parts
Series
Color
Encapsulation
Packaging
OLS-156
-
???????
-
?
-
?
T - taped up
TD - taped down
C - colored (standard)
XD - uncolored diffused
CD - colored diffused
X - uncolored clear
Type definition, e.g. OLS-156 HYG-C -T
LED Luminous Intensity Groups And Subgroups [ mcd ]
(general information – not this device specific)
C:
D:
E:
F:
G:
H:
J:
K:
L:
M:
N:
P:
Q:
R:
S:
T:
U:
V:
W:
X:
Y:
Z:
0.28
0.45
0.71
1.12
1.80
2.80
4.50
7.10
11.20
18
28
45
71
112
180
280
450
710
1120
1800
2800
4500
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
0.45
0.71
1.12
1.80
2.80
4.50
7.10
11.20
18.00
28
45
71
112
180
280
450
710
1120
1800
2800
4500
7100
C1:
C2:
D1:
D2:
E1:
E2:
F1:
F2:
G1:
G2:
H1:
H2:
J1:
J2:
K1:
K2:
L1:
L2:
M1:
M2:
N1:
N2:
P1:
P2:
0.28
0.36
0.45
0.56
0.71
0.90
1.12
1.40
1.80
2.24
2.80
3.55
4.50
5.60
7.10
9.00
11.20
14.00
18.00
22.40
28.00
35.50
45.00
56.00
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
0.36
0.45
0.56
0.71
0.90
1.12
1.40
1.80
2.24
2.80
3.55
4.50
5.60
7.10
9.00
11.20
14.00
18.00
22.40
28.00
35.50
45.00
56.00
71.00
Q1:
Q2:
R1:
R2:
S1:
S2:
T1:
T2:
U1:
U2:
V1:
V2:
W1:
W2:
X1:
X2:
Y1:
Y2:
Z1:
Z2:
71
90
112
140
180
224
280
355
450
560
710
900
1120
1420
1800
2250
2800
3550
4500
5750
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
90
112
140
180
224
280
355
450
560
710
900
1120
1420
1800
2250
2800
3550
4500
5750
7100
Measured according to CIE 127. All SMD-LEDs are 100% measured and selected on full automated
equipment with an accuracy of ± 11 %.
Special service: Brightness selection in sub selections possible.
Color selection in 3 sub selections possible (each subgroup per reel).
© 2005
OSA Opto Light GmbH Tel. +49-(0)30-65 76 26 83 Fax +49-(0)30-65 76 26 81 contact@osa-opto.com
edition 10/05

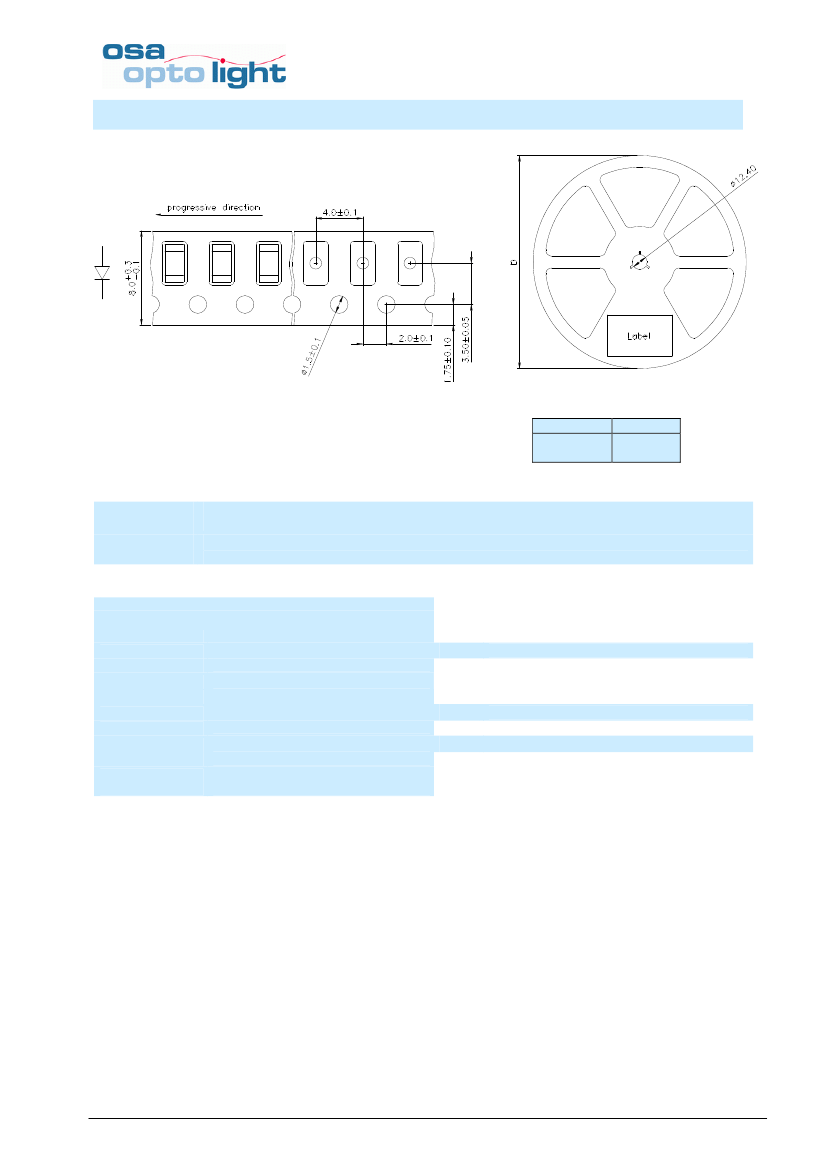

Tape And Reel Packing
D
180 mm
330 mm
Parts/reel
3000
12000
Packing
:
The reel is sealed in special plastic bag with integrate ESD protection
( MIL - STD 81705 ) including a silica dry-pack
Label
Order No.
Type
Intensity group
Charge No.
Quantity
XXXXXXXXX
OLS-156 ?????-??-T
ZZ
Color class
: CC
Customer order No.
Color class - optional
11 Week – 22 year – A internal identification
1122-AAAAAA
9999
Attention please:
The information describes the type of component and shall not considered as assured characteristics. Terms of
delivery and rights to change reserved.
Due to technical requirements components may contain dangerous substances.
The data sheet may changed without prior information; the valid issue will be on our webpage in internet.
Packaging:
Please use the recycling operators known to you.
Components used in life support devices or systems and safety systems must be expressly authorized for such
purpose!
© 2005
OSA Opto Light GmbH Tel. +49-(0)30-65 76 26 83 Fax +49-(0)30-65 76 26 81 contact@osa-opto.com
