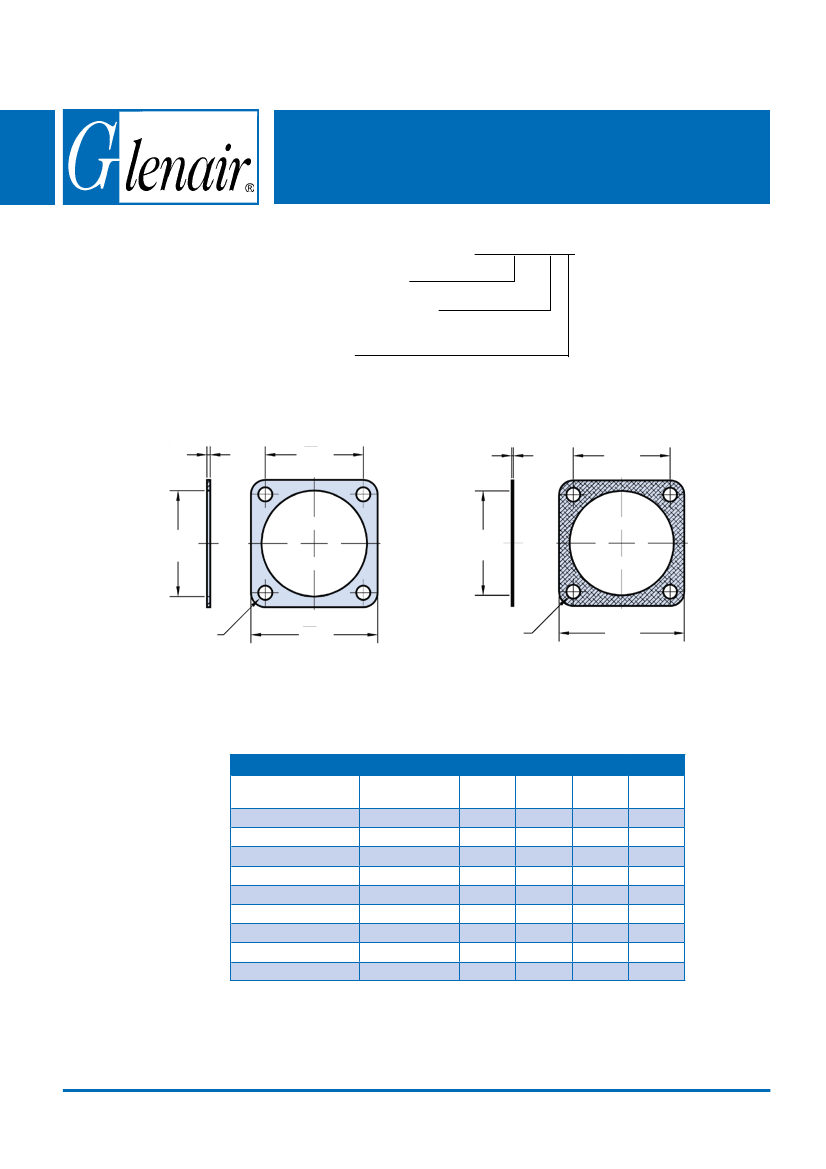

IPT Bayonet Lock
Connector
Accessories
10-101949 and 10-101949-S
Square Flange Panel Mount
Receptacle Sealing Gaskets
10-101949-S-14
Basic Part Number
S - Conductive Material
Omit for Standard
Shell Size
1 ±0.4
B
0.5 ±0.2
B
C
A
Example: 10-101949
(Neoprene)
C
A
Example: 10-101949-S
(Conductive)
TABLE I
Commital P/N
10-101949- 8
10-101949-10
10-101949-12
10-101949-14
10-101949-16
10-101949-18
10-101949-20
10-101949-22
10-101949-24
Shell size
8
10
12
14
16
18
20
22
24
A
±0.5
20.6
23.8
26.2
28.6
31.0
33.3
36.5
39.7
42.9
B
±1
15.10
18.25
20.60
23.00
24.60
27.00
29.35
31.75
34.90
C
±0.7
3.3
3.3
3.3
3.3
3.3
3.3
3.3
3.3
4.0
D
±0.5
12.7
15.9
19.1
22.3
25.5
28.6
31.8
35.0
38.2
