Data sheet
PAC
PAC-S300-HE20-V2-2M
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com

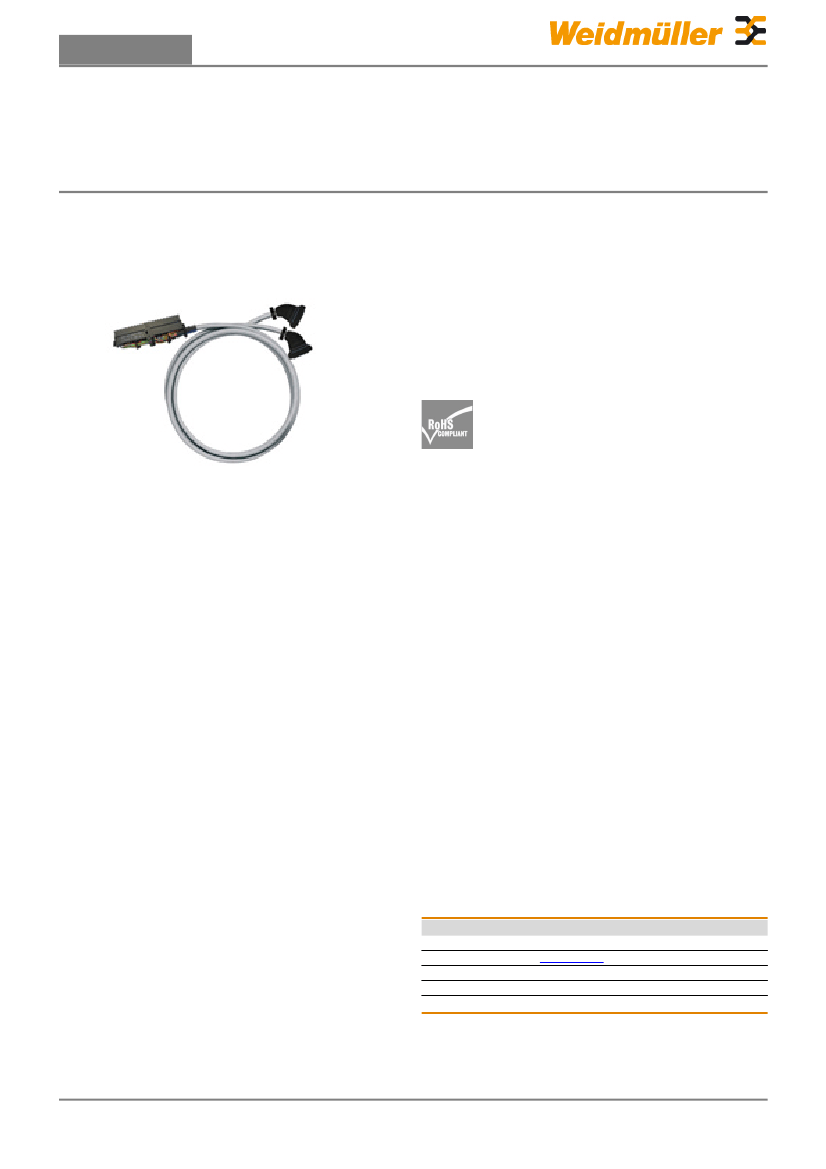

The pre-assembled PAC cables establish an electrical
and logical connection between the PLC and the
PLC interfaces. These cables consist of the following
components:
• Manufacturer’s PLC connector.
• Multi-pole LIYY or LY YCY cable (shielded) with a cross-
section of 0.14 mm² or 0.25 mm².
• Flat cable connector, SUB-D or RSV, for connection to
the interface.
The cables are tested automatically for their continuity
and insulation to guarantee the functionality for which
they have been designed.
General ordering data
Type
Order No.
Version
GTIN (EAN)
Qty.
PAC-S300-HE20-V2-2M
7789222020
Pre-assembled cable, PAC, Cable LiYY, 0.25 mm²
4032248124411
1 pc(s).
Creation date December 20, 2013 9:25:59 PM CET
Catalogue status / We reserve the right to make technical changes.
1
Data sheet
PAC
PAC-S300-HE20-V2-2M
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com
Technical data
482 g
Dimensions and weights
Net weight
Temperatures
Operating temperature
-10...+50°C
Storage temperature
-10...+60 °C
General Data
Connector PLC side
Number of poles, min.
Cable
Material
SIEMENS S7300
6ES7921-3AH20-1AA0
40P
20-pole
Cable LiYY
PVC
Interface connector
Outer diameter
Cable length
Wire cross-section
2X CONECTOR CABLE
PLANO HE10 20P
8.6 ± 1 mm
2m
0.25 mm²
Electrical Data
Rated voltage (text)
Total current, max.
High voltage test
≤ 60 Vdc ≤ 25 Vac
3A
1 KV/1s
Permissible current strength per path,
max.
Resistance
1A
≤ 80 mΩ/m
Classifications
eClass 6.2
27-06-03-90
eClass 7.1
27-24-92-05
Approvals
Approvals
ROHS
Conform
Creation date December 20, 2013 9:25:59 PM CET
Catalogue status / We reserve the right to make technical changes.
2
