114C3-075FR6 Overview

TRAP REMOTE CONTROL SYSTEMS (SW ADDRESSING)

T
RAP
R
EMOTE
C
ONTROL
S
YSTEMS
(S
W
A
DDRESSING
)

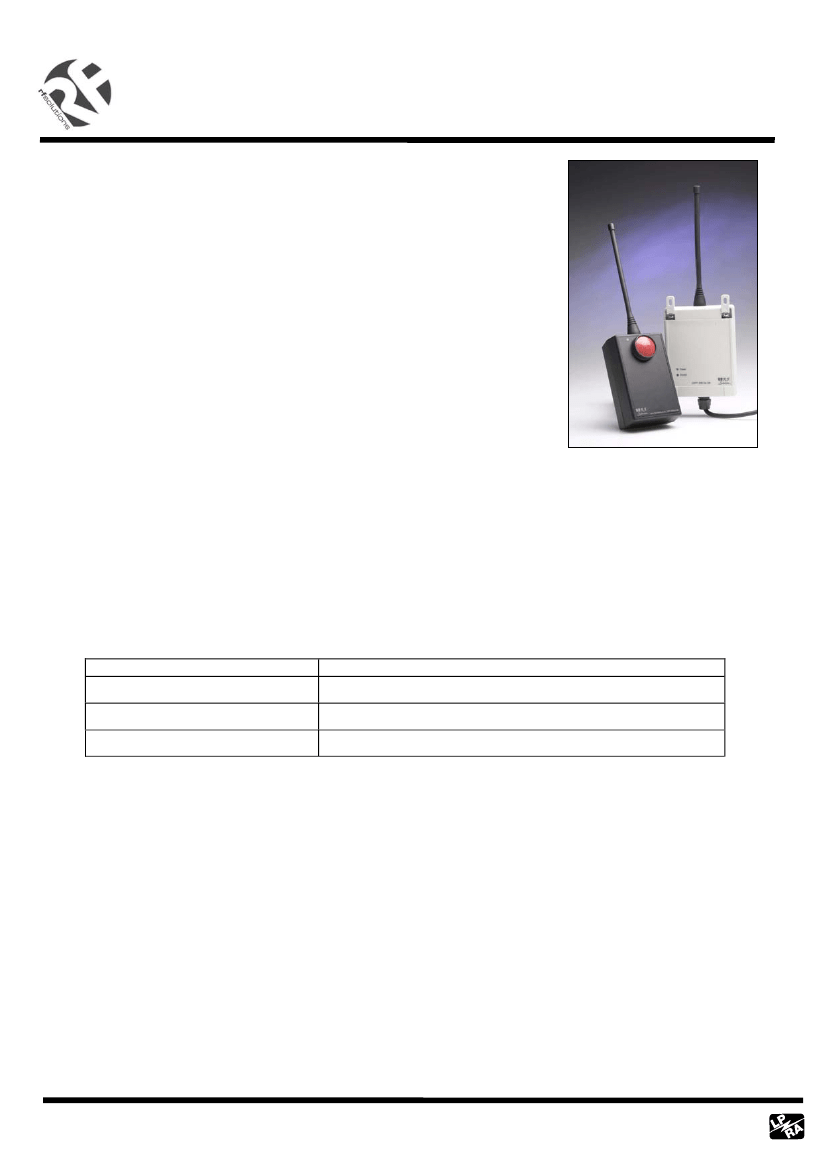

FM Radio Remote Control
Upto 600 metres Range
Simple Switch Addressing to Match Tx and Rx
256 Possible Address Combinations
Robust Enclosures (IP54, IP65) with Industrial Switch
Easy Installation via Screw Terminals
Receiver Supply: 12 or 24Vdc
4 Relay Outputs
Ideal for Clay Trap Releases
Complies with ETSI300-220
Audio Input / External Switch Option Available
Description
This general purpose radio remote control system is supplied with rugged enclosures designed for a wide
range of applications such as Clay pigeon Trap Releases.
The Radio set uses the latest ‘Narrow Band’ Crystal controlled FM Radio Circuitry operating at 434.075MHz
for reliable operation. Supplied ready to operate, the only connections required are to the receiver/decoder.
All connections are via screw terminals.
A simple ‘Switch link’ is used to set the address of the transmitter and the receiver. This is used to enable one
or many transmitters to operate one or many receivers.
The transmitter requires a PP3 type battery (Supplied) and is supplied with an Aluminium pocket clip
Standard Products
Part Number
114C1-075FR6
114C3-075FR6
117C4-075FR7
Description
Narrow Band Transmitter Encoder 1 Switch
Narrow Band Transmitter Encoder 3 Switches
Narrow Band Receiver Decoder 4 Relays
Care and Maintenance
The Transmitter enclosure is shower proof (IP54) do not immerse in water!
Applications
Firmly fix the receiver unit approx. 2metres from the ground, ideally in direct sight of the transmitter. Obstacles
between transmitter and receiver will reduce range!
Although the system is supplied pre-wired for a specific Clay Trap Release (See below). The remote Control
system may be configured for many different applications.
Each switch on the transmitter operates one of the relays on the receiver unit. The Relay output will operates
for the duration of the transmitter switch press. Output Relay ‘1’ has a time delay circuit included. This is
factory set to approx ½ second momentary delay.
DS114-8 Oct ‘03
©2002 Reg. No. 227 4001, England
Page 1
