NOTES:
C
H
C
H
1. MATERIAL:
BODY - ALUMINUM, TIN PLATED
SCREW - ALUMINUM, TIN PLATED
NOTE: LAMAR3-10-Q SCREW - STEEL, ZINC PLATED
2. UL LISTED AND CSA CERTIFIED FOR USE UP
TO 600V & TEMPERATURE RATED 90 C (AL9CU)
3. DUAL RATED FOR USE WITH COPPER OR ALUMINUM
STRANDED & SOLID CODE CONDUCTOR
4. THESE PARTS ARE RoHS COMPLIANT
5. USE OF OXIDE INHIBITING JOINT COMPOUND LIKE
PANDUIT CMP-100 RECOMMENDED FOR PAD TO PAD
AND CONDUCTOR SURFACES
DETAIL A
DETAIL B
J
D
D
E
B
J
E
B
A
STUD SIZE
K RAD
K RAD
A
STUD SIZE
6. SEE PACKAGING LABEL FOR TIGHTENING TORQUE
INFORMATION
7. PKG QTY:
Q = 25
6=6
G
F
G
F
DETAIL A
FIGURE 1
FIGURE 2
DETAIL B
LISTED
WIRE CONNECTOR
CERTIFIED
PART
NUMBER
FIG.
WIRE RANGE
COPPER/ALUMINUM
WIRE STRIP
LENGTH IN [mm]
STUD SIZE
IN
DIMENSIONS - IN [mm] .02 [0.5]
A
.24 [6.1]
.31 [7.9]
.45 [11.4]
.41 [10.4]
.63 [16.0]
B
.99 [25.1]
1.20 [30.5]
2.00 [50.8]
1.91 [48.5]
2.81 [33.4]
C
.53 [13.5]
.61 [15.5]
1.00 [25.4]
1.00 [25.4]
1.31 [33.3]
D
.12 [3.0]
.19 [4.8]
.25 [6.4]
.25 [6.4]
.44 [11.2]
E
.22 [5.6]
.30 [7.6]
.49 [12.4]
.50 [12.7]
.75 [19.1]
F
.12 [3.0]
.13 [3.3]
.19 [4.8]
.19 [4.8]
.19 [4.8]
G
.06 [1.5]
.13 [3.3]
.10 [2.5]
.13 [3.3]
.11 [2.8]
H
.49 [12.5]
.60 [15.2]
.98 [24.9]
1.00 [25.4]
1.38 [35.1]
J
.62 [15.7]
.91 [23.1]
1.22 [30.9]
1.25 [31.8]
1.92 [48.8]
K
.22 [5.6]
.29 [7.4]
.55 [13.9]
.50 [12.7]
.88 [22.4]
HEX
KEY
SLOTTED
SCREWDRIVER
3/16"
5/16"
5/16"
1/2"
LAMAR3-10-Q
LAMAR2/0-14-Q
LAMAR300-38-Q
LAMAR350-56-Q
LAMAR630S-38-6
1
1
1
1
2
#14 SOL - #3 STR AWG
#14 SOL - #2/0 STR AWG
#6 SOL -300 STR kcmil
#6 SOL -300 STR kcmil
#4 SOL -600 STR kcmil
(2) #1/0 STR - 250 STR kcmil
.53 [13.5]
.61 [15.5]
1.00 [25.4]
1.00 [25.4]
1.31 [33.3]
#10
1/4
3/8
5/16
3/8

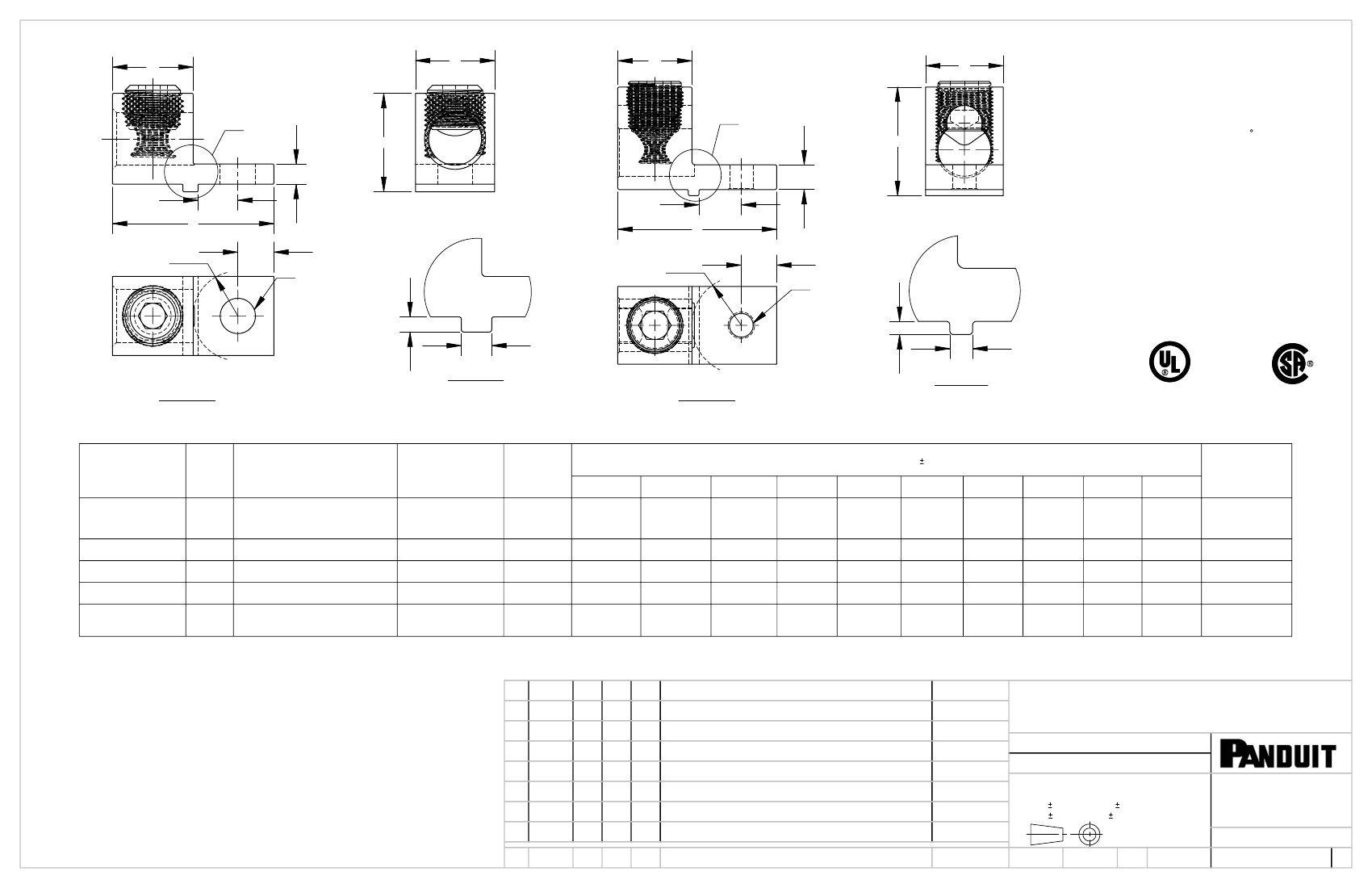

TITLE
LAMAR SERIES
ANTI-ROTATIONAL ALUMINUM MECHANICAL LUGS
CUSTOMER DRAWING
00186EAA/02
00186EAA-DC/02.SLDDRW
MATERIAL
ITEM REVISION NAME
DATASET FILE NAME
02
01
00
REV
8/19
7/18
6/18
DATE
JHNU JHNU RGB
DAKO DAKO RGB
DAKO DAKO RGB
BY
CHK APR
REVISED WIRE RANGE, NOTES
REVISED PART NUMBER: LAMAR2/0-14-Q WAS LAMAR2/0-25-Q
REVISED PART NUMBER: LAMAR350-56-Q WAS LAMAR350-516-Q
00186EAA-DC
UNLESS OTHERWISE SPECIFIED,
DIMENSIONAL TOLERANCES ARE: IN [mm]
.X
.XXX
.XX
ANGLES
THIRD ANGLE
PROJECTION
DRAWN BY
SEE NOTES
DRAWING NUMBER
DRAWING RELEASED
DESCRIPTION
034918
ECN
DAKO
DATE
00186EAA-DC
SIZE
4/18
CHK
RGB
SCALE
NONE
SHEET 1 0F 1
B
