HMD1051SFSAA0P0 datasheet, PDF

Datasheet> All Categories > The connector> The connector> HMD1051SFSAA0P0

HMD1051SFSAA0P0: DescriptionD Microminiature Connector, 51 Contact(s), Female, Solder Terminal, Socket,; CategoryThe connector The connector; File Size3MB，13 Pages; ManufacturerSmiths Group

Download Datasheet Parametric View All

HMD1051SFSAA0P0 Overview

D Microminiature Connector, 51 Contact(s), Female, Solder Terminal, Socket,

HMD1051SFSAA0P0 Parametric

Parameter Name	Attribute value
Maker	Smiths Group
Reach Compliance Code	unknown
Body/casing type	SOCKET
Connector type	D MICROMINIATURE CONNECTOR
Contact to complete cooperation	GOLD (50)
Contact point gender	FEMALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	GLASS FILLED POLYPHENYLENE SULFIDE
MIL compliance	NO
Mixed contacts	NO
Installation type	BOARD
Options	GENERAL PURPOSE
Shell material	STAINLESS STEEL
Housing size	G
Termination type	SOLDER
Total number of contacts	51
Base Number Matches	1

Preview

Download Datasheet

View All

HYPERT

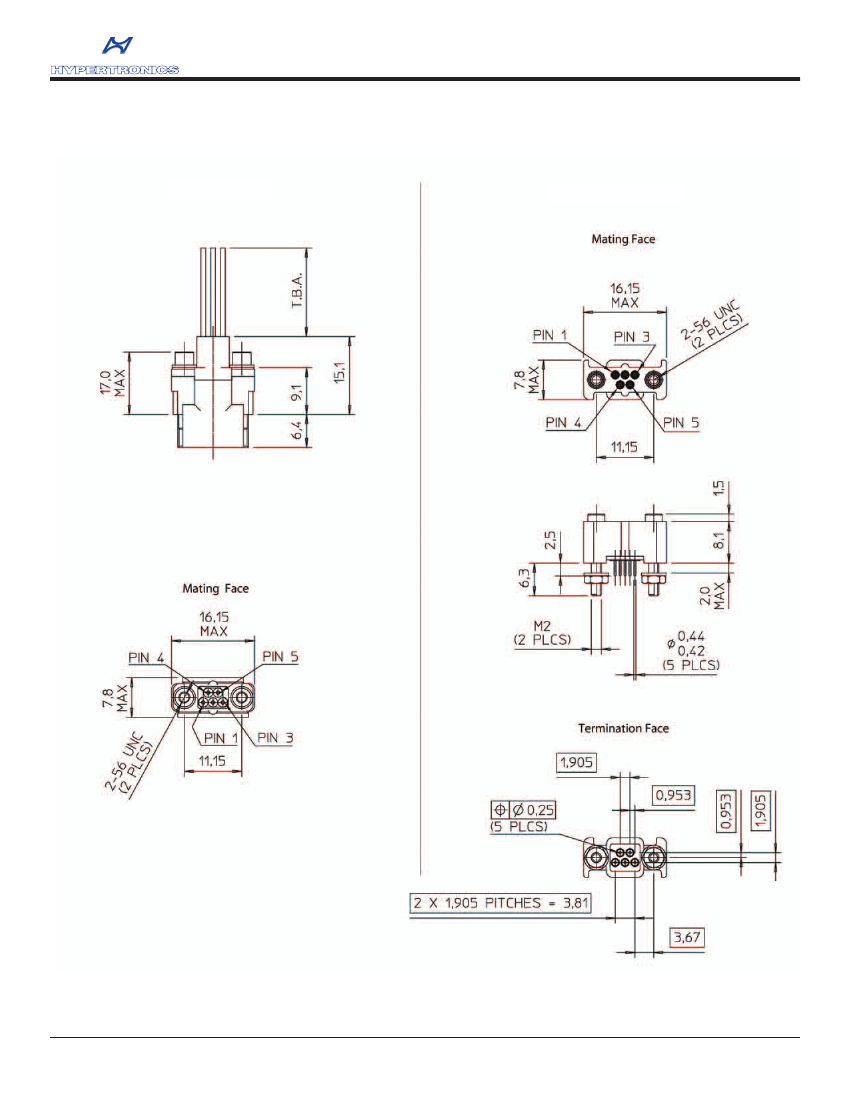

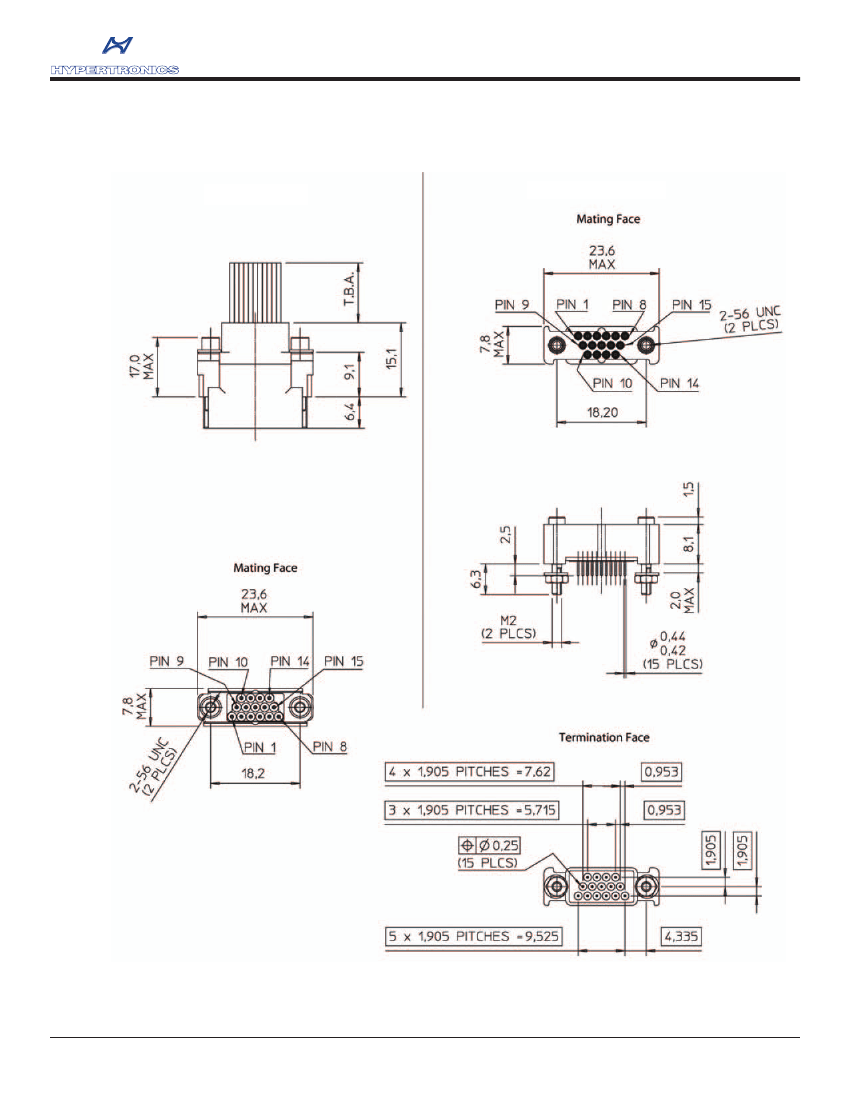

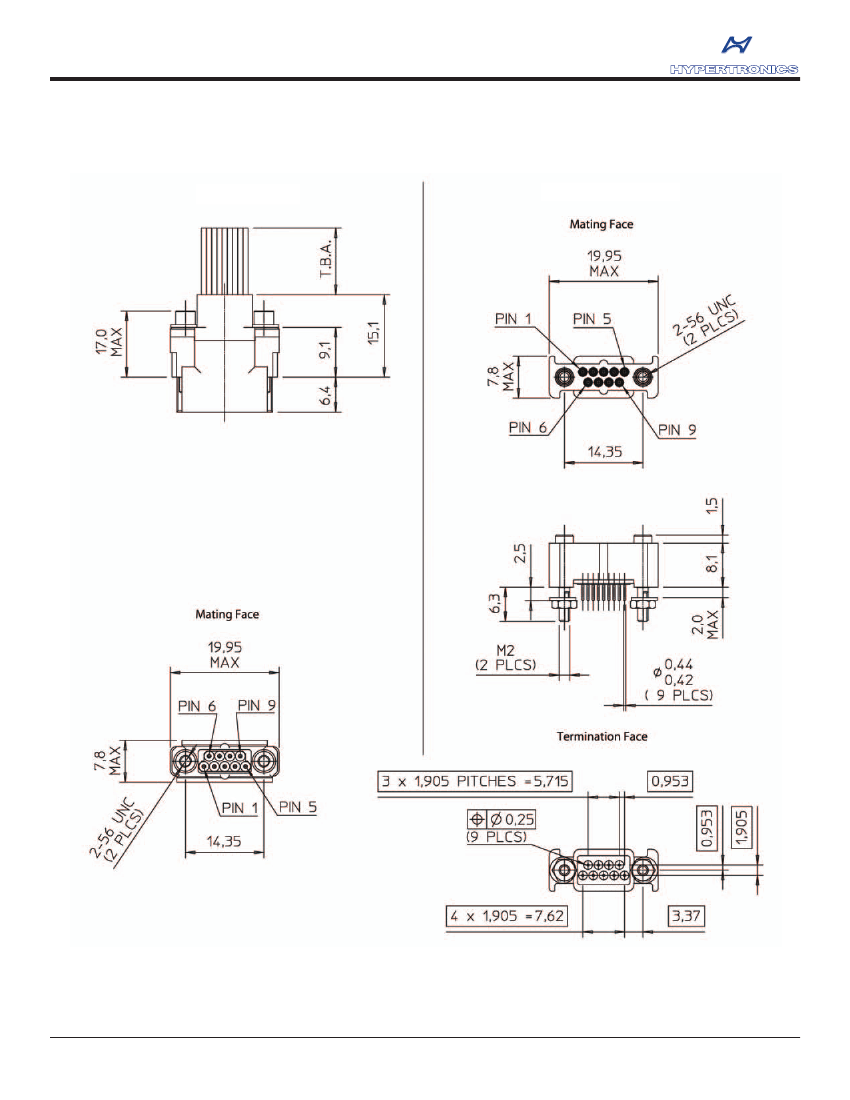

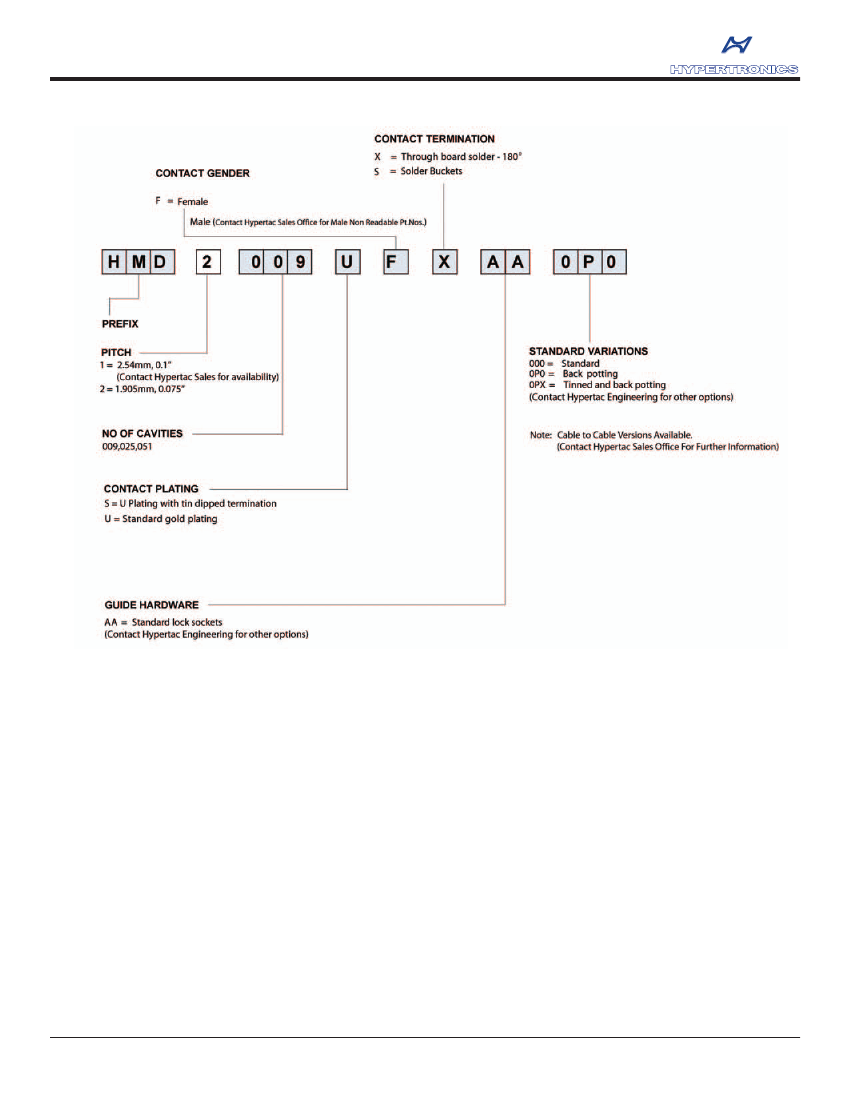

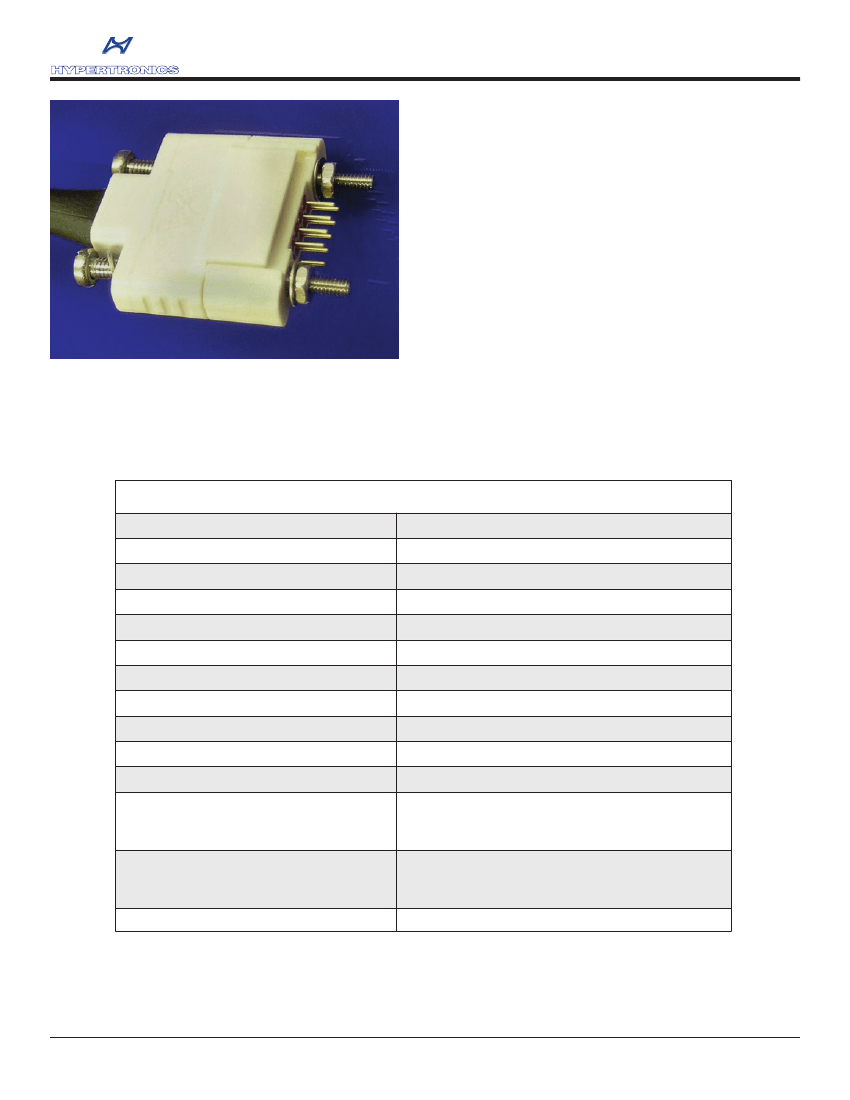

HMD SERIES

Micro-D Style Signal Connectors

High Density signal flying-lead to PCB connec-

tor (1,905 mm x 1,905 mm pitch)

• Qualified at a system level on JSF

• Drop-in replacement for standard Micro-D connectors

• Large number of pin count options

• High reliability contacts

• Environmentally sealed

• Rugged design including pin connector shrouds and

scoop proof features

• Assembly aids including termination combs and

potting shrouds

• Low weight, low cost alternative to standard

Micro-D connectors

TECHNICAL CHARACTERISTICS

Contact Number

Contact Diameter

Current Rating

Contact Resistance

Contact Mating Force

Contact Life Cycle

Breakdown Between Voltage

Dielectric Withstanding Voltage

Temperature Rating

Insulation Resistance

Insulator Material

Contact

- Material

- Plating (Mating surfaces)

Guide Hardware

- Material

- Plating

Plating Reference

5, 9, 15, 21, 25, 31, 37, 51 & 100 ways

0, 60 mm

7 Milli-Ohm (Max)

0, 28 N (average)

> 2000

1400 V AC (min) [sea level]

1000 V AC (min) [sea level]

- 55° to + 150° C

5 Giga-Ohm @ 500 V DC (min)

PPS (40% glass)

Copper Alloy

1, 27 micro-meters gold plate (min)

Stainless steel BS 303

Passivated

N/A

Hypertronics Corporation

Toll Free:1-800-225-9228 Tel: +1 978-568-0451 Fax: +1 978-568-0680 www.hypertronics.com
