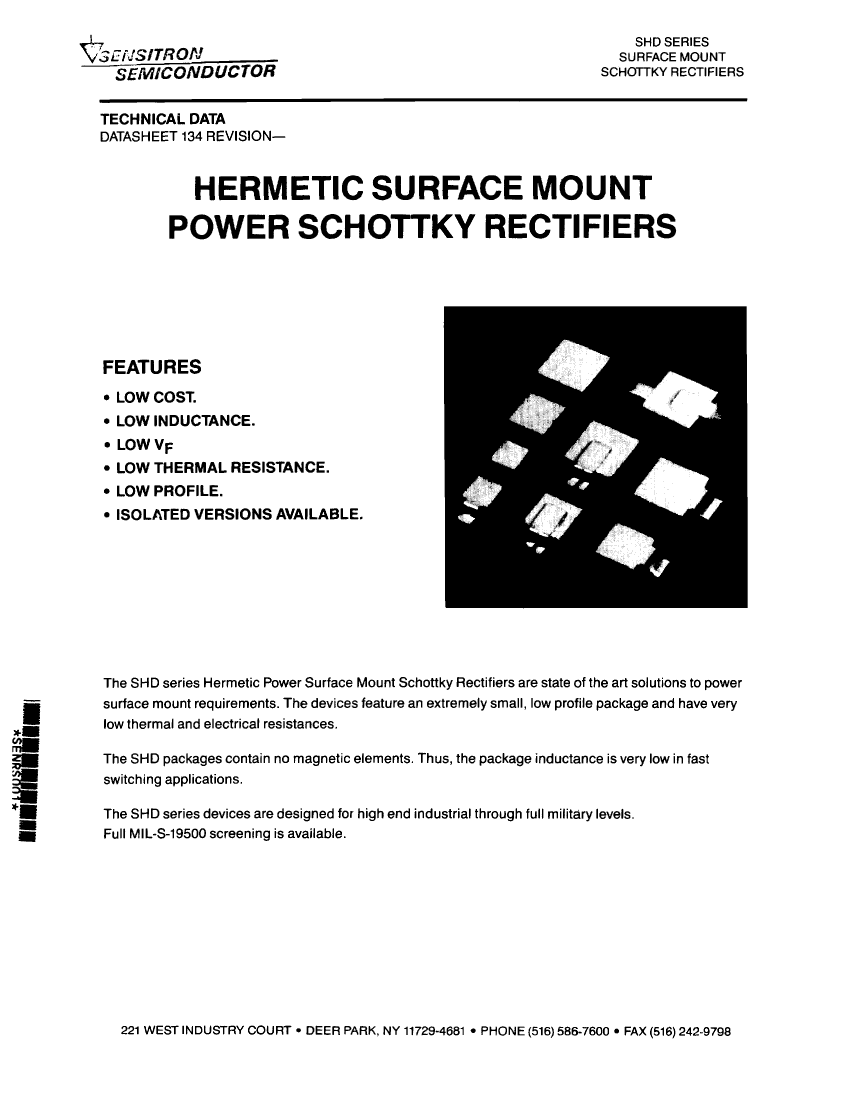

Rectifier Diode, Schottky, 1 Phase, 2 Element, 95A, 100V V(RRM), Silicon, HERMETIC SEALED, SHD-5C, 3 PIN

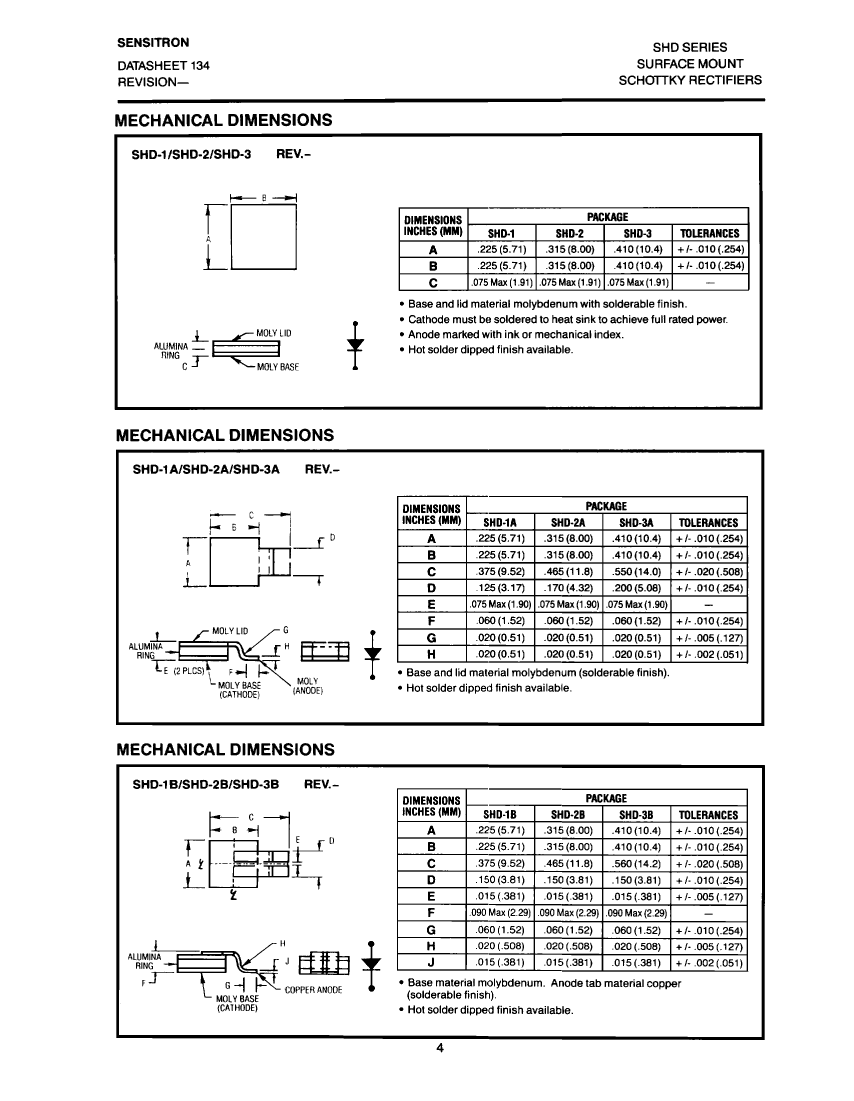

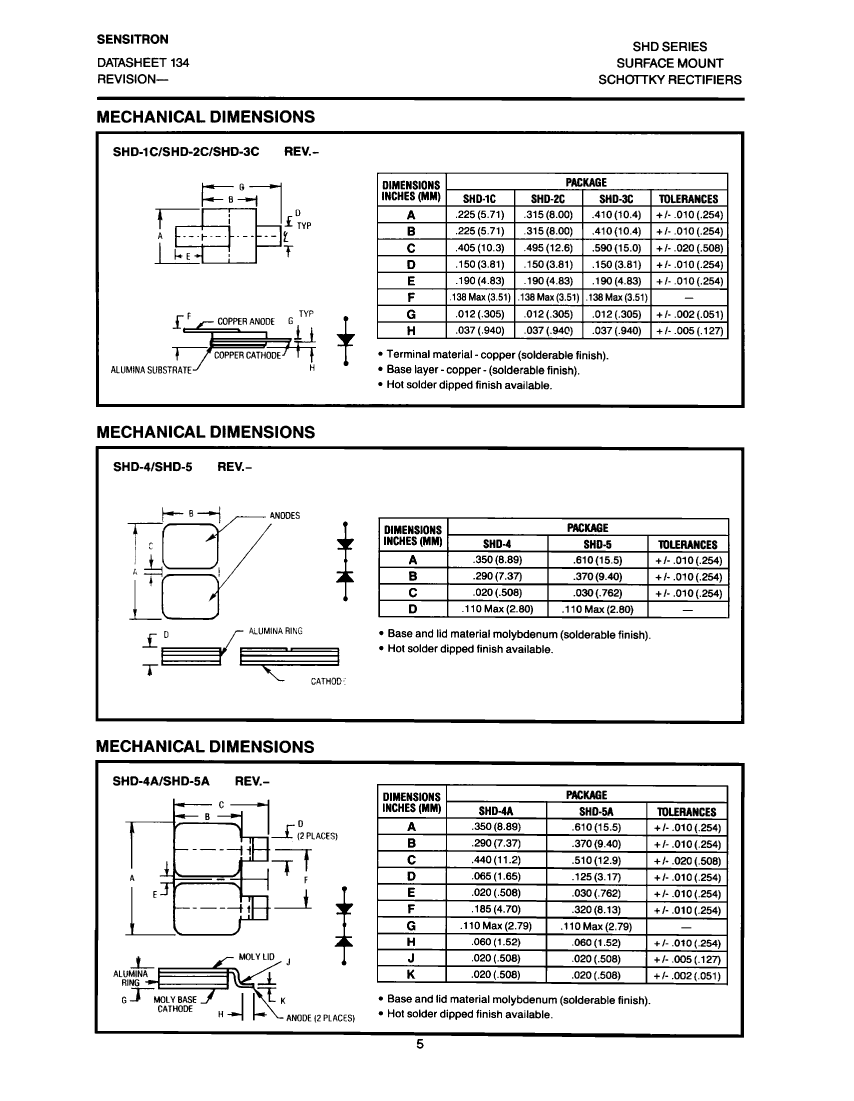

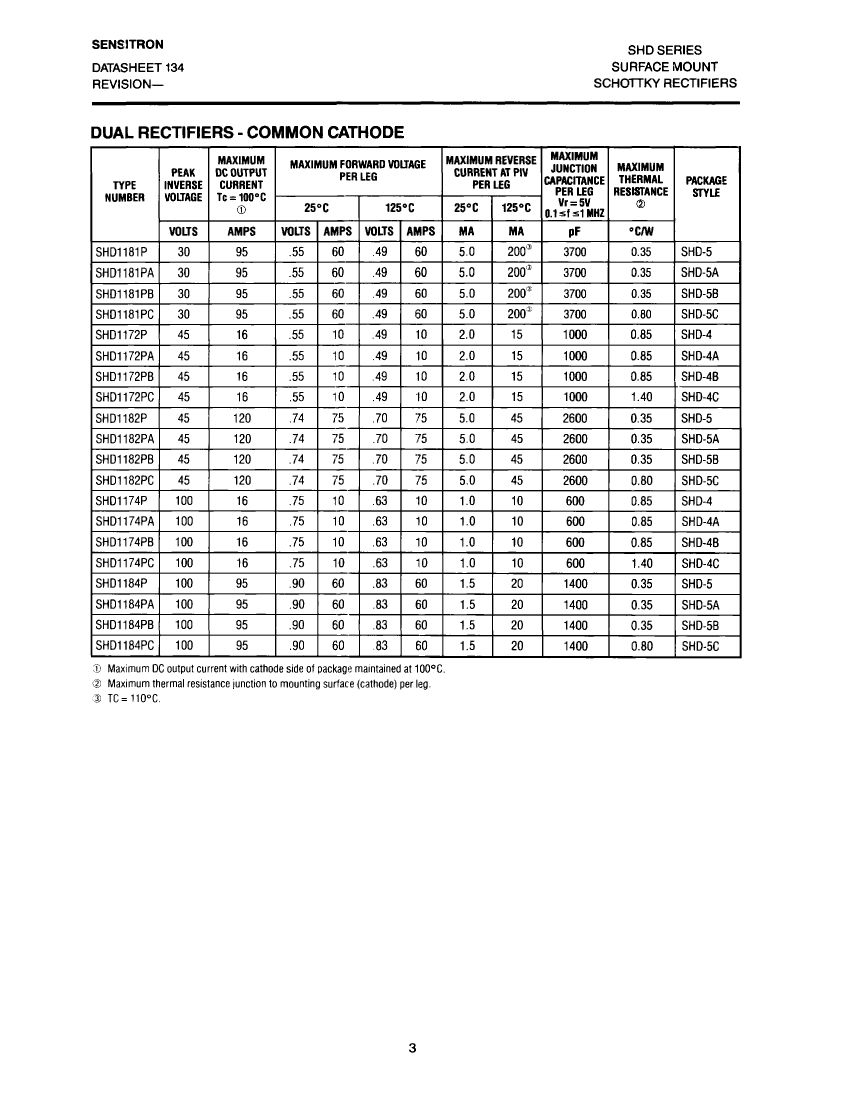

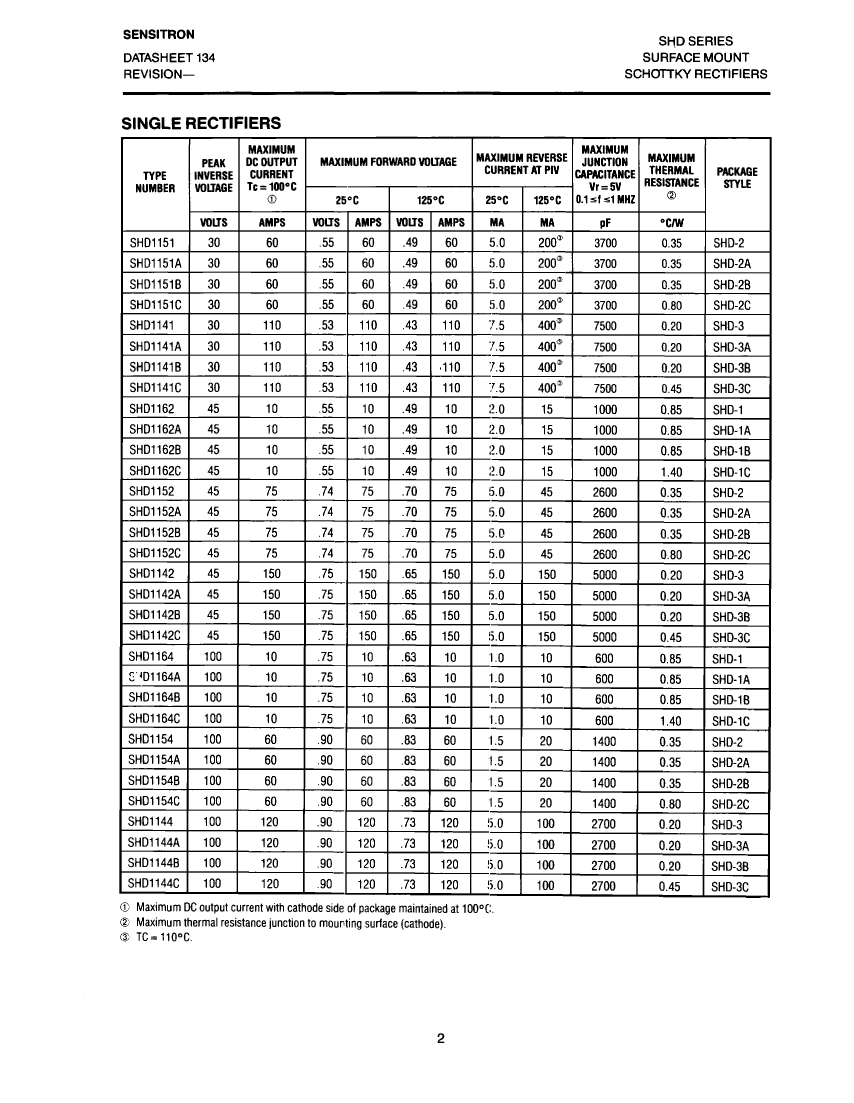

| Parameter Name | Attribute value |
| Is it lead-free? | Contains lead |
| Is it Rohs certified? | incompatible |
| Maker | SENSITRON |
| package instruction | HERMETIC SEALED, SHD-5C, 3 PIN |
| Contacts | 3 |
| Reach Compliance Code | compliant |
| ECCN code | EAR99 |
| application | GENERAL PURPOSE |
| Configuration | COMMON CATHODE, 2 ELEMENTS |
| Diode component materials | SILICON |
| Diode type | RECTIFIER DIODE |
| Maximum forward voltage (VF) | 0.9 V |
| JESD-30 code | R-XSSO-F2 |
| Humidity sensitivity level | 1 |
| Number of components | 2 |
| Phase | 1 |
| Number of terminals | 2 |
| Maximum output current | 95 A |
| Package body material | UNSPECIFIED |
| Package shape | RECTANGULAR |
| Package form | SMALL OUTLINE |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| Certification status | Not Qualified |
| Maximum repetitive peak reverse voltage | 100 V |
| Maximum reverse current | 1500 µA |
| surface mount | YES |
| technology | SCHOTTKY |
| Terminal form | FLAT |
| Terminal location | SINGLE |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| Base Number Matches | 1 |
| SHD1184PC | SHD1181PC | SHD1154C | SHD1174PC | SHD1144C | SHD1164C | SHD1172PC | SHD1142C | SHD1162C | SHD1152C | |
|---|---|---|---|---|---|---|---|---|---|---|
| Description | Rectifier Diode, Schottky, 1 Phase, 2 Element, 95A, 100V V(RRM), Silicon, HERMETIC SEALED, SHD-5C, 3 PIN | Rectifier Diode, Schottky, 1 Phase, 2 Element, 95A, 30V V(RRM), Silicon, HERMETIC SEALED, SHD-5C, 3 PIN | Rectifier Diode, Schottky, 1 Phase, 1 Element, 60A, 100V V(RRM), Silicon, HERMETIC SEALED, SHD-2C, 2 PIN | Rectifier Diode, Schottky, 1 Phase, 2 Element, 16A, 100V V(RRM), Silicon, HERMETIC SEALED, SHD-4C, 3 PIN | Rectifier Diode, Schottky, 1 Phase, 1 Element, 120A, 100V V(RRM), Silicon, HERMETIC SEALED, SHD-3C, 3 PIN | Rectifier Diode, Schottky, 1 Phase, 1 Element, 10A, 100V V(RRM), Silicon, HERMETIC SEALED, SHD-1C, 2 PIN | Rectifier Diode, Schottky, 1 Phase, 2 Element, 16A, 45V V(RRM), Silicon, HERMETIC SEALED, SHD-4C, 3 PIN | Rectifier Diode, Schottky, 1 Phase, 1 Element, 150A, 45V V(RRM), Silicon, HERMETIC SEALED, SHD-3C, 3 PIN | Rectifier Diode, Schottky, 1 Phase, 1 Element, 10A, 45V V(RRM), Silicon, HERMETIC SEALED, SHD-1C, 2 PIN | Rectifier Diode, Schottky, 1 Phase, 1 Element, 75A, 45V V(RRM), Silicon, HERMETIC SEALED, SHD-2C, 2 PIN |
| Is it lead-free? | Contains lead | Contains lead | Contains lead | Contains lead | Contains lead | Contains lead | Contains lead | Contains lead | Contains lead | Contains lead |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible |
| package instruction | HERMETIC SEALED, SHD-5C, 3 PIN | HERMETIC SEALED, SHD-5C, 3 PIN | R-XSSO-F2 | HERMETIC SEALED, SHD-4C, 3 PIN | R-XSSO-F2 | R-XSSO-F2 | R-XSSO-F2 | R-XSSO-F2 | R-XSSO-F2 | R-XSSO-F2 |
| Contacts | 3 | 3 | 2 | 3 | 3 | 2 | 3 | 3 | 2 | 2 |
| Reach Compliance Code | compliant | compliant | compliant | compliant | compliant | compliant | compliant | compliant | compliant | compliant |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| application | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE |
| Configuration | COMMON CATHODE, 2 ELEMENTS | COMMON CATHODE, 2 ELEMENTS | SINGLE | COMMON CATHODE, 2 ELEMENTS | SINGLE | SINGLE | COMMON CATHODE, 2 ELEMENTS | SINGLE | SINGLE | SINGLE |
| Diode component materials | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON |
| Diode type | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE |
| Maximum forward voltage (VF) | 0.9 V | 0.55 V | 0.9 V | 0.75 V | 0.9 V | 0.75 V | 0.55 V | 0.75 V | 0.55 V | 0.74 V |
| JESD-30 code | R-XSSO-F2 | R-XSSO-F2 | R-XSSO-F2 | R-XSSO-F2 | R-XSSO-F2 | R-XSSO-F2 | R-XSSO-F2 | R-XSSO-F2 | R-XSSO-F2 | R-XSSO-F2 |
| Humidity sensitivity level | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of components | 2 | 2 | 1 | 2 | 1 | 1 | 2 | 1 | 1 | 1 |
| Phase | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Maximum output current | 95 A | 95 A | 60 A | 16 A | 120 A | 10 A | 16 A | 150 A | 10 A | 75 A |
| Package body material | UNSPECIFIED | UNSPECIFIED | UNSPECIFIED | UNSPECIFIED | UNSPECIFIED | UNSPECIFIED | UNSPECIFIED | UNSPECIFIED | UNSPECIFIED | UNSPECIFIED |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum repetitive peak reverse voltage | 100 V | 30 V | 100 V | 100 V | 100 V | 100 V | 45 V | 45 V | 45 V | 45 V |
| Maximum reverse current | 1500 µA | 5000 µA | 1500 µA | 1000 µA | 5000 µA | 1000 µA | 2000 µA | 5000 µA | 2000 µA | 5000 µA |
| surface mount | YES | YES | YES | YES | YES | YES | YES | YES | YES | YES |
| technology | SCHOTTKY | SCHOTTKY | SCHOTTKY | SCHOTTKY | SCHOTTKY | SCHOTTKY | SCHOTTKY | SCHOTTKY | SCHOTTKY | SCHOTTKY |
| Terminal form | FLAT | FLAT | FLAT | FLAT | FLAT | FLAT | FLAT | FLAT | FLAT | FLAT |
| Terminal location | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE |
| Maximum time at peak reflow temperature | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Maker | SENSITRON | - | - | - | SENSITRON | SENSITRON | SENSITRON | SENSITRON | SENSITRON | - |
| Maximum operating temperature | - | - | 175 °C | - | 175 °C | 175 °C | - | 175 °C | 175 °C | 175 °C |
