319-064

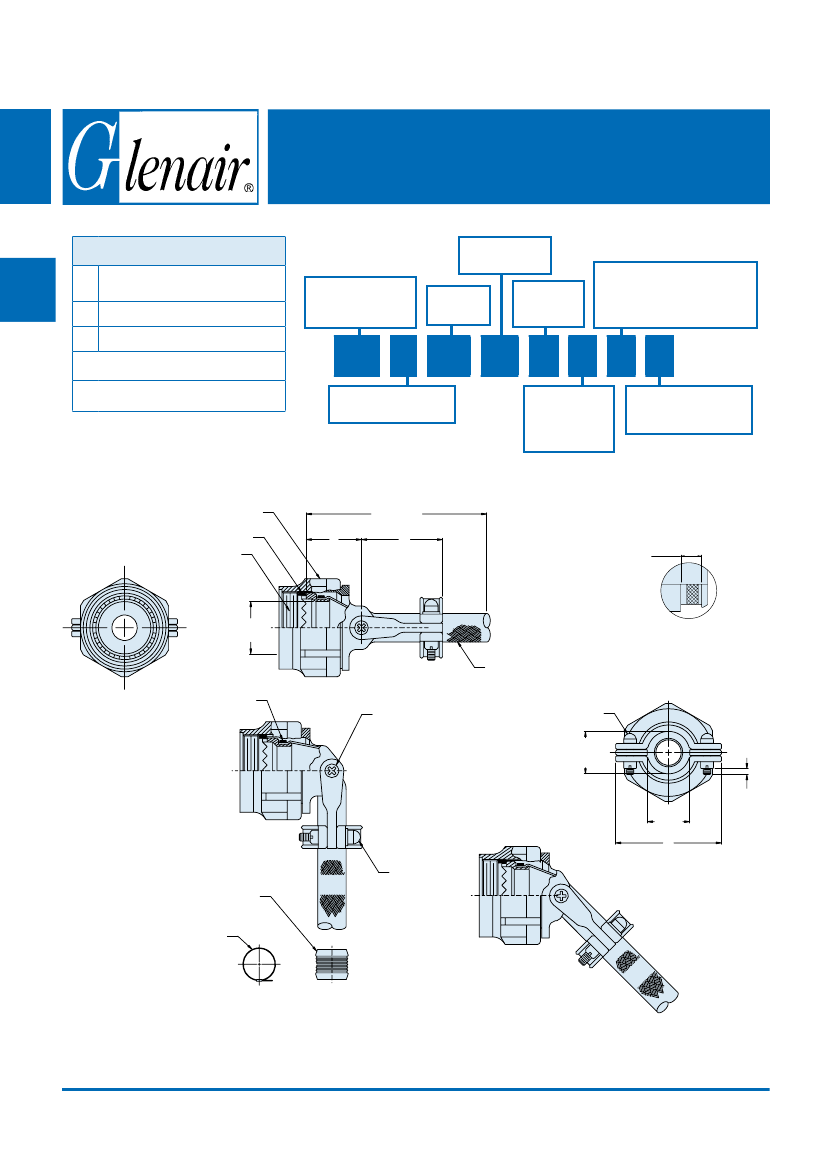

Composite Swing-Arm Backshell
with Shield Sock and
Self-Locking Rotatable Coupling
Finish Symbol
(See
Table III)
Product Series
319
- EMI/RFI Shield
Sock Assemblies
Basic Part
Number
Connector
Shell Size
(See
Table II)
Split Ring / Band Option
Split Ring (687-749) and Band
(600-052-1) supplied with
R
option
(Omit
for none)
Composite
Backshells
CONNECTOR DESIGNATOR:
A
A
F
H
MIL-DTL-5015, -26482 Series II,
and -83723 Series I and III
MIL-DTL-38999 Series I, II
MIL-DTL-38999 Series III and IV
SELF-LOCKING
319
H
064
XO
15
B
R - 14
Custom Braid Length
Specify In Inches
(Omit for Std. 12" Length)
B
ROTATABLE COUPLING
Connector Designator
A, F, and H
Optional Braid
Material
Omit for Standard
(See
Table IV)
Anti Rotation
Device - TYP
12.00 Min
J
G
Termination
Area Free of
Cadmium
C
EMI Shroud TYP
A Thread
TYP
K
TYP
Detail "B"
Finish XN
Standard Shield IAW 107-030
Nickel/Copper. See Table III for
optional configuration.
D
Crimp Ring
TYP
Captive Position
Screw Locks Swing
Arm in 45° Incriments
Self Locking
Hardware, TYP
E
TYP
Closed
.062 Min
.250 Max
Screw
Protrusion
TYP
E
Split Ring
687-749
Band
600-052-1
Screwhead
Same Side TYP
F Typ
H
F
G
© 2009 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
A-12
with Shield Sock and
Self-Locking Rotatable Coupling
TABLE II: SHELL SIZE
Shell
Size
A, F
08
10
12
14
16
18
20
22
24
H
09
11
13
15
17
19
21
23
25
E
± .031
.265 (6.7)
.310 (7.9)
.390 (9.9)
.506 (12.9)
.591 (15.0)
.661 (16.8)
.744 (18.9)
.826 (21.0)
.896 (22.8)
F
Min.
.22 (5.6)
.27 (6.9)
.35 (8.9)
.47 (11.9)
.55 (14.0)
.62 (15.7)
.70 (17.8)
.78 (19.8)
.85 (21.6)
G
Max.
1.06 (26.9)
1.09 (27.7)
1.18 (30.0)
1.24 (31.5)
1.32 (33.5)
1.39 (35.3)
1.49 (37.8)
1.55 (39.4)
1.61 (40.9)
H
Max.
.98 (24.9)
1.05 (26.7)
1.20 (30.5)
1.30 (33.0)
1.44 (36.6)
1.56 (39.6)
1.69 (42.9)
1.77 (45.0)
1.89 (48.0)
J
± .06
.94 (23.9)
.97 (24.6)
1.03 (26.2)
1.09 (27.7)
1.12 (28.4)
1.15 (29.2)
1.18 (30.0)
1.25 (31.8)
1.28 (32.5)
K Min.
(H Code)
.264 (6.7)
.390 (9.9)
.504 (12.8)
.630 (16.0)
.756 (19.2)
.843 (21.4)
.969 (24.6)
1.091 (27.7)
1.217 (30.9)
K Min.
(A Code)
.265 (6.7)
.370 (9.4)
.506 (12.9)
.580 (14.7)
.705 (17.9)
.784 (19.9)
.909 (23.1)
1.034 (26.3)
1.149 (29.2)
K Min.
(F Code)
.275 (7.0)
.412 (10.5)
.526 (13.4)
.657 (16.7)
.776 (19.7)
.872 (22.1)
1.007 (25.6)
1.132 (28.8)
1.257 (31.9)
TABLE III: FINISH
Symbol
XB
Finish
Composite Material–No Plating, Color
Black, Brass Interface Shroud and
Adapter–Nickel Plated
2000 Hour Corrosion Resistant Ni-
PTFE, Nickel-Fluorocarbon Polymer.
1000 Hour Grey
TM
Composite Material–No Plating, Color
Black and Brown, Brass Interface
Shroud and Adapter–Selectively
Cadmium Plated
(See Detail B)
Composite Material–No Plating, Color
Black and Brown, Brass Interface
Shroud and Adapter–Nickel Plated
TABLE IV: BRAID TYPE
Symbol
A
B
Standard
T
Braid Type
100% AmberStrand
®
75%/25% AmberStrand
®
Blend
Nickel/Copper 34awg
Tin/Copper 34awg
XMT
XN
XO
NOTES
1.
2.
3.
4.
See Table I in Intro for front-end dimensional details.
See composite thermoplastic shield sock assembly procedure for detailed installation instructions.
Code F is for series I connectors only.
Use mod code -475 for series III connector (connector less shroud)
Coupling nut supplied unplated.
© 2009 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
A-13
