CZRL55C22F

Description
Zener Diode, 22V V(Z), 3%, 0.5W,
CategoryDiscrete semiconductor    diode
File Size284KB,6 Pages
ManufacturerComchip Technology
Websitehttp://www.comchiptech.com/
Download Datasheet Parametric View All

CZRL55C22F Overview

Zener Diode, 22V V(Z), 3%, 0.5W,

CZRL55C22F Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerComchip Technology
Reach Compliance Codecompliant
ECCN codeEAR99
ConfigurationSINGLE
Diode typeZENER DIODE
Maximum dynamic impedance55 Ω
JESD-609 codee0
Number of components1
Maximum operating temperature200 °C
Maximum power dissipation0.5 W
Nominal reference voltage22 V
surface mountYES
Terminal surfaceTin/Lead (Sn/Pb)
Maximum voltage tolerance3%
Working test current2 mA
Base Number Matches1
Surface Mount Zener Diodes
COMCHIP
www.comchiptech.com
CZRL55C2V4 Thru CZRL55 C75
Voltage: 2.4 - 75 Volts
Power: 500 mW
Features
Silicon Planar Power Zener Diodes
For use as low voltage stabilizer or
voltage reference.
The Zener voltages are graded according
to the international E 24 standard. Higher
zener voltages and 1% tolerance available
on request.

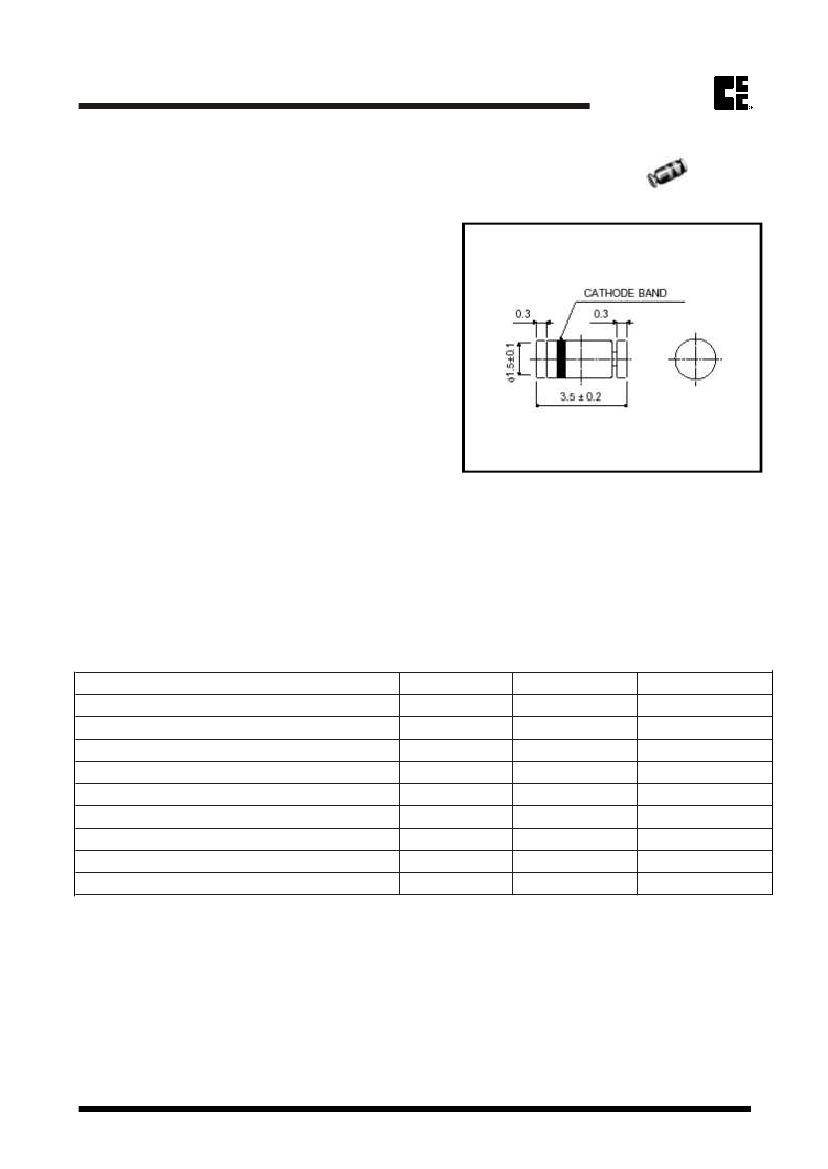

MiniMELF (SOD-80)
Mechanical data
Case: MiniMELF Glass Case (SOD-80)
Approx. Weight: 0.05 g
Dimensions in mm
Maximum Ratings and Thermal Characteristics
(T
Parameter
Zener Current see Table “Characteristics”
Power Dissipation at T
flange
= 50°C
Power Dissipation at T
A
= 50°C
Junction temperature
Storage temperature range
Continuous Forward Current
Thermal Resistance Junction to Ambient Air
Thermal Resistance Junction to Lead
Peak reverse power dissipation (non-repetitive) t
p
= 100µs
Notes:
(1) Mounted on ceramic substrate 10mm x 10mm x 0.6mm
(2) Tj = 150°C
A
= 25°C unless otherwise noted)
Symbol
Value
Unit
P
tot
P
tot
T
J
T
S
I
F
R
θJA
R
θJL
P
ZSM
500
400
(1)
–65 to +200
–65 to +200
250
0.38
(1)
0.30
30
(2)
mW
mW
°C
°C
mA
°C/mW
°C/mW
W
MDS0303006A
Page 1
